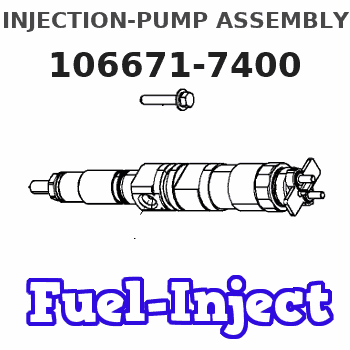

106671-7400 ZEXEL INJECTION-PUMP ASSEMBLY Cross 1066717400 me056610

Illustration 70 g03402776
Install 8T-5389 Elbow (12) using 238-5081 O-Ring Seal (11) and 228-7092 O-Ring Seal (13)
Illustration 71 g03701313
Install 6V-8636 Connector (17) using 214-7568 O-Ring Seal (16) and 228-7089 O-Ring Seal (18). Install 128-6841 Elbow (15) using 238-5082 O-Ring Seal (19) and 228-7092 O-Ring Seal (14).
Illustration 72 g03701321
Reconnect 209-5526 Hose As (20) to the fuel transfer pump
Illustration 73 g03701349
Install 387-7154 Tube As (21) and 387-7159 Tube As (22).
Illustration 74 g03701355
Install 416-9706 Fuel Tube (24) using 338-8439 Clip (23).
Install the remaining components that were removed during the HEUI pump replacement procedure.Installation Procedure for 511, 521, 522, 532, 541 and 552 Track Feller Bunchers
Table 10
Required parts for 532, 541, 541B , 551, 552, and 552B Track Feller Bunchers
Part Number Description Quantity
384-0607 Unit Injector Hydraulic Pump Gp 1
227-5904 O-Ring Seal 1
6V-7981 Bolt 2
6V-5839 Washer 2
387-7153 Tube As 1
387-7151 Tube As 1
6V-8629 Elbow 1
238-5081 O-Ring Seal 1
228-7092 O-Ring Seal 2
128-6841 Elbow 1
238-5082 O-Ring Seal 1
6V-8636 Connector 2
228-7089 O-Ring Seal 2
214-7568 O-Ring Seal 3
360-3679 Connector Plug 1
6V-3305 O-Ring Adapter 1
214-7567 O-Ring Seal 2
Illustration 75 g03402944
Install 6V-3305 O-Ring Adapter (2) using 214-7567 O-Ring Seal (1). Also install new 214-7567 O-Ring Seal (1) to injection actuation pressure sensor.
Illustration 76 g03402955
Install 384-0607 Unit Injector Hydraulic Pump Gp (4) using 227-5904 O-Ring Seal (3). If necessary, in order to aid in installation, rotate the pump to an 8 o'clock position when looking at the engine from the rear.
Illustration 77 g03402984
Install new 6V-7981 Bolts (5) and 6V-5839 Washers (6). Torque to 55 10 N m (41 7 lb ft)
Illustration 78 g03701359
Install the 6V-8636 Connector (12) using 214-7568 O-Ring Seal (11) and 228-7089 O-Ring Seal (13). Install 360-3679 Connector Plug (10) using 214-7568 O-Ring Seal (11). Install 6V-8629 Elbow (8) using 238-5081 O-Ring Seal (7) and 228-7092 O-Ring Seal (9).
Illustration 79 g03701379
Install 128-6841 Elbow (15) using 238-5082 O-Ring Seal (19) and 228-7092 O-Ring Seal (14). Install 6V-8636 Connector (17) using 214-7568 O-Ring Seal (16) and 228-7089 O-Ring Seal (18).
Illustration 80 g03701406
Install 387-7151 Tube As (21) and 387-7153 Tube As (20).
Install the remaining components that were removed during the HEUI pump replacement procedure.
