106671-4590 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066714590 3626533180




Information injection-pump assembly

ZEXEL 106671-4590 1066714590
MITSUBISHI-HEAV 3626533180 3626533180
106671-4590 INJECTION-PUMP ASSEMBLY
Rating:
11
Buy INJECTION-PUMP ASSEMBLY 106671-4590 zexel genuine, new aftermarket engine parts with delivery

Service parts 106671-4590 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106061-5510
3. GOVERNOR 105407-4280
4. SUPPLY PUMP 105207-1370
5. AUTOM. ADVANCE MECHANIS 105681-0231
6. COUPLING PLATE 105662-0710
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-5171
11. Nozzle and Holder 36261-11070
12. Open Pre:MPa(Kqf/cm2) 21.6{220}
13. NOZZLE-HOLDER 105031-4441
14. NOZZLE 105015-4350
15. NOZZLE SET

Include in #1:

106671-4590 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106671-4590 1066714590
MITSUBISHI-HEAV 3626533180 3626533180


Zexel num
Bosch num
Firm num
Name
106671-4590
106671-4591

3626533180  MITSUBISHI-HEAV
INJECTION-PUMP ASSEMBLY
S6BF * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8130
Bosch type code   EFEP215A
Nozzle   105780-0050
Bosch type code   DN6TD119NP1T
Nozzle holder   105780-2090
Bosch type code   EFEP215
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-5-3-6- 2-4
Pre-stroke mm   3.9 3.85 3.95
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   15.5
Pump speed r/min   900 900 900
Average injection quantity mm3/st.   367.7 360.7 374.7
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   4.5+-0.5
Pump speed r/min   300 300 300
Average injection quantity mm3/st.   36 33 39
Max. variation between cylinders %   0 -10 10
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   337 337 357
Fixing the lever   *
Rack limit   *
Timer adjustment
Pump speed r/min   450--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   400
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   650
Advance angle deg.   4 3.5 4.5
Remarks
Finish


Test data Ex:

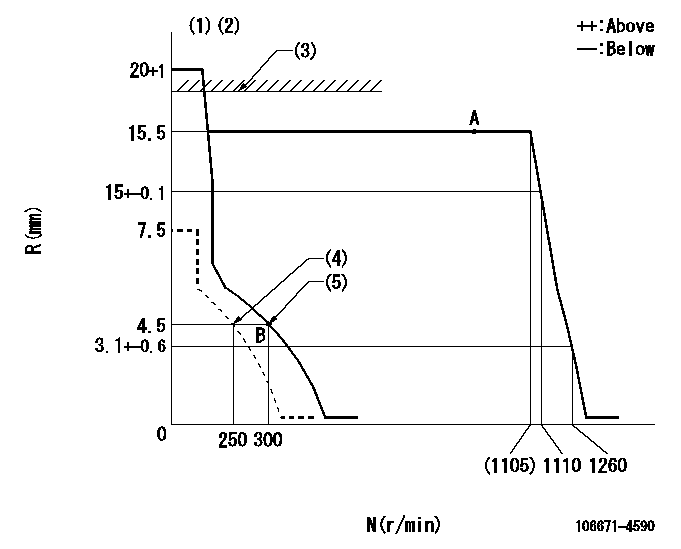

Governor adjustment

Test data 106671-4590
N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting
----------
K=13
----------

Speed control lever angle

Test data 106671-4590
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=20deg+-5deg b=38deg+-5deg

Stop lever angle

Test data 106671-4590
N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=19deg+-5deg b=53deg+-5deg

Timing setting

Test data 106671-4590
(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(90deg)
