106671-2730 ZEXEL 9 400 616 758 BOSCH INJECTION-PUMP ASSEMBLY 9400616758 1066712730 me059587

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 616 758 9400616758

ZEXEL 106671-2730 1066712730

MITSUBISHI ME059587 me059587

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106671-2730 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

BOSCH 9 400 616 758 9400616758

ZEXEL 106671-2730 1066712730

MITSUBISHI ME059587 me059587

Zexel num

Bosch num

Firm num

Name

106671-2730
106671-2890

9 400 616 758

ME059587 MITSUBISHI

INJECTION-PUMP ASSEMBLY
6D22CT * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve opening pressure kPa 255 221 289

Overflow valve opening pressure kgf/cm2 2.6 2.25 2.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-5-3-6- 2-4

Pre-stroke mm 4.8 4.75 4.85

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.5 60.5

Difference between angles 2
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cyl.1-2 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-4 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 8.8

Pump speed r/min 1050 1050 1050

Average injection quantity mm3/st. 123 120 126

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 5.4

Pump speed r/min 225 225 225

Average injection quantity mm3/st. 15 9.8 20.2

Max. variation between cylinders % 0 -15 15

Fixing the rack *

Injection quantity adjustment_03

Adjusting point C

Rack position 11.8+-0. 1

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 135 115 155

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 950--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 900

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1000

Advance angle deg. 1 0.5 1.5

Timer adjustment_04

Pump speed r/min 1100

Advance angle deg. 2 1.5 2.5

Remarks
Finish

Test data Ex:

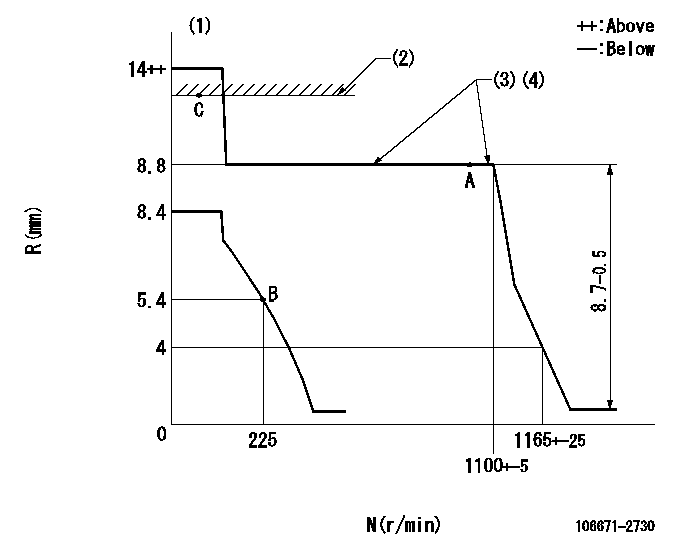

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT (3)Torque spring does not operate. (4)Idle spring not operating.
----------
K=4
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=31deg+-5deg b=9deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=12deg+-5deg b=46deg+-5deg

Timing setting

(1)Pump vertical direction (2)Coupling's key groove position at No 1 cylinder's beginning of injection (3)- (4)-
----------

----------
a=(7deg)
