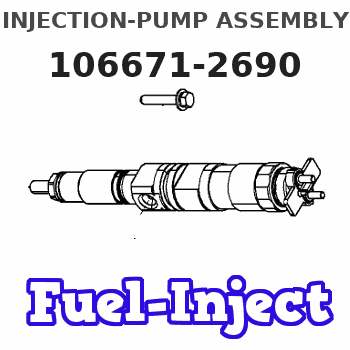

106671-2690 ZEXEL INJECTION-PUMP ASSEMBLY Cross 1066712690 me056324

Flywheel And/Or Front Power Take-Off Clutches
Checking Clutch Adjustment
While engaging the clutch to pick up the load, check the clutch adjustment. The clutch should engage with a hard push and distinct snap. If engagement is "soft", adjust the clutch.Adjusting Clutch Engagement
1. Stop the engine and remove the clutch inspection cover. 2. Turn the clutch until the lock pin, engaged in the locking ring, is visible.3. Pull the lock pin out and rotate the locking ring clockwise until the lock pin pops into the next notch. 4. Test the clutch adjustment. If still too "soft", rotate the ring to the next notch. If the adjustment is too tight-turn the ring back one notch.5. Install the cover.Generator Set
Your electric set engine may be equipped with a Caterpillar SR4 Generator. The SR4 Generator is a brushless design, and therefore requires no periodic maintenance other than lubrication of the rear bearing. See Lubrication Instructions.The generator serial number is stamped on the generator housing. The first group of numbers, reading from the left, indicates the frame size. Following this number are the letters BS, BH or BG. The letter B indicates the generator is of the SR4 design. The letter S, H or G indicates the voltage rating of the generator. The following numerical digits are the serial number of the generator in that particular frame size and voltage rating. A complete explanation of the numbers and letters in the serial number are found in the GENERATOR SET SYSTEMS OPERATION SECTION. Always use the complete serial number in your communications with your Caterpillar dealer.If you have a generator of other than Caterpillar design, see the Manufacturer's Instructions.
GENERATOR SERIAL NUMBER LOCATION
