106671-2630 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066712630 me056308




Information injection-pump assembly

ZEXEL 106671-2630 1066712630
MITSUBISHI ME056308 me056308

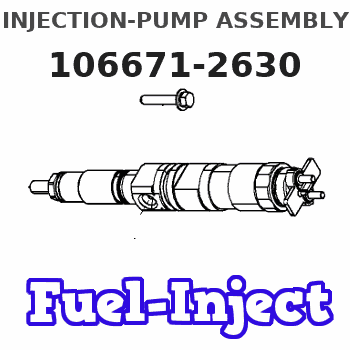

106671-2630 INJECTION-PUMP ASSEMBLY
Rating:
85
Buy INJECTION-PUMP ASSEMBLY 106671-2630 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106671-2630 1066712630
MITSUBISHI ME056308 me056308


Zexel num
Bosch num
Firm num
Name
106671-2630
106671-2820

ME056308  MITSUBISHI
INJECTION-PUMP ASSEMBLY
6D22 * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve opening pressure kPa   255 221 289
Overflow valve opening pressure kgf/cm2   2.6 2.25 2.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-5-3-6- 2-4
Pre-stroke mm   4.8 4.75 4.85
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   -
Rack position   7.6
Pump speed r/min   700 700 700
Each cylinder's injection qty mm3/st.   97 94.2 99.8
Basic   *
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_02
Adjusting point   F
Rack position   5+-0.5
Pump speed r/min   500 500 500
Each cylinder's injection qty mm3/st.   16.5 14 19
Fixing the rack   *
Standard for adjustment of the maximum variation between cylinders   *
Injection quantity adjustment_03
Adjusting point   A
Rack position   R1(7.6)
Pump speed r/min   700 700 700
Average injection quantity mm3/st.   97 96 98
Fixing the lever   *
Injection quantity adjustment_04
Adjusting point   B
Rack position   R1(7.6)
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   111 107 115
Fixing the lever   *
Injection quantity adjustment_05
Adjusting point   C
Rack position   5.7+-0.5
Pump speed r/min   225 225 225
Each cylinder's injection qty mm3/st.   16.5 14 19
Difference in delivery mm3/st.   8 8 8
Fixing the rack   *
Remarks
(check)

Injection quantity adjustment_06
Adjusting point   E
Rack position   -
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   115 95 135
Fixing the lever   *
Timer adjustment
Pump speed r/min   950
Advance angle deg.   0.5
Timer adjustment_02
Pump speed r/min   1050
Advance angle deg.   2.2 1.7 2.7
Timer adjustment_03
Pump speed r/min   1150
Advance angle deg.   5.5 5 6
Remarks
Finish


Test data Ex:

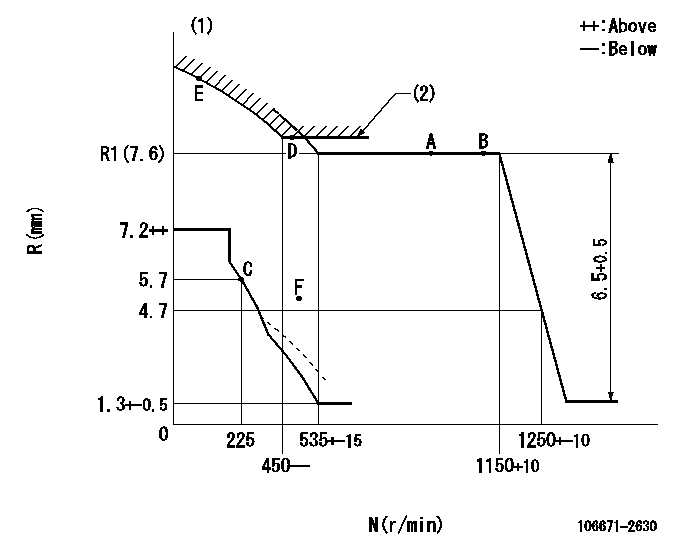

Governor adjustment

Test data 106671-2630
N:Pump speed R:Rack position (mm) (1)Beginning of damper spring operation: DL (2)Excess fuel setting for starting: SXL
----------
DL=4.5-0.2mm SXL=R1(7.6)+0.2mm
----------

Speed control lever angle

Test data 106671-2630
F:Full speed
----------

----------
a=28deg+-5deg

0000000901

Test data 106671-2630
F:Full load I:Idle (1)Stopper bolt setting
----------

----------
a=21deg+-5deg b=23deg+-3deg

Stop lever angle

Test data 106671-2630
N:Pump normal S:Stop the pump. (1)Stopper bolt setting (2)Rack position = aa (3)Rack position bb (4)Free (at shipping)
----------
aa=4.1-0.5mm bb=13.1mm
----------
a=27deg+-5deg b=(56deg)+-5deg c=0deg+7deg-5deg

0000001501 MICRO SWITCH

Adjustment of the micro-switch Adjust the bolt to obtain the following lever position when the micro-switch is ON. (1)Speed N1 (2)Rack position Ra
----------
N1=325+-5r/min Ra=5.4mm
----------
