106671-2430 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066712430 me059528




Information injection-pump assembly

ZEXEL 106671-2430 1066712430
MITSUBISHI ME059528 me059528
106671-2430 INJECTION-PUMP ASSEMBLY
Rating:
39
Buy INJECTION-PUMP ASSEMBLY 106671-2430 zexel genuine, new aftermarket engine parts with delivery

Service parts 106671-2430 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106067-5502
3. GOVERNOR 105408-0160
4. SUPPLY PUMP 105237-4020
5. AUTOM. ADVANCE MECHANIS 105636-0120
6. COUPLING PLATE 105662-0710
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105100-4982
11. Nozzle and Holder ME056146
12. Open Pre:MPa(Kqf/cm2) 21.6{220}
13. NOZZLE-HOLDER 105031-3642
14. NOZZLE 105015-4590
15. NOZZLE SET

Include in #1:

106671-2430 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 106671-2430 1066712430
MITSUBISHI ME059528 me059528


Zexel num
Bosch num
Firm num
Name
106671-2430

ME059528  MITSUBISHI
INJECTION-PUMP ASSEMBLY
6D22CT * K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve opening pressure kPa   157 123 191
Overflow valve opening pressure kgf/cm2   1.6 1.25 1.95
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-5-3-6- 2-4
Pre-stroke mm   4.8 4.75 4.85
Beginning of injection position
Governor side
  NO.1
Difference between angles 1
Cal 1-5
deg.   60 59.5 60.5
Difference between angles 2
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 3
Cal 1-6
deg.   180 179.5 180.5
Difference between angles 4
Cyl.1-2
deg.   240 239.5 240.5
Difference between angles 5
Cal 1-4
deg.   300 299.5 300.5
Injection quantity adjustment
Adjusting point   A
Rack position   9.4
Pump speed r/min   700 700 700
Average injection quantity mm3/st.   113 110 116
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   5.5+-0.5
Pump speed r/min   225 225 225
Average injection quantity mm3/st.   20.6 18 23.2
Max. variation between cylinders %   0 -15 15
Fixing the rack   *
Injection quantity adjustment_03
Adjusting point   C
Rack position   11.6+-0. 5
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   140 120 160
Fixing the lever   *
Timer adjustment
Pump speed r/min   750
Advance angle deg.   0.5
Timer adjustment_02
Pump speed r/min   800
Advance angle deg.   1
Timer adjustment_03
Pump speed r/min   -
Advance angle deg.   4 3.5 4.5
Remarks
Measure the actual speed, stop


Test data Ex:

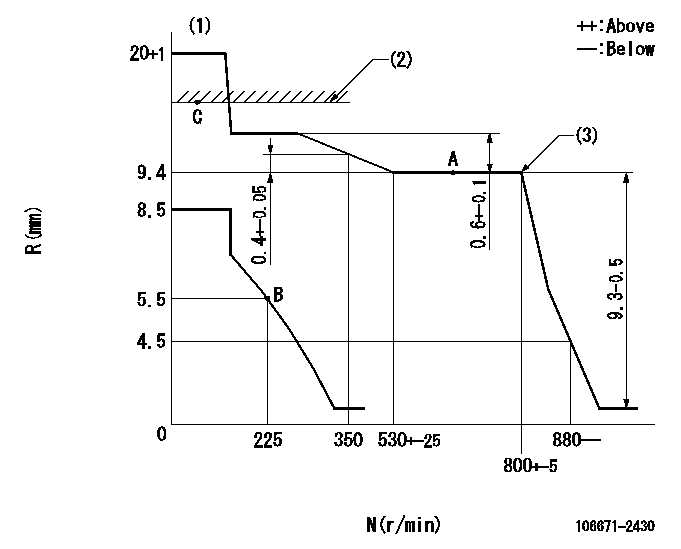

Governor adjustment

Test data 106671-2430
N:Pump speed R:Rack position (mm) (1)Target notch: K (2)RACK LIMIT (3)Torque spring does not operate.
----------
K=18
----------

Speed control lever angle

Test data 106671-2430
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=2.5deg+-5deg b=20deg+-5deg

Stop lever angle

Test data 106671-2430
N:Pump normal S:Stop the pump.
----------

----------
a=12deg+-5deg b=46deg+-5deg




Information:
