106671-1942 ZEXEL 9 400 616 737 BOSCH INJECTION-PUMP ASSEMBLY 9400616737 1066711942 1156029491




Information injection-pump assembly

BOSCH 9 400 616 737 9400616737
ZEXEL 106671-1942 1066711942
ISUZU 1156029491 1156029491
106671-1942 INJECTION-PUMP ASSEMBLY
Rating:
72
Buy INJECTION-PUMP ASSEMBLY 106671-1942 zexel genuine, new aftermarket engine parts with delivery

Service parts 106671-1942 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 106067-0300
3. GOVERNOR 105489-4692
4. SUPPLY PUMP 105237-1430
5. AUTOM. ADVANCE MECHANIS 105636-2450
6. COUPLING PLATE 105663-0220
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105101-7760
11. Nozzle and Holder 1-15300-327-0
12. Open Pre:MPa(Kqf/cm2) 17.7{180}/23.5{240}
13. NOZZLE-HOLDER 105030-4341
14. NOZZLE 105015-9190
15. NOZZLE SET

Include in #1:

106671-1942 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 616 737 9400616737
ZEXEL 106671-1942 1066711942
ISUZU 1156029491 1156029491


Zexel num
Bosch num
Firm num
Name
106671-1942
9 400 616 737
1156029491  ISUZU
INJECTION-PUMP ASSEMBLY
6RB1-TC K

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   8-3-600
Overflow valve   134424-1920
Overflow valve opening pressure kPa   127 107 147
Overflow valve opening pressure kgf/cm2   1.3 1.1 1.5
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-4-2-6- 3-5
Pre-stroke mm   3.8 3.77 3.83
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-4
deg.   60 59.75 60.25
Difference between angles 2
Cyl.1-2
deg.   120 119.75 120.25
Difference between angles 3
Cal 1-6
deg.   180 179.75 180.25
Difference between angles 4
Cal 1-3
deg.   240 239.75 240.25
Difference between angles 5
Cal 1-5
deg.   300 299.75 300.25
Injection quantity adjustment
Adjusting point   A
Rack position   11.7
Pump speed r/min   750 750 750
Average injection quantity mm3/st.   201 199 203
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Boost pressure kPa   30 30
Boost pressure mmHg   225 225
Injection quantity adjustment_02
Adjusting point   B
Rack position   10.75
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   186.5 183.5 189.5
Fixing the lever   *
Boost pressure kPa   30 30
Boost pressure mmHg   225 225
Injection quantity adjustment_03
Adjusting point   C
Rack position   5.4+-0.5
Pump speed r/min   265 265 265
Average injection quantity mm3/st.   17 13.8 20.2
Max. variation between cylinders %   0 -13 13
Fixing the rack   *
Boost pressure kPa   0 0 0
Boost pressure mmHg   0 0 0
Injection quantity adjustment_04
Adjusting point   D
Rack position   11.35
Pump speed r/min   500 500 500
Average injection quantity mm3/st.   196.5 190.5 202.5
Fixing the lever   *
Boost pressure kPa   30 30
Boost pressure mmHg   225 225
Injection quantity adjustment_05
Adjusting point   E
Rack position   -
Pump speed r/min   150 150 150
Average injection quantity mm3/st.   145 145
Fixing the lever   *
Boost pressure kPa   0 0 0
Boost pressure mmHg   0 0 0
Boost compensator adjustment
Pump speed r/min   500 500 500
Rack position   9.25
Boost pressure kPa   5.3 5.3 6.6
Boost pressure mmHg   40 40 50
Boost compensator adjustment_02
Pump speed r/min   500 500 500
Rack position   11.35
Boost pressure kPa   16.7 10 23.4
Boost pressure mmHg   125 75 175
Timer adjustment
Pump speed r/min   700--
Advance angle deg.   0 0 0
Remarks
Start

Timer adjustment_02
Pump speed r/min   650
Advance angle deg.   0.5
Timer adjustment_03
Pump speed r/min   900
Advance angle deg.   3 2.5 3.5
Remarks
Finish


Test data Ex:

Governor adjustment

Test data 106671-1942

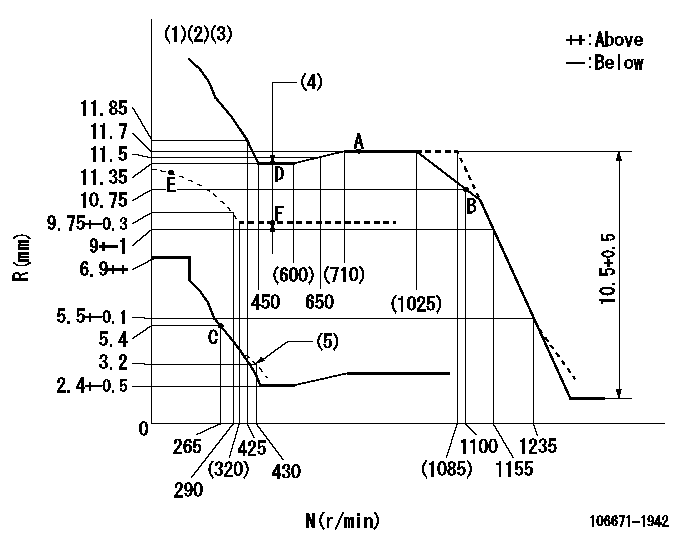

N:Pump speed R:Rack position (mm) (1)Lever ratio: RT (2)Target shim dimension: TH (3)Tolerance for racks not indicated: +-0.05mm. (4)Boost compensator stroke: BCL (5)Damper spring setting
----------
RT=1 TH=2.3mm BCL=2.1+-0.1mm
----------

Speed control lever angle

Test data 106671-1942
F:Full speed
----------

----------
a=3.5deg+-5deg

0000000901

Test data 106671-1942
F:Full load I:Idle (1)Use the hole at R = aa (2)Stopper bolt setting (3)When load lever is cancelled.
----------
aa=32mm
----------
a=30deg+-5deg b=33deg+-3deg c=(8.5deg)

Stop lever angle

Test data 106671-1942
N:Pump normal S:Stop the pump. (1)Drive side
----------

----------
a=32deg+-5deg b=64deg+-5deg

Timing setting

Test data 106671-1942
(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=15deg
----------
a=(70deg)
