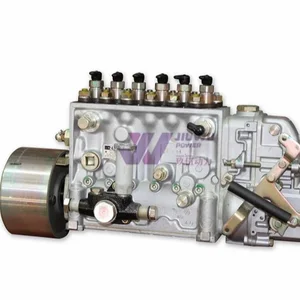

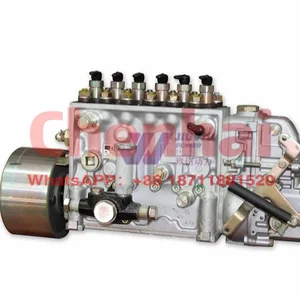

106671-1610 ZEXEL 9 400 610 175 BOSCH INJECTION-PUMP ASSEMBLY 9400610175 1066711610 1156025530

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 610 175 9400610175

ZEXEL 106671-1610 1066711610

ISUZU 1156025530 1156025530

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106671-1610 zexel genuine, new aftermarket engine parts with delivery

Service parts 106671-1610 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 106061-5080

3. GOVERNOR 105407-4110

4. SUPPLY PUMP 105207-1370

5. AUTOM. ADVANCE MECHANIS 105635-0290

6. COUPLING PLATE 105662-0990

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105101-5171

11. Nozzle and Holder 1-15300-186-1

12. Open Pre:MPa(Kqf/cm2) 19.6{200}

13. NOZZLE-HOLDER 105030-3201

14. NOZZLE 105015-6670

15. NOZZLE SET

Include in #1:

106671-1610 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 610 175 9400610175

ZEXEL 106671-1610 1066711610

ISUZU 1156025530 1156025530

Zexel num

Bosch num

Firm num

Name

106671-1610

9 400 610 175

1156025530 ISUZU

INJECTION-PUMP ASSEMBLY
6SD1-T K 14CA INJECTION PUMP ASSY PE6P,6PD PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 134424-1920

Overflow valve opening pressure kPa 127 107 147

Overflow valve opening pressure kgf/cm2 1.3 1.1 1.5

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Direction of rotation (viewed from drive side)
Left L

Injection order 1-5-3-6- 2-4

Pre-stroke mm 3.7 3.67 3.73

Beginning of injection position
Governor side NO.1

Difference between angles 1
Cal 1-5 deg. 60 59.75 60.25

Difference between angles 2
Cal 1-3 deg. 120 119.75 120.25

Difference between angles 3
Cal 1-6 deg. 180 179.75 180.25

Difference between angles 4
Cyl.1-2 deg. 240 239.75 240.25

Difference between angles 5
Cal 1-4 deg. 300 299.75 300.25

Injection quantity adjustment

Adjusting point A

Rack position 6.8

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 121 119 123

Max. variation between cylinders % 0 -3 3

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point C

Rack position 4.1+-0.5

Pump speed r/min 365 365 365

Average injection quantity mm3/st. 8.8 5.6 12

Max. variation between cylinders % 0 -13 13

Fixing the rack *

Injection quantity adjustment_03

Adjusting point D

Rack position -

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 80 80 100

Fixing the lever *

Rack limit *

Timer adjustment

Pump speed r/min 900--

Advance angle deg. 0 0 0

Remarks
Start

Timer adjustment_02

Pump speed r/min 850

Advance angle deg. 0.5

Timer adjustment_03

Pump speed r/min 1120

Advance angle deg. 1 0.5 1.5

Remarks
Finish

Test data Ex:

Governor adjustment

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Tolerance for racks not indicated: +-0.05mm. (3)RACK LIMIT (4)Set idle sub-spring (5)Main spring setting
----------
K=15
----------

Speed control lever angle

F:Full speed I:Idle S:Stop (1)Seal at shipping.
----------

----------
a=12deg+-5deg b=28deg+-5deg c=32deg+-3deg

Stop lever angle

N:Pump normal S:Stop the pump. (1)Normal
----------

----------
a=19deg+-5deg b=53deg+-5deg

Timing setting

(1)Pump vertical direction (2)Position of timer's threaded hole at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(50deg)

Information:

1. Drain the coolant and oil from the engine.2. Remove bolt (1) and retainer (2) that hold the oil lines in the BrakeSaver control valve. 3. Disconnect oil lines (3) and (4) from the oil cooler. Remove oil lines (3) and (4) from the BrakeSaver control valve.4. Fasten a hoist to the oil cooler. 5. Remove two bolts (8) to disconnect elbow (10) from front bonnet (9). Remove two bolts (7) to disconnect front bonnet (9) from the water pump.6. Remove four bolts (5) to disconnect the rear bonnet from the cylinder block. Disconnect bracket (12).7. Remove oil cooler (11), front bonnet (9) and rear bonnet (6) from the engine as a unit. The weight is approximately 54 kg (120 lb.).8. Make a separation of front bonnet (9) and rear bonnet (6) from oil cooler (11). 9. Clean oil cooler core tubes (13) with a 3.81 mm (.150 in.) diameter rod.Install Oil Cooler (BrakeSaver)
1. Inspect all O-ring seals and gaskets for damage, and make replacements if needed. Put clean engine oil on the O-ring seals. 2. Install rear bonnet (1) and front bonnet (3) on oil cooler (2).3. Fasten a hoist, and put the oil cooler and bonnets as a unit in place on the engine. Connect bracket (4), but do not tighten the bolts at this time.4. Install the gasket and four bolts (4) that hold rear bonnet (1) to the engine block. Do not tighten the bolts at this time.5. Install the gasket and two bolts (5) that hold front bonnet (3) to the water pump. Do not tighten the bolts at this time.6. Install the gasket and bolts (6) that hold elbow (7) to the front bonnet. Tighten all the bolts. 7. Make sure the O-ring seals are in place on the oil lines, and install oil lines (8) and (9). 8. Install retainer (10) to hold the oil lines in the BrakeSaver control valve. If the bottom plug in the oil pan was removed, put the split (seam) of the gasket for the plug against the oil pan. If either plug on the side of the oil pan was removed, put 5P3413 Thread Sealant With Teflon on the threads, and tighten the plug to a torque of 80 11 N m (60 8 lb.ft.).9. Fill the engine with coolant and oil. See the Maintenance Guide.
