106662-4132 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1066624132

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 106662-4132 1066624132

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 106662-4132 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 106662-4132 1066624132

Zexel num

Bosch num

Firm num

Name

106662-4132

INJECTION-PUMP ASSEMBLY

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 8-3-600

Overflow valve 131424-1520

Overflow valve opening pressure kPa 157 123 191

Overflow valve opening pressure kgf/cm2 1.6 1.25 1.95

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-4-2-6- 3-5

Pre-stroke mm 3.3 3.25 3.35

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-4 deg. 60 59.5 60.5

Difference between angles 2
Cyl.1-2 deg. 120 119.5 120.5

Difference between angles 3
Cal 1-6 deg. 180 179.5 180.5

Difference between angles 4
Cal 1-3 deg. 240 239.5 240.5

Difference between angles 5
Cal 1-5 deg. 300 299.5 300.5

Injection quantity adjustment

Adjusting point A

Rack position 9.6

Pump speed r/min 600 600 600

Each cylinder's injection qty mm3/st. 151.3 148.7 153.9

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 5.5+-0.5

Pump speed r/min 250 250 250

Each cylinder's injection qty mm3/st. 19.4 17.5 21.3

Fixing the rack *

Test data Ex:

Governor adjustment

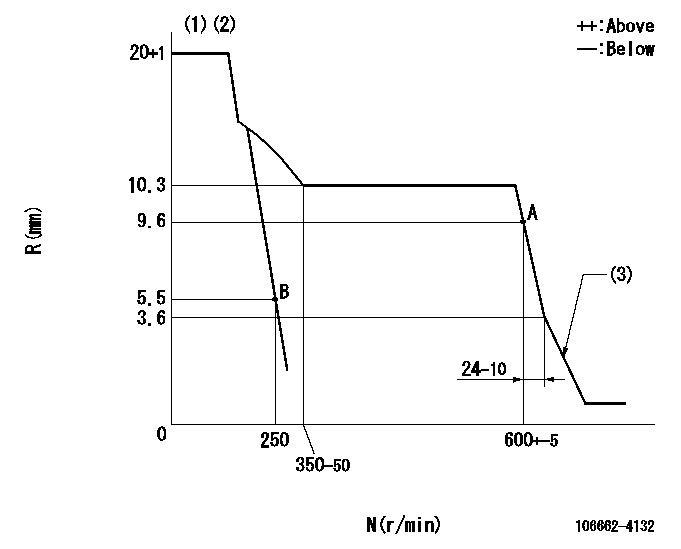

N:Pump speed R:Rack position (mm) (1)Target notch: K (2)Confirm that the rack is pulled back to R = R1 or less at solenoid operation (N = 0). (3)Idle sub spring setting: L1.
----------
K=7 R1=3.5mm L1=3.6-0.5mm
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=20deg+-5deg b=24deg+-5deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=20deg+-5deg b=53deg+-5deg
