Buy 104780-9851 ZEXEL 9 460 614 860 BOSCH INJECTION-PUMP ASSEMBLY 9460614860 1047809851 16700na002




Information injection-pump assembly

BOSCH 9 460 614 860 9460614860
ZEXEL 104780-9851 1047809851
NISSAN-DIESEL 16700NA002 16700na002
104780-9851 INJECTION-PUMP ASSEMBLY
Rating:
77
Buy INJECTION-PUMP ASSEMBLY 104780-9851 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

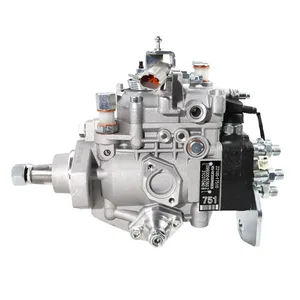

Diesel Engine Fuel Injection Pump 104780-9851 Compatible For Nissan TD27 QD32 Engine
$1,541.34

23 Feb 2025
0.1102[0.05] pounds
CN: dlouasw
Diesel Engine Fuel Injection Pump 104780-9851 Compatible For Nissan TD27 QD32 Engine
DENGUSYO Diesel Engine Fuel Injection Pump 104780-9851 Compatible For Nissan TD27 QD32 Engine || Stable pressure Can provide stable fuel pressure, ensuring precise injection of fuel into the engine cylinder. For example, under different working conditions of the car (such as idle, acceleration, climbing, etc.), the fuel pump can supply fuel at an appropriate pressure, allowing the engine to burn more fully and the power output to be more stable. || Efficient fuel delivery The fuel pump operates efficiently and can quickly deliver fuel from the tank to the engine. Like a powerful 'small water pump', it can timely meet the engine's fuel demand and ensure the continuous and stable operation of the engine. || Good durability Usually made of good materials and advanced manufacturing processes, it can withstand the corrosion of fuel and wear during long-term operation. This means that it can work stably throughout the entire life cycle of the car, reducing the frequency of maintenance and replacement. || Energy saving: Some advanced fuel pumps can intelligently adjust the fuel delivery amount according to the actual needs of the engine, avoiding fuel waste and helping to improve the fuel economy of cars.

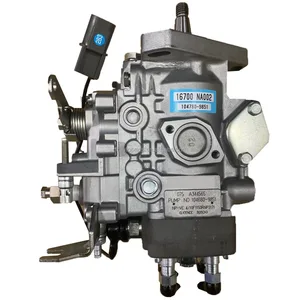

Diesel Fuel injection Pump 104680-9851 Compatible for N I SSAN DIESEL TD27 engine 16700NA002
$2,169.70

23 Feb 2025
0.1102[0.05] pounds
CN: zaishengxia shop
Diesel Fuel injection Pump 104680-9851 Compatible for N I SSAN DIESEL TD27 engine 16700NA002
CDFDKMGP Improve combustion efficiency and reduce fuel consumption. || Reduce the emission of harmful substances in the tail gas, which is conducive to environmental protection. || Space saving: Compact design for easy installation and placement in the engine compartment of the vehicle. || Our fuel pump efficiently transfers fuel to the engine, which will enhance your vehicle's performance and fuel efficiency. || The material of diesel fuel pump is usually made of wear-resistant and corrosion-resistant materials to maintain a long service life.
ORCU Driven by True Quality Orcu - Forklift FPE281230 Fuel Pump-ZEXEL TD27 Orcu OEM - New
$1,754.50

25 Dec 2024
13.35[6.01] Pounds
Amazon.com
ORCU Driven by True Quality Orcu - Forklift FPE281230 Fuel Pump-ZEXEL TD27 Orcu OEM - New
ORCU Driven by True Quality HIGH-QUALITY CONSTRUCTION: Made with premium materials; built to withstand the demands of industrial environments; offering excellent resistance to wear; corrosion; and mechanical stress. || VERSATILE COMPATIBILITY: Engineered to fit a wide range of forklift models; making it a versatile choice for various equipment configurations. || SAFETY FIRST - FPE products are ready for use with all certifications. || LEADING THE INDUSTRY - FPE is a leader in forklift products and accessories. We take pride in making the highest quality, premium, reliable forklifts on the market. || All products tested for durability, reliability, and performance.

Components :

0. INJECTION-PUMP ASSEMBLY 104780-9851
1. _
2. FUEL INJECTION PUMP 104680-9851
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105148-1121
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2) 9.8{100}
10. NOZZLE-HOLDER 105078-0050
11. NOZZLE 105007-1130

Scheme ###:

PACKING RING
1/6. [1] 146601-0900 PACKING RING
6. [1] 146100-0020 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0020 DRIVE SHAFT
12/1. [1] 146200-0000 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-1720 ROLLER SET
24. [1] 146303-0100 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-2120 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0000 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3600 COMPRESSION SPRING
34B. [1] 146302-3500 COMPRESSION SPRING
34C. [1] 146302-3700 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM D17&5.2T2.1
48/1. [1] 146690-5900 SHIM D17&5.2T2.2
48/1. [1] 146690-6000 SHIM D17&5.2T2.3
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM D17&5.2T2.6
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM D17&5.2T2.9
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM D17&5.2T3.2
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM D17&5.2T3.4
48/1. [1] 146690-7200 SHIM D17&5.2T0.4
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM D17&5.2T0.7
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM D17&5.2T0.2
49. [2] 146234-0500 GUIDE PIN
50. [1] 146401-0520 HYDRAULIC HEAD
50. [1] 146401-0520 HYDRAULIC HEAD
50. [1] 146401-0520 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0320 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0220 FITTING
60. [4] 139106-0100 FLAT-HEAD SCREW
67. [1] 146822-0220 GOVERNOR COVER
67/1. [1] 146805-2120 GOVERNOR COVER
67/2. [1] 146515-0320 CONTROL SHAFT
67/3. [1] 146600-0100 O-RING
67/4. [2] 139310-0200 PLAIN WASHER
67/4. [2] 139310-0200 PLAIN WASHER
67/5. [1] 146530-0000 CONTROL LEVER
67/5B. [1] 146530-0100 CONTROL LEVER
67/5C. [1] 146832-1500 CONTROL LEVER
67/5D. [1] 146832-1600 CONTROL LEVER
67/6. [2] 014110-6440 LOCKING WASHER
67/6. [2] 014110-6440 LOCKING WASHER
67/7. [1] 013020-6040 UNION NUT M6P1H5
67/8. [1] 146515-1820 LEVER SHAFT
67/9. [1] 146592-0400 COILED SPRING
67/10. [1] 146600-0200 O-RING
67/11. [1] 146602-0100 PLAIN WASHER D14&10.1T1.50
67/12. [1] 146540-4000 CONTROL LEVER
67/12B. [1] 146540-4100 CONTROL LEVER
67/13. [1] 146621-1700 UNION NUT
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-2800 BLEEDER SCREW
67/16. [1] 146526-6400 BLEEDER SCREW
67/18. [1] 146594-0600 COILED SPRING
67/19. [1] 146541-0000 ANGLE PIECE
67/25. [2] 013020-6040 UNION NUT M6P1H5
67/25. [2] 013020-6040 UNION NUT M6P1H5
67/26. [1] 139006-0200 BLEEDER SCREW
67/78. [1] 146600-4400 SEAL RING
67/104. [1] 146936-1100 BRACKET
67/105. [1] 010206-1040 HEX-SOCKET-HEAD CAP SCREW
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
95. [1] 146861-0120 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-2600 PLAIN WASHER D34&13T1.0
115. [1] 146976-0700 SLIDING SLEEVE
116. [1] 146576-0400 CAP
117/1. [1] 146877-0820 PLUG
117/1. [1] 146877-0920 PLUG
117/1. [1] 146877-1020 PLUG
117/1. [1] 146877-1120 PLUG
117/1. [1] 146877-1220 PLUG
117/1. [1] 146877-1320 PLUG
117/1. [1] 146877-1420 PLUG
117/1. [1] 146877-1520 PLUG
117/1. [1] 146877-1620 PLUG
117/1. [1] 146877-1720 PLUG
117/1. [1] 146877-1820 PLUG
117/1. [1] 146877-1920 PLUG
117/1. [1] 146877-2020 PLUG
117/1. [1] 146877-2120 PLUG
117/1. [1] 146877-2220 PLUG
117/1. [1] 146877-2320 PLUG
117/1. [1] 146877-2420 PLUG
117/1. [1] 146877-2520 PLUG
117/1. [1] 146877-2620 PLUG
117/1. [1] 146877-2720 PLUG
117/1. [1] 146877-2820 PLUG
117/1. [1] 146877-2920 PLUG
117/1. [1] 146877-3020 PLUG
117/1. [1] 146877-3120 PLUG
117/1. [1] 146877-3220 PLUG
117/1. [1] 146877-3320 PLUG
117/1. [1] 146877-3420 PLUG
117/1. [1] 146877-3520 PLUG
117/1. [1] 146877-3620 PLUG
117/1. [1] 146877-3720 PLUG
117/1. [1] 146877-3820 PLUG
117/1. [1] 146877-3920 PLUG
117/1. [1] 146877-4020 PLUG
117/1. [1] 146877-4120 PLUG
117/1. [1] 146877-4220 PLUG
120. [1] 146579-2720 RETAINING PIN
120B. [1] 146579-2820 RETAINING PIN
120C. [1] 146579-2120 RETAINING PIN
122. [1] 146580-3900 GOVERNOR SPRING
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0120 OVER FLOW VALVE
200. [1] 146206-0100 COILED SPRING
240. [1] 146650-0720 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146662-8320 WIRE
243. [1] 146621-4901 UNION NUT
246. [1] 027412-2440 EYE BOLT
800S. [1] 146009-9220 PUMP HOUSING
800S/1/6. [1] 146601-0900 PACKING RING
804S. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0320 PARTS SET
810S. [1] 146600-1120 REPAIR SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
906. [1] 146984-4600 NAMEPLATE

Include in #2:

104780-9851 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104780-9851
9 460 614 860
16700NA002  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE




Information:

Introduction
This Special Instruction covers the removal procedure for DEF connectors on the models and applications listed above.Safety Section
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, PERJ1017, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat® products.Dispose of all fluids according to local regulations and mandates.
Personal injury or death can result from improperly checking for a leak.Always use a board or cardboard when checking for a leak. Escaping air or fluid under pressure, even a pin-hole size leak, can penetrate body tissue causing serious injury, and possible death.If fluid is injected into your skin, it must be treated immediately by a doctor familiar with this type of injury.
Illustration 1 g00104545Prevent the machine from movement. Park the machine on a level surface.Attach a "Do Not Operate" warning tag or a similar warning tag to the start switch or to the controls before you service the equipment. These warning tags (Special Instruction, SEHS7332) are available from your Caterpillar dealer.Removal Procedure for Single Clip Connectors
Illustration 2 g03468077
(1) Line
(2) Retaining Clip
Clean the area around the connector with compressed air. Be sure to remove any dirt or debris before continuing with this procedure.
Press down on the line (1).
Press IN on the retaining clip (2).
Gently pull straight up on the line.Note: Do not pull out the clip, damage will occur to the retaining clip.Note: Do not pull off the line without the clip being fully depressed, damage will occur to the retaining clip.Removal Procedure for Dual Clip Connectors
Illustration 3 g03468506
(1) Line
(2) Retaining Clips
Clean the area around the connector with compressed air. Be sure to remove any dirt or debris before continuing with this procedure.
Press down on the line (1).
Press IN on the retaining clips (2).
Gently pull straight up on the line.Note: Do not pull out the clip, damage will occur to the retaining clip.Note: Do not pull off the line without the clip being fully depressed, damage will occur to the retaining clip.

Have questions with 104780-9851?





Group cross 104780-9851 ZEXEL

Nissan-Diesel

104780-9800
9 460 614 800
1670074P05
INJECTION-PUMP ASSEMBLY
TD27
104780-9810
9 460 614 801
1670086P17
INJECTION-PUMP ASSEMBLY
TD27-T
104780-9820
9 460 614 034
167003S306
INJECTION-PUMP ASSEMBLY
TD25

Dpico

104780-9830



104780-9840



Nissan-Diesel

104780-9850

104780-9851
9 460 613 998
1670040K11
INJECTION-PUMP ASSEMBLY
TD27
104780-9851
9 460 614 860
16700NA002
INJECTION-PUMP ASSEMBLY
TD27
104780-9860

104780-9861
9 460 614 022

INJECTION-PUMP ASSEMBLY

Nissan-Diesel

104780-9861

104780-9862
9 460 614 802
167003S814
INJECTION-PUMP ASSEMBLY
TD27
104780-9862
9 460 614 995
167003S816
INJECTION-PUMP ASSEMBLY
TD27

Dpico

104780-9870



104780-9880



Back to top
