104780-9760 ZEXEL 9 460 614 021 BOSCH INJECTION-PUMP ASSEMBLY 9460614021 1047809760 1670043g72




Information injection-pump assembly

BOSCH 9 460 614 021 9460614021
ZEXEL 104780-9760 1047809760
NISSAN-DIESEL 1670043G72 1670043g72
104780-9760 INJECTION-PUMP ASSEMBLY
Rating:
67
Buy INJECTION-PUMP ASSEMBLY 104780-9760 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104780-9760
1. _
2. FUEL INJECTION PUMP 104680-9760
3. NUMBER PLATE 146983-4500
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105148-1221
8. Nozzle and Holder 16600-63G01
9. Open Pre:MPa(Kqf/cm2) 9.8{100}
10. NOZZLE-HOLDER 105078-0050
11. NOZZLE 105007-1210

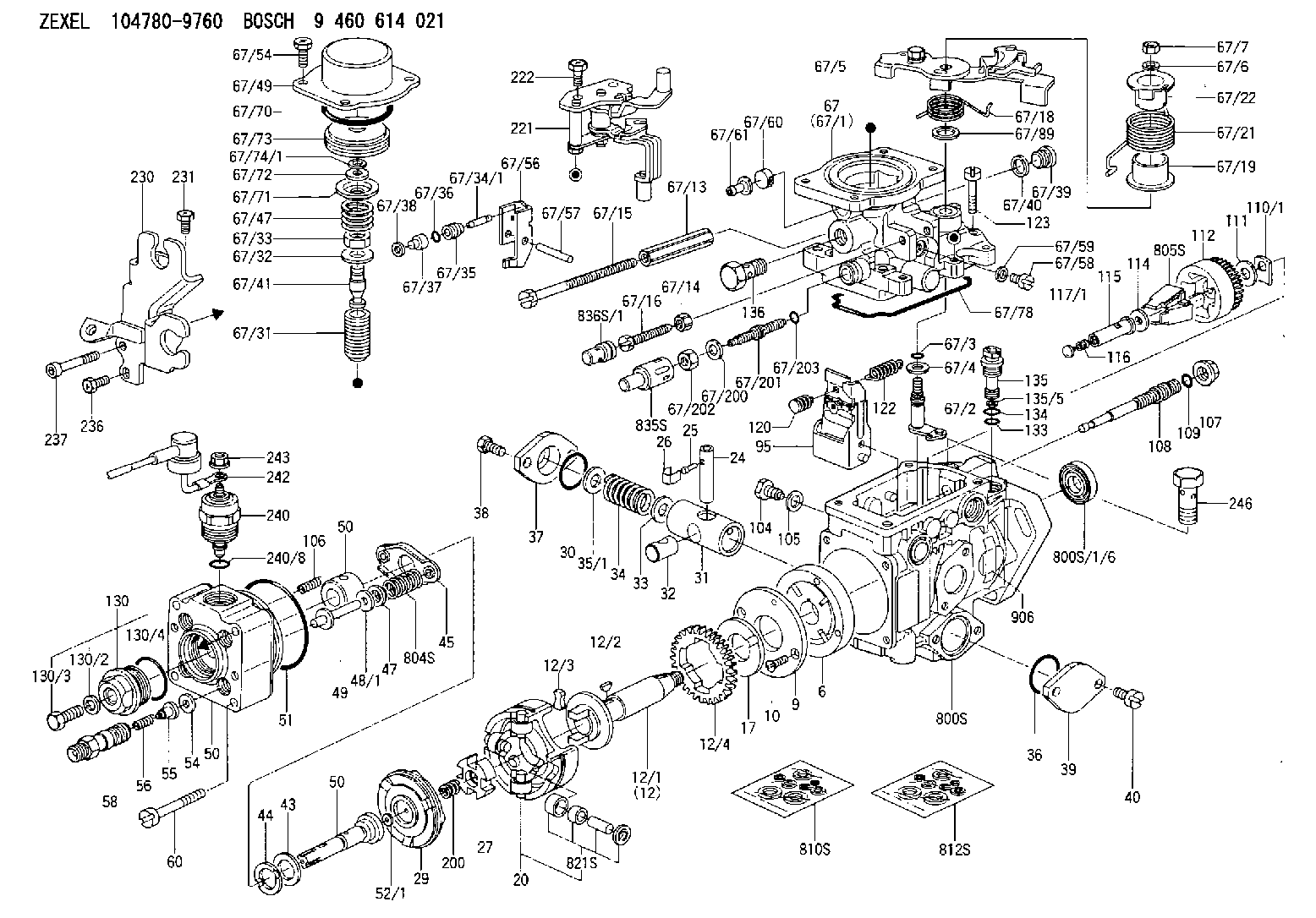

Scheme ###:

PACKING RING
1/6. [1] 146601-0900 PACKING RING
6. [1] 146100-0020 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0020 DRIVE SHAFT
12/1. [1] 146200-0000 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-1720 ROLLER SET
24. [1] 146303-0100 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-2120 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0500 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3600 COMPRESSION SPRING
34B. [1] 146302-3700 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM D17&5.2T2.1
48/1. [1] 146690-5900 SHIM D17&5.2T2.2
48/1. [1] 146690-6000 SHIM D17&5.2T2.3
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM D17&5.2T2.6
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM D17&5.2T2.9
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM D17&5.2T3.2
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM D17&5.2T3.4
48/1. [1] 146690-7200 SHIM D17&5.2T0.4
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM D17&5.2T0.7
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM D17&5.2T0.2
49. [2] 146234-0500 GUIDE PIN
50. [1] 146401-2120 HYDRAULIC HEAD
50. [1] 146401-2120 HYDRAULIC HEAD
50. [1] 146401-2120 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0320 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0220 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
67. [1] 146706-1820 ANEROID CAPSULE
67/1. [1] 146508-9921 GOVERNOR COVER
67/2. [1] 146515-2820 CONTROL SHAFT
67/3. [1] 146600-0100 O-RING
67/4. [1] 139310-0200 PLAIN WASHER
67/5. [1] 146537-6120 CONTROL LEVER
67/6. [1] 014110-6440 LOCKING WASHER
67/7. [1] 013020-6040 UNION NUT M6P1H5
67/13. [1] 139206-0100 UNION NUT
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-4200 BLEEDER SCREW
67/16. [1] 146526-3000 BLEEDER SCREW
67/18. [1] 146587-6900 COILED SPRING
67/19. [1] 146541-3000 BUSHING
67/21. [1] 146587-6800 COILED SPRING
67/22. [1] 146541-3100 SLOTTED WASHER
67/31. [1] 146710-0400 BUSHING
67/32. [1] 146602-1800 PLAIN WASHER D31.3&19T1
67/33. [1] 146716-0200 UNION NUT
67/34/1. [1] 146713-1000 BEARING PIN L24.6
67/34/1. [1] 146713-1100 BEARING PIN L24.8
67/34/1. [1] 146713-1200 BEARING PIN L25.0
67/34/1. [1] 146713-1300 BEARING PIN L25.2
67/34/1. [1] 146713-1400 BEARING PIN L25.4
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-0100 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-2400 ADJUSTING PIN
67/47. [1] 146717-0200 COILED SPRING
67/49. [1] 146721-0700 COVER
67/54. [4] 139006-4400 BLEEDER SCREW
67/56. [1] 146723-0300 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0400 CAPSULE
67/70. [1] 016520-6010 O-RING
67/71. [1] 146714-0100 SLOTTED WASHER
67/72. [1] 016010-0920 LOCKING WASHER
67/73. [1] 146715-0120 BELLOWS
67/74/1. [0] 146603-3700 SHIM T0.20
67/74/1. [0] 146603-3800 SHIM T0.30
67/74/1. [0] 146603-3900 SHIM T0.50
67/74/1. [0] 146603-4000 SHIM T0.70
67/74/1. [0] 146603-4100 SHIM T1.00
67/74/1. [0] 146603-4200 SHIM T1.50
67/78. [1] 146600-4400 SEAL RING
67/89. [1] 146541-4900 PLAIN WASHER D20&10T0.5
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
95. [1] 146551-9820 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-2500 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
120. [1] 146579-6020 RETAINING PIN
122. [1] 146580-0400 GOVERNOR SPRING
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0020 OVER FLOW VALVE
200. [1] 146206-0100 COILED SPRING
221. [1] 146925-6920 BRACKET
222. [2] 139006-4600 BLEEDER SCREW
230. [1] 146926-4220 BRACKET
231. [1] 139006-4600 BLEEDER SCREW
236. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-0720 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-6120 WIRE
243. [1] 146621-4901 UNION NUT
246. [1] 027412-2440 EYE BOLT
800S. [1] 146019-4420 PUMP HOUSING
800S/1/6. [1] 146601-0900 PACKING RING
804S. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
812S. [1] 146600-2220 PARTS SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
906. [1] 146983-4500 NAMEPLATE

Include in #2:

104780-9760 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 614 021 9460614021
ZEXEL 104780-9760 1047809760
NISSAN-DIESEL 1670043G72 1670043g72


Zexel num
Bosch num
Firm num
Name
104780-9760
9 460 614 021
1670043G72  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil   ISO4113orSAEJ967d
Test oil temperature degC   45 45 50
Nozzle   105780-0060
Bosch type code   NP-DN0SD1510
Nozzle holder   105780-2150
Opening pressure MPa   13 13 13.3
Opening pressure kgf/cm2   133 133 136
Injection pipe   157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm   2-6-450
Joint assembly   157641-4720
Tube assembly   157641-4020
Transfer pump pressure kPa   20 20 20
Transfer pump pressure kgf/cm2   0.2 0.2 0.2
Direction of rotation (viewed from drive side)
Right   R
Injection timing adjustment
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   50 49.5 50.5
Difference in delivery mm3/st.   3
Basic   *
Oil temperature degC   50 48 52
Injection timing adjustment_02
Pump speed r/min   600 600 600
Average injection quantity mm3/st.   51.4 48.4 54.4
Oil temperature degC   50 48 52
Injection timing adjustment_03
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   50 49 51
Difference in delivery mm3/st.   3.5
Basic   *
Oil temperature degC   50 48 52
Injection timing adjustment_04
Pump speed r/min   2150 2150 2150
Average injection quantity mm3/st.   46.2 43.2 49.2
Oil temperature degC   52 50 54
Injection quantity adjustment
Pump speed r/min   2350 2350 2350
Average injection quantity mm3/st.   41 39 43
Basic   *
Oil temperature degC   52 50 54
Injection quantity adjustment_02
Pump speed r/min   2700 2700 2700
Average injection quantity mm3/st.   5
Oil temperature degC   55 52 58
Injection quantity adjustment_03
Pump speed r/min   2350 2350 2350
Average injection quantity mm3/st.   41 38 44
Basic   *
Oil temperature degC   52 50 54
Injection quantity adjustment_04
Pump speed r/min   2550 2550 2550
Average injection quantity mm3/st.   13.5 9 18
Oil temperature degC   55 52 58
Governor adjustment
Pump speed r/min   350 350 350
Average injection quantity mm3/st.   8.4 6.4 10.4
Difference in delivery mm3/st.   2
Basic   *
Oil temperature degC   48 46 50
Governor adjustment_02
Pump speed r/min   350 350 350
Average injection quantity mm3/st.   8.4 5.9 10.9
Difference in delivery mm3/st.   2.5
Basic   *
Oil temperature degC   48 46 50
Timer adjustment
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   60 45 80
Basic   *
Oil temperature degC   48 46 50
Remarks
Full
Timer adjustment_02
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   60 45 80
Oil temperature degC   48 46 50
Remarks
Full
Speed control lever angle
Pump speed r/min   350 350 350
Average injection quantity mm3/st.   0 0 0
Oil temperature degC   48 46 50
Remarks
Magnet OFF at idling position
0000000901
Pump speed r/min   1100 1100 1100
Overflow quantity cm3/min   390 260 520
Oil temperature degC   50 48 52
Stop lever angle
Pump speed r/min   1700 1700 1700
Pressure kPa   579 550 608
Pressure kgf/cm2   5.9 5.6 6.2
Basic   *
Oil temperature degC   50 48 52
Stop lever angle_02
Pump speed r/min   1700 1700 1700
Pressure kPa   579 540 618
Pressure kgf/cm2   5.9 5.5 6.3
Basic   *
Oil temperature degC   50 48 52
Stop lever angle_03
Pump speed r/min   2150 2150 2150
Pressure kPa   677 638 716
Pressure kgf/cm2   6.9 6.5 7.3
Oil temperature degC   52 50 54
0000001101
Pump speed r/min   1700 1700 1700
Timer stroke mm   4.9 4.7 5.1
Basic   *
Oil temperature degC   50 48 52
_02
Pump speed r/min   700 700 700
Timer stroke mm   0.5 0.5
Oil temperature degC   50 48 52
_03
Pump speed r/min   1100 1100 1100
Timer stroke mm   2.5 2 3.2
Oil temperature degC   50 48 52
_04
Pump speed r/min   1700 1700 1700
Timer stroke mm   4.6 4.5 5.3
Basic   *
Oil temperature degC   50 48 52
_05
Pump speed r/min   2550 2550 2550
Timer stroke mm   7.4 6.9 7.8
Oil temperature degC   55 52 58
0000001201
Max. applied voltage V   8 8 8
Test voltage V   13 12 14
0000001501
Pump speed r/min   1100 1100 1100
Height m   2000 2000 2000
Atmospheric pressure difference kPa   -21.9 -21.9 -21.9
Atmospheric pressure difference mmHg   -164 -164 -164
Average injection quantity mm3/st.   41 39.5 42.5
Decrease qty mm3/st.   9 9 9
Decrease rate %   18 18 18
Basic   *
Oil temperature degC   50 48 52
_02
Pump speed r/min   1100 1100 1100
Height m   0 0 0
Atmospheric pressure difference kPa   0 0 0
Atmospheric pressure difference mmHg   0 0 0
Average injection quantity mm3/st.   50 49 51
Oil temperature degC   50 48 52
_03
Pump speed r/min   1100 1100 1100
Height m   500 500 500
Atmospheric pressure difference kPa   -5.9 -9.2 -2.6
Atmospheric pressure difference mmHg   -44 -69 -19
Average injection quantity mm3/st.   50 50 50
Oil temperature degC   50 48 52
_04
Pump speed r/min   1100 1100 1100
Height m   2000 2000 2000
Atmospheric pressure difference kPa   -21.9 -21.9 -21.9
Atmospheric pressure difference mmHg   -164 -164 -164
Average injection quantity mm3/st.   41 39 43
Basic   *
Oil temperature degC   50 48 52
_05
Pump speed r/min   1100 1100 1100
Height m   4000 4000 4000
Atmospheric pressure difference kPa   -39.7 -39.7 -39.7
Atmospheric pressure difference mmHg   -298 -298 -298
Average injection quantity mm3/st.   30.5 30.5 30.5
Oil temperature degC   50 48 52
Timing setting
K dimension mm   3.3 3.2 3.4
KF dimension mm   5.8 5.7 5.9
MS dimension mm   0.9 0.8 1
Control lever angle alpha deg.   55.5 51.5 59.5
Control lever angle beta deg.   36 31 41




Information:

Introduction
The problem that is identified now has a known permanent solution. Components to perform repairs are limited at this time. Review the solution below for further details. Problem
Caterpillar is aware of recent failures of the 8N-1721 Connecting Rod and the 8N-1984 Connecting Rod on certain diesel and gas applications of 3300 engines. Primary failure mode is a ventilated cylinder block due to the connecting rod crank end failure. All failures have occurred before 500 hours in service. Root cause has been identified and the team is working to resolve the issue. Solution
A "Quality Hold" is active for all new assemblies that utilize the 8N-1984 Connecting Rod and the 8N-1721 Connecting Rod manufactured between 01April 2011 and 31December 2012. The "Quality Hold" is applicable to all Morton service stock also.Cat ® Reman has identified a list of part numbers for Service kits, Piston Packs, and Rod Assembly boxes that may contain defective factory connecting rod assemblies. Dealers are advised not to use any factory new connecting rod assemblies that are found in the kits or assemblies prior to examination. Refer to Table 1.
Table 1
Service kit, Piston Pack, and Rod Assembly Part Numbers That May Contain the Defective New Connecting Rod Assemblies
8N-1721     20R-1439     20R-1474
0R-1696     20R-1428     20R-1660
0R-1697     0R-9206     20R-1442
0R-3043     20R-1462     20R-1482
10R-3637     20R-1455     20R-1483
10R-9259     20R-1477     20R-1451
0R-1694     20R-1472     20R-1450
0R-4284     20R-1448     20R-1445
0R-1695     20R-1446     20R-1443
0R-4635     20R-1468     20R-1426
0R-4488     20R-1466     20R-1423
0R-4506     20R-1441     0R-2078
0R-3044     20R-1437     0R-3258
0R-2080     20R-1435     20R-1665
0R-3259     20R-1434     20R-1663
0R-3612     20R-1429     20R-1675
0R-3610     20R-1424     0R-3661
10R-6152     0R-2557     0R-1692
20R-1673     0R-2079     0R-1693
20R-1664     20R-1341     0R-3660
0R-4949     0R-2555     0R-3662
0R-9205     0R-3613     20R-1127
0R-2556     0R-4956     8N-1984
0R-3706     0R-2554
10R-1851     0R-4948
10R-1636     10R-0889
10R-1840     0R-3611
0R-2077     10R-7253
20R-1454     0R-7444    When an engine failure occurs due to the connecting rod assembly, dealers are asked to contact the Dealer Solution Network (DSN) Tier 2 core engine service engineer at Mossville Engine Center (MEC) to expedite support to the customer.To support field repairs and rebuilds, dealers are advised to inspect the manufacture date on any 3304, G3304, 3306, or G3306 engine with the 8N-1984 Connecting Rod , the 8N-1721 Connecting Rod , the 0R-0914 Connecting Rod , and the 0R-0915 Connecting Rod , used to perform repairs. If the manufacture date is within the suspect date range, do not use the part. Parts stocking service letters will be released soon to address suspect material in dealer inventories. Markings on the Suspect 8N-1984 Connecting Rod and the 8N-1721 Connecting Rod
Illustration 1 g03342875
(1

Have questions with 104780-9760?





Group cross 104780-9760 ZEXEL

Nissan-Diesel

104780-9700
9 460 613 996
167002S517
INJECTION-PUMP ASSEMBLY
TD27
104780-9710
9 460 614 079
167002S518
INJECTION-PUMP ASSEMBLY
TD27
104780-9720
9 460 614 795
167002S519
INJECTION-PUMP ASSEMBLY
TD27
104780-9730
9 460 613 997
167002S562
INJECTION-PUMP ASSEMBLY
TD27
104780-9740
9 460 614 796
1670043G70
INJECTION-PUMP ASSEMBLY
TD27
104780-9750
9 460 614 127
1670043G71
INJECTION-PUMP ASSEMBLY
TD27
104780-9760
9 460 614 021
1670043G72
INJECTION-PUMP ASSEMBLY
TD27
104780-9770
9 460 614 797
1670043G73
INJECTION-PUMP ASSEMBLY
TD27
104780-9780
9 460 614 798
1670058G11
INJECTION-PUMP ASSEMBLY
TD27
104780-9790
9 460 614 799
1670063G71
INJECTION-PUMP ASSEMBLY
TD27
Back to top
