Information injection-pump assembly
BOSCH
9 460 614 020
9460614020
ZEXEL
104780-9690
1047809690
NISSAN-DIESEL
167002S516
167002s516

Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104780-9690 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104680-9690 |
3. | NUMBER PLATE | 146983-4200 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1221 |
8. | Nozzle and Holder | 16600-63G01 |
9. | Open Pre:MPa(Kqf/cm2) | 9.8{100} |
10. | NOZZLE-HOLDER | 105078-0050 |
11. | NOZZLE | 105007-1210 |

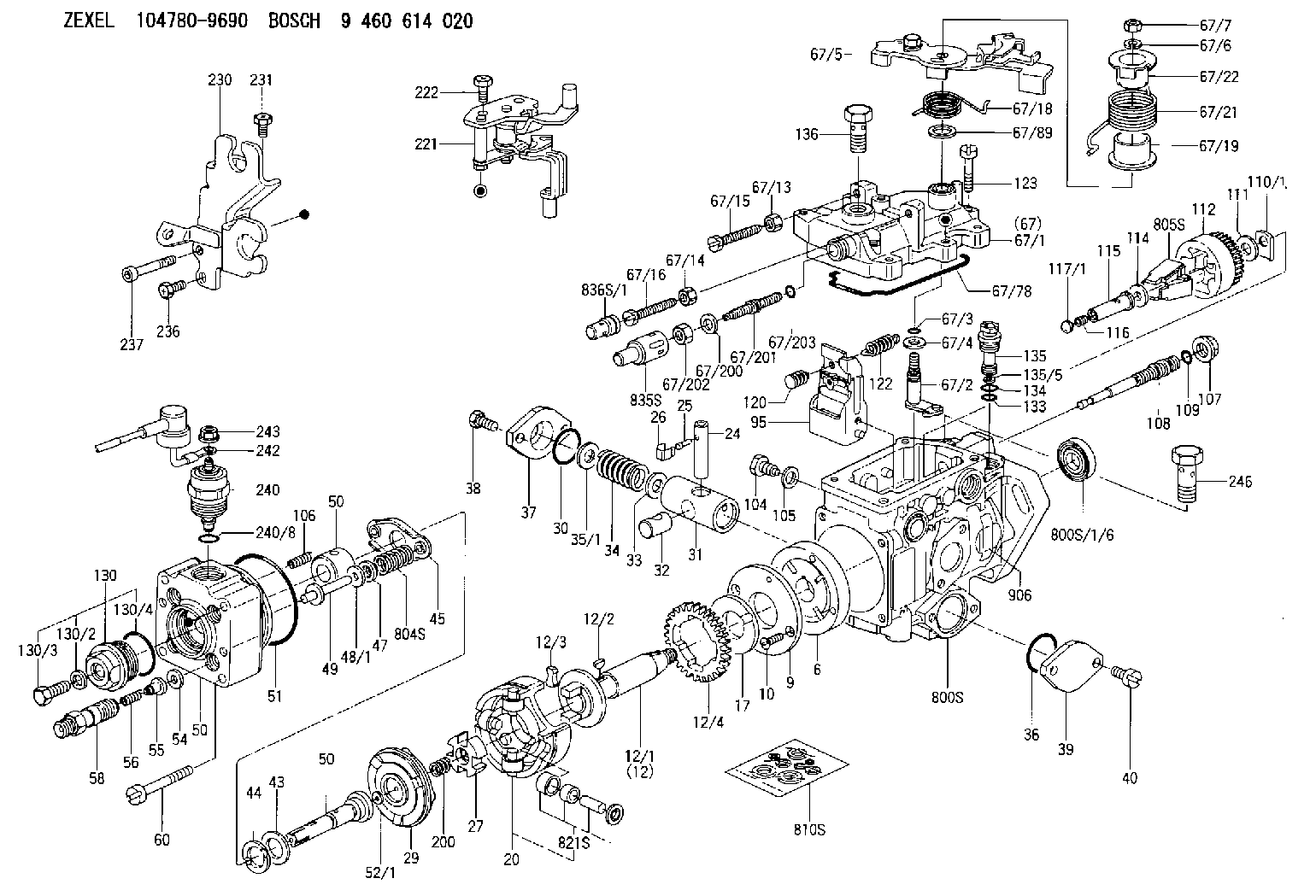

Scheme ###:
1/6. | [1] | 146601-0900 | PACKING RING |
6. | [1] | 146100-0020 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0020 | DRIVE SHAFT |
12/1. | [1] | 146200-0000 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-1720 | ROLLER SET |
24. | [1] | 146303-0100 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-2120 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0500 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-3600 | COMPRESSION SPRING |
34B. | [1] | 146302-3700 | COMPRESSION SPRING |
34C. | [1] | 146302-3800 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0500 | GUIDE PIN |
50. | [1] | 146401-2120 | HYDRAULIC HEAD |
50. | [1] | 146401-2120 | HYDRAULIC HEAD |
50. | [1] | 146401-2120 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-0320 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146501-2220 | GOVERNOR COVER |
67/1. | [1] | 146508-4521 | GOVERNOR COVER |
67/2. | [1] | 146515-2820 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [1] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146537-6120 | CONTROL LEVER |
67/6. | [1] | 014110-6440 | LOCKING WASHER |
67/7. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-3400 | BLEEDER SCREW |
67/16. | [1] | 146526-3400 | BLEEDER SCREW |
67/18. | [1] | 146587-8000 | COILED SPRING |
67/19. | [1] | 146541-3000 | BUSHING |
67/21. | [1] | 146587-9900 | COILED SPRING |
67/22. | [1] | 146541-3100 | SLOTTED WASHER |
67/78. | [1] | 146600-4400 | SEAL RING |
67/89. | [1] | 146541-4900 | PLAIN WASHER D20&10T0.5 |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
95. | [1] | 146551-9820 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-0500 | PLAIN WASHER D17&6.4T1.60 |
115. | [1] | 146975-2500 | SLIDING SLEEVE |
116. | [1] | 146576-0000 | SEALING CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
120. | [1] | 146579-6020 | RETAINING PIN |
122. | [1] | 146580-0400 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0020 | OVER FLOW VALVE |
200. | [1] | 146206-0100 | COILED SPRING |
221. | [1] | 146925-2622 | BRACKET |
222. | [2] | 139006-4600 | BLEEDER SCREW |
230. | [1] | 146926-4120 | BRACKET |
231. | [1] | 139006-4600 | BLEEDER SCREW |
236. | [1] | 139006-4800 | BLEEDER SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-0720 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-6520 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
246. | [1] | 027412-2440 | EYE BOLT |
800S. | [1] | 146009-9220 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0900 | PACKING RING |
804S. | [1] | 146232-0320 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
906. | [1] | 146983-4200 | NAMEPLATE |
Include in #2:
104780-9690
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 614 020
9460614020
ZEXEL
104780-9690
1047809690
NISSAN-DIESEL
167002S516
167002s516
Zexel num
Bosch num
Firm num
Name
104780-9690
9 460 614 020
167002S516 NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Pump speed
r/min
1100
1100
1100
Average injection quantity
mm3/st.
50
49.5
50.5
Difference in delivery
mm3/st.
3
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
600
600
600
Average injection quantity
mm3/st.
51.4
48.4
54.4
Oil temperature
degC
50
48
52
Injection timing adjustment_03
Pump speed
r/min
1100
1100
1100
Average injection quantity
mm3/st.
50
49
51
Difference in delivery
mm3/st.
3.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
2150
2150
2150
Average injection quantity
mm3/st.
46.2
43.2
49.2
Oil temperature
degC
52
50
54
Injection quantity adjustment
Pump speed
r/min
2350
2350
2350
Average injection quantity
mm3/st.
41
39
43
Basic
*
Oil temperature
degC
52
50
54
Injection quantity adjustment_02
Pump speed
r/min
2700
2700
2700
Average injection quantity
mm3/st.
5
Oil temperature
degC
55
52
58
Injection quantity adjustment_03
Pump speed
r/min
2350
2350
2350
Average injection quantity
mm3/st.
41
38
44
Basic
*
Oil temperature
degC
52
50
54
Injection quantity adjustment_04
Pump speed
r/min
2550
2550
2550
Average injection quantity
mm3/st.
13.5
9
18
Oil temperature
degC
55
52
58
Governor adjustment
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8.4
6.4
10.4
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8.4
5.9
10.9
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
60
45
80
Basic
*
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
60
45
80
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1100
1100
1100
Overflow quantity
cm3/min
390
260
520
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1700
1700
1700
Pressure
kPa
579
550
608
Pressure
kgf/cm2
5.9
5.6
6.2
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_02
Pump speed
r/min
1700
1700
1700
Pressure
kPa
579
540
618
Pressure
kgf/cm2
5.9
5.5
6.3
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_03
Pump speed
r/min
2150
2150
2150
Pressure
kPa
677
638
716
Pressure
kgf/cm2
6.9
6.5
7.3
Oil temperature
degC
52
50
54
0000001101
Pump speed
r/min
1700
1700
1700
Timer stroke
mm
4.9
4.7
5.1
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
700
700
700
Timer stroke
mm
0.5
0.5
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1100
1100
1100
Timer stroke
mm
2.5
2
3.2
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1700
1700
1700
Timer stroke
mm
4.6
4.5
5.3
Basic
*
Oil temperature
degC
50
48
52
_05
Pump speed
r/min
2550
2550
2550
Timer stroke
mm
7.4
6.9
7.8
Oil temperature
degC
55
52
58
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
5.8
5.7
5.9
MS dimension
mm
0.9
0.8
1
Control lever angle alpha
deg.
55.5
51.5
59.5
Control lever angle beta
deg.
36
31
41
Information:
Personal injury can result from being struck by parts propelled by a released spring force.Make sure to wear all necessary protective equipment.Follow the recommended procedure and use all recommended tooling to release the spring force.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Dispose of all fluids according to local regulations and mandates.
If possible, take the fuel injection pump to a clean work area.
Clean the outside surfaces of the fuel injection pump.
Illustration 1 g03117860
Typical example
Place a suitable container under the fuel injection pump to collect any fuel from the fuel injection pump. Use a suitable tool to loosen the drain plug (1). If necessary, retain the fuel collected for analysis if required.
Illustration 2 g03117878
Typical example
Use a suitable pair of pliers to remove the throttle return spring (2).Note: Care should be taken when the spring is removed.
Illustration 3 g03117896
Typical example
Loosen self-locking nut (3). Do not remove the nut.
Illustration 4 g03117916
Typical example
Use a suitable pair of pliers to lift and disconnect throttle spring (4). Remove self-locking nut (3), washer, upper retainer, spring, lower retainer, spacer, lever, and dust cap.Note: Care should be taken when the spring is removed.
Illustration 5 g03117938
Typical example
Remove four screws (6) in the governor cover (7). Gently push the throttle shaft (5) down into the cover (7).
Illustration 6 g03117956
Typical example
To inspect the internal components of the fuel injection pump, gently lift and rotate the cover (7).Note: The cover is still connected internally, if resistance is felt, lower the cover and move the cover backwards. Attempt to lift the cover again.
Inspect the internal components of the fuel injection pump. Refer to steps 9a and 9b.
Illustration 7 g03117961
Typical example
If good quality fuel is being used, the components will be clean. Refer to illustration 7. Take photographs of the identification plate of the fuel injection pump and any evidence found. Attach the photographs to support the claim story.
Illustration 8 g03118119
Typical example
Illustration 9 g03118121
Typical example
If the injection pump has been run with excessive water in the fuel, there will be signs of rust and oxidization of the steel components. Refer to illustration 8. Fuel with dirt ingress will show a build-up of dirt on the components. Refer to illustration 9.Note: Issues with the fuel injection pump that are due to dirt and water void Caterpillar warranty. Advise the customer on the correct fuel, maintenance, and fuel storage procedures. Refer to the relevant Operation and Maintenance Manual for more information.If the fuel injection pump shows signs that contaminated fuel is the root cause of the problem, the evidence can be shown to the customer immediately.After the fuel injection pump has been inspected, the fuel injection pump must not be used in service.Rebuild the fuel injection pump. Refer to steps 1 to 6
Lower the cover (7) back into position. Ensure the throttle shaft (5), has been returned to the original position.
Install the four screws (6) to the cover (7). Tighten the
Have questions with 104780-9690?
Group cross 104780-9690 ZEXEL
Nissan-Diesel
Nissan
Nissan-Diesel
Nissan-Diesel
104780-9690
9 460 614 020
167002S516
INJECTION-PUMP ASSEMBLY
TD27
TD27
