104780-9001 ZEXEL 9 460 613 218 BOSCH INJECTION-PUMP ASSEMBLY 9460613218 1047809001

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 613 218 9460613218

ZEXEL 104780-9001 1047809001

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104780-9001 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104780-9001
1.	_
2.	FUEL INJECTION PUMP	104680-9000
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1221
8.	Nozzle and Holder	16600-63G01
9.	Open Pre:MPa(Kqf/cm2)	9.8{100}
10.	NOZZLE-HOLDER	105078-0050
11.	NOZZLE	105007-1210

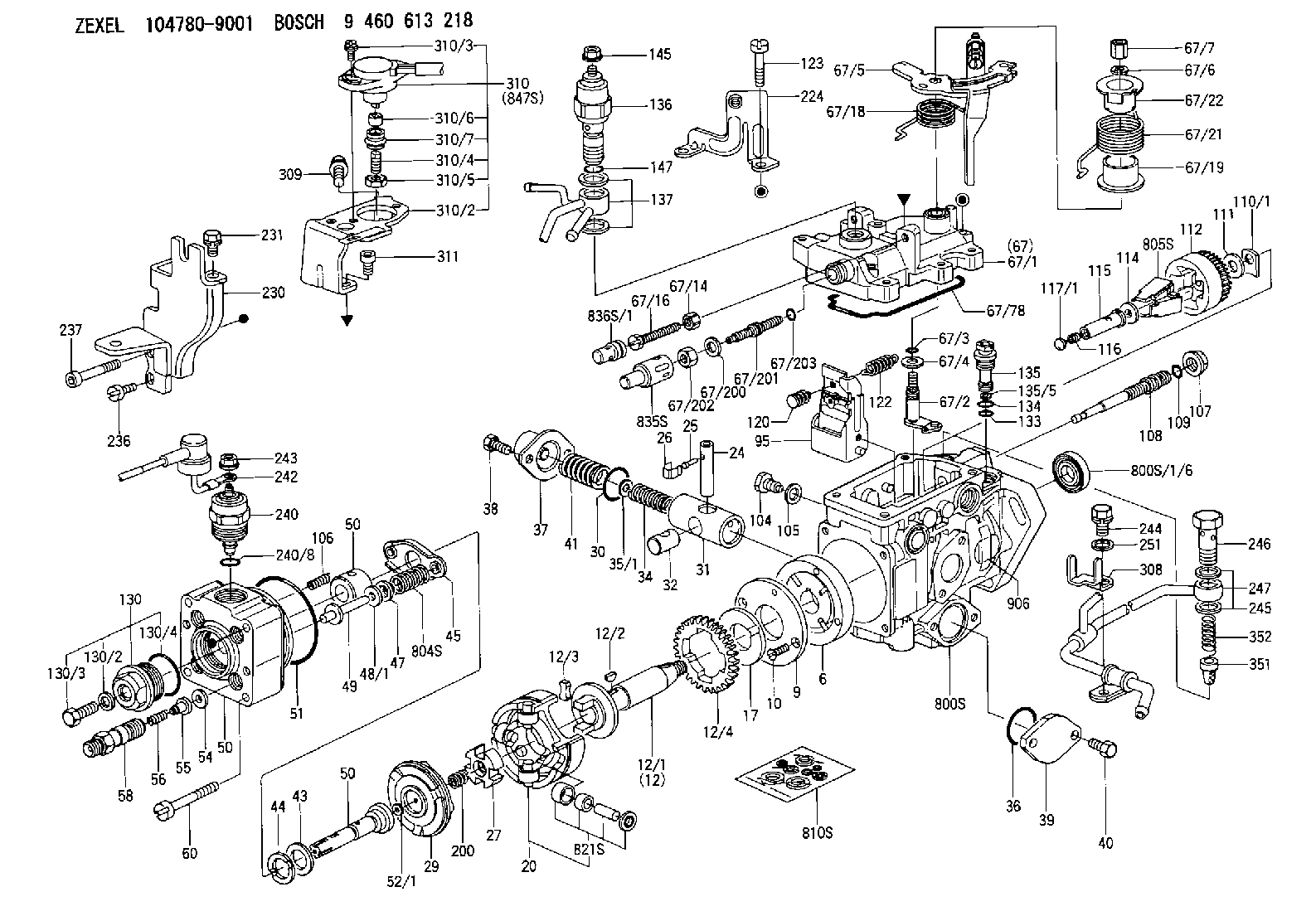

Scheme ###:

1/6.	[1]	146601-0900	PACKING RING
6.	[1]	146100-0420	SUPPLY PUMP
9.	[1]	146103-0100	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0020	DRIVE SHAFT
12/1.	[1]	146200-0000	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-2320	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-2120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146311-6320	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
34.	[1]	146312-2700	COMPRESSION SPRING
34B.	[1]	146312-2600	COMPRESSION SPRING
34C.	[1]	146312-2800	COMPRESSION SPRING
35/1.	[1]	146690-3200	SHIM D11.5&9.4T0.1
35/1.	[1]	146690-3300	SHIM D11.5&9.4T0.2
35/1.	[1]	146690-3400	SHIM D11.5&9.4T0.25
35/1.	[1]	146690-3500	SHIM D11.5&9.4T1.0
35/1.	[1]	146690-4100	SHIM D11.5&9.4T2
35/1.	[1]	146690-4200	SHIM D11.5&9.4T0.5
35/1.	[1]	146690-4300	SHIM D11.5&9.4T0.75
36.	[1]	146600-0800	O-RING
37.	[1]	146310-4020	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
41.	[1]	146312-1900	COMPRESSION SPRING
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146403-8620	HYDRAULIC HEAD
50.	[1]	146403-8620	HYDRAULIC HEAD
50.	[1]	146403-8620	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0320	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
67.	[1]	146821-4520	GOVERNOR COVER
67/1.	[1]	146508-7721	GOVERNOR COVER
67/2.	[1]	146515-2520	CONTROL SHAFT
67/3.	[1]	146600-0100	O-RING
67/4.	[1]	139310-0200	PLAIN WASHER
67/5.	[1]	146536-7020	CONTROL LEVER
67/5B.	[1]	146536-7120	CONTROL LEVER
67/6.	[1]	014110-6440	LOCKING WASHER
67/7.	[1]	146621-0700	UNION NUT
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3400	BLEEDER SCREW
67/18.	[1]	146592-1800	COILED SPRING
67/19.	[1]	146541-3000	BUSHING
67/21.	[1]	146592-1300	COILED SPRING
67/22.	[1]	146541-3100	SLOTTED WASHER
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
95.	[1]	146550-1720	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-5400	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
120.	[1]	146579-3520	RETAINING PIN
122.	[1]	146580-0400	GOVERNOR SPRING
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146650-5820	PULLING ELECTROMAGNET
137.	[2]	139514-0200	GASKET
145.	[1]	146621-1000	UNION NUT
147.	[1]	146600-5000	O-RING
200.	[1]	146206-0100	COILED SPRING
224.	[1]	146927-2700	BRACKET
230.	[1]	146926-4520	BRACKET
231.	[1]	139006-4600	BLEEDER SCREW
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-0720	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146662-7720	WIRE
243.	[1]	146621-1000	UNION NUT
244.	[1]	020118-1440	BLEEDER SCREW
245.	[2]	139512-0500	GASKET
246.	[1]	027412-2440	EYE BOLT
247.	[1]	146605-9020	PIPE
251.	[1]	014010-8140	PLAIN WASHER D18&8.5T1.6
308.	[1]	146659-5600	CLAMPING BAND
309.	[1]	139006-5700	BLEEDER SCREW
310.	[1]	146685-2620	POTENTCIOMETER
310/2.	[1]	146934-6721	BRACKET
310/3.	[2]	139104-0400	FLAT-HEAD SCREW
310/4.	[1]	146620-2900	FLAT-HEAD SCREW
310/5.	[1]	146621-0500	UNION NUT
310/6.	[1]	146614-2300	JOINT CONNECTION
310/7.	[1]	146661-0401	BOOT
311.	[2]	010206-1040	HEX-SOCKET-HEAD CAP SCREW
351.	[1]	146125-0101	FILTER
352.	[1]	146125-0200	COILED SPRING
800S.	[1]	146019-8820	PUMP HOUSING
800S/1/6.	[1]	146601-0900	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
847S.	[1]	146685-0410	POTENTCIOMETER
906.	[1]	146973-5800	NAMEPLATE

Include in #2:

104780-9001 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 613 218 9460613218

ZEXEL 104780-9001 1047809001

Zexel num

Bosch num

Firm num

Name

104780-9001
104780-9002

9 460 613 218

INJECTION-PUMP ASSEMBLY
* K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 44.4 43.9 44.9

Difference in delivery mm3/st. 3.5

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_02

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 41.8 38.8 44.8

Oil temperature degC 48 46 50

Injection timing adjustment_03

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 44.4 43.4 45.4

Difference in delivery mm3/st. 4

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_04

Pump speed r/min 2150 2150 2150

Average injection quantity mm3/st. 42.2 38.7 45.7

Oil temperature degC 52 50 54

Injection quantity adjustment

Pump speed r/min 2500 2500 2500

Average injection quantity mm3/st. 14.9 12.9 16.9

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_02

Pump speed r/min 2500 2500 2500

Average injection quantity mm3/st. 14.9 11.9 17.9

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_03

Pump speed r/min 2700 2700 2700

Average injection quantity mm3/st. 5

Oil temperature degC 55 52 58

Governor adjustment

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.1 5.1 9.1

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.1 4.6 9.6

Difference in delivery mm3/st. 2.5

Basic *

Oil temperature degC 48 46 50

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 45 80

Oil temperature degC 48 46 50

Remarks
Full

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 45 80

Oil temperature degC 48 46 50

Remarks
Full

Speed control lever angle

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 48 46 50

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 1100 1100 1100

Overflow quantity with S/T ON cm3/min 440 310 570

Oil temperature degC 50 48 52

Stop lever angle

Pump speed r/min 1100 1100 1100

Pressure with S/T ON kPa 510 471 549

Pressure with S/T ON kgf/cm2 5.2 4.8 5.6

Pressure with S/T OFF kPa 432 403 461

Pressure with S/T OFF kgf/cm2 4.4 4.1 4.7

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

Stop lever angle_02

Pump speed r/min 1100 1100 1100

Pressure with S/T OFF kPa 432 393 471

Pressure with S/T OFF kgf/cm2 4.4 4 4.8

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

Stop lever angle_03

Pump speed r/min 2150 2150 2150

Pressure with S/T OFF kPa 657 618 696

Pressure with S/T OFF kgf/cm2 6.7 6.3 7.1

Oil temperature degC 52 50 54

0000001101

Pump speed r/min 1100 1100 1100

Timer stroke with S/T ON mm 3.8 3.4 4.2

Timer stroke with S/T OFF mm 2 1.8 2.2

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_02

Pump speed r/min 700 700 700

Timer stroke with S/T OFF mm 0.8

Oil temperature degC 50 48 52

_03

Pump speed r/min 1100 1100 1100

Timer stroke with S/T ON mm 3.8 3.3 4.3

Timer stroke with S/T OFF mm 2 1.7 2.3

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_04

Pump speed r/min 2150 2150 2150

Timer stroke with S/T ON mm 7.8 7.3 8.2

Timer stroke with S/T OFF mm 6.9 6.3 7.5

Oil temperature degC 52 50 54

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

0000001401

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 33 32.5 33.5

Timer stroke TA mm 1.7 1.7 1.7

Timer stroke variation dT mm 0.3 0.1 0.5

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_02

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 33 32 34

Timer stroke TA mm 1.7 1.7 1.7

Timer stroke variation dT mm 0.3 0 0.6

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_03

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 20 17.5 22.5

Timer stroke TA mm 1.1 1.1 1.1

Timer stroke variation dT mm 0.9 0.5 1.3

Oil temperature degC 50 48 52

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1 0.9 1.1

Pre-stroke mm 0.1 0.08 0.12

Control lever angle alpha deg. 55.5 51.5 59.5

Control lever angle beta deg. 36 31 41

Test data Ex:

0000001801

Potentiometer adjustment 1. Applied voltage: Vi 2. Boost pressure = P1kPa {P2 mmHg} 3. Set the control lever at the adjusting point. Position the dummy bolt against the lever and fix. 4. Assemble the potentiometer to obtain output voltage V1 (V) at the fixed position. 5. After mounting the potentiometer, remove the dummy bolt. N:Pump speed Q:Injection quantity V:Output voltage A:Performance standards B:ON, OFF switch standard C:Angle of the control lever D:OFF-->ON E:OFF-->ON F:Adjusting point G:Checking point C1:Idle C2:Full-speed
----------
V1=6.14+-0.03V P1=0kPa P2=0mmHg Vi=10V
----------
N1=1220r/min Q1=18.6+-1.0cm3/1,000st V1= 6.14+-0.03 V2=(1.53)V V3=9.5++V a=-deg

Information:

When using Cat ELC, do not use conventional SCAs, or, if equipped, SCA maintenance elements. In order to avoid SCA contamination of an ELC system, remove the SCA element base and plug off or bypass the coolant lines.
Cat ELC Cooling System Cleaning
Note: If the cooling system is already using Cat ELC, cleaning agents are not required at the specified coolant change interval. Cleaning agents are only required if the system has been contaminated by the addition of some other type of coolant or by cooling system damage.Clean water is the only cleaning agent that is required when Cat ELC is drained from a properly maintained cooling system.After the cooling system is drained and after the cooling system is refilled, operate the engine while the cooling system filler cap is removed. Operate the engine until the coolant level reaches the normal operating temperature and until the coolant level stabilizes. As needed, add the coolant mixture in order to fill the system to the proper level.Recycling Cat ELC
Cat ELC can be recycled into conventional coolants. The drained coolant mixture can be distilled in order to remove the ethylene glycol and the water. The ethylene glycol and the water can be reused. The distilled material does not contain the additives that are classified as either Cat ELC or Cat DEAC. Consult your Cat dealer for more information. Recycled coolants should meet the most current revision level of "ASTM D6210".Changing to Cat ELC
To change from heavy-duty coolant/antifreeze to the Cat ELC, perform the following steps:
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, NENG2500, "Caterpillar Dealer Service Tool Catalog" and to Special Publication, PECJ0003, "Cat Shop Supplies and Tools" for tools and supplies suitable to collect and contain fluids on Cat products.Dispose of all fluids according to applicable regulations and mandates.
Drain the coolant into a suitable container.
Dispose of the coolant according to local regulations.
If equipped, remove the empty SCA maintenance element and remove the element base. Plug the coolant lines or bypass the coolant lines.
Do not leave an empty SCA maintenance element on a system that is filled with Cat ELC.The element housing may corrode and leak causing an engine failure.Remove the SCA element base and plug off or by-pass the coolant lines.
Flush the system with clean water in order to remove any debris.
Use Cat Quick Flush Cooling System Cleaner for cooling systems in order to clean the system. Cat Quick Flush Cooling System Cleaner is available in various sizes. Part numbers are 4C-4609 ( 0.5 L (0.125 US gal)) through 4C-4613 ( 208.2 L (55 US gal)). Follow the instructions on the label using a 6-10% concentration of cleaner in water.
Drain the cleaner into a suitable container. Flush the cooling system with clean water. Note: Deposits that remain in the system may be loosened and removed
