104780-9000 ZEXEL 9 460 612 449 BOSCH INJECTION-PUMP ASSEMBLY 9460612449 1047809000

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 612 449 9460612449

ZEXEL 104780-9000 1047809000

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104780-9000 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104780-9000
1.	_
2.	FUEL INJECTION PUMP	104680-9000
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1221
8.	Nozzle and Holder	16600-63G01
9.	Open Pre:MPa(Kqf/cm2)	9.8{100}
10.	NOZZLE-HOLDER	105078-0050
11.	NOZZLE	105007-1210

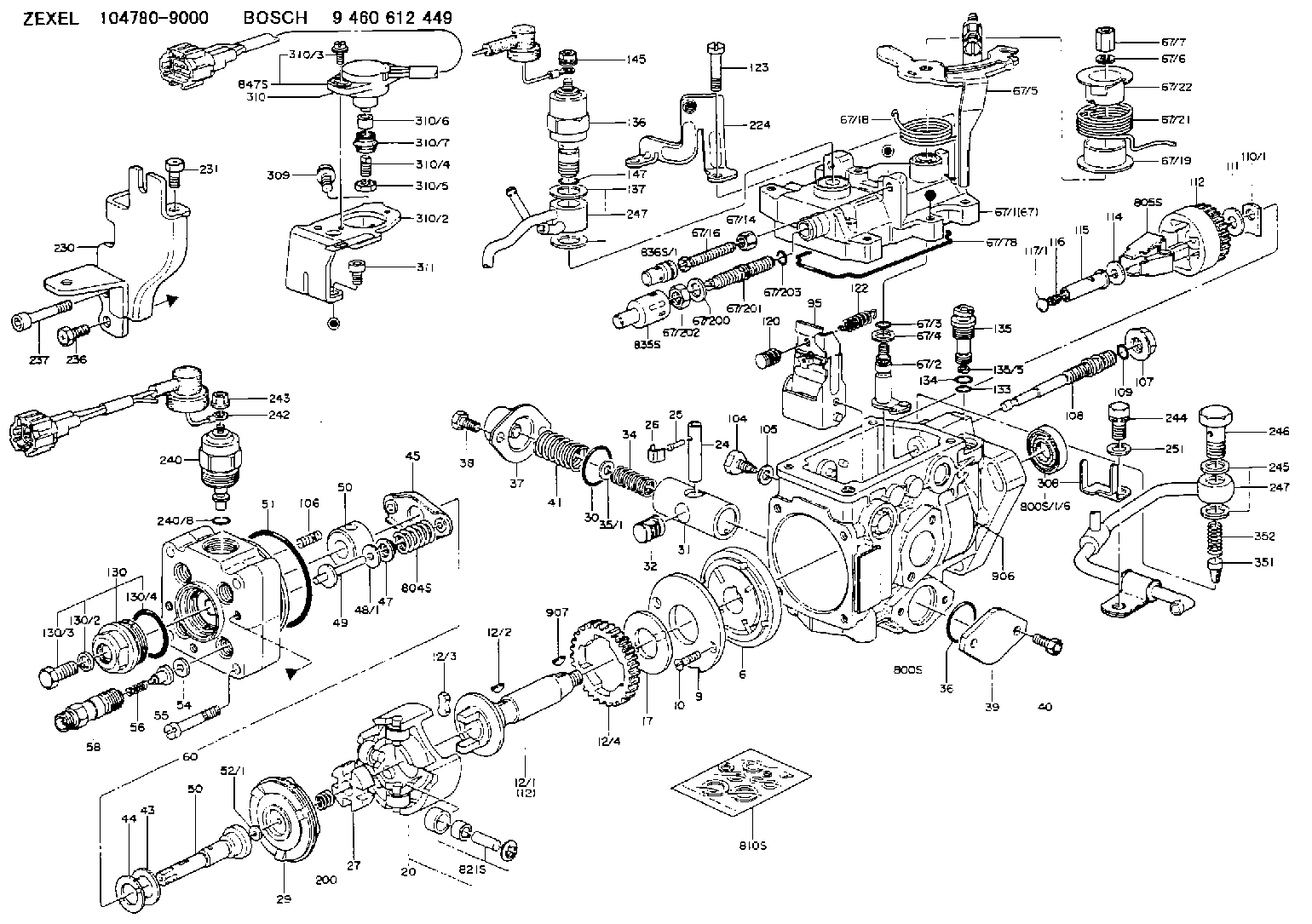

Scheme ###:

1/6.	[1]	146601-0900	PACKING RING
6.	[1]	146100-0420	SUPPLY PUMP
9.	[1]	146103-0100	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0020	DRIVE SHAFT
12/1.	[1]	146200-0000	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-2320	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-2120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146311-6320	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
34.	[1]	146312-2700	COMPRESSION SPRING
34B.	[1]	146312-2600	COMPRESSION SPRING
34C.	[1]	146312-2800	COMPRESSION SPRING
35/1.	[1]	146690-3200	SHIM D11.5&9.4T0.1
35/1.	[1]	146690-3300	SHIM D11.5&9.4T0.2
35/1.	[1]	146690-3400	SHIM D11.5&9.4T0.25
35/1.	[1]	146690-3500	SHIM D11.5&9.4T1.0
35/1.	[1]	146690-4100	SHIM D11.5&9.4T2
35/1.	[1]	146690-4200	SHIM D11.5&9.4T0.5
35/1.	[1]	146690-4300	SHIM D11.5&9.4T0.75
36.	[1]	146600-0800	O-RING
37.	[1]	146310-4020	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
41.	[1]	146312-1900	COMPRESSION SPRING
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146403-8620	HYDRAULIC HEAD
50.	[1]	146403-8620	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0320	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
67.	[1]	146821-4520	GOVERNOR COVER
67/1.	[1]	146508-7721	GOVERNOR COVER
67/2.	[1]	146515-2520	CONTROL SHAFT
67/3.	[1]	146600-0100	O-RING
67/4.	[1]	139310-0200	PLAIN WASHER
67/5.	[1]	146536-7020	CONTROL LEVER
67/5B.	[1]	146536-7120	CONTROL LEVER
67/6.	[1]	014110-6440	LOCKING WASHER
67/7.	[1]	146621-0700	UNION NUT
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3400	BLEEDER SCREW
67/18.	[1]	146592-1800	COILED SPRING
67/19.	[1]	146541-3000	BUSHING
67/21.	[1]	146592-1300	COILED SPRING
67/22.	[1]	146541-3100	SLOTTED WASHER
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
95.	[1]	146550-1720	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-5400	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
120.	[1]	146579-3520	RETAINING PIN
122.	[1]	146580-0400	GOVERNOR SPRING
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146650-5820	PULLING ELECTROMAGNET
137.	[2]	139514-0200	GASKET
145.	[1]	146621-1000	UNION NUT
147.	[1]	146600-5000	O-RING
200.	[1]	146206-0100	COILED SPRING
224.	[1]	146927-2700	BRACKET
230.	[1]	146926-4520	BRACKET
231.	[1]	139006-4600	BLEEDER SCREW
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-0720	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146662-7720	WIRE
243.	[1]	146621-1000	UNION NUT
244.	[1]	020118-1440	BLEEDER SCREW
245.	[2]	139512-0500	GASKET
246.	[1]	027412-2440	EYE BOLT
247.	[1]	146605-9020	PIPE
247.	[1]	146605-9020	PIPE
251.	[1]	014010-8140	PLAIN WASHER D18&8.5T1.6
308.	[1]	146659-5600	CLAMPING BAND
309.	[1]	139006-5700	BLEEDER SCREW
310.	[1]	146685-2620	POTENTCIOMETER
310/2.	[1]	146934-6720	BRACKET
310/3.	[2]	139104-0400	FLAT-HEAD SCREW
310/4.	[1]	146620-2900	FLAT-HEAD SCREW
310/5.	[1]	146621-0500	UNION NUT
310/6.	[1]	146614-2300	JOINT CONNECTION
310/7.	[1]	146661-0401	BOOT
311.	[2]	010206-1040	HEX-SOCKET-HEAD CAP SCREW
351.	[1]	146125-0101	FILTER
352.	[1]	146125-0200	COILED SPRING
800S.	[1]	146019-8820	PUMP HOUSING
800S/1/6.	[1]	146601-0900	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
847S.	[1]	146685-0410	POTENTCIOMETER
906.	[1]	146973-3800	NAMEPLATE

Include in #2:

104780-9000 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 612 449 9460612449

ZEXEL 104780-9000 1047809000

Zexel num

Bosch num

Firm num

Name

104780-9000
104780-9001

9 460 612 449

INJECTION-PUMP ASSEMBLY
* K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 44.4 43.9 44.9

Difference in delivery mm3/st. 3.5

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_02

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 41.8 38.8 44.8

Oil temperature degC 48 46 50

Injection timing adjustment_03

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 44.4 43.4 45.4

Difference in delivery mm3/st. 4

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_04

Pump speed r/min 2150 2150 2150

Average injection quantity mm3/st. 42.2 38.7 45.7

Oil temperature degC 52 50 54

Injection quantity adjustment

Pump speed r/min 2500 2500 2500

Average injection quantity mm3/st. 14.9 12.9 16.9

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_02

Pump speed r/min 2500 2500 2500

Average injection quantity mm3/st. 14.9 11.9 17.9

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_03

Pump speed r/min 2700 2700 2700

Average injection quantity mm3/st. 5

Oil temperature degC 55 52 58

Governor adjustment

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.1 5.1 9.1

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.1 4.6 9.6

Difference in delivery mm3/st. 2.5

Basic *

Oil temperature degC 48 46 50

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 45 80

Basic *

Oil temperature degC 48 46 50

Remarks
Full

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 45 80

Oil temperature degC 48 46 50

Remarks
Full

Speed control lever angle

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 48 46 50

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 1100 1100 1100

Overflow quantity with S/T ON cm3/min 440 310 570

Oil temperature degC 50 48 52

Stop lever angle

Pump speed r/min 1100 1100 1100

Pressure with S/T ON kPa 510 471 549

Pressure with S/T ON kgf/cm2 5.2 4.8 5.6

Pressure with S/T OFF kPa 432 403 461

Pressure with S/T OFF kgf/cm2 4.4 4.1 4.7

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

Stop lever angle_02

Pump speed r/min 1100 1100 1100

Pressure with S/T OFF kPa 432 393 471

Pressure with S/T OFF kgf/cm2 4.4 4 4.8

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

Stop lever angle_03

Pump speed r/min 2150 2150 2150

Pressure with S/T OFF kPa 657 618 696

Pressure with S/T OFF kgf/cm2 6.7 6.3 7.1

Oil temperature degC 52 50 54

0000001101

Pump speed r/min 1100 1100 1100

Timer stroke with S/T ON mm 3.8 3.4 4.2

Timer stroke with S/T OFF mm 2 1.8 2.2

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_02

Pump speed r/min 700 700 700

Timer stroke with S/T OFF mm 0.8

Oil temperature degC 50 48 52

_03

Pump speed r/min 1100 1100 1100

Timer stroke with S/T ON mm 3.8 3.3 4.3

Timer stroke with S/T OFF mm 2 1.7 2.3

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_04

Pump speed r/min 2150 2150 2150

Timer stroke with S/T ON mm 7.8 7.3 8.2

Timer stroke with S/T OFF mm 6.9 6.3 7.5

Oil temperature degC 52 50 54

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

0000001401

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 33 32.5 33.5

Timer stroke TA mm 1.7 1.7 1.7

Timer stroke variation dT mm 0.3 0.1 0.5

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_02

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 33 32 34

Timer stroke TA mm 1.7 1.7 1.7

Timer stroke variation dT mm 0.3 0 0.6

Basic *

Oil temperature degC 50 48 52

Remarks
OFF

_03

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 20 17.5 22.5

Timer stroke TA mm 1.1 1.1 1.1

Timer stroke variation dT mm 0.9 0.5 1.3

Oil temperature degC 50 48 52

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1 0.9 1.1

Pre-stroke mm 0.1 0.08 0.12

Control lever angle alpha deg. 55.5 51.5 59.5

Control lever angle beta deg. 36 31 41

Test data Ex:

0000001801 POTENTIOMETER ADJUSTMENT

N = pump speed Q = injection quantity V = output voltage C = control lever position C1 = idle C2 = full speed A = adjusting point B = confirmation point Vi = applied voltage
----------

----------
V1=1.4+-0.03(V) V2=9.5++(V) Vi=10(V)

Information:

If ambient conditions warrant, a higher viscosity oil of the recommended specification for a given compartment may need to be installed in order to provide adequate film thickness.
Non-Engine Machine Compartments
Recommended compartment warm-up procedure must be followed.
