104780-4420 ZEXEL 9 460 611 643 BOSCH INJECTION-PUMP ASSEMBLY 9460611643 1047804420 167006t070

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 611 643 9460611643

ZEXEL 104780-4420 1047804420

NISSAN-DIESEL 167006T070 167006t070

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104780-4420 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104780-4420
1.	_
2.	FUEL INJECTION PUMP	104680-4420
3.	NUMBER PLATE	146972-7500
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105148-1221
8.	Nozzle and Holder	16600-63G01
9.	Open Pre:MPa(Kqf/cm2)	9.8{100}
10.	NOZZLE-HOLDER	105078-0050
11.	NOZZLE	105007-1210

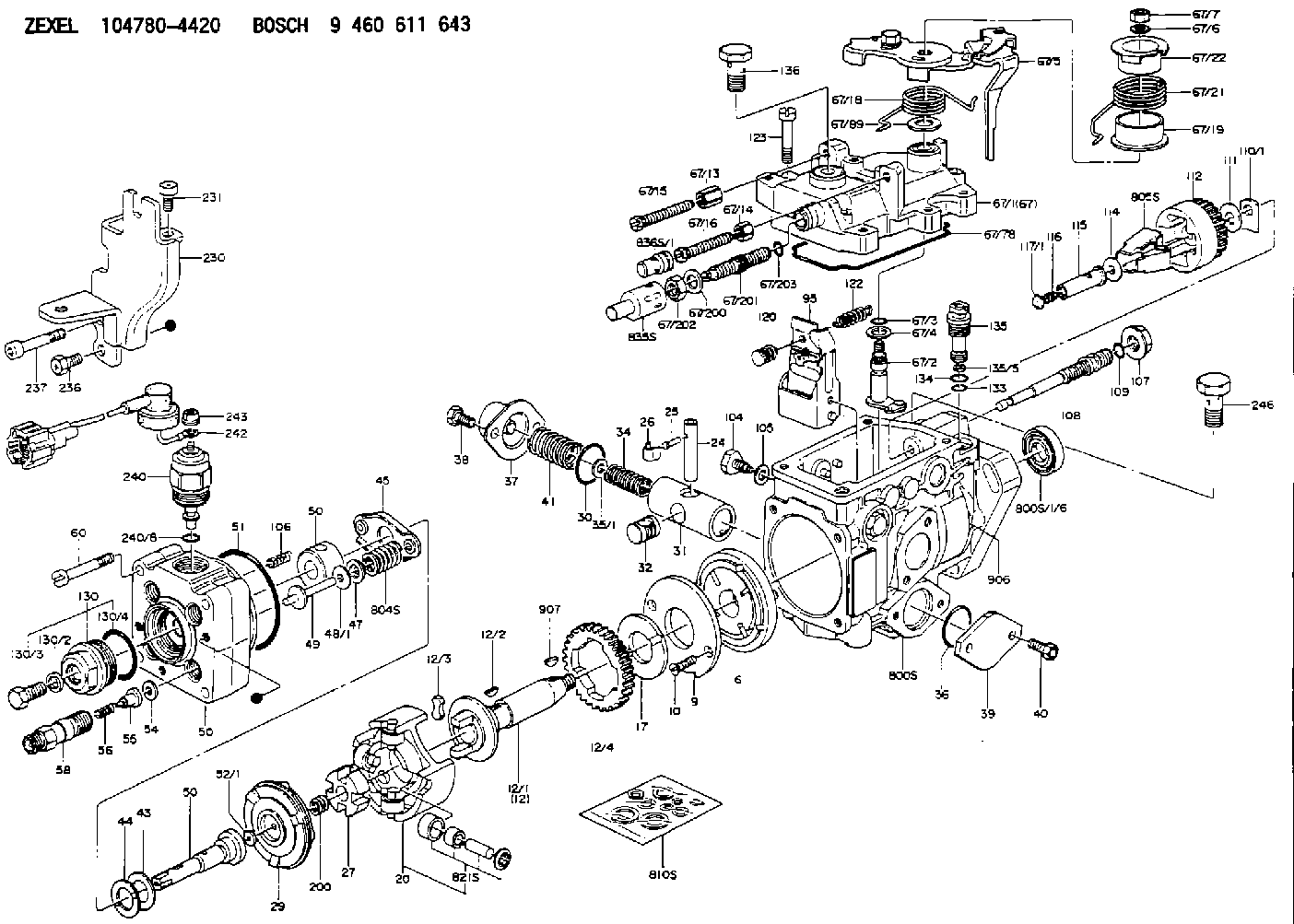

Scheme ###:

1/6.	[1]	146601-0900	PACKING RING
6.	[1]	146100-0420	SUPPLY PUMP
9.	[1]	146103-0100	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0020	DRIVE SHAFT
12/1.	[1]	146200-0000	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-2320	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-2120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146311-5920	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
34.	[1]	146312-2900	COMPRESSION SPRING
34B.	[1]	146312-3000	COMPRESSION SPRING
34C.	[1]	146312-1800	COMPRESSION SPRING
35/1.	[1]	146690-3200	SHIM D11.5&9.4T0.1
35/1.	[1]	146690-3300	SHIM D11.5&9.4T0.2
35/1.	[1]	146690-3400	SHIM D11.5&9.4T0.25
35/1.	[1]	146690-3500	SHIM D11.5&9.4T1.0
35/1.	[1]	146690-4100	SHIM D11.5&9.4T2
35/1.	[1]	146690-4200	SHIM D11.5&9.4T0.5
35/1.	[1]	146690-4300	SHIM D11.5&9.4T0.75
36.	[1]	146600-0800	O-RING
37.	[1]	146310-4020	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
41.	[1]	146312-1900	COMPRESSION SPRING
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146401-3720	HYDRAULIC HEAD
50.	[1]	146401-3720	HYDRAULIC HEAD
50.	[1]	146401-3720	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0320	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
67.	[1]	146820-8320	GOVERNOR COVER
67/1.	[1]	146508-4521	GOVERNOR COVER
67/2.	[1]	146515-3620	CONTROL SHAFT
67/3.	[1]	146600-0100	O-RING
67/4.	[1]	139310-0200	PLAIN WASHER
67/5.	[1]	146537-7320	CONTROL LEVER
67/6.	[1]	014110-6440	LOCKING WASHER
67/7.	[1]	013020-6040	UNION NUT M6P1H5
67/13.	[1]	146621-1700	UNION NUT
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-3400	BLEEDER SCREW
67/16.	[1]	146526-3400	BLEEDER SCREW
67/18.	[1]	146587-8000	COILED SPRING
67/19.	[1]	146541-3000	BUSHING
67/21.	[1]	146587-9900	COILED SPRING
67/22.	[1]	146541-3100	SLOTTED WASHER
67/78.	[1]	146600-4400	SEAL RING
67/89.	[1]	146541-4900	PLAIN WASHER D20&10T0.5
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
95.	[1]	146861-4520	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-4200	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
120.	[1]	146879-0420	RETAINING PIN
122.	[1]	146580-3800	GOVERNOR SPRING
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0020	OVER FLOW VALVE
200.	[1]	146206-0100	COILED SPRING
230.	[1]	146926-8220	BRACKET
231.	[1]	139006-4600	BLEEDER SCREW
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-0720	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146662-7620	WIRE
243.	[1]	146621-1000	UNION NUT
246.	[1]	027412-2440	EYE BOLT
800S.	[1]	146009-9220	PUMP HOUSING
800S/1/6.	[1]	146601-0900	PACKING RING
800S/1/6.	[1]	146601-0900	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
906.	[1]	146972-7500	NAMEPLATE

Include in #2:

104780-4420 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 611 643 9460611643

ZEXEL 104780-4420 1047804420

NISSAN-DIESEL 167006T070 167006t070

Zexel num

Bosch num

Firm num

Name

104780-4420

9 460 611 643

167006T070 NISSAN-DIESEL

INJECTION-PUMP ASSEMBLY
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 47.9 47.4 48.4

Difference in delivery mm3/st. 4

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_02

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 39.3 36.8 41.8

Oil temperature degC 48 46 50

Injection timing adjustment_03

Pump speed r/min 1100 1100 1100

Average injection quantity mm3/st. 47.9 46.9 48.9

Difference in delivery mm3/st. 4.5

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_04

Pump speed r/min 2150 2150 2150

Average injection quantity mm3/st. 44.3 41.8 46.8

Oil temperature degC 52 50 54

Injection quantity adjustment

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 10.9 8.9 12.9

Difference in delivery mm3/st. 3

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_02

Pump speed r/min 2350 2350 2350

Average injection quantity mm3/st. 39.4 39.4 39.4

Oil temperature degC 52 50 54

Injection quantity adjustment_03

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 10.9 8.4 13.4

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_04

Pump speed r/min 2700 2700 2700

Average injection quantity mm3/st. 5

Oil temperature degC 55 52 58

Governor adjustment

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 7.7 5.7 9.7

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 7.7 5.2 10.2

Difference in delivery mm3/st. 2.5

Basic *

Oil temperature degC 48 46 50

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 45 80

Basic *

Oil temperature degC 48 46 50

Remarks
Full

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 45 80

Oil temperature degC 48 46 50

Remarks
Full

Speed control lever angle

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 48 46 50

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 1100 1100 1100

Overflow quantity cm3/min 390 260 520

Oil temperature degC 50 48 52

Stop lever angle

Pump speed r/min 1100 1100 1100

Pressure kPa 432 403 461

Pressure kgf/cm2 4.4 4.1 4.7

Basic *

Oil temperature degC 50 48 52

Stop lever angle_02

Pump speed r/min 1100 1100 1100

Pressure kPa 432 393 471

Pressure kgf/cm2 4.4 4 4.8

Basic *

Oil temperature degC 50 48 52

Stop lever angle_03

Pump speed r/min 1700 1700 1700

Pressure kPa 559 520 598

Pressure kgf/cm2 5.7 5.3 6.1

Oil temperature degC 50 48 52

0000001101

Pump speed r/min 1100 1100 1100

Timer stroke mm 1.9 1.7 2.1

Basic *

Oil temperature degC 50 48 52

_02

Pump speed r/min 850 850 850

Timer stroke mm 0.8 0.3 1.3

Oil temperature degC 50 48 52

_03

Pump speed r/min 1100 1100 1100

Timer stroke mm 1.9 1.6 2.2

Basic *

Oil temperature degC 50 48 52

_04

Pump speed r/min 1700 1700 1700

Timer stroke mm 4.4 3.9 4.9

Oil temperature degC 50 48 52

_05

Pump speed r/min 2300 2300 2300

Timer stroke mm 6.1 5.6 6.5

Oil temperature degC 52 50 54

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 0.9 0.8 1

Pre-stroke mm 0.1 0.08 0.12

Control lever angle alpha deg. 54 50 58

Control lever angle beta deg. 36 31 41

Information:

Start By:a. remove vibration damper and pulley 1. Use a punch or Tool (A) to put a hole in seal (1). Use Tool (A) to remove seal (1) from the timing gear cover. When a replacement of the front seal is made, a replacement of the wear sleeve is to be made also. 2. Put Tool (B) in position in the seal bore as shown.3. Install Tool (C) between Tool (B) and the wear sleeve. Turn Tool (C) until the edge of the tool makes a flat place (crease) in the wear sleeve. Do this in two or more places until the wear sleeve is loose.4. Remove Tool (B) and the wear sleeve by hand.Install Crankshaft Front Seal & Wear Sleeve
The wear sleeve and seal must be installed at the same time.1. Install the crankshaft front seal and wear sleeve with Tool (A) as follows: a. Clean and make a preparation of the wear sleeve inside diameter and crankshaft outside diameter with 6V-1541 Quick Cure Primer. Make an application of 9S-3265 Retaining Compound to crankshaft outside diameter and wear sleeve inside diameter before the wear sleeve is installed on the crankshaft.b. Install locator (1) and the bolts on the front of the crankshaft.c. The wear sleeve and seal come as a set with the seal already installed on the wear sleeve. Make sure the lip of the seal is toward the inside of the engine as shown and the outside diameter bevel of the wear sleeve is toward the outside of the engine.d. Put the wear sleeve and seal in position on locator (1). e. Put installer (2) in position on locator (1).f. Put clean engine oil on the face of nut (3) and its contact area on installer (2). Install nut (3) on stud of locator (1).g. Tighten nut (3) until the inside surface of installer (2) comes in contact with locator (1).h. Remove Tool (A) and check the wear sleeve and seal for correct installation.End By:a. install vibration damper and pulley
