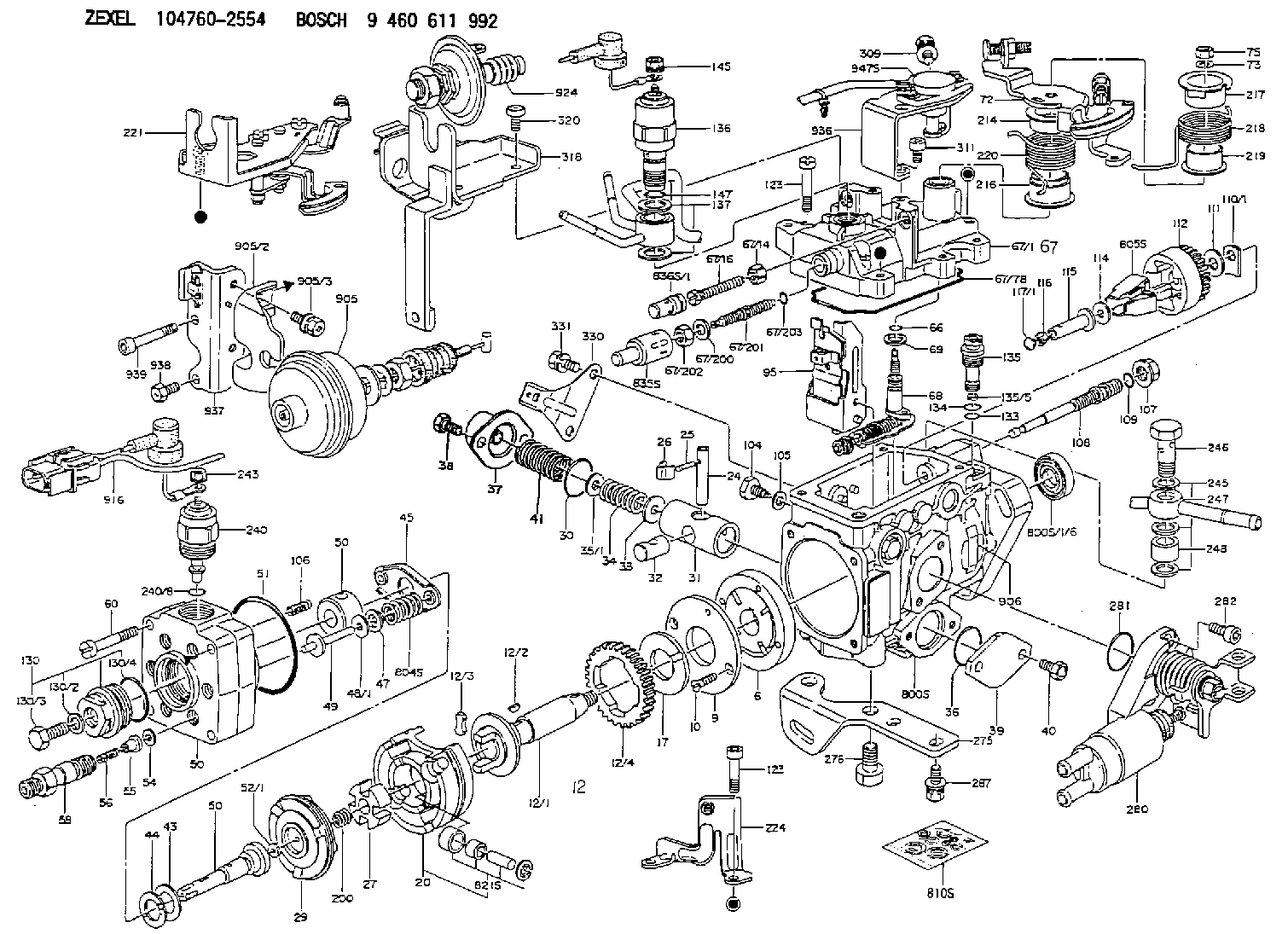

104760-2554 ZEXEL 9 460 611 992 BOSCH INJECTION-PUMP ASSEMBLY 9460611992 1047602554 167001h902




Information injection-pump assembly

BOSCH 9 460 611 992 9460611992
ZEXEL 104760-2554 1047602554
NISSAN 167001H902 167001h902
104760-2554 INJECTION-PUMP ASSEMBLY
Rating:
66
Buy INJECTION-PUMP ASSEMBLY 104760-2554 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104760-2554
1. _
2. FUEL INJECTION PUMP 104660-2554
3. NUMBER PLATE 146980-0500
4. _
5. CAPSULE
6. ADJUSTING DEVICE 146679-0720
7. NOZZLE AND HOLDER ASSY 105141-2991
8. Nozzle and Holder 16600-84T07
9. Open Pre:MPa(Kqf/cm2) 12.7{130}
10. NOZZLE-HOLDER 105071-0681
11. NOZZLE 105000-2200

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0220 SUPPLY PUMP
9. [1] 146103-0100 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0420 DRIVE SHAFT
12/1. [1] 146200-0400 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-3420 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146221-1120 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146311-8620 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
34. [1] 146312-3900 COMPRESSION SPRING
34B. [1] 146312-4000 COMPRESSION SPRING
35/1. [1] 146690-3200 SHIM D11.5&9.4T0.1
35/1. [1] 146690-3300 SHIM D11.5&9.4T0.2
35/1. [1] 146690-3400 SHIM D11.5&9.4T0.25
35/1. [1] 146690-3500 SHIM D11.5&9.4T1.0
35/1. [1] 146690-4100 SHIM D11.5&9.4T2
35/1. [1] 146690-4200 SHIM D11.5&9.4T0.5
35/1. [1] 146690-4300 SHIM D11.5&9.4T0.75
36. [1] 146600-0800 O-RING
37. [1] 146310-4020 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
41. [1] 146312-4100 COMPRESSION SPRING
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0600 GUIDE PIN
50. [1] 146405-2720 HYDRAULIC HEAD
50. [1] 146405-2720 HYDRAULIC HEAD
50. [1] 146405-2720 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [6] 146433-0100 GASKET D12&6.4T1.00
55. [6] 146430-4620 DELIVERY-VALVE ASSEMBLY
56. [6] 146432-0000 COMPRESSION SPRING
58. [6] 146440-2720 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146503-8620 GOVERNOR COVER
67/1. [1] 146805-8020 GOVERNOR COVER
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-3400 BLEEDER SCREW
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146514-5220 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146831-0220 CONTROL LEVER
72B. [1] 146831-0320 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146861-1020 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-1300 SLIDING SLEEVE
116. [1] 146576-0200 CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
123. [4] 139106-0200 FLAT-HEAD SCREW
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146650-6020 PULLING ELECTROMAGNET
136B. [1] 146650-5420 PULLING ELECTROMAGNET
136C. [1] 146650-6320 PULLING ELECTROMAGNET
137. [2] 139514-0200 GASKET
145. [1] 146621-1000 UNION NUT
147. [1] 016520-1210 O-RING
200. [1] 146206-0100 COILED SPRING
214. [1] 146542-5000 BUSHING
216. [1] 146542-5100 BUSHING
217. [1] 146541-3100 SLOTTED WASHER
218. [1] 146592-5600 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146592-5700 COILED SPRING
221. [1] 146627-4420 BRACKET
224. [1] 146925-0300 BRACKET
240. [1] 146650-0720 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
243. [1] 146621-1000 UNION NUT
245. [3] 139512-0200 GASKET D18.5&12.2T1.00
246. [1] 139812-0500 EYE BOLT
247. [1] 146666-5221 PIPE
248. [1] 146614-0200 SPACER BUSHING
275. [1] 146612-5020 BRACKET
276. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
280. [1] 146361-1020 START ADVANCE ASSY
281. [1] 146600-0800 O-RING
282. [2] 010206-1240 HEX-SOCKET-HEAD CAP SCREW M6P1L12
287. [1] 020146-1440 BLEEDER SCREW M6P1L14
309. [1] 020146-1440 BLEEDER SCREW M6P1L14
311. [2] 010206-1040 HEX-SOCKET-HEAD CAP SCREW
318. [1] 146930-9720 BRACKET
320. [3] 020146-2040 BLEEDER SCREW M6P1.0L20 4T
330. [1] 146927-0600 PLATE
331. [2] 020106-1040 BLEEDER SCREW M6P1L12
800S. [1] 146019-3520 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0720 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
905. [1] 146679-0720 ACTUATOR
906. [1] 146980-0500 NAMEPLATE
916. [1] 146662-3020 WIRE
924. [1] 146680-5320 DAMPER
936. [1] 146684-4220 POTENTCIOMETER
936/2. [1] 146930-6600 BRACKET
936/3. [2] 139104-0400 FLAT-HEAD SCREW
936/4. [1] 146649-0400 JOINT CONNECTION
936/4B. [1] 146649-0500 JOINT CONNECTION
936/4C. [1] 146649-0600 JOINT CONNECTION
936/4D. [1] 146649-0700 JOINT CONNECTION
936/4E. [1] 146649-0800 JOINT CONNECTION
936/4F. [1] 146649-0900 JOINT CONNECTION
936/4G. [1] 146649-1000 JOINT CONNECTION
936/4H. [1] 146649-1100 JOINT CONNECTION
936/4I. [1] 146649-1200 JOINT CONNECTION
936/4J. [1] 146649-1300 JOINT CONNECTION
936/4K. [1] 146649-1400 JOINT CONNECTION
936/4L. [1] 146649-1500 JOINT CONNECTION
937. [1] 146930-4720 BRACKET
938. [2] 139006-4800 BLEEDER SCREW
939. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
947S. [1] 146684-3810 POTENTCIOMETER

Include in #2:

104760-2554 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104760-2554
104760-2555
9 460 611 992
167001H902  NISSAN
INJECTION-PUMP ASSEMBLY
RD28 * K 11CK VE6 VE




Information:

January 9, 2003
O-10
Priority PRODUCT IMPROVEMENT PROGRAM FOR INSTALLINGA NEW WIRE ASSEMBLY IN THE INJECTION ACTUATION PRESSURE CONTROL ON CERTAIN325C AND 325C L EXCAVATORS AND 950G II AND 962G II WHEEL LOADERS
1408 PI30431
This Program must be administered assoon as possible. When reporting the repair, use "PI30431" as the Partnumber and "7751" as the Group Number, "56" as the Warranty Claim DescriptionCode and "T" as the SIMS Description Code. Exception: If the repair isdone after failure, use "PI30431" as the Part Number, "7751" as the GroupNumber, "96" as the Warranty Claim Description Code, and "Z" as the SIMSDescription Code. The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.
COMPLETION DATE
TERMINATION DATE
July 31, 2003 January 31, 2004PROBLEM
A new wire assembly needs to be installed in theinjection actuation pressure control on certain 325C and 325C L Excavatorsand 950G II and 962G II Wheel Loaders. The injection actuation pressurecontrol valve connector may have been assembled incorrectly some 3126BEngine harness. This can lead to intermittent engine operation or can causethe engine to stop. The wire assembly must be replaced.AFFECTED PRODUCT
Model Identification Number
325C L CRB465, 466, 468, 469
325C CSJ571, 572, 574, 578, 582, 586
950G II AYL587, 591, 592, 598-601,610, 612, 615AYB486-491
962G AYE459
962G II BAB336, 338PARTS NEEDED
1 - 2324367 Wire AssemblyACTION REQUIRED
See the attached Rework Procedure.SERVICE CLAIM ALLOWANCES
Caterpillar Dealer Suggested Customer Suggested
Parts Labor Hrs. Parts Labor Hrs. Parts Labor Hrs.
100% 1 0 0 0 0
This is a 1-hour job.PARTS DISPOSITION
Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAMAS SOON AS POSSIBLE.Attach. (1-Sample of Owner Notification)
(2-Rework Procedure)SAMPLE OF OWNER NOTIFICATION
XYZ Corporation
3240 Arrow Drive
Anywhere, YZ 99999PRIORITY - Install A New Wire Assembly In TheInjection Actuation Pressure ControlMODELS INVOLVED - 325C and 325C L Excavatorsand 950G II and 962G II Wheel LoadersDear Caterpillar Product Owner:A new wire assembly needs to be installed inthe injection actuation pressure control on certain 325C and 325C L Excavatorsand 950G II and 962G II Wheel Loaders. The injection actuation pressurecontrol valve connector may have been assembled incorrectly some 3126BEngine harness. This can lead to intermittent engine operation or can causethe engine to stop. The wire assembly must be replaced. A new wire assemblyneeds to be installed on the products listed below. You will not be chargedfor the service performed.Contact your local Caterpillar dealer immediatelyto schedule this service. The dealer will advise you of the time requiredto complete this service. Please refer the dealer to their Service Letterdated January 9, 2003 when scheduling this service.We regret the inconvenience this may causeyou, but urge you to have this service performed as soon as possible toprevent unscheduled downtime.Caterpillar Inc.
Identification #(s)Attached to January 9, 2003 Service Letter
Rework Procedure
Disconnect the IAP control valve connector (seeIllustration 1).
Cut the wires behind the connector.
Strip the ends of both wires.
Install 2324367 harness by crimping the strippedwires inside the splice. Take care to connect pink wire to pink wire onone hand, purple wire to purple wire on the other hand.
Heat both heat shrinkable tubes in order to insulateboth splices.
Reconnect the

Have questions with 104760-2554?





Group cross 104760-2554 ZEXEL

104760-2550


INJECTION-PUMP ASSEMBLY
104760-2551


INJECTION-PUMP ASSEMBLY

Nissan

104760-2552

104760-2553
9 460 613 090
167001H900
INJECTION-PUMP ASSEMBLY
RD28
104760-2553

104760-2554
9 460 613 091
167001H901
INJECTION-PUMP ASSEMBLY
RD28
104760-2554

104760-2555
9 460 611 992
167001H902
INJECTION-PUMP ASSEMBLY
RD28
104760-2555

104760-2556
9 460 611 047
167002H700
INJECTION-PUMP ASSEMBLY
RD28
104760-2556
9 460 611 466
167002H701
INJECTION-PUMP ASSEMBLY
RD28
Back to top
