104760-2531 ZEXEL 9 460 613 084 BOSCH INJECTION-PUMP ASSEMBLY 9460613084 1047602531 1670095p00




Information injection-pump assembly

BOSCH 9 460 613 084 9460613084
ZEXEL 104760-2531 1047602531
NISSAN 1670095P00 1670095p00
104760-2531 INJECTION-PUMP ASSEMBLY
Rating:
50
Buy INJECTION-PUMP ASSEMBLY 104760-2531 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104760-2531
1. _
2. FUEL INJECTION PUMP 104660-2530
3. NUMBER PLATE 146914-6400
4. _
5. CAPSULE
6. ADJUSTING DEVICE 146679-0720
7. NOZZLE AND HOLDER ASSY 105141-2991
8. Nozzle and Holder 16600-84T07
9. Open Pre:MPa(Kqf/cm2) 12.7{130}
10. NOZZLE-HOLDER 105071-0681
11. NOZZLE 105000-2200

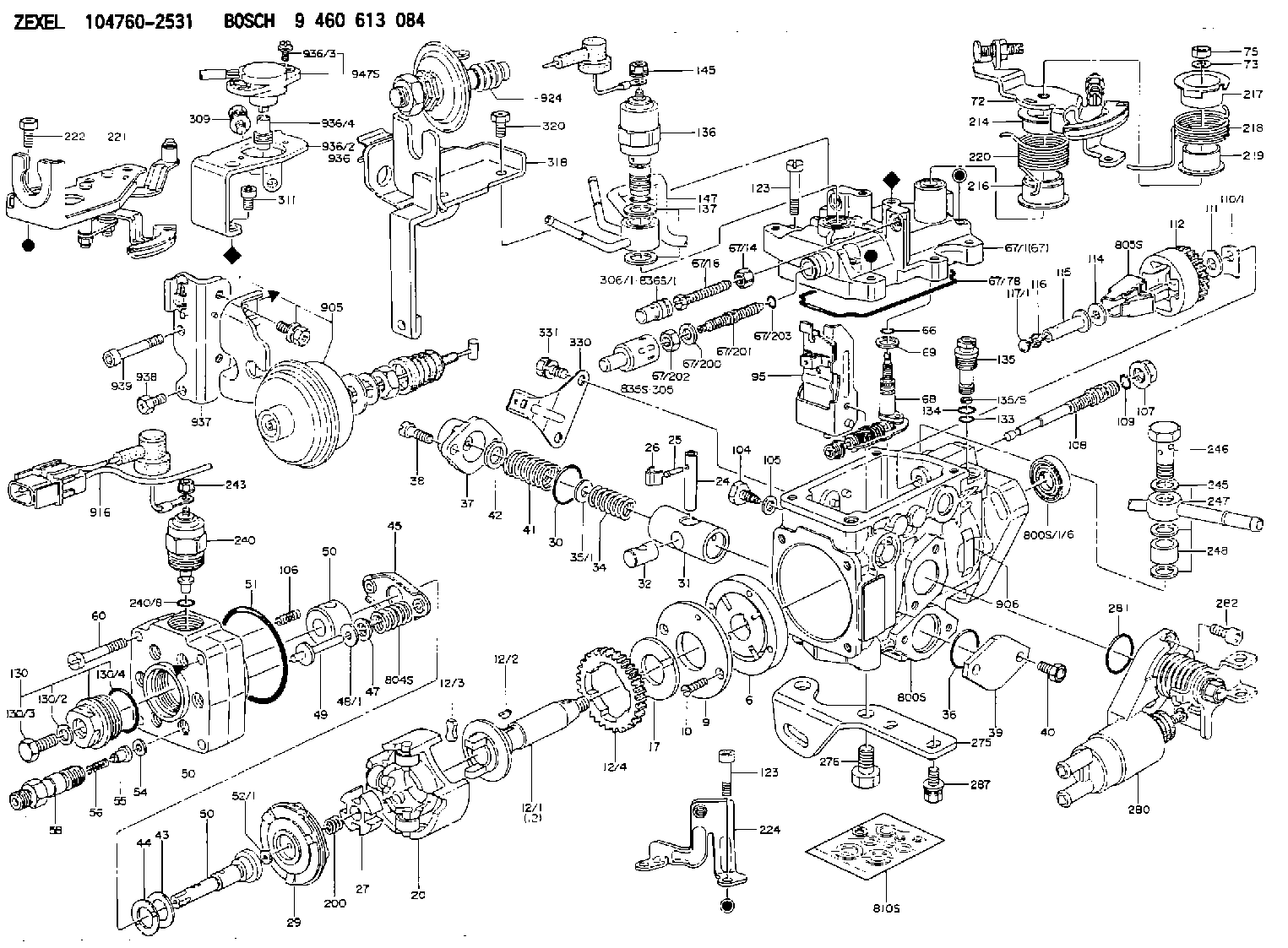

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0220 SUPPLY PUMP
9. [1] 146103-0100 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0420 DRIVE SHAFT
12/1. [1] 146200-0400 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-3420 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146221-1120 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146311-8620 PUMP PLUNGER
32. [1] 146301-0200 SLIDING PIECE
34. [1] 146312-3900 COMPRESSION SPRING
34B. [1] 146312-4000 COMPRESSION SPRING
35/1. [1] 146690-3200 SHIM D11.5&9.4T0.1
35/1. [1] 146690-3300 SHIM D11.5&9.4T0.2
35/1. [1] 146690-3400 SHIM D11.5&9.4T0.25
35/1. [1] 146690-3500 SHIM D11.5&9.4T1.0
35/1. [1] 146690-4100 SHIM D11.5&9.4T2
35/1. [1] 146690-4200 SHIM D11.5&9.4T0.5
35/1. [1] 146690-4300 SHIM D11.5&9.4T0.75
36. [1] 146600-0800 O-RING
37. [1] 146310-1600 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
41. [1] 146312-4100 COMPRESSION SPRING
42. [1] 146602-8500 PLAIN WASHER
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0120 GUIDE PIN
50. [1] 146405-2720 HYDRAULIC HEAD
50. [1] 146405-2720 HYDRAULIC HEAD
50. [1] 146405-2720 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [6] 146433-0100 GASKET D12&6.4T1.00
55. [6] 146430-4620 DELIVERY-VALVE ASSEMBLY
56. [6] 146432-0000 COMPRESSION SPRING
58. [6] 146440-0220 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146503-7420 GOVERNOR COVER
67/1. [1] 146805-8020 GOVERNOR COVER
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-3400 BLEEDER SCREW
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3720 THREADED PIN
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146514-5820 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146830-2520 CONTROL LEVER
72B. [1] 146830-2620 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146861-1020 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146575-2000 SLIDING SLEEVE
116. [1] 146576-0200 CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
123. [4] 139106-0200 FLAT-HEAD SCREW
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146650-6020 PULLING ELECTROMAGNET
136B. [1] 146650-5420 PULLING ELECTROMAGNET
136C. [1] 146650-6320 PULLING ELECTROMAGNET
137. [2] 139514-0200 GASKET
145. [1] 146621-1000 UNION NUT
147. [1] 016520-1210 O-RING
200. [1] 146206-0100 COILED SPRING
214. [1] 146542-5000 BUSHING
216. [1] 146542-5100 BUSHING
217. [1] 146541-3100 SLOTTED WASHER
218. [1] 146592-5600 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146592-5700 COILED SPRING
221. [1] 146927-8020 BRACKET
222. [3] 139006-4600 BLEEDER SCREW
224. [1] 146925-0300 BRACKET
240. [1] 146650-0720 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
243. [1] 146621-1000 UNION NUT
245. [3] 139512-0200 GASKET D18.5&12.2T1.00
246. [1] 139812-0500 EYE BOLT
247. [1] 146666-1420 PIPE
248. [1] 146614-0200 SPACER BUSHING
275. [1] 146612-5020 BRACKET
276. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
280. [1] 146361-1020 START ADVANCE ASSY
281. [1] 146600-0800 O-RING
282. [2] 010206-1240 HEX-SOCKET-HEAD CAP SCREW M6P1L12
287. [1] 020146-1440 BLEEDER SCREW M6P1L14
309. [1] 020146-1440 BLEEDER SCREW M6P1L14
311. [2] 010206-1040 HEX-SOCKET-HEAD CAP SCREW
318. [1] 146930-9720 BRACKET
320. [3] 020146-2040 BLEEDER SCREW M6P1.0L20 4T
330. [1] 146927-0600 PLATE
331. [2] 020106-1040 BLEEDER SCREW M6P1L12
800S. [1] 146019-3520 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0720 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
905. [1] 146679-0720 ACTUATOR
906. [1] 146914-6400 NAMEPLATE
916. [1] 146662-3020 WIRE
924. [1] 146680-5320 DAMPER
936. [1] 146684-4220 POTENTCIOMETER
936/2. [1] 146930-6600 BRACKET
936/3. [2] 139104-0400 FLAT-HEAD SCREW
936/4. [1] 146649-0400 JOINT CONNECTION
936/4B. [1] 146649-0500 JOINT CONNECTION
936/4C. [1] 146649-0600 JOINT CONNECTION
936/4D. [1] 146649-0700 JOINT CONNECTION
936/4E. [1] 146649-0800 JOINT CONNECTION
936/4F. [1] 146649-0900 JOINT CONNECTION
936/4G. [1] 146649-1000 JOINT CONNECTION
936/4H. [1] 146649-1100 JOINT CONNECTION
936/4I. [1] 146649-1200 JOINT CONNECTION
936/4J. [1] 146649-1300 JOINT CONNECTION
936/4K. [1] 146649-1400 JOINT CONNECTION
936/4L. [1] 146649-1500 JOINT CONNECTION
937. [1] 146930-4720 BRACKET
938. [2] 139006-4800 BLEEDER SCREW
939. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
947S. [1] 146684-3810 POTENTCIOMETER

Include in #2:

104760-2531 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104760-2531
104760-2532
9 460 613 084
1670095P00  NISSAN
INJECTION-PUMP ASSEMBLY
RD28 * K 11CK VE6 VE




Information:

Start By:a. remove fuel injection nozzlesb. remove cylinder head assembly and spacer plate 1. Put compression on valve spring (2) with Tool (A). Remove locks (1).2. Remove Tool (A), rotocoil, spring, valve stem oil shield and valve. Put identification marks on valves with respect to their location in the cylinder head. 3. Check the spring force with Tool (B). The spring force is 257 25 N (57.8 5.6 lb). The length of spring under test force is 44.86 mm (1.766 in). The free length after test is 52.07 mm (2.050 in).4. Do Steps 1 through 3 again for the remainder of the valves.Install Valves
1. Put clean engine oil on the valve stems. Install valve (3), oil shield (4), spring (2) and rotocoil (1) in the cylinder head. 2. Put Tool (A) in position on the valve spring. Install the locks with Tool (B).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
3. Remove Tool (A), and hit the top of valve with a plastic hammer to be sure the locks are in their correct position on valve.4. Do Steps 1 through 3 again for the remainder of the valves.End By:a. install cylinder head assembly and spacer plateb. install fuel injection nozzles

Have questions with 104760-2531?





Group cross 104760-2531 ZEXEL

104760-2530

104760-2531
9 460 613 083

INJECTION-PUMP ASSEMBLY

Nissan

104760-2531

104760-2532
9 460 613 084
1670095P00
INJECTION-PUMP ASSEMBLY
RD28
104760-2532

104760-2533
9 460 613 085
1670095P01
INJECTION-PUMP ASSEMBLY
RD28
104760-2533

104760-2534
9 460 611 991
1670095P02
INJECTION-PUMP ASSEMBLY
RD28
104760-2534

104760-2535
9 460 611 045
167006H700
INJECTION-PUMP ASSEMBLY
RD28
104760-2535
9 460 611 464
167006H701
INJECTION-PUMP ASSEMBLY
RD28
Back to top
