104760-2517 ZEXEL 9 460 611 462 BOSCH INJECTION-PUMP ASSEMBLY 9460611462 1047602517 1670084t04

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 611 462 9460611462

ZEXEL 104760-2517 1047602517

NISSAN 1670084T04 1670084t04

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104760-2517 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104760-2517
1.	_
2.	FUEL INJECTION PUMP	104660-2517
3.	NUMBER PLATE	146980-9800
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE	146679-0520
7.	NOZZLE AND HOLDER ASSY	105141-2991
8.	Nozzle and Holder	16600-84T07
9.	Open Pre:MPa(Kqf/cm2)	12.7{130}
10.	NOZZLE-HOLDER	105071-0681
11.	NOZZLE	105000-2200

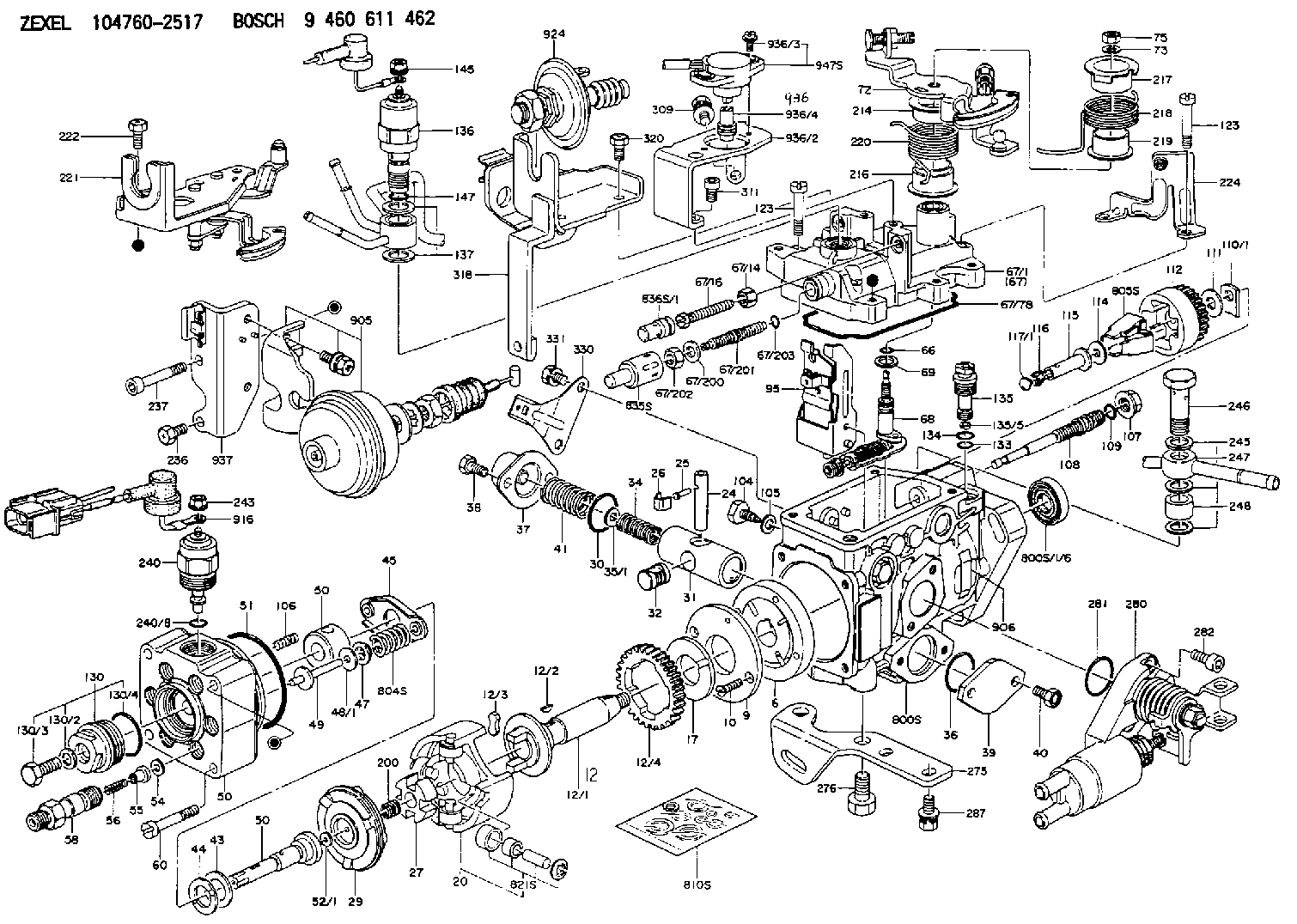

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0220	SUPPLY PUMP
9.	[1]	146103-0100	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0420	DRIVE SHAFT
12/1.	[1]	146200-0400	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-3420	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146221-1120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146311-8620	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
34.	[1]	146312-2600	COMPRESSION SPRING
34B.	[1]	146312-3900	COMPRESSION SPRING
35/1.	[1]	146690-3200	SHIM D11.5&9.4T0.1
35/1.	[1]	146690-3300	SHIM D11.5&9.4T0.2
35/1.	[1]	146690-3400	SHIM D11.5&9.4T0.25
35/1.	[1]	146690-3500	SHIM D11.5&9.4T1.0
35/1.	[1]	146690-4100	SHIM D11.5&9.4T2
35/1.	[1]	146690-4200	SHIM D11.5&9.4T0.5
35/1.	[1]	146690-4300	SHIM D11.5&9.4T0.75
36.	[1]	146600-0800	O-RING
37.	[1]	146310-4020	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
41.	[1]	146312-2000	COMPRESSION SPRING
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0600	GUIDE PIN
50.	[1]	146405-2720	HYDRAULIC HEAD
50.	[1]	146405-2720	HYDRAULIC HEAD
50.	[1]	146405-2720	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[6]	146433-0100	GASKET D12&6.4T1.00
55.	[6]	146430-4620	DELIVERY-VALVE ASSEMBLY
56.	[6]	146432-0000	COMPRESSION SPRING
58.	[6]	146440-2720	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146503-8620	GOVERNOR COVER
67/1.	[1]	146805-8020	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3400	BLEEDER SCREW
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146514-4520	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146831-0220	CONTROL LEVER
72B.	[1]	146831-0320	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146861-9820	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-4200	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146650-6020	PULLING ELECTROMAGNET
136B.	[1]	146650-5420	PULLING ELECTROMAGNET
136C.	[1]	146650-6320	PULLING ELECTROMAGNET
137.	[2]	139514-0200	GASKET
145.	[1]	146621-1000	UNION NUT
147.	[1]	146600-5000	O-RING
200.	[1]	146206-0100	COILED SPRING
214.	[1]	146542-5000	BUSHING
216.	[1]	146542-5100	BUSHING
217.	[1]	146541-3100	SLOTTED WASHER
218.	[1]	146592-5600	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-5700	COILED SPRING
221.	[1]	146927-8020	BRACKET
222.	[3]	139006-4600	BLEEDER SCREW
224.	[1]	146925-0300	BRACKET
240.	[1]	146650-0720	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0200	GASKET D18.5&12.2T1.00
246.	[1]	139812-0500	EYE BOLT
247.	[1]	146666-5221	PIPE
248.	[1]	146614-0200	SPACER BUSHING
275.	[1]	146612-5020	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
280.	[1]	146361-1020	START ADVANCE ASSY
281.	[1]	146600-0800	O-RING
282.	[2]	010206-1240	HEX-SOCKET-HEAD CAP SCREW M6P1L12
287.	[1]	020146-1440	BLEEDER SCREW M6P1L14
309.	[1]	020146-1440	BLEEDER SCREW M6P1L14
311.	[2]	010206-1040	HEX-SOCKET-HEAD CAP SCREW
318.	[1]	146930-9720	BRACKET
320.	[3]	020146-2040	BLEEDER SCREW M6P1.0L20 4T
330.	[1]	146927-0600	PLATE
331.	[2]	020106-1040	BLEEDER SCREW M6P1L12
800S.	[1]	146019-3520	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0720	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
905.	[1]	146679-0520	ACTUATOR
906.	[1]	146980-9800	NAMEPLATE
916.	[1]	146662-2620	WIRE
924.	[1]	146680-5320	DAMPER
936.	[1]	146684-0120	POTENTCIOMETER
936/2.	[1]	146930-6600	BRACKET
936/3.	[2]	139104-0400	FLAT-HEAD SCREW
936/4.	[1]	146649-0400	JOINT CONNECTION
936/4B.	[1]	146649-0500	JOINT CONNECTION
936/4C.	[1]	146649-0600	JOINT CONNECTION
936/4D.	[1]	146649-0700	JOINT CONNECTION
936/4E.	[1]	146649-0800	JOINT CONNECTION
936/4F.	[1]	146649-0900	JOINT CONNECTION
936/4G.	[1]	146649-1000	JOINT CONNECTION
936/4H.	[1]	146649-1100	JOINT CONNECTION
936/4I.	[1]	146649-1200	JOINT CONNECTION
936/4J.	[1]	146649-1300	JOINT CONNECTION
936/4K.	[1]	146649-1400	JOINT CONNECTION
936/4L.	[1]	146649-1500	JOINT CONNECTION
937.	[1]	146930-4720	BRACKET
938.	[2]	139006-4800	BLEEDER SCREW
939.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
947S.	[1]	146683-9910	POTENTCIOMETER

Include in #2:

104760-2517 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 611 462 9460611462

ZEXEL 104760-2517 1047602517

NISSAN 1670084T04 1670084t04

Zexel num

Bosch num

Firm num

Name

104760-2517

9 460 611 462

1670084T04 NISSAN

INJECTION-PUMP ASSEMBLY
RD28 K 11CK INJECTION PUMP ASSY VE6 VE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 29.3 28.9 29.7

Difference in delivery mm3/st. 2.5

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_02

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 29.3 28.3 30.3

Difference in delivery mm3/st. 3

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_03

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 28.9 25.9 31.9

Oil temperature degC 50 48 52

Injection timing adjustment_04

Pump speed r/min 1200 1200 1200

Average injection quantity mm3/st. 29.9 27.4 32.4

Oil temperature degC 50 48 52

Injection timing adjustment_05

Pump speed r/min 1800 1800 1800

Average injection quantity mm3/st. 31.1 28.1 34.1

Oil temperature degC 50 48 52

Injection timing adjustment_06

Pump speed r/min 2300 2300 2300

Average injection quantity mm3/st. 32.4 28.9 35.9

Oil temperature degC 52 50 54

Injection timing adjustment_07

Pump speed r/min 2500 2500 2500

Average injection quantity mm3/st. 32.3 28.8 35.8

Oil temperature degC 55 52 58

Injection quantity adjustment

Pump speed r/min 2600 2600 2600

Average injection quantity mm3/st. 27 25 29

Difference in delivery mm3/st. 4.5

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_02

Pump speed r/min 2800 2800 2800

Average injection quantity mm3/st. 6.5

Oil temperature degC 55 52 58

Injection quantity adjustment_03

Pump speed r/min 2600 2600 2600

Average injection quantity mm3/st. 27 23.5 30.5

Difference in delivery mm3/st. 5

Basic *

Oil temperature degC 55 52 58

Governor adjustment

Pump speed r/min 290 290 290

Average injection quantity mm3/st. 9 8 10

Difference in delivery mm3/st. 1

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 290 290 290

Average injection quantity mm3/st. 9 7 11

Difference in delivery mm3/st. 1.7

Basic *

Oil temperature degC 48 46 50

Governor adjustment_03

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 7

Oil temperature degC 48 46 50

Boost compensator adjustment

Average injection quantity mm3/st. 17 10.5 23.5

Oil temperature degC 50 48 52

Lever angle (shim thickness) mm 5.6 5.55 5.65

Boost compensator adjustment_02

Average injection quantity mm3/st. 10.4 3.4 17.4

Oil temperature degC 50 48 52

Lever angle (shim thickness) mm 5.6 5.55 5.65

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 35 35

Oil temperature degC 48 46 50

Remarks
Full

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 35 35

Oil temperature degC 48 46 50

Remarks
Full

Speed control lever angle

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 50 48 52

Remarks
Magnet OFF at full-load position

0000000901

Pump speed r/min 900 900 900

Overflow quantity cm3/min 465 335 595

Oil temperature degC 50 48 52

Stop lever angle

Pump speed r/min 900 900 900

Pressure with S/T ON kPa 422 393 451

Pressure with S/T ON kgf/cm2 4.3 4 4.6

Pressure with S/T OFF kPa 343 294 392

Pressure with S/T OFF kgf/cm2 3.5 3 4

Basic *

Oil temperature degC 50 48 52

Remarks
ON

Stop lever angle_02

Pump speed r/min 900 900 900

Pressure with S/T ON kPa 422 383 461

Pressure with S/T ON kgf/cm2 4.3 3.9 4.7

Pressure with S/T OFF kPa 343 284 402

Pressure with S/T OFF kgf/cm2 3.5 2.9 4.1

Basic *

Oil temperature degC 50 48 52

Remarks
ON

Stop lever angle_03

Pump speed r/min 1800 1800 1800

Pressure with S/T ON kPa 628 589 667

Pressure with S/T ON kgf/cm2 6.4 6 6.8

Oil temperature degC 50 48 52

Stop lever angle_04

Pump speed r/min 2500 2500 2500

Pressure with S/T ON kPa 775 736 814

Pressure with S/T ON kgf/cm2 7.9 7.5 8.3

Oil temperature degC 55 52 58

0000001101

Pump speed r/min 900 900 900

Timer stroke with S/T ON mm 4.6 4.4 4.8

Timer stroke with S/T OFF mm 2.9 2.5 3.3

Basic *

Oil temperature degC 50 48 52

Remarks
ON

_02

Pump speed r/min 900 900 900

Timer stroke with S/T ON mm 4.6 4.3 4.9

Timer stroke with S/T OFF mm 2.9 2.4 3.4

Basic *

Oil temperature degC 50 48 52

Remarks
ON

_03

Pump speed r/min 1200 1200 1200

Timer stroke with S/T ON mm 6.1 5.6 6.6

Oil temperature degC 50 48 52

_04

Pump speed r/min 1800 1800 1800

Timer stroke with S/T ON mm 9.1 8.4 9.8

Oil temperature degC 50 48 52

_05

Pump speed r/min 2300 2300 2300

Timer stroke with S/T ON mm 11.1 10.6 11.5

Oil temperature degC 52 50 54

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 7.22 7.12 7.32

MS dimension mm 1.8 1.7 1.9

Control lever angle alpha deg. 23 19 27

Control lever angle beta deg. 42.5 37.5 47.5

Test data Ex:

0000001801 POTENTIOMETER ADJUSTMENT

Adjustment of the potentiometer Adjusting method (dummy bolt method) 1. Position the control lever at the adjusting points in the table, hold the dummy bolt against the lever and fix. 2. In the fixed position, install the potentiometer so that the output voltage is V1 (supply voltage Vi). 3. After completing potentiometer installation, remove the dummy bolt. A:Adjusting point B:Checking point C:Control lever angle N:Pump speed Q:Injection quantity Vo:Output voltage M:Connecting diagram for the potentiometer O:Output P:Output when (2) and (3) connected. I:Idle position F:Full speed position P:Boost pressure
----------
Vi=10V V1=3.20+-0.03V
----------
N1=600r/min V1=3.20+-0.03V V2=1.48+-0.67V V3=8.56+-1.10V Q1=16.9+-1.0cm3/1,000st a=0deg b=(42.5)deg Vi=10V

0000001901 W-CSD ADJUSTMENT

Adjustment of the W-CSD Adjust the timer stroke determined from the graph below using screw (A). X:Temperature t (deg C) Y:Timer stroke TA B:Timer stroke TA: (O): diagram 1. (P): diagram 2
----------

----------
B:t(degC)<=10:TA=2.05mm 10<=t(degC)<=20:TA=-0.019t+2.24 20<=t(degC)<=55:TA=-0.0531t+2.922

0000002001 DASHPOT ADJUSTMENT

Adjustment of the dash pot 1. Insert a block gauge L1 (thickness gauge) between the idle set screw (C) and the control lever (D). 2. In the above condition, adjust the position of the dash pot so that the dash pot adjustment screw (A) contacts the push rod and then fix the screw using the nut (B). TT Note: (1)The adjusting screw and pushrod contact faces must be smooth. (2)Confirm that the control lever returns to the idle position. ISC actuator installation 1. Maintain the control lever in the idling position. 2. Fix actuator bracket (F) so that the gap between the control lever and the ISC lever's roller (E) is L2.
----------
L1=2.7+-0.05mm L2=1.0+1.0-0.5mm T=6~9Nm(0.6~0.9kgfm)
----------
L1=2.7+-0.05mm L2=1.0+1.0-0.5mm

Information:

Start By:a. remove fuel injection linesb. remove fuel filter and basec. remove fuel transfer pump The following illustrations are of a 3304 Engine. 1. Disconnect the governor control linkage from the governor.2. On 3304 Engines only: remove oil supply line (1), oil drain line (2) and heat shield (3). Remove the O-ring seal from oil drain line (2) if it is damaged. Remove the gaskets and screen from the top of the turbocharger.3. Disconnect fuel drain lines (4) and (5) from the fuel injection pump housing and governor. 4. Remove the nuts, washers and cover from the timing gear housing. Remove studs (6) if they are damaged or loose.5. Loosen bolt (7) enough to leave a gap of 3.18 mm (.125 in) between washer (8) and the fuel pump drive gear.6. Install Tool (A) as shown. Tighten the stud to pull the fuel pump drive gear loose from the taper on the fuel injection pump camshaft.7. Remove Tool (A), bolt (7) and washer (8) from the engine. 8. Fasten a nylon strap and hoist to the fuel injection pump housing and governor. The 3304 fuel injection pump housing and governor weighs 24 kg (53 lb). The 3306 fuel injection pump housing and governor weighs 29 kg (64 lb).9. Remove bolt (9), bolt (10), three nuts (11) and the fuel injection pump housing and governor. Remove the two O-ring seals from the bottom and the two O-ring seals from the front of the fuel injection pump housing and governor.Install Fuel Injection Pump Housing & Governor
The following illustrations are of a 3304 Engine. 1. Put clean engine oil on the O-ring seals. Install O-ring seals (1) in the bottom and O-ring seals (2) in the front of the fuel injection pump housing and governor. 2. Make sure O-ring seals (1) and (2) stay in position in the fuel injection pump housing and governor. Fasten a hoist to the fuel injection pump housing and governor, and put it in position on the engine. Install the two bolts at location (5) and the three nuts on studs (3) to hold the fuel injection pump housing and governor in position.3. Remove the bolts that hold cover (4) in position. Remove cover (4) and the gasket. 4. Put Tool (A) in position as shown. Install the bolt that holds the fuel pump drive gear to the fuel injection pump camshaft without the washer. This will allow the camshaft in the fuel system to be turned.5. Put pressure on the end of Tool (A) and turn the camshaft slowly until the Tool drops into the groove (slot) in the camshaft. Leave Tool (A) in position in the groove (slot). Remove the bolt from the end of the camshaft. 6. Install washer (6) with the large diameter toward the front of the engine. Install bolt (7) and tighten it to a torque of 6.8 N m (60 lb in).7. Install Tool (B) as shown in the flywheel housing. Make sure bolt (7) does not loosen as
