104760-2231 ZEXEL INJECTION-PUMP ASSEMBLY Cross 1047602231

Information injection-pump assembly

ZEXEL 104760-2231 1047602231

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104760-2231 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104760-2231
1.	_
2.	FUEL INJECTION PUMP
3.	NUMBER PLATE	146636-5000
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105111-1281
8.	Nozzle and Holder	16600-V0725
9.	Open Pre:MPa(Kqf/cm2)	12.7{130}
10.	NOZZLE-HOLDER	105041-1121
11.	NOZZLE	105000-1760

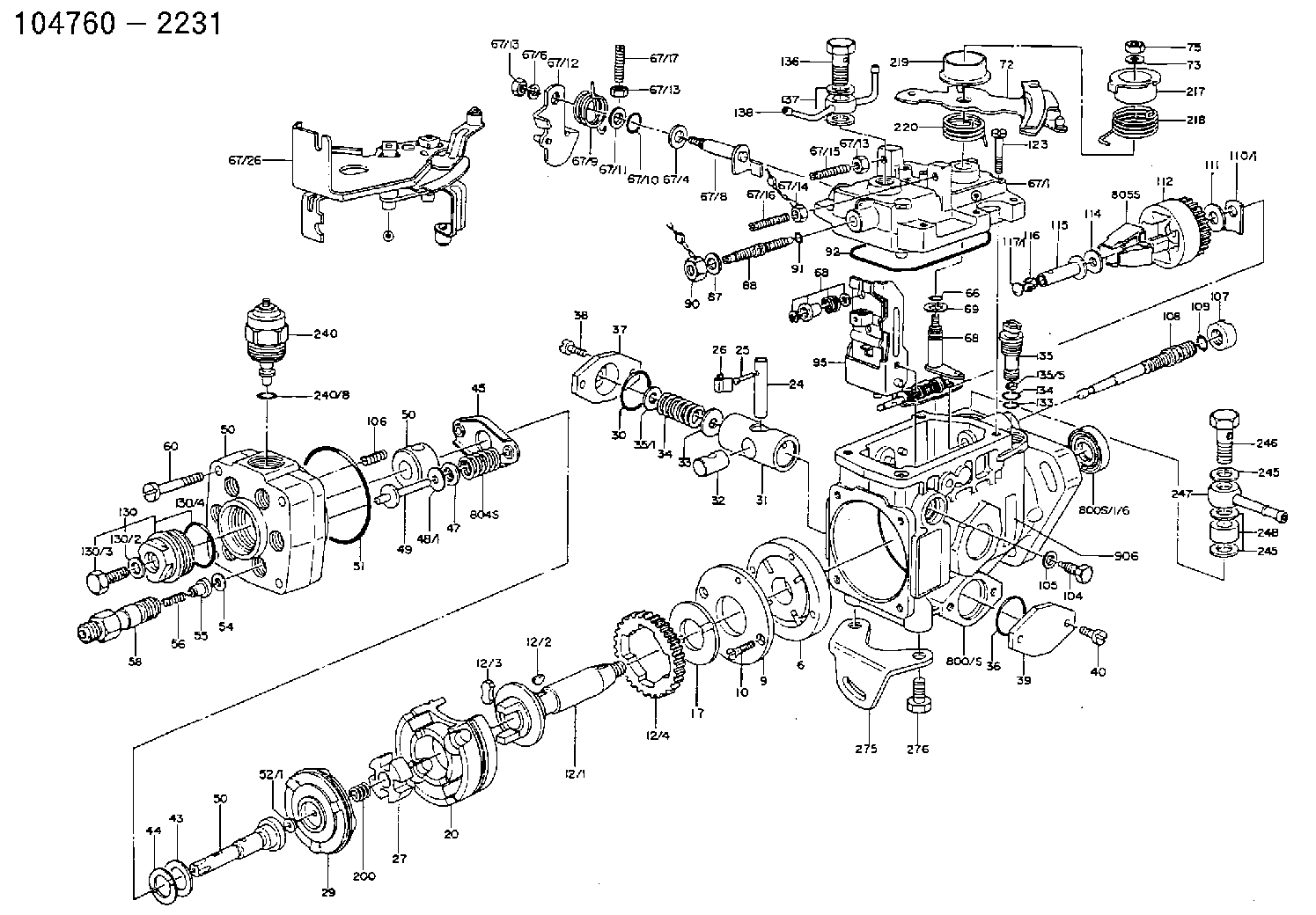

Scheme ###:

1.	[1]	146005-0320	PUMP HOUSING 3K D20 LL R
1/6.	[1]	146601-0100	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP D20
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0120	DRIVE SHAFT D20 LL
12/1.	[1]	146200-0100	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-0020	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146221-0120	CAM PLATE '01'Y490
30.	[1]	146600-0800	O-RING
31.	[1]	146300-1100	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM
34.	[1]	146302-0200	COMPRESSION SPRING K=2.5
35.	[1]	029998-0710	SHIM
35/1.	[0]	146603-0700	SHIM
35/1.	[0]	146603-0800	SHIM
35/1.	[0]	146603-0900	SHIM
35/1.	[0]	146603-1000	SHIM
35/1.	[0]	146603-1100	SHIM
35/1.	[0]	146603-3600	SHIM
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0000	COVER
38.	[2]	139106-0000	FLAT-HEAD SCREW
39.	[1]	146310-0100	COVER
40.	[2]	139106-0000	FLAT-HEAD SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0000	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48.	[2]	029998-0570	SHIM
48/1.	[2]	146603-0000	SHIM
48/1.	[2]	146603-0100	SHIM
48/1.	[2]	146603-0200	SHIM
48/1.	[2]	146603-0300	SHIM
48/1.	[2]	146603-0400	SHIM
48/1.	[2]	146603-0500	SHIM
48/1.	[2]	146603-0600	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146405-0220	HYDRAULIC HEAD
50.	[1]	146405-0220	HYDRAULIC HEAD
50.	[1]	146405-0220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52.	[1]	029998-0330	SHIM
52/1.	[1]	146490-0000	SHIM
52/1.	[1]	146490-0100	SHIM
52/1.	[1]	146490-0200	SHIM
52/1.	[1]	146490-0300	SHIM
52/1.	[1]	146490-0400	SHIM
52/1.	[1]	146490-0500	SHIM
52/1.	[1]	146490-0600	SHIM
52/1.	[1]	146490-0700	SHIM
52/1.	[1]	146490-0800	SHIM
52/1.	[1]	146490-0900	SHIM
52/1.	[1]	146490-1000	SHIM
52/1.	[1]	146490-1100	SHIM
52/1.	[1]	146490-1200	SHIM
52/1.	[1]	146490-1300	SHIM
52/1.	[1]	146490-1400	SHIM
52/1.	[1]	146490-1500	SHIM
52/1.	[1]	146490-1600	SHIM
52/1.	[1]	146490-1700	SHIM
52/1.	[1]	146490-1800	SHIM
52/1.	[1]	146490-1900	SHIM
52/1.	[1]	146490-2000	SHIM
52/1.	[1]	146490-2100	SHIM
52/1.	[1]	146490-2200	SHIM
52/1.	[1]	146490-2300	SHIM
52/1.	[1]	146490-2400	SHIM
52/1.	[1]	146490-2500	SHIM
52/1.	[1]	146490-2600	SHIM
52/1.	[1]	146490-2700	SHIM
52/1.	[1]	146490-2800	SHIM
52/1.	[1]	146490-2900	SHIM
52/1.	[1]	146490-3000	SHIM
52/1.	[1]	146490-3100	SHIM
52/1.	[1]	146490-3200	SHIM
52/1.	[1]	146490-3300	SHIM
52/1.	[1]	146490-3400	SHIM
52/1.	[1]	146490-3500	SHIM
52/1.	[1]	146490-3600	SHIM
52/1.	[1]	146490-3700	SHIM
52/1.	[1]	146490-3800	SHIM
52/1.	[1]	146490-3900	SHIM
52/1.	[1]	146490-4000	SHIM
52/1.	[1]	146490-4100	SHIM
52/1.	[1]	146490-4200	SHIM
52/1.	[1]	146490-4300	SHIM
52/1.	[1]	146490-4400	SHIM
52/1.	[1]	146490-4500	SHIM
52/1.	[1]	146490-4600	SHIM
52/1.	[1]	146490-4700	SHIM
52/1.	[1]	146490-4800	SHIM
52/1.	[1]	146490-4900	SHIM
52/1.	[1]	146490-5000	SHIM
54.	[6]	146433-0100	GASKET
55.	[6]	146430-0020	DELIVERY-VALVE ASSEMBLY 'VE1' VR35
56.	[6]	146432-0000	COMPRESSION SPRING K=0.48
58.	[6]	146440-0220	FITTING D0.45 L=50
60.	[4]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146502-3820	GOVERNOR COVER
67/1.	[1]	146505-6820	GOVERNOR COVER
67/4.	[1]	139310-0200	PLAIN WASHER
67/6.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
67/8.	[1]	146515-1820	LEVER SHAFT
67/9.	[1]	146587-4500	COILED SPRING
67/10.	[1]	146600-0200	O-RING
67/11.	[1]	146602-0100	PLAIN WASHER
67/12.	[1]	146540-1000	CONTROL LEVER
67/12B.	[1]	146540-1100	CONTROL LEVER ' 0'
67/13.	[3]	013020-6040	UNION NUT
67/13.	[3]	013020-6040	UNION NUT
67/13.	[3]	013020-6040	UNION NUT
67/14.	[1]	139206-0300	UNION NUT
67/15.	[1]	146526-1100	FLAT-HEAD SCREW
67/16.	[1]	146526-2400	FLAT-HEAD SCREW
67/17.	[1]	146526-0100	FLAT-HEAD SCREW
67/26.	[1]	146619-1720	BRACKET
68.	[1]	146510-0520	CONTROL SHAFT R=10 S R
68.	[1]	146510-0520	CONTROL SHAFT R=10 S R
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146531-9120	CONTROL LEVER ' 91'
72B.	[1]	146531-9220	CONTROL LEVER ' 92'
73.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
75.	[1]	013020-6040	UNION NUT
87.	[1]	139308-0300	PLAIN WASHER
88.	[1]	146545-0300	THREADED PIN
88B.	[1]	146545-0400	THREADED PIN
88C.	[1]	146545-0500	THREADED PIN
90.	[1]	139208-0100	UNION NUT
91.	[1]	146600-1200	O-RING
92.	[1]	146600-1000	SEAL RING
95.	[1]	146561-1120	FULCRUM LEVER I=2.2
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET
106.	[2]	146588-0000	COILED SPRING
107.	[1]	146569-0100	UNION NUT
108.	[1]	146570-0000	GOVERNOR SHAFT L
109.	[1]	146600-0400	O-RING
110.	[1]	029998-4130	SHIM
110/1.	[1]	146571-0000	SHIM
110/1.	[1]	146571-0100	SHIM
110/1.	[1]	146571-0200	SHIM
110/1.	[1]	146571-0300	SHIM
110/1.	[1]	146571-0400	SHIM
110/1.	[1]	146571-0500	SHIM
110/1.	[1]	146571-0600	SHIM
110/1.	[1]	146571-0700	SHIM
110/1.	[1]	146571-0800	SHIM
111.	[1]	146602-0600	PLAIN WASHER
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER
115.	[1]	146575-0500	SLIDING SLEEVE D2.0
116.	[1]	146576-0000	SEALING CAP
117.	[1]	029998-5510	PLUG SKH51
117/1.	[1]	146577-1800	PLUG
117/1.	[1]	146577-1900	PLUG
117/1.	[1]	146577-2000	PLUG
117/1.	[1]	146577-2100	PLUG
117/1.	[1]	146577-2200	PLUG
117/1.	[1]	146577-2300	PLUG
117/1.	[1]	146577-2400	PLUG
117/1.	[1]	146577-2500	PLUG
117/1.	[1]	146577-2600	PLUG
117/1.	[1]	146577-2700	PLUG
117/1.	[1]	146577-2800	PLUG
117/1.	[1]	146577-2900	PLUG
117/1.	[1]	146577-3000	PLUG
117/1.	[1]	146577-3100	PLUG
117/1.	[1]	146577-3200	PLUG
117/1.	[1]	146577-3300	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE D14
130/2.	[1]	026508-1140	GASKET
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE '02'4XD1.6K=1.5
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0220	OVER FLOW VALVE
137.	[2]	139512-0200	GASKET
138.	[1]	146609-3421	INLET UNION OUT B1 B1
200.	[1]	146206-0100	COILED SPRING
217.	[1]	146541-3100	SLOTTED WASHER
218.	[1]	146587-1000	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146587-4000	COILED SPRING
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
245.	[3]	139512-0200	GASKET
245.	[3]	139512-0200	GASKET
246.	[1]	139812-0500	EYE BOLT
247.	[1]	146610-1921	INLET UNION IN B3
248.	[1]	146614-0200	SPACER BUSHING
275.	[1]	146612-0400	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW
800S.	[1]	146009-0520	PUMP HOUSING
800S/1.	[1]	146005-0320	PUMP HOUSING 3K D20 LL R
800S/1/6.	[1]	146601-0100	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
906.	[1]	146636-5000	NUMBER PLATE

Include in #2:

104760-2231 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104760-2231
104760-2232

NISSAN

INJECTION-PUMP ASSEMBLY
LD28 *
