Information injection-pump assembly
BOSCH
9 460 610 458
9460610458
ZEXEL
104749-6981
1047496981
ISUZU
8944751860
8944751860
Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104749-6981 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104649-6971 |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105151-1550 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 10.3(105) |
10. | NOZZLE-HOLDER | 105081-3210 |
11. | NOZZLE | 105000-1740 |

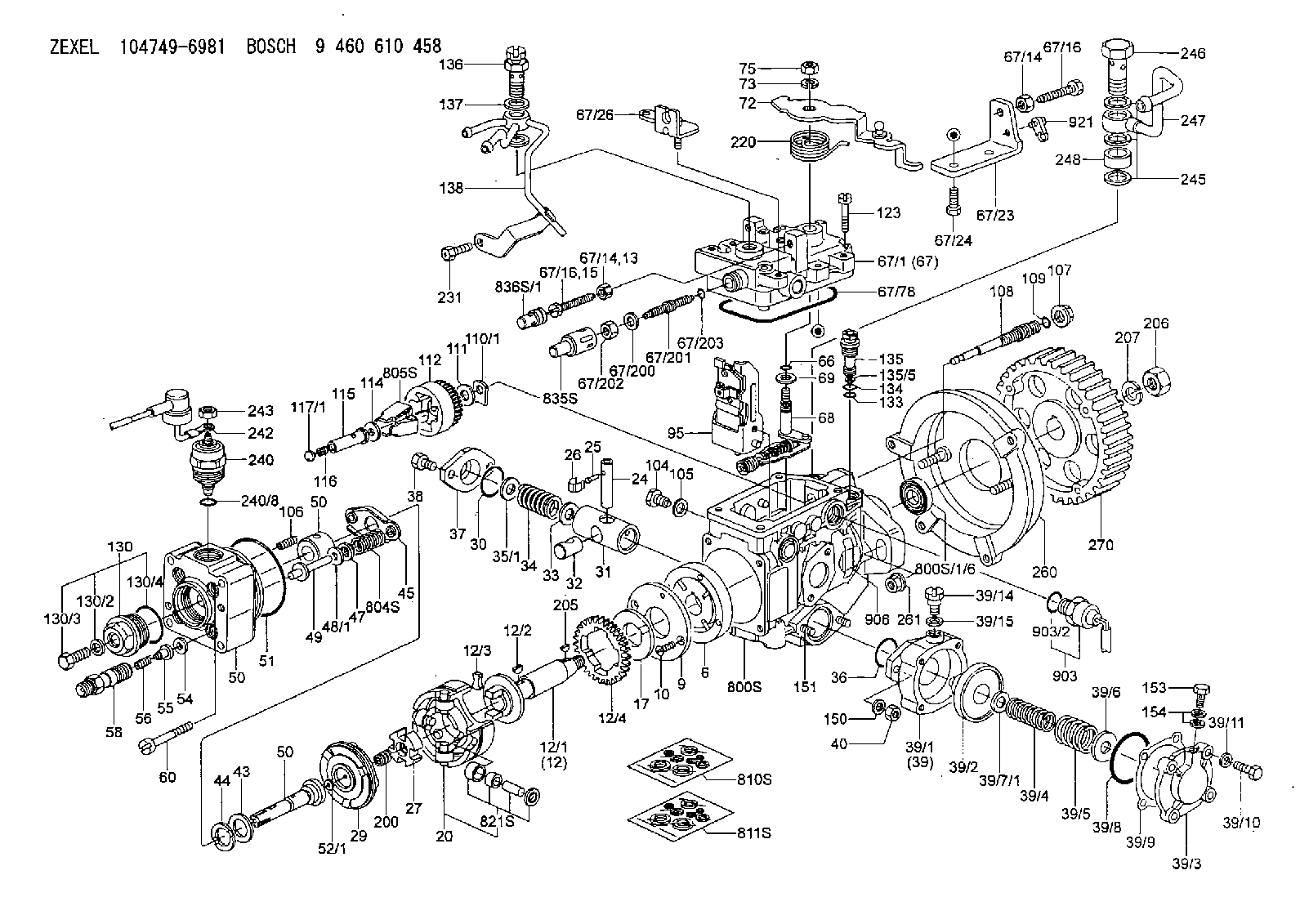

Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0320 | DRIVE SHAFT |
12/1. | [1] | 146200-0300 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-1720 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-0020 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0900 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-3500 | COMPRESSION SPRING |
34B. | [1] | 146302-3600 | COMPRESSION SPRING |
34C. | [1] | 146302-3700 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146340-0620 | START ADVANCE ASSY |
39/1. | [1] | 146342-1900 | DIAPHRAGM HOUSING |
39/2. | [1] | 146342-1220 | PUMP PLUNGER |
39/3. | [1] | 146342-1300 | COVER |
39/4. | [1] | 146342-1600 | COILED SPRING |
39/5. | [1] | 146342-1700 | COILED SPRING |
39/6. | [1] | 146342-0600 | PLAIN WASHER |
39/7/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
39/7/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
39/7/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
39/7/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
39/7/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
39/7/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
39/8. | [1] | 146342-0700 | O-RING |
39/9. | [1] | 146342-1400 | GASKET |
39/10. | [4] | 010065-1670 | BLEEDER SCREW M5P0.8L16 7T |
39/11. | [4] | 014020-5140 | PLAIN WASHER D10&5.5T0.8 |
39/14. | [1] | 131420-0400 | BLEEDER SCREW |
39/15. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
40. | [2] | 013020-6040 | UNION NUT M6P1H5 |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0500 | GUIDE PIN |
50. | [1] | 146400-5220 | HYDRAULIC HEAD |
50. | [1] | 146400-5220 | HYDRAULIC HEAD |
50. | [1] | 146400-5220 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-0120 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0120 | FITTING |
60. | [4] | 139106-0100 | FLAT-HEAD SCREW |
66. | [1] | 146600-0100 | O-RING |
67. | [1] | 146503-3721 | GOVERNOR COVER |
67/1. | [1] | 146805-2621 | GOVERNOR COVER |
67/13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/14. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-1800 | BLEEDER SCREW |
67/16. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-2800 | BLEEDER SCREW |
67/23. | [1] | 146926-0100 | BRACKET |
67/24. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
67/26. | [1] | 146613-6520 | BRACKET |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
68. | [1] | 146510-3720 | CONTROL SHAFT |
69. | [1] | 139310-0200 | PLAIN WASHER |
72. | [1] | 146533-7721 | CONTROL LEVER STAMP A |
72B. | [1] | 146533-7821 | CONTROL LEVER STAMP 1A |
72C. | [1] | 146533-9721 | CONTROL LEVER STAMP 0A |
73. | [1] | 014110-6440 | LOCKING WASHER |
75. | [1] | 013020-6040 | UNION NUT M6P1H5 |
95. | [1] | 146551-1020 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-0500 | PLAIN WASHER D17&6.4T1.60 |
115. | [1] | 146575-0000 | SLIDING SLEEVE |
116. | [1] | 146576-0000 | SEALING CAP |
117/1. | [1] | 146577-0000 | PLUG L1.70 |
117/1. | [1] | 146577-0100 | PLUG L1.90 |
117/1. | [1] | 146577-0200 | PLUG L2.10 |
117/1. | [1] | 146577-0300 | PLUG L2.30 |
117/1. | [1] | 146577-0400 | PLUG L2.50 |
117/1. | [1] | 146577-0500 | PLUG L2.70 |
117/1. | [1] | 146577-0600 | PLUG L2.90 |
117/1. | [1] | 146577-0700 | PLUG L3.10 |
117/1. | [1] | 146577-0800 | PLUG L3.30 |
117/1. | [1] | 146577-0900 | PLUG L3.50 |
117/1. | [1] | 146577-1000 | PLUG L3.70 |
117/1. | [1] | 146577-1100 | PLUG L3.90 |
117/1. | [1] | 146577-1200 | PLUG L4.10 |
117/1. | [1] | 146577-1300 | PLUG L4.30 |
117/1. | [1] | 146577-1400 | PLUG L4.50 |
117/1. | [1] | 146577-1500 | PLUG L4.70 |
117/1. | [1] | 146577-1600 | PLUG L4.90 |
117/1. | [1] | 146577-1700 | PLUG L5.10 |
117/1. | [1] | 146577-5000 | PLUG L1.8 |
117/1. | [1] | 146577-5100 | PLUG L2.0 |
117/1. | [1] | 146577-5200 | PLUG L2.2 |
117/1. | [1] | 146577-5300 | PLUG L2.4 |
117/1. | [1] | 146577-5400 | PLUG L2.6 |
117/1. | [1] | 146577-5500 | PLUG L2.8 |
117/1. | [1] | 146577-5600 | PLUG L3.0 |
117/1. | [1] | 146577-5700 | PLUG L3.2 |
117/1. | [1] | 146577-5800 | PLUG L3.4 |
117/1. | [1] | 146577-5900 | PLUG L3.6 |
117/1. | [1] | 146577-6000 | PLUG L3.8 |
117/1. | [1] | 146577-6100 | PLUG L4.0 |
117/1. | [1] | 146577-6200 | PLUG L4.2 |
117/1. | [1] | 146577-6300 | PLUG L4.4 |
117/1. | [1] | 146577-6400 | PLUG L4.6 |
117/1. | [1] | 146577-6500 | PLUG L4.8 |
117/1. | [1] | 146577-6600 | PLUG L5.0 |
117/1. | [1] | 146877-0400 | PLUG |
117/1. | [1] | 146877-0500 | PLUG |
117/1. | [1] | 146877-0600 | PLUG |
117/1. | [1] | 146877-0700 | PLUG |
117/1. | [1] | 146877-4300 | PLUG |
117/1. | [1] | 146877-4400 | PLUG |
117/1. | [1] | 146877-4500 | PLUG |
117/1. | [1] | 146877-4600 | PLUG |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0020 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
138. | [1] | 146608-1420 | PIPE |
150. | [2] | 014020-6140 | PLAIN WASHER |
151. | [2] | 139010-0300 | STUD |
153. | [1] | 029730-6030 | EYE BOLT |
154. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
200. | [1] | 146206-0100 | COILED SPRING |
205. | [1] | 025804-1610 | WOODRUFF KEY |
206. | [1] | 013121-4140 | UNION NUT M14P1.5H11 |
207. | [1] | 029321-4050 | LOCKING WASHER |
220. | [1] | 146587-1100 | COILED SPRING |
231. | [1] | 139006-4700 | BLEEDER SCREW |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-7320 | WIRE |
243. | [1] | 146621-1000 | UNION NUT |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 146125-0020 | EYE BOLT |
247. | [1] | 146610-8120 | INLET UNION |
248. | [1] | 146614-0200 | SPACER BUSHING |
260. | [1] | 146611-0021 | BRACKET |
261. | [2] | 146621-4700 | UNION NUT |
270. | [1] | 146615-0000 | TIMER CORE |
800S. | [1] | 146019-7520 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-0220 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
811S. | [1] | 146600-1820 | PARTS SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
903. | [1] | 146672-1720 | PULSE GENERATOR |
903/2. | [1] | 146600-1300 | O-RING &13W1.9 |
906. | [1] | 146917-1300 | NAMEPLATE |
921. | [1] | 146659-1520 | CLAMPING BAND |
Include in #2:
104749-6981
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104749-6981
9 460 610 458
8944751860 ISUZU
INJECTION-PUMP ASSEMBLY
C223 * K
C223 * K
Information:
Fuel System Bleeding
Fuel system bleeding(1) Loosen the air vent plug on the fuel filter. (approx. 1.5 turns)(2) Move the priming button for the filter up and down.(3) When fuel flowing from the vent hole no longer contains air bubbles, tighten the vent plug.Inspection and Adjustment of No-Load Minimum (Low Idling) Speed and Maximum Speed
(a) The following adjustments were inspected and set for each engine on the test bench at the factory, and the set bolts are sealed. These settings should be checked and adjusted only at our designated service shop.(b) After the governor parts are adjusted, all external stoppers must be sealed in the same way as when adjustments were made at the factory.(c) Whether the seals are intact or not has important bearing on the validity of claims under warranty. Be sure to seal all the specified sections.(d) When inspecting or adjusting, be ready to operate the engine stop lever manually in case the engine overruns (engine operation at extremely high speed).
Prior to inspection and adjustment, conduct a warm-up operation until the coolant and oil temperatures rise above 70 °C [158 °F].(1) Starting the engine
Inspection and adjustment of no-load minimum (low idling) speed and maximum speed(a) Pull the speed control lever toward the HIGH SPEED side, and operate the starter switch.(b) The engine ignites when the rotation speed reaches approximately 150 min-1, and the engine speed rises. Operate the speed control lever to maintain the engine speed between 800 and 1000 min-1.(c) After the engine speed stabilizes, return the speed control lever to the low idling position.(2) Low idling setting (no-load minimum rotation speed setting)Hold the speed control lever at the position of no-load minimum rotation speed, then secure the lever in that position using the idling adjustment screw.
If there is speed range which causes dangerous torsional vibration, avoid setting the engine speed in that range.
(3) Governor setting (maximum rotation speed setting)(a) Keep the speed control lever at the position of the specified maximum rotation speed.(b) With the speed control lever held in that position, adjust and set the governor set bolt (maximum rotation speed set screw) to the specified rotation speed).Inspection of V-Belt Tension
(1) Press the V-belt at a midpoint between the alternator and crankshaft pulley to check the mount of belt deflection.
Inspection of V-belt tension (2) If the amount of belt deflection does not conform to the standard value, loosen the adjusting bolt and move the alternator to adjust the belt tension.Engine Break-in Operation
When the engine is overhauled, it should be mounted on a dynamometer and operated for break-in and inspection.Starting Up
(1) Before starting the engine, check the levels of coolant, engine oil and fuel, and bleed the fuel and cooling system.(2) With the fuel supply cut off, operate the starter and crank the engine for about 15 seconds to circulate engine oil.(3) Move the speed control lever slightly in the direction for increased fuel (do not move it to "full injection" position), then turn the starter switch key to the [START] position to start
Fuel system bleeding(1) Loosen the air vent plug on the fuel filter. (approx. 1.5 turns)(2) Move the priming button for the filter up and down.(3) When fuel flowing from the vent hole no longer contains air bubbles, tighten the vent plug.Inspection and Adjustment of No-Load Minimum (Low Idling) Speed and Maximum Speed
(a) The following adjustments were inspected and set for each engine on the test bench at the factory, and the set bolts are sealed. These settings should be checked and adjusted only at our designated service shop.(b) After the governor parts are adjusted, all external stoppers must be sealed in the same way as when adjustments were made at the factory.(c) Whether the seals are intact or not has important bearing on the validity of claims under warranty. Be sure to seal all the specified sections.(d) When inspecting or adjusting, be ready to operate the engine stop lever manually in case the engine overruns (engine operation at extremely high speed).
Prior to inspection and adjustment, conduct a warm-up operation until the coolant and oil temperatures rise above 70 °C [158 °F].(1) Starting the engine
Inspection and adjustment of no-load minimum (low idling) speed and maximum speed(a) Pull the speed control lever toward the HIGH SPEED side, and operate the starter switch.(b) The engine ignites when the rotation speed reaches approximately 150 min-1, and the engine speed rises. Operate the speed control lever to maintain the engine speed between 800 and 1000 min-1.(c) After the engine speed stabilizes, return the speed control lever to the low idling position.(2) Low idling setting (no-load minimum rotation speed setting)Hold the speed control lever at the position of no-load minimum rotation speed, then secure the lever in that position using the idling adjustment screw.
If there is speed range which causes dangerous torsional vibration, avoid setting the engine speed in that range.
(3) Governor setting (maximum rotation speed setting)(a) Keep the speed control lever at the position of the specified maximum rotation speed.(b) With the speed control lever held in that position, adjust and set the governor set bolt (maximum rotation speed set screw) to the specified rotation speed).Inspection of V-Belt Tension
(1) Press the V-belt at a midpoint between the alternator and crankshaft pulley to check the mount of belt deflection.
Inspection of V-belt tension (2) If the amount of belt deflection does not conform to the standard value, loosen the adjusting bolt and move the alternator to adjust the belt tension.Engine Break-in Operation
When the engine is overhauled, it should be mounted on a dynamometer and operated for break-in and inspection.Starting Up
(1) Before starting the engine, check the levels of coolant, engine oil and fuel, and bleed the fuel and cooling system.(2) With the fuel supply cut off, operate the starter and crank the engine for about 15 seconds to circulate engine oil.(3) Move the speed control lever slightly in the direction for increased fuel (do not move it to "full injection" position), then turn the starter switch key to the [START] position to start
Have questions with 104749-6981?
Group cross 104749-6981 ZEXEL
Isuzu
Isuzu
104749-6981
9 460 610 458
8944751860
INJECTION-PUMP ASSEMBLY
C223
C223
