104749-6971 ZEXEL 9 460 610 332 BOSCH INJECTION-PUMP ASSEMBLY 9460610332 1047496971 8944751850

Information injection-pump assembly

BOSCH 9 460 610 332 9460610332

ZEXEL 104749-6971 1047496971

ISUZU 8944751850 8944751850

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-6971 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-6971
1.	_
2.	FUEL INJECTION PUMP	104649-6971
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105151-1550
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	10.3(105)
10.	NOZZLE-HOLDER	105081-3210
11.	NOZZLE	105000-1740

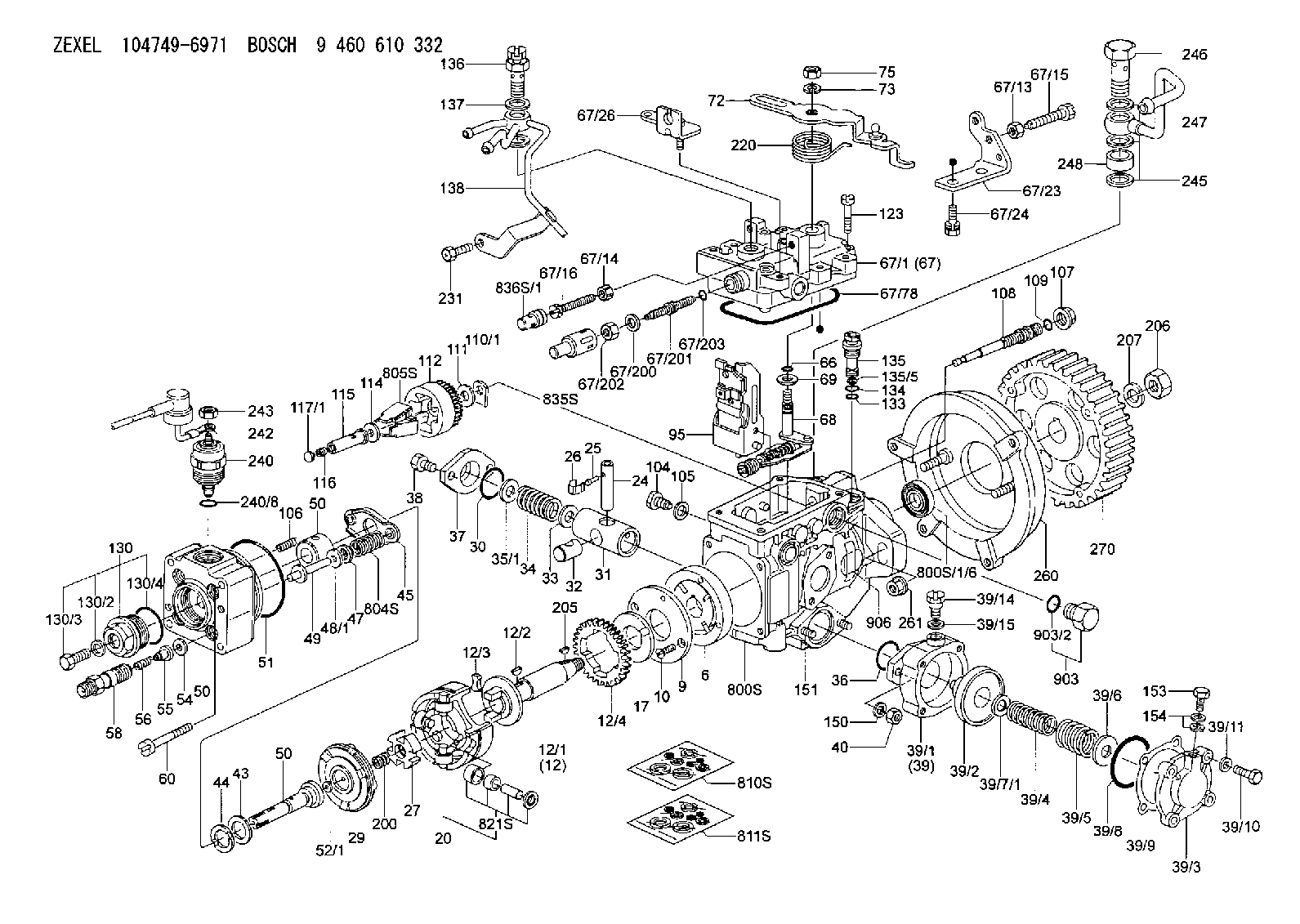

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-1720	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-0020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-0900	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3500	COMPRESSION SPRING
34B.	[1]	146302-3600	COMPRESSION SPRING
34C.	[1]	146302-3700	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146340-0620	START ADVANCE ASSY
39/1.	[1]	146342-1900	DIAPHRAGM HOUSING
39/2.	[1]	146342-1220	PUMP PLUNGER
39/3.	[1]	146342-1300	COVER
39/4.	[1]	146342-1600	COILED SPRING
39/5.	[1]	146342-1700	COILED SPRING
39/6.	[1]	146342-0600	PLAIN WASHER
39/7/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
39/7/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
39/7/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
39/7/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
39/7/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
39/7/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
39/8.	[1]	146342-0700	O-RING
39/9.	[1]	146342-1400	GASKET
39/10.	[4]	010065-1670	BLEEDER SCREW M5P0.8L16 7T
39/11.	[4]	014020-5140	PLAIN WASHER D10&5.5T0.8
39/14.	[1]	131420-0400	BLEEDER SCREW
39/15.	[1]	026506-1040	GASKET D9.9&6.2T1
40.	[2]	013020-6040	UNION NUT M6P1H5
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146400-5220	HYDRAULIC HEAD
50.	[1]	146400-5220	HYDRAULIC HEAD
50.	[1]	146400-5220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0120	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0120	FITTING
60.	[4]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146503-3721	GOVERNOR COVER
67/1.	[1]	146805-2621	GOVERNOR COVER
67/13.	[1]	013020-6040	UNION NUT M6P1H5
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-1800	BLEEDER SCREW
67/16.	[1]	146526-2800	BLEEDER SCREW
67/23.	[1]	146926-0100	BRACKET
67/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
67/26.	[1]	146613-6520	BRACKET
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146510-3720	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146533-7721	CONTROL LEVER STAMP A
72B.	[1]	146533-7821	CONTROL LEVER STAMP 1A
72C.	[1]	146533-9721	CONTROL LEVER STAMP 0A
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146551-1020	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146575-0000	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-0000	PLUG L1.70
117/1.	[1]	146577-0100	PLUG L1.90
117/1.	[1]	146577-0200	PLUG L2.10
117/1.	[1]	146577-0300	PLUG L2.30
117/1.	[1]	146577-0400	PLUG L2.50
117/1.	[1]	146577-0500	PLUG L2.70
117/1.	[1]	146577-0600	PLUG L2.90
117/1.	[1]	146577-0700	PLUG L3.10
117/1.	[1]	146577-0800	PLUG L3.30
117/1.	[1]	146577-0900	PLUG L3.50
117/1.	[1]	146577-1000	PLUG L3.70
117/1.	[1]	146577-1100	PLUG L3.90
117/1.	[1]	146577-1200	PLUG L4.10
117/1.	[1]	146577-1300	PLUG L4.30
117/1.	[1]	146577-1400	PLUG L4.50
117/1.	[1]	146577-1500	PLUG L4.70
117/1.	[1]	146577-1600	PLUG L4.90
117/1.	[1]	146577-1700	PLUG L5.10
117/1.	[1]	146577-5000	PLUG L1.8
117/1.	[1]	146577-5100	PLUG L2.0
117/1.	[1]	146577-5200	PLUG L2.2
117/1.	[1]	146577-5300	PLUG L2.4
117/1.	[1]	146577-5400	PLUG L2.6
117/1.	[1]	146577-5500	PLUG L2.8
117/1.	[1]	146577-5600	PLUG L3.0
117/1.	[1]	146577-5700	PLUG L3.2
117/1.	[1]	146577-5800	PLUG L3.4
117/1.	[1]	146577-5900	PLUG L3.6
117/1.	[1]	146577-6000	PLUG L3.8
117/1.	[1]	146577-6100	PLUG L4.0
117/1.	[1]	146577-6200	PLUG L4.2
117/1.	[1]	146577-6300	PLUG L4.4
117/1.	[1]	146577-6400	PLUG L4.6
117/1.	[1]	146577-6500	PLUG L4.8
117/1.	[1]	146577-6600	PLUG L5.0
117/1.	[1]	146877-0400	PLUG
117/1.	[1]	146877-0500	PLUG
117/1.	[1]	146877-0600	PLUG
117/1.	[1]	146877-0700	PLUG
117/1.	[1]	146877-4300	PLUG
117/1.	[1]	146877-4400	PLUG
117/1.	[1]	146877-4500	PLUG
117/1.	[1]	146877-4600	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0020	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146608-1420	PIPE
150.	[2]	014020-6140	PLAIN WASHER
151.	[2]	139010-0300	STUD
153.	[1]	029730-6030	EYE BOLT
154.	[2]	026506-1040	GASKET D9.9&6.2T1
200.	[1]	146206-0100	COILED SPRING
205.	[1]	025804-1610	WOODRUFF KEY
206.	[1]	013121-4140	UNION NUT M14P1.5H11
207.	[1]	029321-4050	LOCKING WASHER
220.	[1]	146587-1100	COILED SPRING
231.	[1]	139006-4700	BLEEDER SCREW
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-7320	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	146125-0020	EYE BOLT
247.	[1]	146610-8120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
260.	[1]	146611-0021	BRACKET
261.	[2]	146621-4700	UNION NUT
270.	[1]	146615-0000	TIMER CORE
800S.	[1]	146019-7520	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
811S.	[1]	146600-1820	PARTS SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146620-0120	CAPSULE
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146917-1200	NAMEPLATE

Include in #2:

104749-6971 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104749-6971

9 460 610 332

8944751850 ISUZU

INJECTION-PUMP ASSEMBLY
C223 * K 11CJ VE4 VE

Information:

Inspection of adjustment voltage (a) Disconnect the cable from the positive (+) terminal of the battery, and connect an ammeter between the terminal and cable.(b) Connect a voltmeter between terminal L and ground.(c) Make sure that the voltmeter indicates "0" when the starter switch is turned off. Make sure that the voltmeter indicates a voltage level significantly lower than the battery voltage when the starter switch is turned on (without starting the engine).(d) Short-circuit the terminal of the ammeter, and start the engine.(e) Read the indication (adjustment voltage) on the voltmeter with the ammeter indicating 5A or lower, the engine operating at 1500 to 2500 min-1, and the lamp switches turned off.(3) Inspection of output (unit with integrated IC regulator)
Wiring for output test (a) Disconnect the grounding cable from the battery.(b) Disconnect the wire from terminal B of the alternator, and connect an ammeter, then connect a voltmeter between B and ground.(c) Reconnect the grounding cable to the battery.(d) Start the engine.(e) Immediately after the engine starts, turn on all load devices such as lamps.(f) Increase the engine speed, and read the maximum current at the specified alternator rotation speed when the voltmeter indicates 27.0 V. If the measured value conforms to the standard value, the alternator is normal.Disassembly of Alternator
(1) Separation of front bracket from stator coreInsert the tip of a slotted screwdriver into the gap between the stator core and front bracket, and pry open.
Separation of front bracket from stator core
Do not insert the screwdriver too far into the assembly to prevent damaging the stator core.
(2) Removal of the pulley
Removal of pulley(a) After wrapping the rotor with a cloth for protection and holding it with a vice, unscrew the pulley nut, then remove the pulley and spacer.(b) Remove the rotor from the front bracket.(3) Removal of stator core and rectifier
Removal of stator core(a) Disconnect the lead wires between the stator core and the rectifier at the soldered sections, and remove the stator core.
Melt the soldered sections as quickly as possible. Prolonged heating cam damage the diodes.
(b) Unscrew the rectifier mounting screws, and dismount the rectifier.Inspection and Repair of Alternator
(1) Inspection of diodes
Inspection of diodesConduct a continuity test with each diode in the rectifier.(a) Using a tester, check continuity between each diode lead terminal and its case. If the resistance value is large in one direction and small in the opposite direction, the diode is normal.(b) If the resistance measurements are the same in both directions, replace the rectifier. Be sure to check all diodes.(2) Inspection of field coil
Field coil continuity test(a) Check continuity between snap rings. If there is no continuity, there is an open-circuit; replace the field coil.
Field coil grounding test(b) Check
