104749-6781 ZEXEL 9 460 612 389 BOSCH INJECTION-PUMP ASSEMBLY 9460612389 1047496781 8944697400




Information injection-pump assembly

BOSCH 9 460 612 389 9460612389
ZEXEL 104749-6781 1047496781
ISUZU 8944697400 8944697400
104749-6781 INJECTION-PUMP ASSEMBLY
Rating:
49
Buy INJECTION-PUMP ASSEMBLY 104749-6781 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104749-6781
1. _
2. FUEL INJECTION PUMP 104649-6021
3. NUMBER PLATE 146917-5500
4. _
5. CAPSULE 146620-0120
6. ADJUSTING DEVICE 593175-2221
7. NOZZLE AND HOLDER ASSY 105151-1550
8. Nozzle and Holder 8-94230-870-0
9. Open Pre:MPa(Kqf/cm2) 10.3{105}
10. NOZZLE-HOLDER 105081-3210
11. NOZZLE 105000-1740

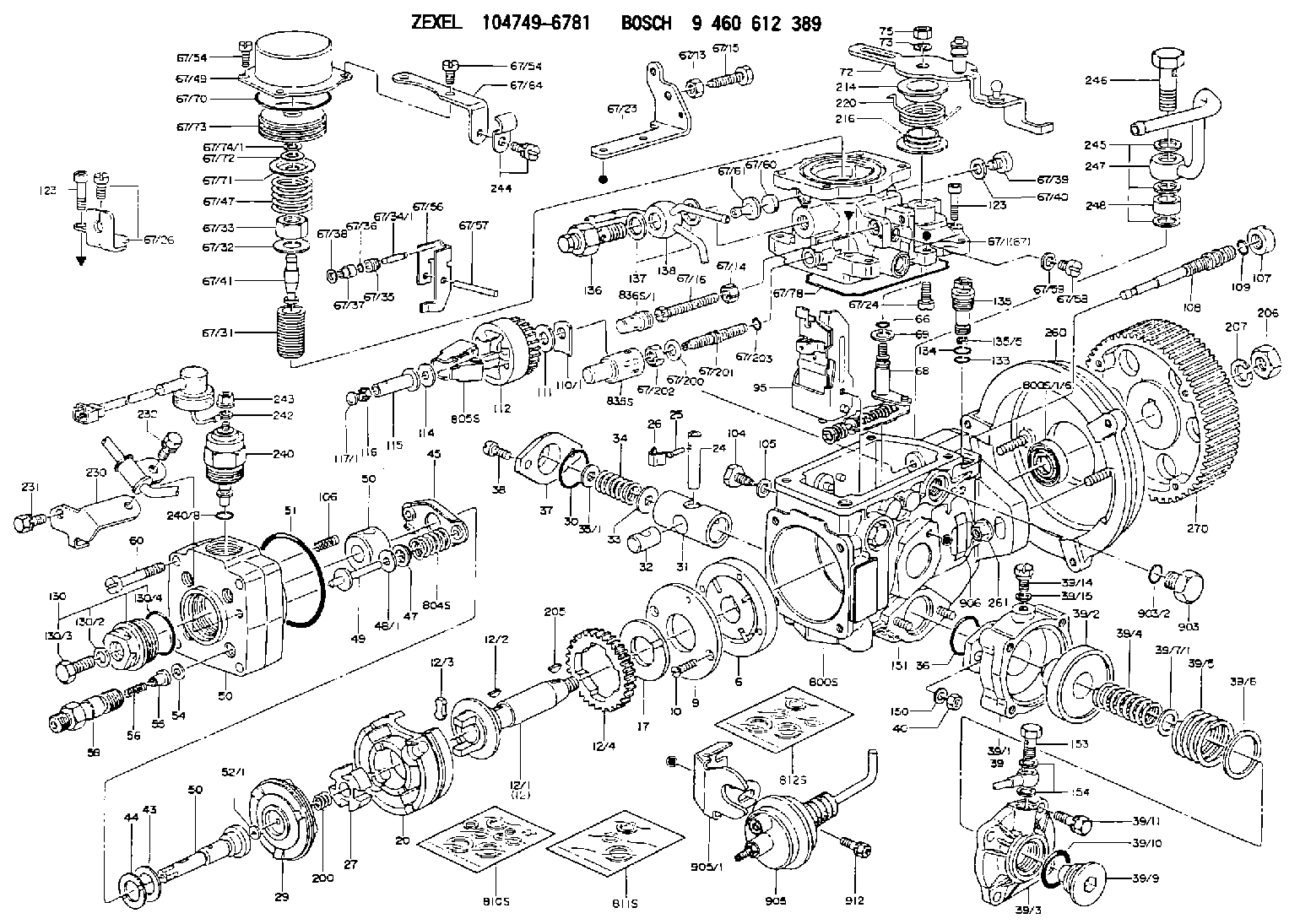

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-0120 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-0020 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-1800 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-4800 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146340-2020 START ADVANCE ASSY
39/1. [1] 146342-4000 DIAPHRAGM HOUSING
39/2. [1] 146342-4420 PUMP PLUNGER
39/3. [1] 146342-3920 COVER
39/4. [1] 146342-3700 COILED SPRING
39/5. [1] 146342-3800 COILED SPRING
39/6. [1] 146602-1600 PLAIN WASHER
39/7/1. [0] 146603-4300 SHIM T0.30
39/7/1. [0] 146603-4400 SHIM T0.50
39/7/1. [0] 146603-4500 SHIM T0.70
39/7/1. [0] 146603-4600 SHIM T1.00
39/7/1. [0] 146603-4700 SHIM T1.20
39/9. [1] 146342-2800 CAPSULE
39/10. [1] 016500-2220 O-RING
39/11. [4] 020106-1640 BLEEDER SCREW M6P1.0L14
39/14. [1] 131420-0400 BLEEDER SCREW
39/15. [1] 026506-1040 GASKET D9.9&6.2T1
40. [2] 013020-6040 UNION NUT M6P1H5
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0020 GUIDE PIN
50. [1] 146401-0120 HYDRAULIC HEAD
50. [1] 146401-0120 HYDRAULIC HEAD
50. [1] 146401-0120 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0120 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0120 FITTING
60. [4] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146705-3621 ANEROID CAPSULE
67/1. [1] 146505-9021 GOVERNOR COVER
67/13. [1] 013020-6040 UNION NUT M6P1H5
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-1800 BLEEDER SCREW
67/16. [1] 146526-3000 BLEEDER SCREW
67/23. [1] 146625-8300 BRACKET
67/24. [2] 010506-1640 FLAT-HEAD SCREW
67/26. [1] 146625-3020 BRACKET
67/31. [1] 146710-0400 BUSHING
67/32. [1] 146602-1800 PLAIN WASHER D31.3&19T1
67/33. [1] 146716-0200 UNION NUT
67/34/1. [1] 146713-1000 BEARING PIN L24.6
67/34/1. [1] 146713-1100 BEARING PIN L24.8
67/34/1. [1] 146713-1200 BEARING PIN L25.0
67/34/1. [1] 146713-1300 BEARING PIN L25.2
67/34/1. [1] 146713-1400 BEARING PIN L25.4
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-0100 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-0600 ADJUSTING PIN
67/47. [1] 146717-0200 COILED SPRING
67/49. [1] 146721-0700 COVER
67/54. [4] 139006-4500 BLEEDER SCREW
67/54. [4] 139006-4500 BLEEDER SCREW
67/56. [1] 146723-0200 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0400 CAPSULE
67/64. [1] 146625-3300 BRACKET
67/70. [1] 016520-6010 O-RING
67/71. [1] 146714-0100 SLOTTED WASHER
67/72. [1] 016010-0920 LOCKING WASHER
67/73. [1] 146715-0120 BELLOWS
67/74/1. [0] 146603-3700 SHIM T0.20
67/74/1. [0] 146603-3800 SHIM T0.30
67/74/1. [0] 146603-3900 SHIM T0.50
67/74/1. [0] 146603-4000 SHIM T0.70
67/74/1. [0] 146603-4100 SHIM T1.00
67/74/1. [0] 146603-4200 SHIM T1.50
67/78. [1] 146600-1000 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146513-0420 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146533-1720 CONTROL LEVER
72B. [1] 146533-1820 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146551-5920 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146575-0000 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-0000 PLUG L1.70
117/1. [1] 146577-0100 PLUG L1.90
117/1. [1] 146577-0200 PLUG L2.10
117/1. [1] 146577-0300 PLUG L2.30
117/1. [1] 146577-0400 PLUG L2.50
117/1. [1] 146577-0500 PLUG L2.70
117/1. [1] 146577-0600 PLUG L2.90
117/1. [1] 146577-0700 PLUG L3.10
117/1. [1] 146577-0800 PLUG L3.30
117/1. [1] 146577-0900 PLUG L3.50
117/1. [1] 146577-1000 PLUG L3.70
117/1. [1] 146577-1100 PLUG L3.90
117/1. [1] 146577-1200 PLUG L4.10
117/1. [1] 146577-1300 PLUG L4.30
117/1. [1] 146577-1400 PLUG L4.50
117/1. [1] 146577-1500 PLUG L4.70
117/1. [1] 146577-1600 PLUG L4.90
117/1. [1] 146577-1700 PLUG L5.10
117/1. [1] 146577-5000 PLUG L1.8
117/1. [1] 146577-5100 PLUG L2.0
117/1. [1] 146577-5200 PLUG L2.2
117/1. [1] 146577-5300 PLUG L2.4
117/1. [1] 146577-5400 PLUG L2.6
117/1. [1] 146577-5500 PLUG L2.8
117/1. [1] 146577-5600 PLUG L3.0
117/1. [1] 146577-5700 PLUG L3.2
117/1. [1] 146577-5800 PLUG L3.4
117/1. [1] 146577-5900 PLUG L3.6
117/1. [1] 146577-6000 PLUG L3.8
117/1. [1] 146577-6100 PLUG L4.0
117/1. [1] 146577-6200 PLUG L4.2
117/1. [1] 146577-6300 PLUG L4.4
117/1. [1] 146577-6400 PLUG L4.6
117/1. [1] 146577-6500 PLUG L4.8
117/1. [1] 146577-6600 PLUG L5.0
117/1. [1] 146877-0400 PLUG
117/1. [1] 146877-0500 PLUG
117/1. [1] 146877-0600 PLUG
117/1. [1] 146877-0700 PLUG
117/1. [1] 146877-4300 PLUG
117/1. [1] 146877-4400 PLUG
117/1. [1] 146877-4500 PLUG
117/1. [1] 146877-4600 PLUG
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
135B. [1] 146110-1020 CONTROL VALVE
135B/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0120 OVER FLOW VALVE
137. [2] 026512-1840 GASKET D17.9&12.2T1.50
138. [1] 146607-4420 PIPE
150. [2] 014020-6140 PLAIN WASHER
151. [2] 139010-0300 STUD
153. [1] 139808-0301 EYE BOLT
154. [2] 026508-1140 GASKET D11.4&8.2T1
200. [1] 146206-0100 COILED SPRING
205. [1] 025804-1610 WOODRUFF KEY
206. [1] 013121-4140 UNION NUT M14P1.5H11
207. [1] 029321-4050 LOCKING WASHER
214. [1] 146541-1900 BUSHING
216. [1] 146541-2000 BUSHING
220. [1] 146587-2600 COILED SPRING
230. [1] 146629-9800 BRACKET
231. [1] 020006-2540 BLEEDER SCREW M6P1L25
232. [1] 020006-1240 BLEEDER SCREW M6P1L12 4T
240. [1] 146650-1220 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-7320 WIRE
243. [1] 146621-1000 UNION NUT
244. [1] 146613-5620 PLATE
245. [3] 026512-1840 GASKET D17.9&12.2T1.50
246. [1] 146125-0020 EYE BOLT
247. [1] 146610-8620 INLET UNION
248. [1] 146614-0200 SPACER BUSHING
260. [1] 146611-0021 BRACKET
261. [2] 146621-0900 UNION NUT
270. [1] 146615-0000 TIMER CORE
800S. [1] 146019-4020 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0220 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
811S. [1] 146600-2120 PARTS SET
812S. [1] 146600-2220 PARTS SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
903. [1] 146620-0120 CAPSULE
903/2. [1] 146600-1300 O-RING &13W1.9
905. [1] 593175-2221 ADJUSTING DEVICE
905/1. [1] 593174-2301 BRACKET
906. [1] 146917-5500 NAMEPLATE
912. [2] 020146-1270 BLEEDER SCREW

Include in #2:

104749-6781 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104749-6781
9 460 612 389
8944697400  ISUZU
INJECTION-PUMP ASSEMBLY
C223 * K 11CJ VE4 VE




Information:

April 19, 2004
U-118
A-80
D-95
O-98
TT-10
TA-1
TM-3
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN REMANUFCTURED FUEL INJECTORS FROM DEALER PARTS STOCK
7750 PI70077
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
July 31, 2004PROBLEM
The injector nose cone may be undersize on certainremanufactured fuel injectors that are used in various 3116 Engines. All0R8461, 0R8463, 0R8465, 0R8469, 0R8471, 0R8473, 0R8475, 0R8479, 0R8483,0R8633, 0R8682, 0R8684, and 0R8867 Remanufactured Fuel Injectors with DateCodes from 01/02/04 to 31/03/04 stamped on the box need to be removed fromdealer stock.ACTION REQUIRED
Remove all Remanufactured Fuel Injectors listedin the following chart from dealer parts stock that have Date Codes from01/02/04 to 31/03/04 stamped on the box.
Part Number Description Box Date Code
0R8461 INJECTOR GP 01/02/04 to 31/03/04
0R8463 INJECTOR GP 01/02/04 to 31/03/04
0R8465 INJECTOR GP 01/02/04 to 31/03/04
0R8469 INJECTOR GP 01/02/04 to 31/03/04
0R8471 INJECTOR GP 01/02/04 to 31/03/04
0R8473 INJECTOR GP 01/02/04 to 31/03/04
0R8475 INJECTOR GP 01/02/04 to 31/03/04
0R8479 INJECTOR GP 01/02/04 to 31/03/04
0R8483 INJECTOR GP 01/02/04 to 31/03/04
0R8633 INJECTOR GP 01/02/04 to 31/03/04
0R8682 INJECTOR GP 01/02/04 to 31/03/04
0R8684 INJECTOR GP 01/02/04 to 31/03/04
0R8867 INJECTOR GP 01/02/04 to 31/03/04
SERVICE CLAIM ALLOWANCES
Submit one claim for all 0R8461, 0R8463, 0R8465,0R8469, 0R8471, 0R8473, 0R8475, 0R8479, 0R8483, 0R8633, 0R8682, 0R8684,and 0R8867 Remanufactured Fuel Injectors that were removed from dealerparts stock.PARTS DISPOSITION
All dealers are to make sure the outsideof the shipping container is marked PI70077.***** All Dealers *****Return all 0R8461, 0R8463, 0R8465, 0R8469,0R8471, 0R8473, 0R8475, 0R8479, 0R8483, 0R8633, 0R8682, 0R8684, and 0R8867Remanufactured Fuel Injectors that are removed from parts stock and a copyof the claim to:Caterpillar Inc.
Attn: Noe S. Perez - PI70077
Service Claims Room
8201 N. University
Peoria, IL 61615

Have questions with 104749-6781?





Group cross 104749-6781 ZEXEL

Isuzu

104749-6701
9 460 615 016
8944685990
INJECTION-PUMP ASSEMBLY
4FD1
104749-6711

8944686000
INJECTION-PUMP ASSEMBLY
4FD1
104749-6720

104749-6721


INJECTION-PUMP ASSEMBLY
4FC1
104749-6721

8944686010
INJECTION-PUMP ASSEMBLY
4FC1
104749-6730

104749-6731


INJECTION-PUMP ASSEMBLY
4FD1
104749-6731
9 460 610 294
8944686020
INJECTION-PUMP ASSEMBLY
4FD1
104749-6740

104749-6741


INJECTION-PUMP ASSEMBLY
4FD1
104749-6741
9 460 611 105
8944686030
INJECTION-PUMP ASSEMBLY
4FD1
104749-6750

104749-6751


INJECTION-PUMP ASSEMBLY
4FC1EXP
104749-6751

8944686100
INJECTION-PUMP ASSEMBLY
4FC1EXP
104749-6760
9 460 614 721
8944686110
INJECTION-PUMP ASSEMBLY
4FC1
104749-6770

104749-6771

8944638850
INJECTION-PUMP ASSEMBLY
4FE1
104749-6771

104749-6772

8944638851
INJECTION-PUMP ASSEMBLY
4FE1
104749-6772
9 460 610 844
8944638852
INJECTION-PUMP ASSEMBLY
4FE1
104749-6781
9 460 612 389
8944697400
INJECTION-PUMP ASSEMBLY
C223
104749-6791

8944697440
INJECTION-PUMP ASSEMBLY
C223
Back to top
