104749-5092 ZEXEL INJECTION-PUMP ASSEMBLY Cross 1047495092




Information injection-pump assembly

ZEXEL 104749-5092 1047495092
104749-5092 INJECTION-PUMP ASSEMBLY
Rating:
61
Buy INJECTION-PUMP ASSEMBLY 104749-5092 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104749-5092
1. _
2. FUEL INJECTION PUMP 104649-5092
3. NUMBER PLATE 146919-6000
4. _
5. CAPSULE 146620-0120
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105158-2172
8. Nozzle and Holder 8-94460-004-1
9. Open Pre:MPa(Kqf/cm2) 14.7{150}
10. NOZZLE-HOLDER 105088-1090
11. NOZZLE 105007-1080

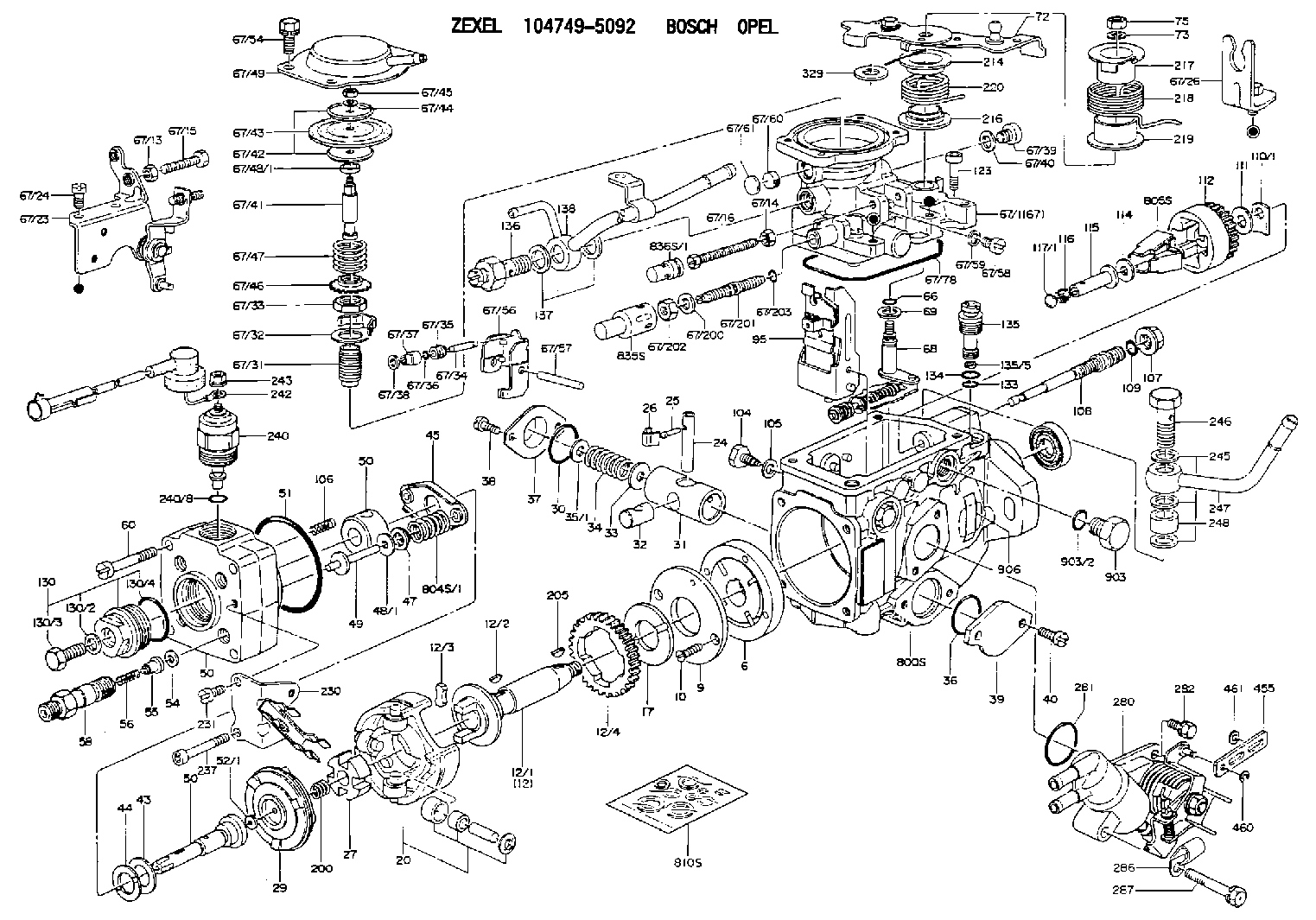

Scheme ###:

PACKING RING
1/6. [1] 146601-0100 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0520 DRIVE SHAFT
12/1. [1] 146200-0500 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-1920 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-0020 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-2000 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3700 COMPRESSION SPRING
34B. [1] 146302-3600 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0020 GUIDE PIN
50. [1] 146403-1620 HYDRAULIC HEAD
50. [1] 146403-1620 HYDRAULIC HEAD
50. [1] 146403-1620 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0120 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0120 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146702-5020 MANIFOLD-PRESSURE COMP.
67/1. [1] 146805-0421 GOVERNOR COVER
67/13. [1] 146621-1700 UNION NUT
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-2800 BLEEDER SCREW
67/16. [1] 146526-3000 BLEEDER SCREW
67/23. [1] 146628-4720 BRACKET
67/24. [2] 139006-4700 BLEEDER SCREW
67/26. [1] 146925-0720 BRACKET
67/31. [1] 146710-0800 BUSHING
67/32. [1] 146711-0000 PLATE
67/33. [1] 139218-0400 UNION NUT
67/34. [1] 146712-0700 BEARING PIN
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-0100 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-0400 ADJUSTING PIN
67/42. [2] 146714-0000 PLATE
67/43. [1] 146715-0000 DIAPHRAGM
67/44. [1] 139306-0100 LOCKING WASHER
67/45. [1] 013030-6040 UNION NUT M6P1H3.6
67/46. [1] 146716-0000 UNION NUT
67/47. [1] 146717-0300 COILED SPRING
67/48/1. [1] 146720-0000 SPACER BUSHING L3.7
67/48/1. [1] 146720-0100 SPACER BUSHING L3.9
67/48/1. [1] 146720-0200 SPACER BUSHING L4.1
67/48/1. [1] 146720-0300 SPACER BUSHING L4.3
67/48/1. [1] 146720-0400 SPACER BUSHING L4.5
67/48/1. [1] 146720-0500 SPACER BUSHING L4.7
67/48/1. [1] 146720-0600 SPACER BUSHING L4.9
67/48/1. [1] 146720-0700 SPACER BUSHING L5.1
67/48/1. [1] 146720-0800 SPACER BUSHING L5.3
67/48/1. [1] 146720-0900 SPACER BUSHING L2.7
67/48/1. [1] 146720-1000 SPACER BUSHING L2.9
67/48/1. [1] 146720-1100 SPACER BUSHING L3.1
67/48/1. [1] 146720-1200 SPACER BUSHING L3.3
67/48/1. [1] 146720-1300 SPACER BUSHING L3.5
67/48/1. [1] 146720-1400 SPACER BUSHING L2.8
67/48/1. [1] 146720-1500 SPACER BUSHING L3.0
67/48/1. [1] 146720-1600 SPACER BUSHING L3.2
67/48/1. [1] 146720-1700 SPACER BUSHING L3.4
67/48/1. [1] 146720-1800 SPACER BUSHING L3.6
67/48/1. [1] 146720-1900 SPACER BUSHING L3.8
67/48/1. [1] 146720-2000 SPACER BUSHING L4.0
67/48/1. [1] 146720-2100 SPACER BUSHING L4.2
67/48/1. [1] 146720-2200 SPACER BUSHING L4.4
67/48/1. [1] 146720-2300 SPACER BUSHING L4.6
67/48/1. [1] 146720-2400 SPACER BUSHING L4.8
67/48/1. [1] 146720-2500 SPACER BUSHING L5.0
67/48/1. [1] 146720-2600 SPACER BUSHING L5.2
67/48/1. [1] 146720-2700 SPACER BUSHING L5.4
67/48/1. [1] 146720-2800 SPACER BUSHING L5.5
67/48/1. [1] 146720-2900 SPACER BUSHING L5.6
67/48/1. [1] 146720-4500 SPACER BUSHING L1.8
67/48/1. [1] 146720-4600 SPACER BUSHING L1.9
67/48/1. [1] 146720-4700 SPACER BUSHING L2.0
67/48/1. [1] 146720-4800 SPACER BUSHING L2.1
67/48/1. [1] 146720-4900 SPACER BUSHING L2.2
67/48/1. [1] 146720-5000 SPACER BUSHING L2.3
67/48/1. [1] 146720-5100 SPACER BUSHING L2.4
67/48/1. [1] 146720-5200 SPACER BUSHING L2.5
67/48/1. [1] 146720-5300 SPACER BUSHING L2.6
67/48/1. [1] 146725-2500 SPACER BUSHING L5.7
67/48/1. [1] 146725-2600 SPACER BUSHING L5.8
67/48/1. [1] 146725-2700 SPACER BUSHING L5.9
67/48/1. [1] 146725-2800 SPACER BUSHING L6.0
67/48/1. [1] 146725-2900 SPACER BUSHING L6.1
67/48/1. [1] 146725-3000 SPACER BUSHING L6.2
67/48/1. [1] 146725-3100 SPACER BUSHING L6.3
67/48/1. [1] 146725-3200 SPACER BUSHING L6.4
67/48/1. [1] 146725-3300 SPACER BUSHING L6.5
67/48/1. [1] 146725-3400 SPACER BUSHING L6.6
67/48/1. [1] 146725-3500 SPACER BUSHING L6.7
67/48/1. [1] 146725-3600 SPACER BUSHING L6.8
67/48/1. [1] 146725-3700 SPACER BUSHING L6.9
67/48/1. [1] 146725-3800 SPACER BUSHING L7.0
67/48/1. [1] 146725-3900 SPACER BUSHING L7.1
67/48/1. [1] 146725-4000 SPACER BUSHING L7.2
67/48/1. [1] 146725-4100 SPACER BUSHING L7.3
67/48/1. [1] 146725-4200 SPACER BUSHING L7.4
67/48/1. [1] 146725-4300 SPACER BUSHING L7.5
67/49. [1] 146721-0820 COVER
67/54. [4] 139006-4500 BLEEDER SCREW
67/56. [1] 146723-0200 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0600 CAPSULE
67/78. [1] 146600-1000 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146513-6220 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146537-8520 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146551-4220 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0420 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146575-2900 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-1020 OVER FLOW VALVE
137. [2] 026512-1840 GASKET D17.9&12.2T1.50
138. [1] 146608-9620 INLET UNION
200. [1] 146206-0100 COILED SPRING
205. [1] 146201-0100 WOODRUFF KEY
214. [1] 146541-1900 BUSHING
216. [1] 146541-2000 BUSHING
217. [1] 146541-3100 SLOTTED WASHER
218. [1] 146592-0300 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146592-0200 COILED SPRING
230. [1] 146628-2020 BRACKET
231. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-1220 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-8020 WIRE
243. [1] 146621-1000 UNION NUT
245. [3] 026512-1840 GASKET D17.9&12.2T1.50
246. [1] 146125-0020 EYE BOLT
247. [1] 146608-1220 INLET UNION
248. [1] 146614-0200 SPACER BUSHING
280. [1] 146360-4020 START ADVANCE ASSY
281. [1] 146600-0800 O-RING
282. [1] 020306-1240 BLEEDER SCREW
286. [1] 146659-4600 CLAMPING BAND
287. [1] 020106-3540 BLEEDER SCREW
329. [1] 146541-4900 PLAIN WASHER D20&10T0.5
455. [1] 146549-3820 RACK
460. [2] 016010-0440 LOCKING WASHER
461. [1] 014010-4140 PLAIN WASHER D10&4.5T0.8
800S. [1] 146019-8320 PUMP HOUSING
804S/1. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
903. [1] 146620-0120 CAPSULE
903/2. [1] 146600-1300 O-RING &13W1.9
906. [1] 146919-6000 NAMEPLATE

Include in #2:

104749-5092 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104749-5092


INJECTION-PUMP ASSEMBLY




Information:


New Part Number Reman Part Number Description
198-6605 10R0781 Injector Gp.- Fuel
177-4754 10R0782 Injector Gp.- Fuel
Features And Benefits
Cat® Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new
Features Benefits
? All critical engineering changes and updates included ? Improved reliability and performance
? Worldwide availability through Caterpillar® parts distribution system ? Customer access regardless of location
? Off-the-shelf availability ? Downtime reduced through exchange product
? Backed by Cat warranty ? Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Full core credit is issued when the core is complete, fully assembled, and has an acceptable part number. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman website and click on Procedures and Policies (listed under Reman Program Information).
If you have any questions regarding core return processing, feel free to call your Corinth Dealer Service Representative toll free at (800) 537-2928 or use our e-mail address -- reman_core_operations. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our e-mail address--Reman_Help.
RWSmith
Remanufactured Products Group
LC-2148 (309) 675-5445

Have questions with 104749-5092?





Group cross 104749-5092 ZEXEL

Isuzu

104749-5000
9 460 610 331
8943334210
INJECTION-PUMP ASSEMBLY
4EC1T
104749-5010

104749-5011


INJECTION-PUMP ASSEMBLY
C223
104749-5011
9 460 614 717
8944751890
INJECTION-PUMP ASSEMBLY
C223
104749-5020

104749-5021


INJECTION-PUMP ASSEMBLY
C223
104749-5021
9 460 611 316
8944751910
INJECTION-PUMP ASSEMBLY
C223
104749-5030

104749-5031


INJECTION-PUMP ASSEMBLY
C223
104749-5031
9 460 612 358
8944751920
INJECTION-PUMP ASSEMBLY
C223
104749-5040
9 460 613 715
8943244100
INJECTION-PUMP ASSEMBLY
4EC1T
104749-5050
9 460 612 359
8943286720
INJECTION-PUMP ASSEMBLY
4FC1J
104749-5060

8943287740
INJECTION-PUMP ASSEMBLY
4FC1J
104749-5070
9 460 613 716
8943300011
INJECTION-PUMP ASSEMBLY
4EC1
104749-5080
9 460 610 353
8943314661
INJECTION-PUMP ASSEMBLY
4FD1
104749-5091

104749-5092
9 460 620 003
8943329740
INJECTION-PUMP ASSEMBLY
4EC1TC
104749-5092


INJECTION-PUMP ASSEMBLY
Back to top
