104749-2560 ZEXEL 9 460 614 917 BOSCH INJECTION-PUMP ASSEMBLY 9460614917 1047492560

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 614 917 9460614917

ZEXEL 104749-2560 1047492560

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-2560 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-2560
1.	_
2.	FUEL INJECTION PUMP	104649-2560
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)
10.	NOZZLE-HOLDER
11.	NOZZLE

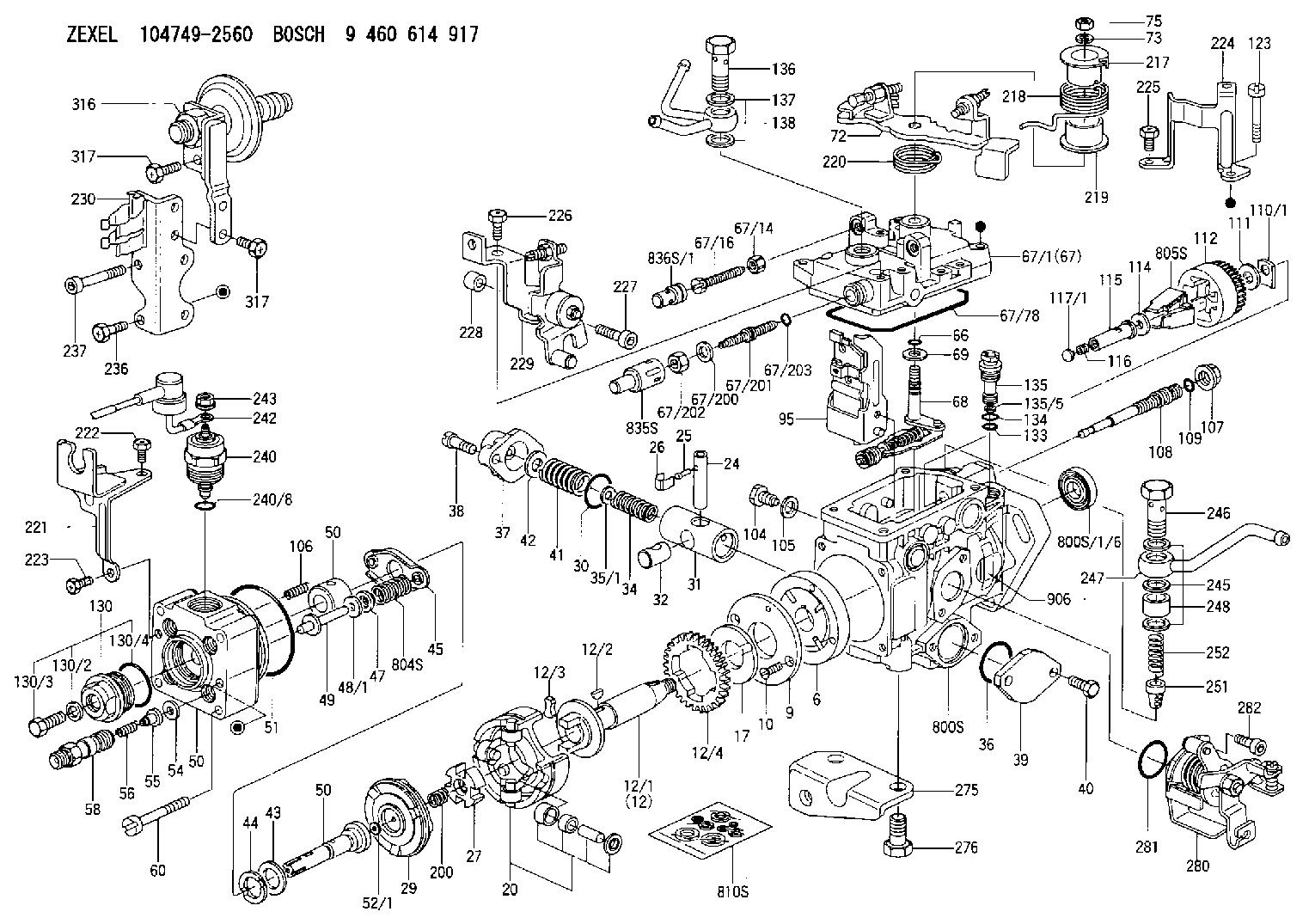

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0220	SUPPLY PUMP
9.	[1]	146103-0100	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0420	DRIVE SHAFT
12/1.	[1]	146200-0400	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-1820	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-2120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146311-6520	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
34.	[1]	146312-3100	COMPRESSION SPRING
34B.	[1]	146312-2500	COMPRESSION SPRING
34C.	[1]	146312-2400	COMPRESSION SPRING
35/1.	[1]	146690-3200	SHIM D11.5&9.4T0.1
35/1.	[1]	146690-3300	SHIM D11.5&9.4T0.2
35/1.	[1]	146690-3400	SHIM D11.5&9.4T0.25
35/1.	[1]	146690-3500	SHIM D11.5&9.4T1.0
35/1.	[1]	146690-4100	SHIM D11.5&9.4T2
35/1.	[1]	146690-4200	SHIM D11.5&9.4T0.5
35/1.	[1]	146690-4300	SHIM D11.5&9.4T0.75
36.	[1]	146600-0800	O-RING
37.	[1]	146310-1600	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
41.	[1]	146312-1900	COMPRESSION SPRING
42.	[1]	146602-8500	PLAIN WASHER
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146403-4020	HYDRAULIC HEAD
50.	[1]	146403-4020	HYDRAULIC HEAD
50.	[1]	146403-4020	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0120	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146503-6820	GOVERNOR COVER
67/1.	[1]	146508-2021	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-2800	BLEEDER SCREW
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3720	THREADED PIN
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146513-8020	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146539-6820	CONTROL LEVER
72B.	[1]	146539-6920	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146851-1820	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146575-2200	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0220	OVER FLOW VALVE
137.	[2]	139512-0200	GASKET D18.5&12.2T1.00
138.	[1]	146605-5520	INLET UNION
200.	[1]	146206-0100	COILED SPRING
217.	[1]	146541-2900	SLOTTED WASHER
218.	[1]	146587-4900	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146587-5000	COILED SPRING
221.	[1]	146627-8320	BRACKET
222.	[1]	139006-4600	BLEEDER SCREW
223.	[1]	139006-4700	BLEEDER SCREW
224.	[1]	146929-7400	BRACKET
225.	[1]	139006-4600	BLEEDER SCREW
226.	[1]	139006-4600	BLEEDER SCREW
227.	[1]	010206-2040	HEX-SOCKET-HEAD CAP SCREW
228.	[1]	146614-6700	SPACER BUSHING
229.	[1]	146929-7620	BRACKET
230.	[1]	146929-7520	BRACKET
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-3420	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-2820	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0200	GASKET D18.5&12.2T1.00
246.	[1]	139812-0500	EYE BOLT
247.	[1]	146605-8120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
251.	[1]	146125-0101	FILTER
252.	[1]	146125-0200	COILED SPRING
275.	[1]	146612-3920	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
280.	[1]	146360-5020	COVER
281.	[1]	146600-0800	O-RING
282.	[2]	010206-1440	HEX-SOCKET-HEAD CAP SCREW M6P1L14
316.	[1]	146680-4820	DAMPER
317.	[3]	139006-4400	BLEEDER SCREW
317.	[3]	139006-4400	BLEEDER SCREW
800S.	[1]	146018-1720	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
906.	[1]	146912-9200	NAMEPLATE

Include in #2:

104749-2560 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 614 917 9460614917

ZEXEL 104749-2560 1047492560

Zexel num

Bosch num

Firm num

Name

104749-2560
104749-2561

9 460 614 917

NISSAN

INJECTION-PUMP ASSEMBLY
LD20 * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 2300 2300 2300

Average injection quantity mm3/st. 36.3 35.9 36.7

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 52 50 54

Injection timing adjustment_02

Pump speed r/min 600 600 600

Average injection quantity mm3/st. 33.3 31.3 35.3

Oil temperature degC 50 48 52

Injection timing adjustment_03

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 34 32 36

Oil temperature degC 50 48 52

Injection timing adjustment_04

Pump speed r/min 1200 1200 1200

Average injection quantity mm3/st. 35.1 33.1 37.1

Oil temperature degC 50 48 52

Injection timing adjustment_05

Pump speed r/min 2300 2300 2300

Average injection quantity mm3/st. 36.3 35.3 37.3

Difference in delivery mm3/st. 2.5

Basic *

Oil temperature degC 52 50 54

Injection quantity adjustment

Pump speed r/min 2600 2600 2600

Average injection quantity mm3/st. 22.3 20.3 24.3

Difference in delivery mm3/st. 6

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_02

Pump speed r/min 2600 2600 2600

Average injection quantity mm3/st. 22.3 18.8 25.8

Difference in delivery mm3/st. 6.5

Basic *

Oil temperature degC 55 52 58

Injection quantity adjustment_03

Pump speed r/min 2800 2800 2800

Average injection quantity mm3/st. 5

Oil temperature degC 55 52 58

Governor adjustment

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 7.1 6.1 8.1

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 7.1 5.1 9.1

Difference in delivery mm3/st. 2.5

Basic *

Oil temperature degC 48 46 50

Governor adjustment_03

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 5

Oil temperature degC 48 46 50

Boost compensator adjustment

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 13.9 9.4 18.4

Oil temperature degC 50 48 52

Lever angle (shim thickness) mm 5.95 5.9 6

Remarks
From idle

Boost compensator adjustment_02

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 9.7 5.2 14.2

Oil temperature degC 50 48 52

Lever angle (shim thickness) mm 5.95 5.9 6

Remarks
From idle

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 50 70

Basic *

Oil temperature degC 48 46 50

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 60 50 70

Oil temperature degC 48 46 50

Speed control lever angle

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 48 46 50

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 900 900 900

Overflow quantity cm3/min 330 200 460

Oil temperature degC 50 48 52

Stop lever angle

Pump speed r/min 900 900 900

Pressure kPa 343 314 372

Pressure kgf/cm2 3.5 3.2 3.8

Basic *

Oil temperature degC 50 48 52

Stop lever angle_02

Pump speed r/min 900 900 900

Pressure kPa 343 304 382

Pressure kgf/cm2 3.5 3.1 3.9

Basic *

Oil temperature degC 50 48 52

Stop lever angle_03

Pump speed r/min 1800 1800 1800

Pressure kPa 539.5 500 579

Pressure kgf/cm2 5.5 5.1 5.9

Oil temperature degC 50 48 52

Stop lever angle_04

Pump speed r/min 2300 2300 2300

Pressure kPa 647 608 686

Pressure kgf/cm2 6.6 6.2 7

Oil temperature degC 52 50 54

0000001101

Pump speed r/min 900 900 900

Timer stroke mm 1.5 1.3 1.7

Basic *

Oil temperature degC 50 48 52

_02

Pump speed r/min 900 900 900

Timer stroke mm 1.5 1.2 1.8

Basic *

Oil temperature degC 50 48 52

_03

Pump speed r/min 1200 1200 1200

Timer stroke mm 3.2 2.8 3.6

Oil temperature degC 50 48 52

_04

Pump speed r/min 2300 2300 2300

Timer stroke mm 8.55 8.1 9

Oil temperature degC 52 50 54

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

0000001401

Pump speed r/min 900 900 900

Average injection quantity mm3/st. 17 16 18

Timer stroke TA mm 0.85 0.65 1.05

Timer stroke variation dT mm 0.65 0.65 0.65

Basic *

Oil temperature degC 50 48 52

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1.2 1.1 1.3

Control lever angle alpha deg. 25 21 29

Control lever angle beta deg. 41 36 46

Test data Ex:

0000001801 M-CSD ADJUSTMENT

M-CSD adjustment 1. Fixing intermediate lever screw (A) [roller (E) must not contact intermediate lever (D)] (1)Hold the control lever C in the idling position. (2)At this time, adjust intermediate lever screw (A) so that it is horizontal and the clearance between intermediate lever (A) and the control lever (C) is L1. Then, fix using nut (B). 2. Fixing the M-CSD stopper (I) Pull the CSD lever (F) in direction X until it contacts the M-CSD stopper (I) and tighten the socket head bolt (J) in the position where the timer stroke is L2 3. Screw (G) adjustment Pull the CSD lever (F) toward X until it contacts the stopper (I). At this time, adjust the screw (G) so that the control lever shim thickness is L3, then tighten using the nut (H).
----------
L1=1~2mm L2=1.23+-0.2mm L3=5.8+-0.05mm
----------
T1=6~9N-m(0.6~0.9kgf-m) T2=4.9~7N-m(0.5~0.7kgf-m) T3=2~2.9N-m(0.2~0.3kgf-m) L1=1~2mm L3=5.8+-0.05mm

0000001901 DASHPOT ADJUSTMENT

Adjustment of the dash pot 1. Insert a block gauge L (thickness gauge) between the idle set screw (C) and the control lever (D). 2. In the above condition, adjust the dashpot adjusting screw (A) so that it contacts the pushrod, and then fix it using the locknut (B). Note: (1)The adjusting screw and pushrod contact faces must be smooth. (2)Confirm that the control lever returns to the idling position.
----------
L=3.8+-0.05mm
----------
L=3.8+-0.05mm
