104749-1581 ZEXEL 9 460 612 356 BOSCH INJECTION-PUMP ASSEMBLY 9460612356 1047491581 8941248580




Information injection-pump assembly

BOSCH 9 460 612 356 9460612356
ZEXEL 104749-1581 1047491581
ISUZU 8941248580 8941248580
104749-1581 INJECTION-PUMP ASSEMBLY
Rating:
8
Buy INJECTION-PUMP ASSEMBLY 104749-1581 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104749-1581
1. _
2. FUEL INJECTION PUMP 104649-1381
3. NUMBER PLATE 146917-5200
4. _
5. CAPSULE 146620-0120
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105151-1521
8. Nozzle and Holder 5-15300-109-1
9. Open Pre:MPa(Kqf/cm2) 10.3{105}
10. NOZZLE-HOLDER 105081-3201
11. NOZZLE 105000-1740

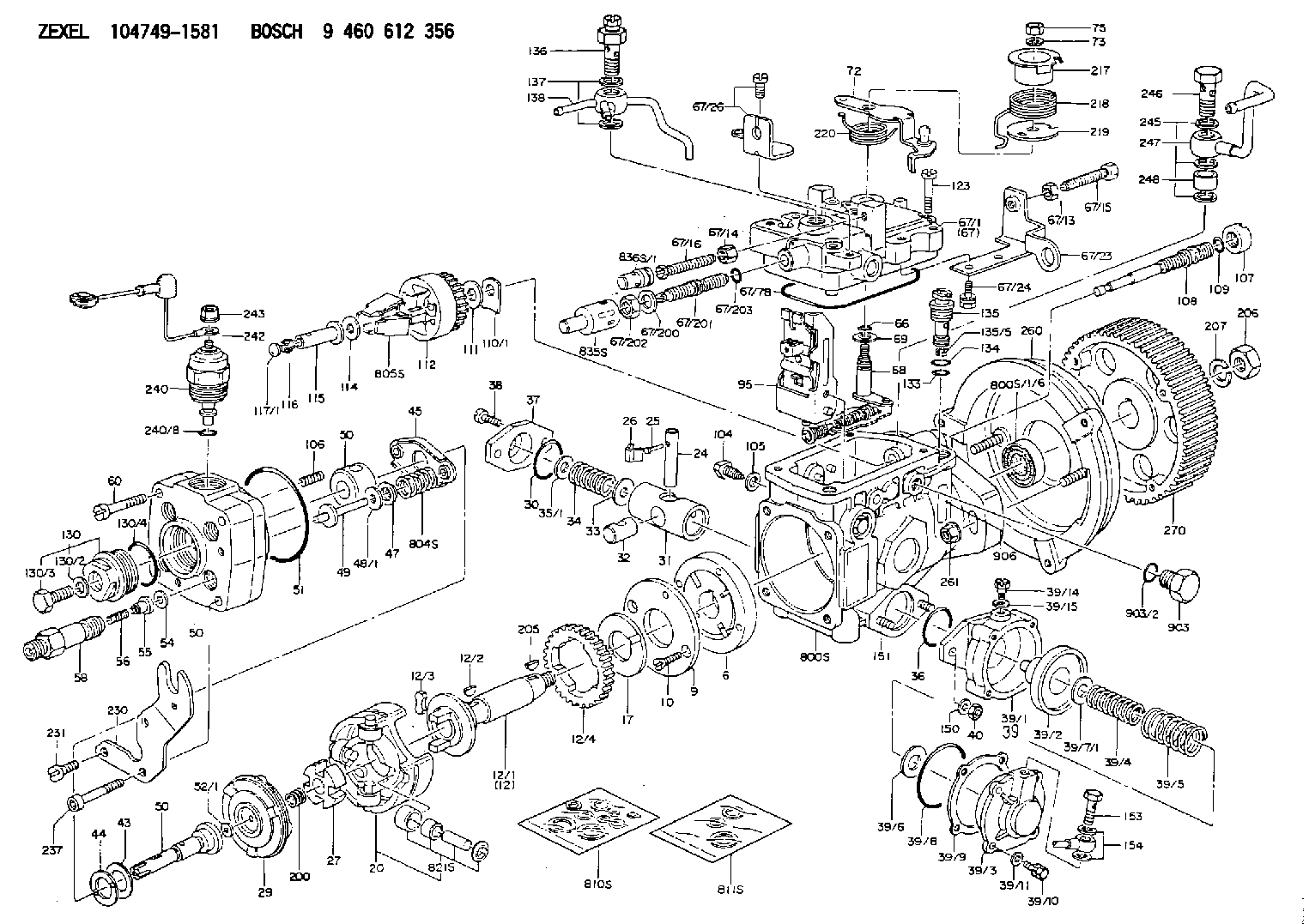

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-1720 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-0020 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0900 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3500 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146340-0620 START ADVANCE ASSY
39/1. [1] 146342-1900 DIAPHRAGM HOUSING
39/2. [1] 146342-1220 PUMP PLUNGER
39/3. [1] 146342-1300 COVER
39/4. [1] 146342-1600 COILED SPRING
39/5. [1] 146342-1700 COILED SPRING
39/6. [1] 146342-0600 PLAIN WASHER
39/7/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
39/7/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
39/7/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
39/7/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
39/7/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
39/7/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
39/8. [1] 146342-0700 O-RING
39/9. [1] 146342-1400 GASKET
39/10. [4] 010065-1670 BLEEDER SCREW M5P0.8L16 7T
39/11. [4] 014020-5140 PLAIN WASHER D10&5.5T0.8
39/14. [1] 131420-0400 BLEEDER SCREW
39/15. [1] 026506-1040 GASKET D9.9&6.2T1
40. [2] 013020-6040 UNION NUT M6P1H5
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0500 GUIDE PIN
50. [1] 146400-5220 HYDRAULIC HEAD
50. [1] 146400-5220 HYDRAULIC HEAD
50. [1] 146400-5220 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0120 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0120 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146502-4621 GOVERNOR COVER
67/1. [1] 146805-2621 GOVERNOR COVER
67/13. [1] 013020-6040 UNION NUT M6P1H5
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-1800 BLEEDER SCREW
67/16. [1] 146526-2800 BLEEDER SCREW
67/23. [1] 146613-8000 BRACKET
67/24. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
67/26. [1] 146613-6520 BRACKET
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146510-3720 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146530-7920 CONTROL LEVER
72B. [1] 146530-8020 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146551-1020 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146575-0000 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-0000 PLUG L1.70
117/1. [1] 146577-0100 PLUG L1.90
117/1. [1] 146577-0200 PLUG L2.10
117/1. [1] 146577-0300 PLUG L2.30
117/1. [1] 146577-0400 PLUG L2.50
117/1. [1] 146577-0500 PLUG L2.70
117/1. [1] 146577-0600 PLUG L2.90
117/1. [1] 146577-0700 PLUG L3.10
117/1. [1] 146577-0800 PLUG L3.30
117/1. [1] 146577-0900 PLUG L3.50
117/1. [1] 146577-1000 PLUG L3.70
117/1. [1] 146577-1100 PLUG L3.90
117/1. [1] 146577-1200 PLUG L4.10
117/1. [1] 146577-1300 PLUG L4.30
117/1. [1] 146577-1400 PLUG L4.50
117/1. [1] 146577-1500 PLUG L4.70
117/1. [1] 146577-1600 PLUG L4.90
117/1. [1] 146577-1700 PLUG L5.10
117/1. [1] 146577-5000 PLUG L1.8
117/1. [1] 146577-5100 PLUG L2.0
117/1. [1] 146577-5200 PLUG L2.2
117/1. [1] 146577-5300 PLUG L2.4
117/1. [1] 146577-5400 PLUG L2.6
117/1. [1] 146577-5500 PLUG L2.8
117/1. [1] 146577-5600 PLUG L3.0
117/1. [1] 146577-5700 PLUG L3.2
117/1. [1] 146577-5800 PLUG L3.4
117/1. [1] 146577-5900 PLUG L3.6
117/1. [1] 146577-6000 PLUG L3.8
117/1. [1] 146577-6100 PLUG L4.0
117/1. [1] 146577-6200 PLUG L4.2
117/1. [1] 146577-6300 PLUG L4.4
117/1. [1] 146577-6400 PLUG L4.6
117/1. [1] 146577-6500 PLUG L4.8
117/1. [1] 146577-6600 PLUG L5.0
117/1. [1] 146877-0400 PLUG
117/1. [1] 146877-0500 PLUG
117/1. [1] 146877-0600 PLUG
117/1. [1] 146877-0700 PLUG
117/1. [1] 146877-4300 PLUG
117/1. [1] 146877-4400 PLUG
117/1. [1] 146877-4500 PLUG
117/1. [1] 146877-4600 PLUG
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0020 OVER FLOW VALVE
137. [2] 139512-0500 GASKET
138. [1] 146610-4120 PIPE
150. [2] 014020-6140 PLAIN WASHER
151. [2] 139010-0300 STUD
153. [1] 029730-6030 EYE BOLT
154. [2] 026506-1040 GASKET D9.9&6.2T1
200. [1] 146206-0100 COILED SPRING
205. [1] 025804-1610 WOODRUFF KEY
206. [1] 013121-4140 UNION NUT M14P1.5H11
207. [1] 029321-4050 LOCKING WASHER
217. [1] 146541-0100 SLOTTED WASHER
218. [1] 146587-0800 COILED SPRING
219. [1] 146541-0200 ANGLE PIECE
220. [1] 146587-0900 COILED SPRING
230. [1] 146613-7400 BRACKET
231. [2] 139106-0500 FLAT-HEAD SCREW M6P1.0H25
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-1220 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-7320 WIRE
243. [1] 146621-1000 UNION NUT
245. [3] 139512-0500 GASKET
246. [1] 146125-0020 EYE BOLT
247. [1] 146610-8120 INLET UNION
248. [1] 146614-0200 SPACER BUSHING
260. [1] 146611-0021 BRACKET
261. [2] 146621-4700 UNION NUT
270. [1] 146615-0000 TIMER CORE
800S. [1] 146019-8520 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0220 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
811S. [1] 146600-1820 PARTS SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
903. [1] 146620-0120 CAPSULE
903/2. [1] 146600-1300 O-RING &13W1.9
906. [1] 146917-5200 NAMEPLATE

Include in #2:

104749-1581 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104749-1581
9 460 612 356
8941248580  ISUZU
INJECTION-PUMP ASSEMBLY
C223 * K 11CJ VE4 VE




Information:


Illustration 11 g03159376
Install the new emissions certification film (6), information label (7), and serial number plate on the cylinder block according to the installation instructions received with the labels and plate.Note: Destroy the old emissions certification film and serial number plate.Operation and Maintenance
There are several specific messages on this machine. The exact location of the messages and the description of the messages are reviewed in this section. Become familiarized with all messages.Make sure that all the messages are legible. Clean the messages or replace the messages if you cannot read the words. Replace the illustrations if the illustrations are not legible. When you clean the messages, use a cloth, water, and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the messages. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the messages. Loose adhesive will allow the messages to fall.Replace any message that is damaged, or missing. If a message is attached to a part that is replaced, install a message on the replacement part. Any Cat® dealer can provide new messages.
Illustration 12 g06238625
Location of oil and fuel films
(1) Oil film
(2) Fuel filmEngine Oil (1)
This film is located in front of the engine oil filler tube and next to the fuel tank breather, on the right side of the machine.
Illustration 13 g02448560Cat® DEO-ULS oils and oils that satisfy the "API CJ-4"and/or "ACEA E9" requirements are required for engines that are equipped with a diesel particulate filter.Diesel Fuel Requirements (2)
This film is located film next to the fuel filler and fuel tank inspection cover on the right side of the machine.
Illustration 14 g03619316Use Ultralow Sulfur Diesel (ULSD) fuel.The Environmental Protection Agency (EPA) defines Ultra-Low Sulfur Diesel (ULSD - S15) as a diesel fuel with a sulfur content not to exceed 15 parts per million (ppm(mg/kg)) or 0.0015 percent by weight. Engines are equipped with exhaust after-treatment systems are designed to run on ULSD only. Use of LSD or fuels higher than 15 ppm (mg/kg) sulfur in these engines will reduce engine efficiency and engine durability. Damage to the emissions control systems and/or shortened service interval will occur. Failures that result form the use of fuels are not Caterpillar factory defects. Therefore the cost of repairs would not be covered by a Caterpillar warranty.In Europe, ultra low sulfur diesel fuel will have a maximum of 0.0010 percent (10 ppm (mg/kg)) sulfur and is typically referred to as “sulfur-free”. This sulfur level is defined in European Standard "EN 590:2004".Operational Requirements
Ensure that the following operational requirements are applied when machines are fitted with a wall flow diesel particulate filter.Fuel
Sulfur levels must not exceed 15 ppm
Do not use fuel additives, biofuels, or alternative diesel fuels not authorized by CaterpillarOil
Use manufacturer recommended engine oilMachine Operation
Avoid excessive or unnecessary idling and low load operation. High load, high temperature is recommended for machines equipped with flow through diesel particulate filtersLubricant Viscosities - Fluid Recommendations
Engine Oil
Cat® oils have been developed and tested to provide the full performance and life that has been designed and built

Have questions with 104749-1581?





Group cross 104749-1581 ZEXEL

Isuzu

104749-1500
9 460 610 114
8941248420
INJECTION-PUMP ASSEMBLY
C223
104749-1510
9 460 610 115
8941248430
INJECTION-PUMP ASSEMBLY
C223
104749-1520
9 460 610 116
8941248440
INJECTION-PUMP ASSEMBLY
C223
104749-1530
9 460 610 117
8941248450
INJECTION-PUMP ASSEMBLY
C223
104749-1540
9 460 610 118
8941248460
INJECTION-PUMP ASSEMBLY
C223
104749-1550
9 460 610 119
8941248470
INJECTION-PUMP ASSEMBLY
C223
104749-1560
9 460 610 120
8941248480
INJECTION-PUMP ASSEMBLY
C223
104749-1570
9 460 610 121
8941248490
INJECTION-PUMP ASSEMBLY
C223
104749-1580
9 460 610 122

INJECTION-PUMP ASSEMBLY

Isuzu

104749-1581
9 460 612 356
8941248580
INJECTION-PUMP ASSEMBLY
C223
104749-1590
9 460 610 123

INJECTION-PUMP ASSEMBLY

Isuzu

104749-1591
9 460 614 696
8941248590
INJECTION-PUMP ASSEMBLY
C223
Back to top
