104749-1500 ZEXEL 9 460 610 114 BOSCH INJECTION-PUMP ASSEMBLY 9460610114 1047491500 8941248420

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 610 114 9460610114

ZEXEL 104749-1500 1047491500

ISUZU 8941248420 8941248420

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-1500 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-1500
1.	_
2.	FUEL INJECTION PUMP	104649-1360
3.	NUMBER PLATE	146635-5200
4.	_
5.	CAPSULE	146620-0120
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105151-1550
8.	Nozzle and Holder	8-94230-870-0
9.	Open Pre:MPa(Kqf/cm2)	10.3{105}
10.	NOZZLE-HOLDER	105081-3210
11.	NOZZLE	105000-1740

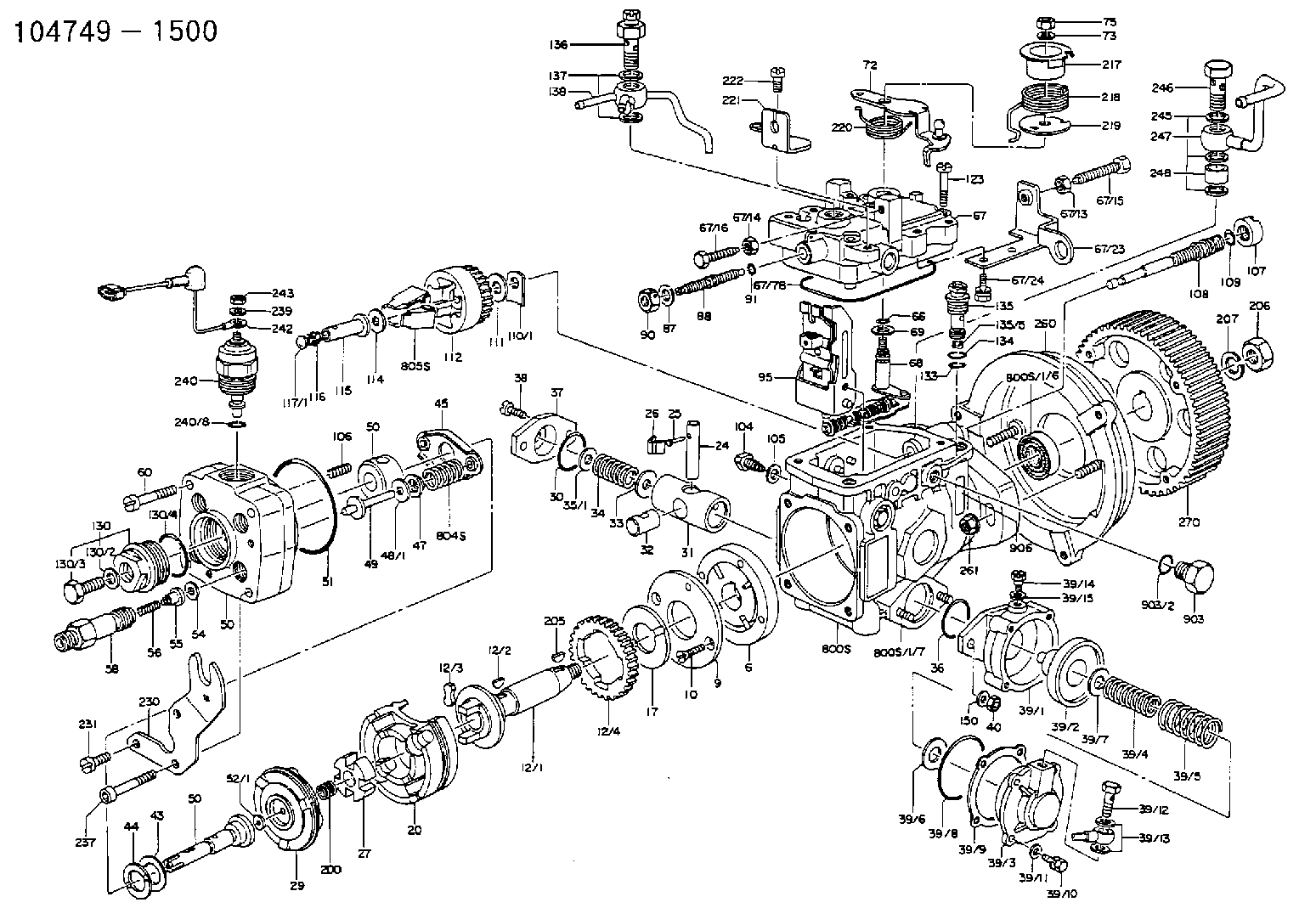

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-0120	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-0020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-0900	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3500	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0000	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146340-0620	START ADVANCE ASSY
39/1.	[1]	146342-1900	DIAPHRAGM HOUSING
39/2.	[1]	146342-1220	PUMP PLUNGER
39/3.	[1]	146342-1300	COVER
39/4.	[1]	146342-1600	COILED SPRING
39/5.	[1]	146342-1700	COILED SPRING
39/6.	[1]	146342-0600	PLAIN WASHER
39/7/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
39/7/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
39/7/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
39/7/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
39/7/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
39/7/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
39/8.	[1]	146342-0700	O-RING
39/9.	[1]	146342-1400	GASKET
39/10.	[4]	010065-1670	BLEEDER SCREW M5P0.8L16 7T
39/11.	[4]	014020-5140	PLAIN WASHER D10&5.5T0.8
39/14.	[1]	131420-0400	BLEEDER SCREW
39/15.	[1]	026506-1040	GASKET D9.9&6.2T1
40.	[2]	013020-6040	UNION NUT M6P1H5
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146400-5220	HYDRAULIC HEAD
50.	[1]	146400-5220	HYDRAULIC HEAD
50.	[1]	146400-5220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0120	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0120	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146502-4620	GOVERNOR COVER
67/1.	[1]	146505-2421	GOVERNOR COVER
67/13.	[1]	013020-6040	UNION NUT M6P1H5
67/14.	[1]	029240-6010	UNION NUT M6P1.0H5*
67/15.	[1]	146526-1800	BLEEDER SCREW
67/16.	[1]	146526-0200	BLEEDER SCREW
67/23.	[1]	146613-8000	BRACKET
67/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
67/26.	[1]	146613-6520	BRACKET
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146510-3720	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146530-7920	CONTROL LEVER
72B.	[1]	146530-8020	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146551-1020	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146575-0000	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-0000	PLUG L1.70
117/1.	[1]	146577-0100	PLUG L1.90
117/1.	[1]	146577-0200	PLUG L2.10
117/1.	[1]	146577-0300	PLUG L2.30
117/1.	[1]	146577-0400	PLUG L2.50
117/1.	[1]	146577-0500	PLUG L2.70
117/1.	[1]	146577-0600	PLUG L2.90
117/1.	[1]	146577-0700	PLUG L3.10
117/1.	[1]	146577-0800	PLUG L3.30
117/1.	[1]	146577-0900	PLUG L3.50
117/1.	[1]	146577-1000	PLUG L3.70
117/1.	[1]	146577-1100	PLUG L3.90
117/1.	[1]	146577-1200	PLUG L4.10
117/1.	[1]	146577-1300	PLUG L4.30
117/1.	[1]	146577-1400	PLUG L4.50
117/1.	[1]	146577-1500	PLUG L4.70
117/1.	[1]	146577-1600	PLUG L4.90
117/1.	[1]	146577-1700	PLUG L5.10
117/1.	[1]	146577-5000	PLUG L1.8
117/1.	[1]	146577-5100	PLUG L2.0
117/1.	[1]	146577-5200	PLUG L2.2
117/1.	[1]	146577-5300	PLUG L2.4
117/1.	[1]	146577-5400	PLUG L2.6
117/1.	[1]	146577-5500	PLUG L2.8
117/1.	[1]	146577-5600	PLUG L3.0
117/1.	[1]	146577-5700	PLUG L3.2
117/1.	[1]	146577-5800	PLUG L3.4
117/1.	[1]	146577-5900	PLUG L3.6
117/1.	[1]	146577-6000	PLUG L3.8
117/1.	[1]	146577-6100	PLUG L4.0
117/1.	[1]	146577-6200	PLUG L4.2
117/1.	[1]	146577-6300	PLUG L4.4
117/1.	[1]	146577-6400	PLUG L4.6
117/1.	[1]	146577-6500	PLUG L4.8
117/1.	[1]	146577-6600	PLUG L5.0
117/1.	[1]	146877-0400	PLUG
117/1.	[1]	146877-0500	PLUG
117/1.	[1]	146877-0600	PLUG
117/1.	[1]	146877-0700	PLUG
117/1.	[1]	146877-4300	PLUG
117/1.	[1]	146877-4400	PLUG
117/1.	[1]	146877-4500	PLUG
117/1.	[1]	146877-4600	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0120	OVER FLOW VALVE
137.	[2]	026512-1840	GASKET D17.9&12.2T1.50
138.	[1]	146609-1120	PIPE
150.	[2]	014020-6140	PLAIN WASHER
151.	[2]	139010-0300	STUD
153.	[1]	029730-6030	EYE BOLT
154.	[2]	026506-1040	GASKET D9.9&6.2T1
200.	[1]	146206-0100	COILED SPRING
205.	[1]	025804-1610	WOODRUFF KEY
206.	[1]	013121-4140	UNION NUT M14P1.5H11
207.	[1]	029321-4050	LOCKING WASHER
217.	[1]	146541-0100	SLOTTED WASHER
218.	[1]	146587-0800	COILED SPRING
219.	[1]	146541-0200	ANGLE PIECE
220.	[1]	146587-0900	COILED SPRING
230.	[1]	146613-7400	BRACKET
231.	[2]	139106-0500	FLAT-HEAD SCREW M6P1.0H25
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-7320	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	026512-1840	GASKET D17.9&12.2T1.50
246.	[1]	146125-0020	EYE BOLT
247.	[1]	146610-8120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
260.	[1]	146611-0021	BRACKET
261.	[2]	146621-0900	UNION NUT
270.	[1]	146615-0000	TIMER CORE
800S.	[1]	146009-1020	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
811S.	[1]	146600-1820	PARTS SET
903.	[1]	146620-0120	CAPSULE
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146635-5200	NAMEPLATE

Include in #2:

104749-1500 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 610 114 9460610114

ZEXEL 104749-1500 1047491500

ISUZU 8941248420 8941248420

Zexel num

Bosch num

Firm num

Name

104749-1500

9 460 610 114

8941248420 ISUZU

INJECTION-PUMP ASSEMBLY
C223 * K 11CJ VE4 VE

Calibration Data:

Adjustment conditions

(Note)
For Japan: year/month/day (change sequence) 1982/02/11 (1)

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105000-2010

Bosch type code NP-DN12SD12TT

Nozzle holder 105780-2080

Opening pressure MPa 14.7 14.7 15.19

Opening pressure kgf/cm2 150 150 155

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-840

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 37.2 36.7 37.7

Difference in delivery mm3/st. 3

Basic *

Injection timing adjustment_02

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 11.1 7.5 14.7

Injection timing adjustment_03

Pump speed r/min 2175 2175 2175

Average injection quantity mm3/st. 34.95 32.8 37.1

Injection timing adjustment_04

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 37.2 36.2 38.2

Injection timing adjustment_05

Pump speed r/min 600 600 600

Average injection quantity mm3/st. 32.45 30.4 34.5

Injection timing adjustment_06

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 36.3 35.8 36.8

Difference in delivery mm3/st. 3

Basic *

Remarks
For Japan

Injection timing adjustment_07

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 10.8 7.3 14.3

Remarks
For Japan

Injection timing adjustment_08

Pump speed r/min 2175 2175 2175

Average injection quantity mm3/st. 34.1 32 36.2

Remarks
For Japan

Injection timing adjustment_09

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 36.3 35.3 37.3

Remarks
For Japan

Injection timing adjustment_10

Pump speed r/min 600 600 600

Average injection quantity mm3/st. 31.7 29.7 33.7

Remarks
For Japan

Injection quantity adjustment

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 11.05 8 14.1

Difference in delivery mm3/st. 3

Basic *

Injection quantity adjustment_02

Pump speed r/min 2700 2700 2700

Average injection quantity mm3/st. 3.6

Injection quantity adjustment_03

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 10.8 7.8 13.8

Difference in delivery mm3/st. 3

Basic *

Remarks
For Japan

Injection quantity adjustment_04

Pump speed r/min 2700 2700 2700

Average injection quantity mm3/st. 3.5

Remarks
For Japan

Governor adjustment

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.75 5.7 9.8

Difference in delivery mm3/st. 2

Basic *

Governor adjustment_02

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.75 5.7 9.8

Governor adjustment_03

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 3.1

Governor adjustment_04

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.6 5.6 9.6

Difference in delivery mm3/st. 2

Basic *

Remarks
For Japan

Governor adjustment_05

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 7.6 5.6 9.6

Remarks
For Japan

Governor adjustment_06

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 3

Remarks
For Japan

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 65 65

Basic *

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 63 63

Basic *

Remarks
For Japan

Speed control lever angle

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 0 0 0

Remarks
Magnet OFF

Speed control lever angle_02

Pump speed r/min 375 375 375

Average injection quantity mm3/st. 0 0 0

Remarks
For Japan: Magnet OFF

0000000901

Pump speed r/min 1000 1000 1000

Overflow quantity cm3/min 402 276 528

_02

Pump speed r/min 1000 1000 1000

Overflow quantity cm3/min 420 288 552

Remarks
For Japan

Stop lever angle

Pump speed r/min 1500 1500 1500

Pressure kPa 539.5 520 559

Pressure kgf/cm2 5.5 5.3 5.7

Basic *

Stop lever angle_02

Pump speed r/min 1000 1000 1000

Pressure kPa 411.5 382 441

Pressure kgf/cm2 4.2 3.9 4.5

Stop lever angle_03

Pump speed r/min 1500 1500 1500

Pressure kPa 539.5 520 559

Pressure kgf/cm2 5.5 5.3 5.7

Stop lever angle_04

Pump speed r/min 2175 2175 2175

Pressure kPa 696.5 667 726

Pressure kgf/cm2 7.1 6.8 7.4

Stop lever angle_05

Pump speed r/min 1500 1500 1500

Pressure kPa 529.5 510 549

Pressure kgf/cm2 5.4 5.2 5.6

Basic *

Remarks
For Japan

Stop lever angle_06

Pump speed r/min 1000 1000 1000

Pressure kPa 402 373 431

Pressure kgf/cm2 4.1 3.8 4.4

Remarks
For Japan

Stop lever angle_07

Pump speed r/min 1500 1500 1500

Pressure kPa 529.5 510 549

Pressure kgf/cm2 5.4 5.2 5.6

Remarks
For Japan

Stop lever angle_08

Pump speed r/min 2175 2175 2175

Pressure kPa 676.5 647 706

Pressure kgf/cm2 6.9 6.6 7.2

Remarks
For Japan

0000001101

Pump speed r/min 1500 1500 1500

Timer stroke mm 4.5 4.3 4.7

Basic *

_02

Pump speed r/min 1000 1000 1000

Timer stroke mm 2.3 1.7 2.9

_03

Pump speed r/min 1500 1500 1500

Timer stroke mm 4.5 4.2 4.8

_04

Pump speed r/min 2175 2175 2175

Timer stroke mm 7.5 7.2 7.8

_05

Pump speed r/min 0 0 0

Timer stroke mm 2.9 2.7 3.1

_06

Pump speed r/min 560 460 660

Remarks
C.D.. cancel speed.

_07

Pump speed r/min 1500 1500 1500

Timer stroke mm 4.4 4.2 4.6

Basic *

Remarks
For Japan

_08

Pump speed r/min 1000 1000 1000

Timer stroke mm 2.2 1.6 2.8

Remarks
For Japan

_09

Pump speed r/min 1500 1500 1500

Timer stroke mm 4.4 4.1 4.7

Remarks
For Japan

_10

Pump speed r/min 2175 2175 2175

Timer stroke mm 7.4 7 7.8

Remarks
For Japan

_11

Pump speed r/min 0 0 0

Timer stroke mm 2.9 2.7 3.1

Remarks
For Japan

_12

Pump speed r/min 600 500 700

Remarks
For Japan: CSD cancel speed

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1.8 1.7 1.9

Control lever angle alpha deg. 25 21 29

Control lever angle beta deg. 42 37 47

Information:

Table 1
Sales Model Effective with Machines
14M Series 3 S/N:N9S237-UP
16M Series 3 S/N:N9Y231-UP
18M Series 3 S/N:N9A228-UP
Illustration 1 g06219020
Illustration 2 g06219021
Table 2
Required Parts List
Part Number Part Name
517-0411 Diesel Exhaust Fluid Tank Gp
513-1590 Rear Harness As
368-2203 Diesel Exhaust Fluid Lines Gp Parts listed in Table 2 are the major components that were updated due to DEF quality sensor update for the 14M Series 3 machines.The above parts list is not a comprehensive list of changes. Refer to Parts Manual for the respective machine prefixes for all the related changes.No hardware changes required for 16 M Series 3 and 18 M Series 3 machines due to the DEF quality sensor update. Also the machine films were updated to reflect the DEF quality sensor update.
