104749-1161 ZEXEL 9 460 610 231 BOSCH INJECTION-PUMP ASSEMBLY 9460610231 1047491161

Information injection-pump assembly

BOSCH 9 460 610 231 9460610231

ZEXEL 104749-1161 1047491161

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-1161 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-1161
1.	_
2.	FUEL INJECTION PUMP	104649-1161
3.	NUMBER PLATE	146633-5200
4.	_	146672-0020
5.	CAPSULE
6.	ADJUSTING DEVICE	146620-2220
7.	NOZZLE AND HOLDER ASSY	105151-1521
8.	Nozzle and Holder	5-15300-109-1
9.	Open Pre:MPa(Kqf/cm2)	10.3{105}
10.	NOZZLE-HOLDER	105081-3201
11.	NOZZLE	105000-1740

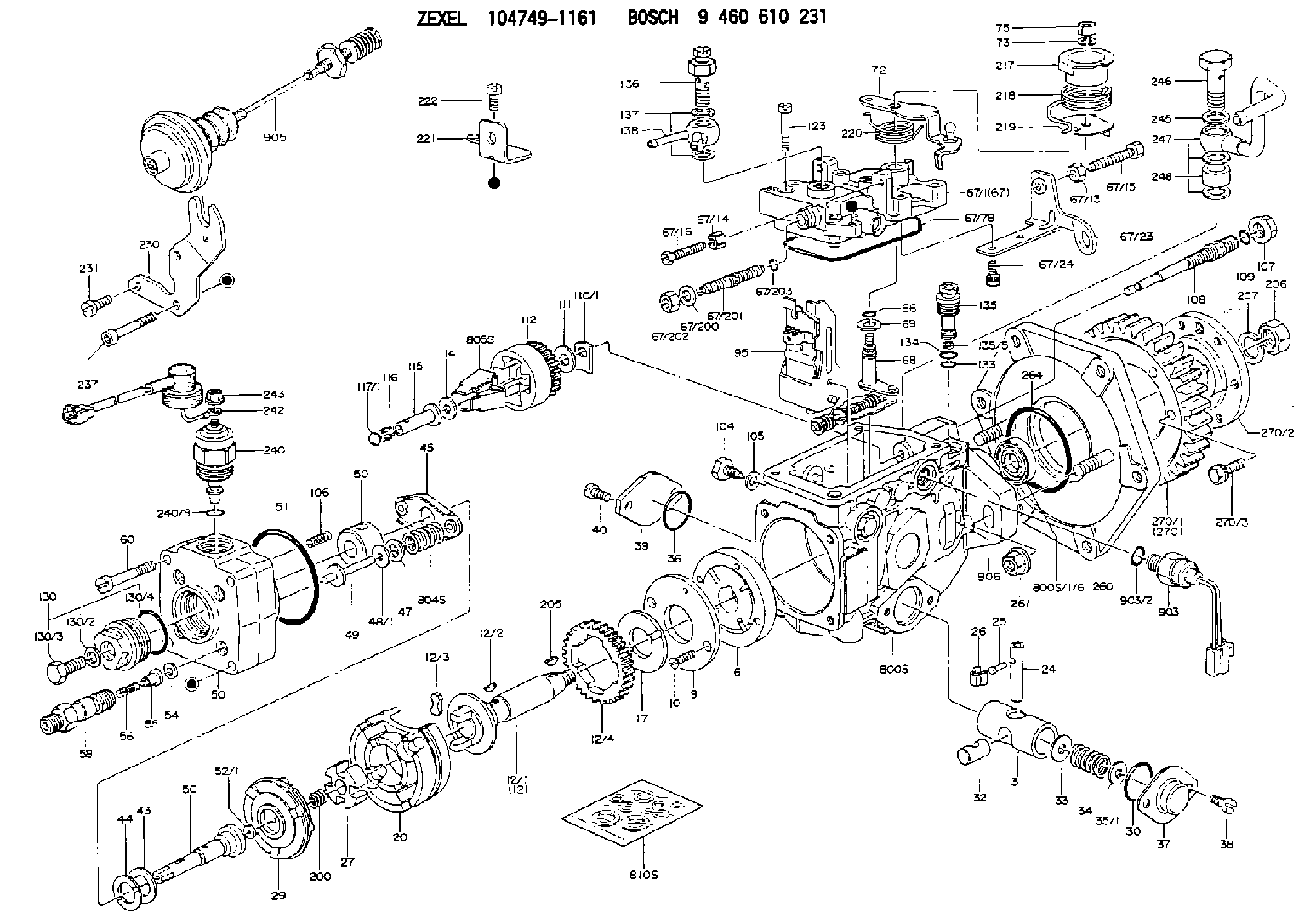

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-0120	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-0020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-0400	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3700	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0000	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146400-5521	HYDRAULIC HEAD
50.	[1]	146400-5521	HYDRAULIC HEAD
50.	[1]	146400-5521	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0020	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0120	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146502-4620	GOVERNOR COVER
67/1.	[1]	146505-2420	GOVERNOR COVER
67/13.	[1]	013020-6040	UNION NUT M6P1H5
67/14.	[1]	029240-6010	UNION NUT M6P1.0H5*
67/15.	[1]	146526-1800	BLEEDER SCREW
67/16.	[1]	146526-0200	BLEEDER SCREW
67/23.	[1]	146613-8000	BRACKET
67/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-0300	THREADED PIN L53.00
67/201B.	[1]	146545-0400	THREADED PIN L55.00
67/201C.	[1]	146545-0500	THREADED PIN L57.00
67/202.	[1]	139208-0100	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146510-1120	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146530-7920	CONTROL LEVER
72B.	[1]	146530-8020	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146551-1020	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146575-0000	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-0000	PLUG L1.70
117/1.	[1]	146577-0100	PLUG L1.90
117/1.	[1]	146577-0200	PLUG L2.10
117/1.	[1]	146577-0300	PLUG L2.30
117/1.	[1]	146577-0400	PLUG L2.50
117/1.	[1]	146577-0500	PLUG L2.70
117/1.	[1]	146577-0600	PLUG L2.90
117/1.	[1]	146577-0700	PLUG L3.10
117/1.	[1]	146577-0800	PLUG L3.30
117/1.	[1]	146577-0900	PLUG L3.50
117/1.	[1]	146577-1000	PLUG L3.70
117/1.	[1]	146577-1100	PLUG L3.90
117/1.	[1]	146577-1200	PLUG L4.10
117/1.	[1]	146577-1300	PLUG L4.30
117/1.	[1]	146577-1400	PLUG L4.50
117/1.	[1]	146577-1500	PLUG L4.70
117/1.	[1]	146577-1600	PLUG L4.90
117/1.	[1]	146577-1700	PLUG L5.10
117/1.	[1]	146577-5000	PLUG L1.8
117/1.	[1]	146577-5100	PLUG L2.0
117/1.	[1]	146577-5200	PLUG L2.2
117/1.	[1]	146577-5300	PLUG L2.4
117/1.	[1]	146577-5400	PLUG L2.6
117/1.	[1]	146577-5500	PLUG L2.8
117/1.	[1]	146577-5600	PLUG L3.0
117/1.	[1]	146577-5700	PLUG L3.2
117/1.	[1]	146577-5800	PLUG L3.4
117/1.	[1]	146577-5900	PLUG L3.6
117/1.	[1]	146577-6000	PLUG L3.8
117/1.	[1]	146577-6100	PLUG L4.0
117/1.	[1]	146577-6200	PLUG L4.2
117/1.	[1]	146577-6300	PLUG L4.4
117/1.	[1]	146577-6400	PLUG L4.6
117/1.	[1]	146577-6500	PLUG L4.8
117/1.	[1]	146577-6600	PLUG L5.0
117/1.	[1]	146877-0400	PLUG
117/1.	[1]	146877-0500	PLUG
117/1.	[1]	146877-0600	PLUG
117/1.	[1]	146877-0700	PLUG
117/1.	[1]	146877-4300	PLUG
117/1.	[1]	146877-4400	PLUG
117/1.	[1]	146877-4500	PLUG
117/1.	[1]	146877-4600	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0120	OVER FLOW VALVE
137.	[2]	026512-1840	GASKET D17.9&12.2T1.50
138.	[1]	146609-0220	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	025804-1610	WOODRUFF KEY
206.	[1]	013121-4140	UNION NUT M14P1.5H11
207.	[1]	029321-4050	LOCKING WASHER
217.	[1]	146541-0100	SLOTTED WASHER
218.	[1]	146587-0800	COILED SPRING
219.	[1]	146541-0200	ANGLE PIECE
220.	[1]	146587-0900	COILED SPRING
221.	[1]	146613-6500	BRACKET
222.	[1]	139106-0400	FLAT-HEAD SCREW M6P1.0H12
230.	[1]	146613-7400	BRACKET
231.	[2]	139106-0500	FLAT-HEAD SCREW M6P1.0H25
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-7320	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	026512-1840	GASKET D17.9&12.2T1.50
246.	[1]	146125-0020	EYE BOLT
247.	[1]	146610-8120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
260.	[1]	146611-0120	BRACKET
261.	[2]	146621-0900	UNION NUT
264.	[1]	016500-5010	O-RING
270.	[1]	146615-0220	TOOTHED GEAR
270/1.	[1]	146615-0200	COUPLING PLATE
270/2.	[1]	156211-5400	TOOTHED GEAR
270/3.	[6]	020006-1870	BLEEDER SCREW M6P1L18 7T
800S.	[1]	146009-1420	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
903.	[1]	146672-0020	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
905.	[1]	146620-2220	ACTUATOR
906.	[1]	146633-5200	NAMEPLATE

Include in #2:

104749-1161 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104749-1161
104749-1162

9 460 610 231

INJECTION-PUMP ASSEMBLY
* K

Information:

The 169-3374 Injector Sleeve Removal Group is used to remove the brass injector sleeves on 3176 and 3176B Engines, only. This tool group is used with the 9U-6860 Sleeve Replacement Group . The tool group eliminates the tapping and threading operation of the current 9U-6860 Sleeve Replacement Group . The benefits of this method of sleeve removal are easier sleeve removal and little debris that could enter the engine. This tool group uses a crimping die and captured stud similar to the current 3100 Sleeve Removal Tool. This tool group can be used with the cylinder head either on or off the engine.Additional Contact Information
For additional product support questions concerning this tool, contact the Dealer Service Tools Hotline at:USA: 1-800-542-8665, Option 1International: 1-309-578-7372Injector Sleeve Removal
Remove the rocker arms from the cylinder being repaired.
Remove the injector.
Illustration 4 g02888499
Put Sleeve Stud (3) into Injector Sleeve
Drop 142-8280 Sleeve Stud (3) into the injector sleeve and ensure that stud is resting at the bottom of the injector sleeve. The flat disc part of the sleeve stud should be below the top edge of the brass sleeve.
Illustration 5 g02888500
Insert Crimping Swage (9) Into Bore And Over Sleeve Stud (3)
Apply a light coating of grease to the inside cutting edge of crimping swage (9) and insert into the injector bore. Make sure that the tool is resting on the top edge of the brass sleeve by turning or "wiggling" slightly. It is possible for the tool to rest on the casting ledge (indicated by the arrow) in the cylinder head. The threads of sleeve stud (3) should go into the center hole of crimping swage (9), as shown in Figure 5.
Illustration 6 g02888508
Drive Crimping Swage (9) Down Into Injector Sleeve
Using a large hammer, strike the top of crimping swage (9) firmly and squarely. Drive down into the injector bore until the bottom slot is level with the top deck of the cylinder head, as shown in Figure 6.
Illustration 7 g02888509
Remove Driving Swage (9) With Crows Foot Pry Bar (12)
Remove the crimping swage from the injector bore. If the tool is stuck in the bore, use a crows foot pry bar (12) in the slot to work out the tool. Many times there will be a small amount of brass caught between crimping swage (9) and the injector bore causing the tool to stick. When the tool is removed, the top of the brass sleeve should be rolled over, trapping sleeve stud (3) inside the injector sleeve.Note: The sharp edge of crimping swage (9) must remain sharp and free of nicks or damage. This tool may be resharpened only on the inside cutting edge. Any sharpening procedure that reduces the OD of the cutting edge will result in poor tool performance and tool sticking.
Illustration 8 g02888517
Insert Sleeve Jaw (4)
Insert 151-4833 Sleeve Jaw (4) into the injector bore. The sharp edge of the sleeve jaw is designed to lock the rolled-over brass material between the sleeve stud and the sleeve jaw. The sleeve stud is then prevented from
