104749-1040 ZEXEL 9 460 613 703 BOSCH INJECTION-PUMP ASSEMBLY 9460613703 1047491040 5156010960




Information injection-pump assembly

BOSCH 9 460 613 703 9460613703
ZEXEL 104749-1040 1047491040
ISUZU 5156010960 5156010960
104749-1040 INJECTION-PUMP ASSEMBLY
Rating:
38
Buy INJECTION-PUMP ASSEMBLY 104749-1040 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104749-1040
1. _
2. FUEL INJECTION PUMP 104649-1090
3. NUMBER PLATE 146632-1400
4. _ 146672-0020
5. CAPSULE
6. ADJUSTING DEVICE 593170-5420
7. NOZZLE AND HOLDER ASSY 105151-1521
8. Nozzle and Holder 5-15300-109-1
9. Open Pre:MPa(Kqf/cm2) 10.3{105}
10. NOZZLE-HOLDER 105081-3201
11. NOZZLE 105000-1740

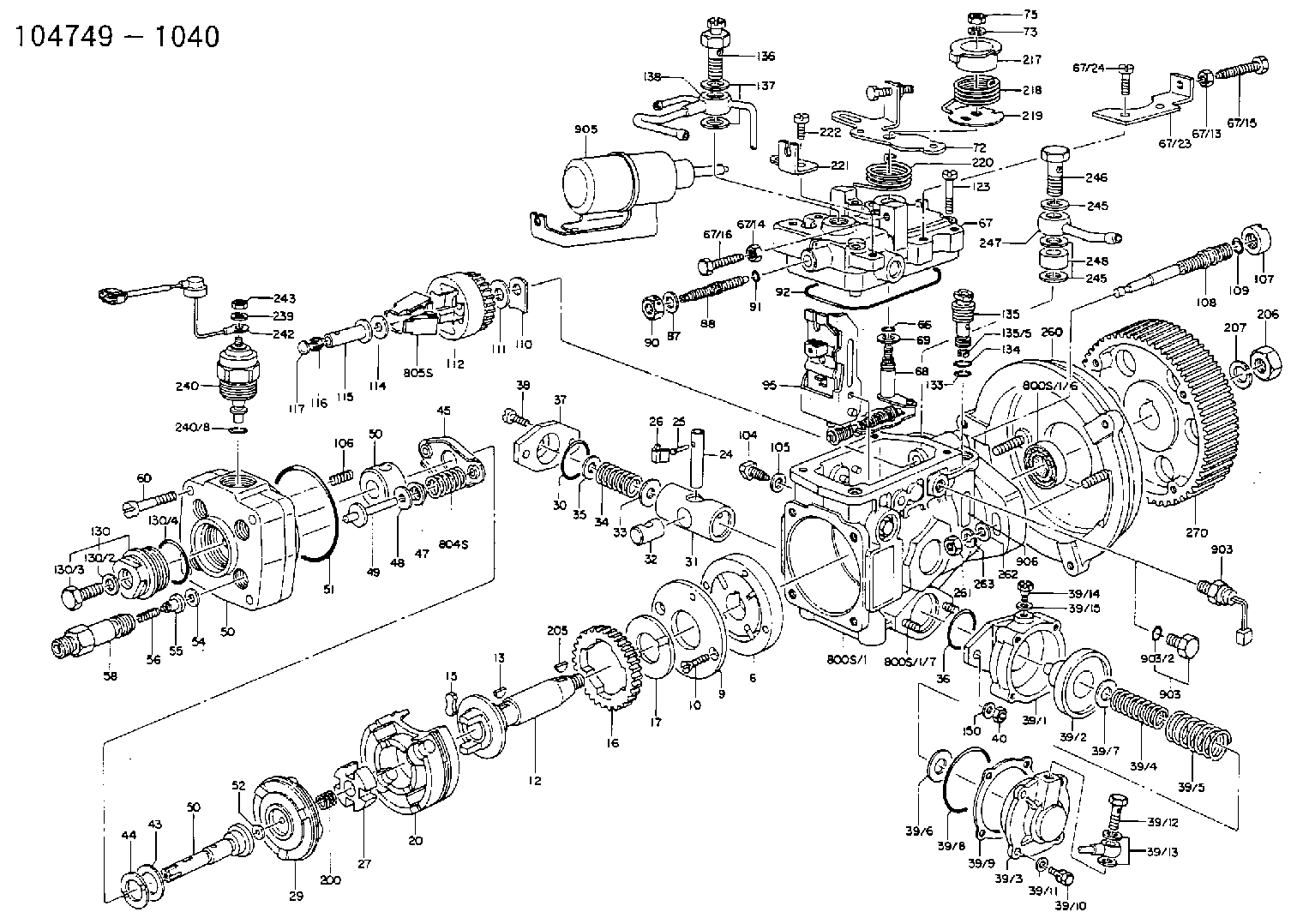

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0300 DRIVE SHAFT
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-0120 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-0020 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0900 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-0200 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0000 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146340-0720 START ADVANCE ASSY
39/1. [1] 146342-1900 DIAPHRAGM HOUSING
39/2. [1] 146342-1520 PUMP PLUNGER
39/3. [1] 146342-1300 COVER
39/4. [1] 146342-1600 COILED SPRING
39/5. [1] 146342-1700 COILED SPRING
39/6. [1] 146342-0600 PLAIN WASHER
39/7/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
39/7/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
39/7/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
39/7/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
39/7/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
39/7/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
39/8. [1] 146342-0700 O-RING
39/9. [1] 146342-1400 GASKET
39/10. [4] 010065-1670 BLEEDER SCREW M5P0.8L16 7T
39/11. [4] 014020-5140 PLAIN WASHER D10&5.5T0.8
39/14. [1] 131420-0400 BLEEDER SCREW
39/15. [1] 026506-1040 GASKET D9.9&6.2T1
40. [2] 013020-6040 UNION NUT M6P1H5
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM D17&5.2T2.1
48/1. [1] 146690-5900 SHIM D17&5.2T2.2
48/1. [1] 146690-6000 SHIM D17&5.2T2.3
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM D17&5.2T2.6
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM D17&5.2T2.9
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM D17&5.2T3.2
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM D17&5.2T3.4
48/1. [1] 146690-7200 SHIM D17&5.2T0.4
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM D17&5.2T0.7
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM D17&5.2T0.2
49. [2] 146234-0020 GUIDE PIN
50. [1] 146400-1820 HYDRAULIC HEAD
50. [1] 146400-1820 HYDRAULIC HEAD
50. [1] 146400-1820 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0020 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0120 FITTING
60. [4] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146502-0220 GOVERNOR COVER
67/1. [1] 146505-1621 GOVERNOR COVER
67/13. [1] 013020-6040 UNION NUT M6P1H5
67/14. [1] 029240-6010 UNION NUT M6P1.0H5*
67/15. [1] 146526-1800 BLEEDER SCREW
67/16. [1] 146526-0200 BLEEDER SCREW
67/23. [1] 146613-1300 BRACKET
67/24. [2] 139106-0000 FLAT-HEAD SCREW
67/78. [1] 146600-4400 SEAL RING
67/78. [1] 146600-4400 SEAL RING
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-0300 THREADED PIN L53.00
67/201B. [1] 146545-0400 THREADED PIN L55.00
67/201C. [1] 146545-0500 THREADED PIN L57.00
67/202. [1] 139208-0100 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146510-0120 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146530-3620 CONTROL LEVER
72B. [1] 146530-3720 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146551-1020 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146575-0000 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-0000 PLUG L1.70
117/1. [1] 146577-0100 PLUG L1.90
117/1. [1] 146577-0200 PLUG L2.10
117/1. [1] 146577-0300 PLUG L2.30
117/1. [1] 146577-0400 PLUG L2.50
117/1. [1] 146577-0500 PLUG L2.70
117/1. [1] 146577-0600 PLUG L2.90
117/1. [1] 146577-0700 PLUG L3.10
117/1. [1] 146577-0800 PLUG L3.30
117/1. [1] 146577-0900 PLUG L3.50
117/1. [1] 146577-1000 PLUG L3.70
117/1. [1] 146577-1100 PLUG L3.90
117/1. [1] 146577-1200 PLUG L4.10
117/1. [1] 146577-1300 PLUG L4.30
117/1. [1] 146577-1400 PLUG L4.50
117/1. [1] 146577-1500 PLUG L4.70
117/1. [1] 146577-1600 PLUG L4.90
117/1. [1] 146577-1700 PLUG L5.10
117/1. [1] 146577-5000 PLUG L1.8
117/1. [1] 146577-5100 PLUG L2.0
117/1. [1] 146577-5200 PLUG L2.2
117/1. [1] 146577-5300 PLUG L2.4
117/1. [1] 146577-5400 PLUG L2.6
117/1. [1] 146577-5500 PLUG L2.8
117/1. [1] 146577-5600 PLUG L3.0
117/1. [1] 146577-5700 PLUG L3.2
117/1. [1] 146577-5800 PLUG L3.4
117/1. [1] 146577-5900 PLUG L3.6
117/1. [1] 146577-6000 PLUG L3.8
117/1. [1] 146577-6100 PLUG L4.0
117/1. [1] 146577-6200 PLUG L4.2
117/1. [1] 146577-6300 PLUG L4.4
117/1. [1] 146577-6400 PLUG L4.6
117/1. [1] 146577-6500 PLUG L4.8
117/1. [1] 146577-6600 PLUG L5.0
117/1. [1] 146877-0400 PLUG
117/1. [1] 146877-0500 PLUG
117/1. [1] 146877-0600 PLUG
117/1. [1] 146877-0700 PLUG
117/1. [1] 146877-4300 PLUG
117/1. [1] 146877-4400 PLUG
117/1. [1] 146877-4500 PLUG
117/1. [1] 146877-4600 PLUG
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0120 OVER FLOW VALVE
137. [2] 026512-1840 GASKET D17.9&12.2T1.50
138. [1] 146610-3820 PIPE
150. [2] 014020-6140 PLAIN WASHER
151. [2] 139010-0300 STUD
153. [1] 029730-6030 EYE BOLT
154. [2] 026506-1040 GASKET D9.9&6.2T1
200. [1] 146206-0100 COILED SPRING
205. [1] 025804-1610 WOODRUFF KEY
206. [1] 013121-4140 UNION NUT M14P1.5H11
207. [1] 029321-4050 LOCKING WASHER
217. [1] 146541-0100 SLOTTED WASHER
218. [1] 146587-0800 COILED SPRING
219. [1] 146541-0200 ANGLE PIECE
220. [1] 146587-0900 COILED SPRING
221. [1] 146613-1400 BRACKET
222. [1] 139106-0400 FLAT-HEAD SCREW M6P1.0H12
240. [1] 146650-1220 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-7320 WIRE
243. [1] 146621-1000 UNION NUT
245. [3] 026512-1840 GASKET D17.9&12.2T1.50
245. [3] 026512-1840 GASKET D17.9&12.2T1.50
246. [1] 146125-0020 EYE BOLT
247. [1] 146610-0220 INLET UNION
248. [1] 146614-0200 SPACER BUSHING
260. [1] 146611-0021 BRACKET
261. [2] 146621-4700 UNION NUT
270. [1] 146615-0100 TIMER CORE
800S. [1] 146009-1020 PUMP HOUSING
800S. [1] 146009-1020 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0220 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
811S. [1] 146600-1820 PARTS SET
903. [1] 146672-0020 PULSE GENERATOR
903. [1] 146672-0020 PULSE GENERATOR
903/2. [1] 146600-1300 O-RING &13W1.9
905. [1] 593170-5420 ADJUSTING DEVICE
906. [1] 146632-1400 NAMEPLATE

Include in #2:

104749-1040 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104749-1040
9 460 613 703
5156010960  ISUZU
INJECTION-PUMP ASSEMBLY
C190 * K




Information:


Illustration 2 g03507406
Typical example of the 456-6048 DPF TOOL GP
Use the following procedure to measure the amount of ash in the DPF:
Use a wire with the maximum diameter of 1.04140 mm (0.041 inch) or the 456-6048 DPF TOOL GP. Hold the wire or tool so that the end of the wire is just inside the cell approximately 6.35000 mm (0.25 inch).
Drop the wire into the cell of the DPF.
Mark the wire at the top of the cell where the wire exits from the DPF.
Measure the depth that the wire dropped by measuring from the mark to the bottom tip of the wire.
Record the measurement.
Illustration 3 g03021156
Top view of DPF
View of locations for recording measurements
(1) Weld line
Perform Steps 7.b through 7.e for all locations. Refer to Illustration 3 for the proper location for recording measurements.
Average the measurements and refer to Table 3 for the acceptable measurements.
Table 3
Filter Assembly Part Number New Service Kit Part Number Reman Service Kit Part Number - Upgrade to New Reman Service Kit Part Number - Cat Factory Cleaned Measured Wire Depth Requires Cleaning Acceptable Cleaned Measured Wire Depth
358-3658 358-3659 20R-0696 20R-5620 Less than 178 mm (7 inch) Greater than 279 mm (11 inch)
358-3661 358-3662 20R-0697 20R-5621 Less than 203 mm (8 inch) Greater than 305 mm (12 inch)
358-3663 358-3664 20R-0698 20R-5622 Less than 203 mm (8 inch) Greater than 305 mm (12 inch)
358-3666 358-3667 20R-0699 20R-5623 Less than 254 mm (10 inch) Greater than 343 mm (13.5 inch)
358-3668 358-3669 20R-0700 20R-5624 Less than 279 mm (11 inch) Greater than 394 mm (15.5 inch)
The DPF is ready to be returned to service. DPF Ash Service
Purpose
The engine ash model must be reset whenever the filter is cleaned or replaced. Reseting the ash model places the DPF ash volume back to the "Clean State". The resetting will allow the regeneration of the DPF to function properly. Cat ET Location
Connect to Cat ET.
Illustration 4 g02477962
Select "Service" from the top menu and highlight "Service Procedures".
Illustration 5 g02477961
From the "Service Procedures" menu, highlight "DPF Ash Service". Select "Start".
Illustration 6 g02495621
Illustration 7 g02477958
Select "Ash Service Reset" to start the test procedure.
Illustration 8 g02477960
Choose the correct replacement type of diesel particulate filter in the menu that appears. The types of replacements for the diesel particulate filter are the following:
"Field cleaned" A filter that has been cleaned and reapplied
"New" - A new filter replacement
"Remanufactured" - A remanufactured filter replacement
Illustration 9 g02495643
Illustration 10 g02478024
Once the reset is completed, a log of the reset is captured and visible as a new row of information in the DPF ash service screen.
Perform a "Manual DPF Regeneration" with Cat ET to reset the soot level

Have questions with 104749-1040?





Group cross 104749-1040 ZEXEL

Isuzu

104749-1000
9 460 613 700
5156010730
INJECTION-PUMP ASSEMBLY
C223
104749-1010
9 460 613 701
5156010740
INJECTION-PUMP ASSEMBLY
C223
104749-1020
9 460 610 015
5156010700
INJECTION-PUMP ASSEMBLY
C190
104749-1030
9 460 613 702
5156010950
INJECTION-PUMP ASSEMBLY
C190
104749-1040
9 460 613 703
5156010960
INJECTION-PUMP ASSEMBLY
C190
104749-1050
9 460 613 704
5156010970
INJECTION-PUMP ASSEMBLY
C190
104749-1060
9 460 610 104
5156010980
INJECTION-PUMP ASSEMBLY
C190
104749-1070

104749-1840
9 460 610 105
8942385370
INJECTION-PUMP ASSEMBLY
4FC1D
104749-1080

8942273670

C223
104749-1090

8942381380

C223
Back to top
