104749-0840 ZEXEL 9 460 611 040 BOSCH INJECTION-PUMP ASSEMBLY 9460611040 1047490840 rfr513800b




Information injection-pump assembly

BOSCH 9 460 611 040 9460611040
ZEXEL 104749-0840 1047490840
MAZDA RFR513800B rfr513800b
104749-0840 INJECTION-PUMP ASSEMBLY
Rating:
32
Buy INJECTION-PUMP ASSEMBLY 104749-0840 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104749-0840
1. _
2. FUEL INJECTION PUMP 104649-0840
3. NUMBER PLATE 146990-2100
4. _ 146672-6320
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105140-1021
8. Nozzle and Holder RFG5 13 H50
9. Open Pre:MPa(Kqf/cm2) 13.2{135}
10. NOZZLE-HOLDER 105071-1530
11. NOZZLE 105000-2240

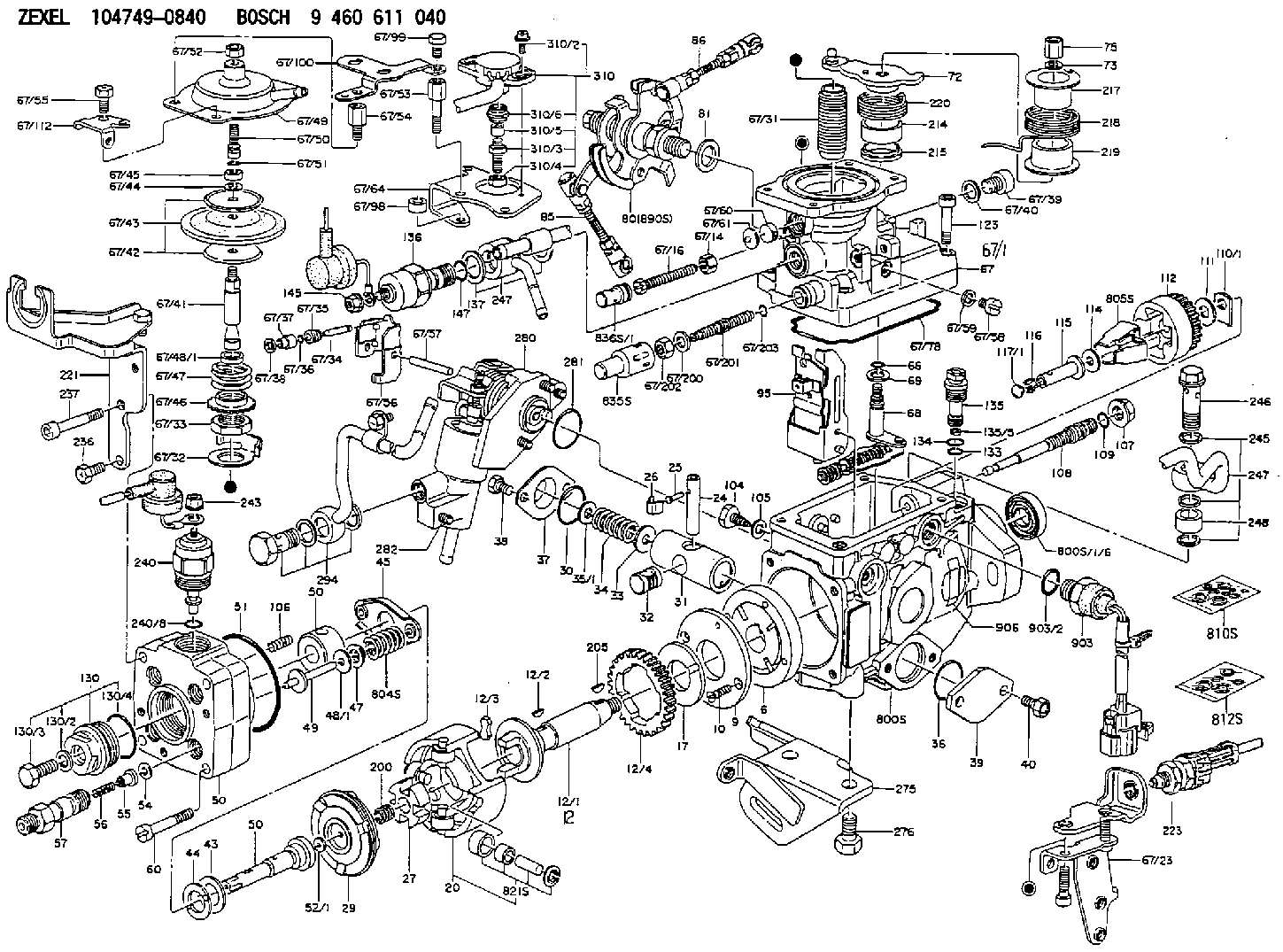

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-4220 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-3820 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0700 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3500 COMPRESSION SPRING
34B. [1] 146302-3400 COMPRESSION SPRING
34C. [1] 146302-3600 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0020 GUIDE PIN
50. [1] 146403-1120 HYDRAULIC HEAD
50. [1] 146403-1120 HYDRAULIC HEAD
50. [1] 146403-1120 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-4220 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0220 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146760-1420 MANIFOLD-PRESSURE COMP.
67/1. [1] 146806-0820 GOVERNOR COVER
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-3000 BLEEDER SCREW
67/23. [1] 146932-5820 BRACKET
67/31. [1] 146710-0800 BUSHING
67/32. [1] 146711-0000 PLATE
67/33. [1] 139218-0400 UNION NUT
67/34. [1] 146712-0700 BEARING PIN
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-0100 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-4100 ADJUSTING PIN
67/42. [2] 146714-0000 PLATE
67/43. [1] 146715-0000 DIAPHRAGM
67/44. [1] 139306-0100 LOCKING WASHER
67/45. [1] 013030-6040 UNION NUT M6P1H3.6
67/46. [1] 146716-0000 UNION NUT
67/47. [1] 146717-3300 COILED SPRING
67/48/1. [1] 146720-0000 SPACER BUSHING L3.7
67/48/1. [1] 146720-0100 SPACER BUSHING L3.9
67/48/1. [1] 146720-0200 SPACER BUSHING L4.1
67/48/1. [1] 146720-0300 SPACER BUSHING L4.3
67/48/1. [1] 146720-0400 SPACER BUSHING L4.5
67/48/1. [1] 146720-0500 SPACER BUSHING L4.7
67/48/1. [1] 146720-0600 SPACER BUSHING L4.9
67/48/1. [1] 146720-0700 SPACER BUSHING L5.1
67/48/1. [1] 146720-0800 SPACER BUSHING L5.3
67/48/1. [1] 146720-0900 SPACER BUSHING L2.7
67/48/1. [1] 146720-1000 SPACER BUSHING L2.9
67/48/1. [1] 146720-1100 SPACER BUSHING L3.1
67/48/1. [1] 146720-1200 SPACER BUSHING L3.3
67/48/1. [1] 146720-1300 SPACER BUSHING L3.5
67/48/1. [1] 146720-1400 SPACER BUSHING L2.8
67/48/1. [1] 146720-1500 SPACER BUSHING L3.0
67/48/1. [1] 146720-1600 SPACER BUSHING L3.2
67/48/1. [1] 146720-1700 SPACER BUSHING L3.4
67/48/1. [1] 146720-1800 SPACER BUSHING L3.6
67/48/1. [1] 146720-1900 SPACER BUSHING L3.8
67/48/1. [1] 146720-2000 SPACER BUSHING L4.0
67/48/1. [1] 146720-2100 SPACER BUSHING L4.2
67/48/1. [1] 146720-2200 SPACER BUSHING L4.4
67/48/1. [1] 146720-2300 SPACER BUSHING L4.6
67/48/1. [1] 146720-2400 SPACER BUSHING L4.8
67/48/1. [1] 146720-2500 SPACER BUSHING L5.0
67/48/1. [1] 146720-2600 SPACER BUSHING L5.2
67/48/1. [1] 146720-2700 SPACER BUSHING L5.4
67/48/1. [1] 146720-2800 SPACER BUSHING L5.5
67/48/1. [1] 146720-2900 SPACER BUSHING L5.6
67/48/1. [1] 146720-4500 SPACER BUSHING L1.8
67/48/1. [1] 146720-4600 SPACER BUSHING L1.9
67/48/1. [1] 146720-4700 SPACER BUSHING L2.0
67/48/1. [1] 146720-4800 SPACER BUSHING L2.1
67/48/1. [1] 146720-4900 SPACER BUSHING L2.2
67/48/1. [1] 146720-5000 SPACER BUSHING L2.3
67/48/1. [1] 146720-5100 SPACER BUSHING L2.4
67/48/1. [1] 146720-5200 SPACER BUSHING L2.5
67/48/1. [1] 146720-5300 SPACER BUSHING L2.6
67/48/1. [1] 146725-2500 SPACER BUSHING L5.7
67/48/1. [1] 146725-2600 SPACER BUSHING L5.8
67/48/1. [1] 146725-2700 SPACER BUSHING L5.9
67/48/1. [1] 146725-2800 SPACER BUSHING L6.0
67/48/1. [1] 146725-2900 SPACER BUSHING L6.1
67/48/1. [1] 146725-3000 SPACER BUSHING L6.2
67/48/1. [1] 146725-3100 SPACER BUSHING L6.3
67/48/1. [1] 146725-3200 SPACER BUSHING L6.4
67/48/1. [1] 146725-3300 SPACER BUSHING L6.5
67/48/1. [1] 146725-3400 SPACER BUSHING L6.6
67/48/1. [1] 146725-3500 SPACER BUSHING L6.7
67/48/1. [1] 146725-3600 SPACER BUSHING L6.8
67/48/1. [1] 146725-3700 SPACER BUSHING L6.9
67/48/1. [1] 146725-3800 SPACER BUSHING L7.0
67/48/1. [1] 146725-3900 SPACER BUSHING L7.1
67/48/1. [1] 146725-4000 SPACER BUSHING L7.2
67/48/1. [1] 146725-4100 SPACER BUSHING L7.3
67/48/1. [1] 146725-4200 SPACER BUSHING L7.4
67/48/1. [1] 146725-4300 SPACER BUSHING L7.5
67/49. [1] 146721-3420 COVER
67/50. [1] 146722-0200 FLAT-HEAD SCREW
67/51. [1] 146600-0300 O-RING
67/52. [1] 013020-6040 UNION NUT M6P1H5
67/53. [1] 146620-6800 BLEEDER SCREW
67/54. [1] 146620-6100 BLEEDER SCREW
67/55. [2] 139006-4500 BLEEDER SCREW
67/56. [1] 146723-0300 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0600 CAPSULE
67/64. [1] 146930-1900 BRACKET
67/78. [1] 146600-4400 SEAL RING
67/98. [1] 146648-2800 SPACER BUSHING
67/99. [2] 010006-0870 BLEEDER SCREW M6P1L8 7T
67/100. [1] 146930-6900 BRACKET
67/112. [1] 146930-2100 BRACKET
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-4100 THREADED PIN
67/201B. [1] 146545-4200 THREADED PIN
67/201C. [1] 146545-4300 THREADED PIN
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146514-4920 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146830-1320 CONTROL LEVER
72B. [1] 146830-1420 CONTROL LEVER
72C. [1] 146830-2920 CONTROL LEVER
72D. [1] 146830-3020 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 146621-0700 UNION NUT
80. [1] 146547-5620 CONTROL LEVER
81. [1] 146549-7400 SPACER BUSHING
85. [1] 146549-7520 RACK
86. [1] 146549-4121 RACK
95. [1] 146851-4320 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0420 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-5700 SLIDING SLEEVE
116. [1] 146576-0200 CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0920 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146650-7720 PULLING ELECTROMAGNET
137. [2] 139514-0200 GASKET
145. [1] 146621-1000 UNION NUT
147. [1] 146600-5000 O-RING
200. [1] 146206-0100 COILED SPRING
205. [1] 029470-4030 WOODRUFF KEY
214. [1] 146542-1400 BUSHING
215. [1] 146542-1500 BUSHING
217. [1] 146542-5700 SLOTTED WASHER
218. [1] 146592-7700 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146592-7800 COILED SPRING
221. [1] 146930-2720 BRACKET
223. [1] 146670-9620 SWITCH
236. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-4320 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
243. [1] 146621-1000 UNION NUT
245. [3] 139512-0500 GASKET
246. [1] 139812-1900 EYE BOLT
247. [1] 146668-2320 PIPE
247. [1] 146668-2320 PIPE
248. [1] 146614-0200 SPACER BUSHING
275. [1] 146612-6421 BRACKET
276. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
280. [1] 146361-4020 START ADVANCE ASSY
281. [1] 146600-0800 O-RING
282. [2] 139006-4700 BLEEDER SCREW
294. [1] 146665-8020 INLET UNION
310. [1] 146684-8120 POTENTCIOMETER
310/2. [2] 139104-0400 FLAT-HEAD SCREW
310/3. [1] 146620-1500 FLAT-HEAD SCREW
310/4. [1] 013020-6040 UNION NUT M6P1H5
310/5. [1] 146614-2300 JOINT CONNECTION
310/6. [1] 146661-0401 BOOT
800S. [1] 146019-4620 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0220 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-2420 REPAIR SET
812S. [1] 146600-1920 PARTS SET
821S. [1] 146210-5820 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
890S. [1] 146949-0020 LEVER GROUP
903. [1] 146672-6320 PULSE GENERATOR
903/2. [1] 146600-1300 O-RING &13W1.9
906. [1] 146990-2100 NAMEPLATE

Include in #2:

104749-0840 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 611 040 9460611040
ZEXEL 104749-0840 1047490840
MAZDA RFR513800B rfr513800b


Zexel num
Bosch num
Firm num
Name
104749-0840
9 460 611 040
RFR513800B  MAZDA
INJECTION-PUMP ASSEMBLY
RFX K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil   ISO4113orSAEJ967d
Test oil temperature degC   45 45 50
Nozzle   105780-0060
Bosch type code   NP-DN0SD1510
Nozzle holder   105780-2150
Opening pressure MPa   13 13 13.3
Opening pressure kgf/cm2   133 133 136
Injection pipe   157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm   2-6-450
Joint assembly   157641-4720
Tube assembly   157641-4020
Transfer pump pressure kPa   20 20 20
Transfer pump pressure kgf/cm2   0.2 0.2 0.2
Direction of rotation (viewed from drive side)
Right   R
Injection timing adjustment
Pump speed r/min   600 600 600
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   38 37.5 38.5
Difference in delivery mm3/st.   3.5
Basic   *
Oil temperature degC   50 48 52
Remarks
NA
Injection timing adjustment_02
Pump speed r/min   1000 1000 1000
Boost pressure kPa   33.3 32 34.6
Boost pressure kgf/cm2   0.34 0.326 0.354
Boost pressure mmHg   250 240 260
Average injection quantity mm3/st.   46.1 45.6 46.6
Difference in delivery mm3/st.   3.5
Basic   *
Oil temperature degC   50 48 52
Remarks
CBS
Injection timing adjustment_03
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   51.2 50.7 51.7
Difference in delivery mm3/st.   4
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
Injection timing adjustment_04
Pump speed r/min   600 600 600
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   38 37 39
Difference in delivery mm3/st.   4
Basic   *
Oil temperature degC   50 48 52
Remarks
NA
Injection timing adjustment_05
Pump speed r/min   1000 1000 1000
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   42.4 39.9 44.9
Oil temperature degC   50 48 52
Injection timing adjustment_06
Pump speed r/min   1000 1000 1000
Boost pressure kPa   33.3 32 34.6
Boost pressure kgf/cm2   0.34 0.326 0.354
Boost pressure mmHg   250 240 260
Average injection quantity mm3/st.   46.1 45.1 47.1
Difference in delivery mm3/st.   4
Basic   *
Oil temperature degC   50 48 52
Remarks
CBS
Injection timing adjustment_07
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   51.2 50.2 52.2
Difference in delivery mm3/st.   4.5
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
Injection timing adjustment_08
Pump speed r/min   2150 2150 2150
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   43.3 40.8 45.8
Oil temperature degC   52 50 54
Injection quantity adjustment
Pump speed r/min   2550 2550 2550
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   37 35 39
Basic   *
Oil temperature degC   52 50 54
Injection quantity adjustment_02
Pump speed r/min   2700 2700 2700
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   3
Oil temperature degC   55 52 58
Injection quantity adjustment_03
Pump speed r/min   2250 2250 2250
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   37 34.5 39.5
Basic   *
Oil temperature degC   52 50 54
Injection quantity adjustment_04
Pump speed r/min   2550 2550 2550
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   10 6.5 13.5
Oil temperature degC   55 52 58
Governor adjustment
Pump speed r/min   425 425 425
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   13.4 12.4 14.4
Difference in delivery mm3/st.   2
Basic   *
Oil temperature degC   48 46 50
Governor adjustment_02
Pump speed r/min   425 425 425
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   13.4 11.9 14.9
Difference in delivery mm3/st.   2.5
Basic   *
Oil temperature degC   48 46 50
Timer adjustment
Pump speed r/min   100 100 100
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   60.3 50.3 70.3
Oil temperature degC   48 46 50
Remarks
Full
Timer adjustment_02
Pump speed r/min   100 100 100
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   60.3 45.3 75.3
Oil temperature degC   48 46 50
Remarks
Full
Speed control lever angle
Pump speed r/min   425 425 425
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   0 0 0
Oil temperature degC   48 46 50
Remarks
Magnet OFF at idling position
0000000901
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Overflow quantity with S/T ON cm3/min   600 470 730
Oil temperature degC   50 48 52
Stop lever angle
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Pressure with S/T ON kPa   432 412 452
Pressure with S/T ON kgf/cm2   4.4 4.2 4.6
Pressure with S/T OFF kPa   314 275 353
Pressure with S/T OFF kgf/cm2   3.2 2.8 3.6
Basic   *
Oil temperature degC   50 48 52
Remarks
ON
Stop lever angle_02
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Pressure with S/T ON kPa   432 403 461
Pressure with S/T ON kgf/cm2   4.4 4.1 4.7
Pressure with S/T OFF kPa   314 265 363
Pressure with S/T OFF kgf/cm2   3.2 2.7 3.7
Basic   *
Oil temperature degC   50 48 52
Remarks
ON
0000001101
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Timer stroke with S/T ON mm   3.4 3.2 3.6
Timer stroke with S/T OFF mm   1.4 0.9 1.9
Basic   *
Oil temperature degC   50 48 52
Remarks
ON
_02
Pump speed r/min   750 750 750
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Timer stroke with S/T ON mm   2.2 1.6 2.8
Oil temperature degC   50 48 52
_03
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Timer stroke with S/T ON mm   3.4 3 3.8
Timer stroke with S/T OFF mm   1.4 0.7 2.1
Basic   *
Oil temperature degC   50 48 52
Remarks
ON
_04
Pump speed r/min   1500 1500 1500
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Timer stroke with S/T ON mm   5.7 5.1 6.3
Oil temperature degC   50 48 52
_05
Pump speed r/min   2150 2150 2150
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Timer stroke with S/T ON mm   8.7 8.1 9.3
Oil temperature degC   52 50 54
0000001201
Max. applied voltage V   8 8 8
Test voltage V   13 12 14
0000001401
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   42.6 42.1 43.1
Timer stroke TA mm   2.6 2.4 2.8
Timer stroke variation dT mm   0.8 0.8 0.8
Basic   *
Oil temperature degC   50 48 52
Remarks
ON
_02
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   42.6 41.6 43.6
Timer stroke TA mm   2.6 2.2 3
Timer stroke variation dT mm   0.8 0.8 0.8
Basic   *
Oil temperature degC   50 48 52
Remarks
ON
_03
Pump speed r/min   1000 1000 1000
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   30 28.5 31.5
Timer stroke TA mm   1.7 1.1 2.3
Timer stroke variation dT mm   1.7 1.7 1.7
Oil temperature degC   50 48 52
_04
Pump speed r/min   1500 1500 1500
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   30 28.5 31.5
Timer stroke TA mm   4 3.2 4.8
Oil temperature degC   50 48 52
Remarks
ON
_05
Pump speed r/min   1500 1500 1500
Boost pressure kPa   86.6 85.3 87.9
Boost pressure kgf/cm2   0.88 0.866 0.894
Boost pressure mmHg   650 640 660
Average injection quantity mm3/st.   30 28.5 31.5
Timer stroke TA mm   2.4 1.5 3.3
Oil temperature degC   50 48 52
Remarks
OFF
Timing setting
K dimension mm   3.3 3.2 3.4
KF dimension mm   5.8 5.7 5.9
MS dimension mm   1.5 1.4 1.6
Pre-stroke mm   0.3 0.28 0.32
Control lever angle alpha deg.   25 21 29
Control lever angle beta deg.   41 38 44

Test data Ex:

0000001801 SIDE LINK LEVER ADJUSTMENT

Test data 104749-0840
Side link lever adjustment 1. Fixing the side link lever (1)Hold the control lever in the position a. (2)Adjust the length of the connecting rod D so that a pin L1 can pass between the side link B and the actuator bracket C at A. Then fix. 2. Idle switch confirmation Confirm that the switch is ON at the idle lever position. 3. Potentiometer confirmation (input voltage: V1) Control lever: (1)Idle position: V2 (checking point) (2)Full position: V3 (adjusting point) 4. Confirming wire length Accelerator wire (1)Idle position: L2 (2)Idle~full stroke: L3 A/T wire: (1)Idle position: L4 (2)Idle~full stroke: L5
----------
L1=Dia.5.8-0.2mm L2=161+-3mm L3=32.5+-3mm L4=108+-3mm L5=32.5+-3mm V1=10.00V V2=2.26+-0.7V V3=9.1+-0.03V a=0deg
----------

0000001901 W-CSD ADJUSTMENT

Test data 104749-0840
Adjustment of the W-CSD 1. Adjustment of the advance angle of the timer (1)Determine the timer advance angle from the graph in Fig. 2 (D). (2)Adjust screw A so that the timer advance angle determined in item (1) is obtained. 2. Adjust dimension L. Adjust using turnbuckle B so that the dimension L is as described on the figure 2 D. (C): figure 1 (G): timer stroke (AT) : TA1 TA2TA2 Control lever gap (L): L1 L2L2 X:Temperature t Y1:Timer stroke TA Y2:Control lever gap: L
----------
TA1=-0.04t+2.7(t>=24degC) TA2=1.7(t<24degC) L1=-0.072t+5.3(t>=24degC) L2=3.6(t<24degC)
----------
E=L+-0.2mm F=TA+-0.1mm




Information:

Installing the Red LED Lamp (Regeneration Disable Lamp)
Illustration 1 g02402796
242-3282 Led Lamp As Use 155-2269 Connector Plug As as a mating connector. 155-2269 Connector Plug As is not included in the kit. Also, 102-8802 Receptacle Kit contains 3E-3364 Receptacle and 3E-3365 Receptacle Lock Wedge .
Insert the red (power) wire from the 242-3282 LED Lamp As into terminal 1 of 3E-3364 Receptacle .
Insert the black (ground) wire from the LED lamp into terminal 2 of the receptacle.
Insert 3E-3365 Receptacle Lock Wedge is the receptacle.
Connect terminal 1 of the receptacle to terminal 13 of 160-7689 Connector Plug As .
Connect terminal 2 of the receptacle to the ground/return (-).Installing the Illuminated Plug (Regeneration Lamp)
Illustration 2 g02402326
332-1064 Illuminated Plug The terminal designations can be found on the sides of 332-1064 Illuminated Plug and 205-5471 Connector .
Connect terminal 1A of the connector to the battery power (+).
Connect terminal 2A of the connector to the battery power (+).
Connect terminal 1B of the connector to terminal 30 of the plug.
Connect terminal 2B of the connector to terminal 31 of the plug.
Crimp the 112-9611 Blade Terminal onto the wires necessary to create the connections described in the previous steps.
Insert the blade terminals into the appropriate terminal locations of the connector.
Connect the plug to the connector. The plug and the connector are mating connectors.Installing the Hydraulic Lockout Rocker Switch (High Speed Regeneration Rocker Switch)
Illustration 3 g02366857
284-3623 Rocker Switch The terminal designations can be found on the sides of the 223-4778 Connector Plug As .
Insert 288-7146 Wire As into terminals 2,3,5, and 9 of the plug.
Splice the unoccupied ends of two 288-7146 Wire As together. Insert the spliced wire to provide a connection for terminal 6 to terminal 7 of 223-4778 Connector Plug As .
Connect terminal 2 of 223-4778 Connector Plug As to terminal 18 of 160-7689 Connector Plug As .
Connect

Have questions with 104749-0840?





Group cross 104749-0840 ZEXEL

Mazda

104749-0800
9 460 614 031
RFG513800F
INJECTION-PUMP ASSEMBLY
RFX
104749-0810
9 460 614 691
RFH113800E
INJECTION-PUMP ASSEMBLY
RFX
104749-0820
9 460 611 461
RFH313800E
INJECTION-PUMP ASSEMBLY
RFX
104749-0830
9 460 611 039
RFR313800B
INJECTION-PUMP ASSEMBLY
RFX
104749-0840
9 460 611 040
RFR513800B
INJECTION-PUMP ASSEMBLY
RFX
104749-0850
9 460 611 398
RFS513800D
INJECTION-PUMP ASSEMBLY
RFX
Back to top
