104749-0782 ZEXEL 9 460 610 731 BOSCH INJECTION-PUMP ASSEMBLY 9460610731 1047490782 rfs513800b

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 610 731 9460610731

ZEXEL 104749-0782 1047490782

MAZDA RFS513800B rfs513800b

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-0782 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-0782
1.	_
2.	FUEL INJECTION PUMP	104649-0782
3.	NUMBER PLATE	146990-1800
4.	_	146672-6320
5.	CAPSULE
6.	ADJUSTING DEVICE	146679-4520
7.	NOZZLE AND HOLDER ASSY	105140-1160
8.	Nozzle and Holder	RFS513H50A
9.	Open Pre:MPa(Kqf/cm2)	14.7{150}
10.	NOZZLE-HOLDER	105071-1530
11.	NOZZLE	105000-2240

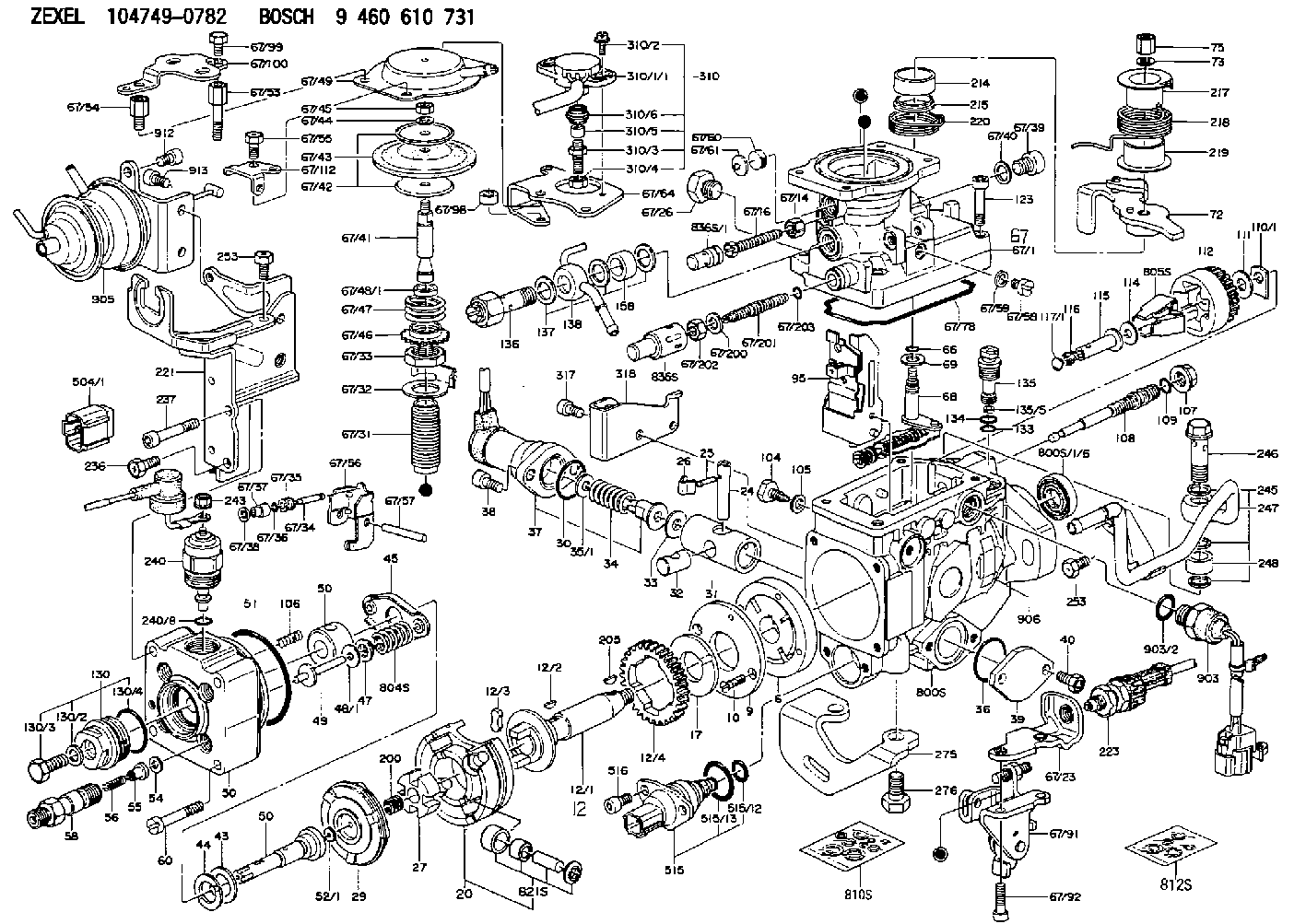

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-4620	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-3820	CAM PLATE
30.	[1]	146600-3000	O-RING
31.	[1]	146300-1300	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146306-1800	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-3000	O-RING
37.	[1]	479773-9120	TIMER PISTON SENSOR
38.	[2]	010206-2040	HEX-SOCKET-HEAD CAP SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146403-1120	HYDRAULIC HEAD
50.	[1]	146403-1120	HYDRAULIC HEAD
50.	[1]	146403-1120	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-2420	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146760-2520	MANIFOLD-PRESSURE COMP.
67/1.	[1]	146805-4320	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3000	BLEEDER SCREW
67/23.	[1]	146933-5300	BRACKET
67/26.	[1]	146507-0300	ADAPTOR
67/31.	[1]	146710-0800	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-4100	ADJUSTING PIN
67/42.	[2]	146714-0000	PLATE
67/43.	[1]	146715-0000	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-1100	COILED SPRING
67/48/1.	[1]	146720-0000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-0100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-0200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-0300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-0400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-0500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-0600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-0700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-0800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-0900	SPACER BUSHING L2.7
67/48/1.	[1]	146720-1000	SPACER BUSHING L2.9
67/48/1.	[1]	146720-1100	SPACER BUSHING L3.1
67/48/1.	[1]	146720-1200	SPACER BUSHING L3.3
67/48/1.	[1]	146720-1300	SPACER BUSHING L3.5
67/48/1.	[1]	146720-1400	SPACER BUSHING L2.8
67/48/1.	[1]	146720-1500	SPACER BUSHING L3.0
67/48/1.	[1]	146720-1600	SPACER BUSHING L3.2
67/48/1.	[1]	146720-1700	SPACER BUSHING L3.4
67/48/1.	[1]	146720-1800	SPACER BUSHING L3.6
67/48/1.	[1]	146720-1900	SPACER BUSHING L3.8
67/48/1.	[1]	146720-2000	SPACER BUSHING L4.0
67/48/1.	[1]	146720-2100	SPACER BUSHING L4.2
67/48/1.	[1]	146720-2200	SPACER BUSHING L4.4
67/48/1.	[1]	146720-2300	SPACER BUSHING L4.6
67/48/1.	[1]	146720-2400	SPACER BUSHING L4.8
67/48/1.	[1]	146720-2500	SPACER BUSHING L5.0
67/48/1.	[1]	146720-2600	SPACER BUSHING L5.2
67/48/1.	[1]	146720-2700	SPACER BUSHING L5.4
67/48/1.	[1]	146720-2800	SPACER BUSHING L5.5
67/48/1.	[1]	146720-2900	SPACER BUSHING L5.6
67/48/1.	[1]	146720-4500	SPACER BUSHING L1.8
67/48/1.	[1]	146720-4600	SPACER BUSHING L1.9
67/48/1.	[1]	146720-4700	SPACER BUSHING L2.0
67/48/1.	[1]	146720-4800	SPACER BUSHING L2.1
67/48/1.	[1]	146720-4900	SPACER BUSHING L2.2
67/48/1.	[1]	146720-5000	SPACER BUSHING L2.3
67/48/1.	[1]	146720-5100	SPACER BUSHING L2.4
67/48/1.	[1]	146720-5200	SPACER BUSHING L2.5
67/48/1.	[1]	146720-5300	SPACER BUSHING L2.6
67/48/1.	[1]	146725-2500	SPACER BUSHING L5.7
67/48/1.	[1]	146725-2600	SPACER BUSHING L5.8
67/48/1.	[1]	146725-2700	SPACER BUSHING L5.9
67/48/1.	[1]	146725-2800	SPACER BUSHING L6.0
67/48/1.	[1]	146725-2900	SPACER BUSHING L6.1
67/48/1.	[1]	146725-3000	SPACER BUSHING L6.2
67/48/1.	[1]	146725-3100	SPACER BUSHING L6.3
67/48/1.	[1]	146725-3200	SPACER BUSHING L6.4
67/48/1.	[1]	146725-3300	SPACER BUSHING L6.5
67/48/1.	[1]	146725-3400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-3500	SPACER BUSHING L6.7
67/48/1.	[1]	146725-3600	SPACER BUSHING L6.8
67/48/1.	[1]	146725-3700	SPACER BUSHING L6.9
67/48/1.	[1]	146725-3800	SPACER BUSHING L7.0
67/48/1.	[1]	146725-3900	SPACER BUSHING L7.1
67/48/1.	[1]	146725-4000	SPACER BUSHING L7.2
67/48/1.	[1]	146725-4100	SPACER BUSHING L7.3
67/48/1.	[1]	146725-4200	SPACER BUSHING L7.4
67/48/1.	[1]	146725-4300	SPACER BUSHING L7.5
67/49.	[1]	146721-2120	COVER
67/53.	[1]	146620-6800	BLEEDER SCREW
67/54.	[1]	146620-6100	BLEEDER SCREW
67/55.	[2]	139006-4500	BLEEDER SCREW
67/56.	[1]	146723-0300	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/64.	[1]	146930-1900	BRACKET
67/78.	[1]	146600-4400	SEAL RING
67/91.	[1]	146933-5420	BRACKET
67/92.	[2]	010206-2540	HEX-SOCKET-HEAD CAP SCREW M6P1L25
67/98.	[1]	146648-2800	SPACER BUSHING
67/99.	[2]	010006-0870	BLEEDER SCREW M6P1L8 7T
67/100.	[1]	146930-2000	BRACKET
67/112.	[1]	146930-2100	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-4100	THREADED PIN
67/201B.	[1]	146545-4200	THREADED PIN
67/201C.	[1]	146545-4300	THREADED PIN
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146514-4320	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146831-5920	CONTROL LEVER
72B.	[1]	146831-6020	CONTROL LEVER
72C.	[1]	146831-6120	CONTROL LEVER
72D.	[1]	146831-6220	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	146621-0700	UNION NUT
95.	[1]	146851-4420	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-5100	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-3220	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	148120-0020	OVER FLOW VALVE
137.	[3]	139512-0500	GASKET
138.	[1]	146668-3120	INLET UNION
158.	[1]	146614-6900	SPACER BUSHING
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
214.	[1]	146542-1400	BUSHING
215.	[1]	146542-1500	BUSHING
217.	[1]	146542-5700	SLOTTED WASHER
218.	[1]	146592-4500	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-4900	COILED SPRING
221.	[1]	146933-6820	BRACKET
223.	[1]	146670-9620	SWITCH
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-4320	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	139812-1900	EYE BOLT
247.	[1]	146665-7520	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
253.	[2]	139006-4400	BLEEDER SCREW
253.	[2]	139006-4400	BLEEDER SCREW
275.	[1]	146612-7620	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
310.	[1]	146684-8220	POTENTCIOMETER
310/1.	[1]	146684-8210	POTENTCIOMETER
310/2.	[2]	139104-0400	FLAT-HEAD SCREW
310/3.	[1]	146620-1500	FLAT-HEAD SCREW
310/4.	[1]	013020-6040	UNION NUT M6P1H5
310/5.	[1]	146614-2300	JOINT CONNECTION
310/6.	[1]	146661-0401	BOOT
317.	[1]	010206-1040	HEX-SOCKET-HEAD CAP SCREW
318.	[1]	146933-5900	BRACKET
504/1.	[1]	146649-4500	RESISTER
504/1.	[1]	146649-4600	RESISTER
504/1.	[1]	146649-4700	RESISTER
504/1.	[1]	146649-4800	RESISTER
504/1.	[1]	146649-4900	RESISTER
504/1.	[1]	146649-5000	RESISTER
504/1.	[1]	146649-5100	RESISTER
504/1.	[1]	146649-5200	RESISTER
504/1.	[1]	146649-5300	RESISTER
504/1.	[1]	146649-5400	RESISTER
504/1.	[1]	146649-5500	RESISTER
504/1.	[1]	146649-5600	RESISTER
504/1.	[1]	146649-5700	RESISTER
515.	[1]	106144-1080	TIMING CONTROL VALVE
515/12.	[1]	161440-3800	O-RING
515/13.	[1]	161440-3700	O-RING
516.	[2]	010206-1440	HEX-SOCKET-HEAD CAP SCREW M6P1L14
800S.	[1]	146018-5420	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-2420	REPAIR SET
812S.	[1]	146600-1920	PARTS SET
821S.	[1]	146210-5820	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146672-6320	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
905.	[1]	146679-4520	ACTUATOR
906.	[1]	146990-1800	NAMEPLATE
912.	[2]	010206-1240	HEX-SOCKET-HEAD CAP SCREW M6P1L12
913.	[1]	010206-2040	HEX-SOCKET-HEAD CAP SCREW

Include in #2:

104749-0782 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 610 731 9460610731

ZEXEL 104749-0782 1047490782

MAZDA RFS513800B rfs513800b

Zexel num

Bosch num

Firm num

Name

104749-0782
104749-0783

9 460 610 731

RFS513800B MAZDA

INJECTION-PUMP ASSEMBLY
RFX * K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1000 1000 1000

Boost pressure kPa 40 38.7 41.3

Boost pressure mmHg 300 290 310

Average injection quantity mm3/st. 46.5 46 47

Difference in delivery mm3/st. 3.5

Remarks
CBS

Injection timing adjustment_02

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.65 85.3 88

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 50.8 50.3 51.3

Difference in delivery mm3/st. 4

Remarks
Full

Injection timing adjustment_03

Pump speed r/min 600 600 600

Boost pressure kPa 46.65 45.3 48

Boost pressure mmHg 350 340 360

Average injection quantity mm3/st. 42.6 40.1 45.1

Injection timing adjustment_04

Pump speed r/min 1000 1000 1000

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 39.2 36.7 41.7

Injection timing adjustment_05

Pump speed r/min 1000 1000 1000

Boost pressure kPa 40 38.7 41.3

Boost pressure mmHg 300 290 310

Average injection quantity mm3/st. 46.5 45.5 47.5

Remarks
CBS

Injection timing adjustment_06

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.65 85.3 88

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 50.8 49.8 51.8

Remarks
Full

Injection timing adjustment_07

Pump speed r/min 2150 2150 2150

Boost pressure kPa 86.65 85.3 88

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 42.9 40.4 45.4

Injection timing adjustment_08

Pump speed r/min 2250 2250 2250

Boost pressure kPa 86.65 85.3 88

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 37 34.5 39.5

Injection quantity adjustment

Pump speed r/min 2250 2250 2250

Boost pressure kPa 86.65 85.3 88

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 37 35 39

Basic *

Injection quantity adjustment_02

Pump speed r/min 2700 2700 2700

Boost pressure kPa 86.65 85.3 88

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 5

Governor adjustment

Pump speed r/min 360 360 360

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 10.2 9.2 11.2

Difference in delivery mm3/st. 2

Basic *

Governor adjustment_02

Pump speed r/min 360 360 360

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 10.2 8.7 11.7

Governor adjustment_03

Pump speed r/min 450 450 450

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 3

Timer adjustment

Pump speed r/min 100 100 100

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 60.3 50.3 70.3

Basic *

Speed control lever angle

Pump speed r/min 360 360 360

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 0 0 0

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 1000 1000 1000

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

Overflow quantity cm3/min 600 468 732

Stop lever angle

Pump speed r/min 1000 1000 1000

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

Pressure kPa 617.5 588 647

Pressure kgf/cm2 6.3 6 6.6

Basic *

Stop lever angle_02

Pump speed r/min 1000 1000 1000

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

Pressure kPa 617.5 588 647

Pressure kgf/cm2 6.3 6 6.6

Stop lever angle_03

Pump speed r/min 2150 2150 2150

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

Pressure kPa 784.5 755 814

Pressure kgf/cm2 8 7.7 8.3

0000001101

Pump speed r/min 1000 1000 1000

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

TCV duty (%) F TCV 60Hz % 100 100 100

Timer stroke mm 10.6 10.4 10.8

Basic *

_02

Pump speed r/min 100 100 100

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

TCV duty (%) F TCV 60Hz % 100 100 100

Timer stroke mm 2.3 2.3

_03

Pump speed r/min 1000 1000 1000

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

TCV duty (%) F TCV 60Hz % 100 100 100

Timer stroke mm 10.6 10.3 10.9

_04

Pump speed r/min 2150 2150 2150

Boost pressure kPa 69.3 68 70.6

Boost pressure mmHg 520 510 530

TCV duty (%) F TCV 60Hz % 100 100 100

Timer stroke mm 11.3 10.8 11.8

0000001301

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

0000002701

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1.5 1.4 1.6

Pre-stroke mm 0.3 0.28 0.32

Control lever angle alpha deg. 25 21 29

Control lever angle beta deg. 41 38 44

Test data Ex:

0000001901 POTENTIOMETER ADJUSTMENT

Adjustment of the potentiometer (1)Potentiometer setting: A = adjusting point B = check point (C) = control lever position (V) = P/M output voltage (2)Dummy bolt setting: Fix the control lever with the dummy bolt so that the injection quantity is as shown in the following table at the pump speed = N1. (N) = pump speed (Q) = injection quantity (D) = target lever angle C1 = full speed position C2 = idle position (3)Read the output voltage (V) of the potentiometer in the state indicated in (2) above. Then, select the compensation resistor from the following table and replace. (R) = compensation resistance Note As the output voltage is compensated in the control unit after replacing the compensation resistor, confirmation is not necessary.
----------
N1=1,000r/min
----------
V1=9.10+-0.03V V2=2.26+-0.7V N1=1000r/min Q1=24.2+-1.0cm3/1000st D1=(17)deg V3=4.96~5.07V V4=5.08~5.19V V5=5.20~5.31V V6=5.32~5.43V V7=5.44~5.55V V8=5.56~5.67V V9=5.68~5.79V V10=5.80~5.91V V11=5.92~6.03V R1=No.1,0.18k?? R2=No.2,0.30k?? R3=No.3,0.43k?? R4=No.4,0.62k?? R5=No.5,0.82k?? R6=No.6,1.10k?? R7=No.7,1.50k?? R8=No.8,2.00k?? R9=No.9,2.70k??

0000002001 WIRE

Confirmation of the wire length: Accelerator wire: Idle-full stroke: L1 Confirmation on the idle SW Confirm that the switch is ON at the idle lever position. Adjustment of the double stage actuator: (1)Apply negative pressure P1 {P2} to the actuator through the negative pressure inlet port. (2)In status (1) above, adjust the intermediate lever screw C so that the control lever B position is a (ie, the distance between the control lever and the idle switch E is C). Fix using nut D. TT (Reference) Actuator stroke; (1)First step: L3 (2)Second stage: L4
----------
L1=32.0+-3.0mm C=3.6+-0.5mm L3=6+-0.5mm L4=(4.5)mm a=5.3deg Alpha=25deg P1=-66.6kPa P2=-500mmHg T=6~9N-m{0.6~0.9kgf-m}
----------
C=3.6+-0.5mm a=5.3deg Alpha=25deg

Information:

Fluids/Filters Recommendation
Literature InformationThis manual should be stored in the literature holder or in the literature storage area on the machine. Immediately replace this manual if lost, damaged, or unreadable.The information contained in this document is the most current information available for fluid maintenance and service products. Special maintenance and service products may be required for some machine compartments. Refer to the Operation and Maintenance Manual for your machine for the maintenance and service requirements. Read, study, and keep this manual with the product. This manual should be read carefully before using this product for the first time and before performing maintenance.Whenever a question arises regarding your product, or this publication, consult your dealer for the latest available information.SafetyRefer to the Operation and Maintenance Manual for your machine for all safety information. Read and understand the basic safety precautions listed in the Safety Section. In addition to safety precautions, this section identifies the text and locations of warning signs used on the machine.Read and understand the applicable precautions listed in the Maintenance and Operation Sections before operating or performing lubrication, maintenance, and repair on this machine.MaintenanceRefer to the Operation and Maintenance Manual for your machine to determine all maintenance requirements.Proper maintenance and repair are essential to keep the equipment and systems operating correctly. As the owner, you are responsible for the performance of the required maintenance listed in the Owner Manual, Operation and Maintenance Manual, and Service Manual.Maintenance Interval ScheduleUse the Maintenance Interval Schedule in the Operation and Maintenance Manual for your machine to determine servicing intervals. Use the service hour meter to determine servicing intervals. Calendar intervals shown (daily, weekly, monthly, etc.) can be used instead of service hour meter intervals if calendar intervals provide more convenient servicing schedules and approximate the indicated service hour meter reading. Recommended service should always be performed at the interval that occurs first.Under extremely severe, dusty, or wet operating conditions, more frequent lubrication and/or filter changes than is specified in the maintenance intervals chart might be necessary.Following the recommended maintenance intervals reduces the risk of excessive wear and potential failures of components.Aftermarket Products and Warranty
When auxiliary devices, accessories or consumables (filters, oil, additives, catalysts, fuel, etc.) made by other manufacturers are used on Cat products, the Caterpillar warranty is not affected simply because of such use. Failures that result from the installation or usage of other manufacturers auxiliary devices, accessories or consumables, however, are not Caterpillar factory defects and therefore are NOT covered by Caterpillar's warranty.Caterpillar is not in a position to evaluate the many auxiliary devices, accessories or consumables promoted by other manufacturers and their effect on Cat products. Installation or use of such items is at the discretion of the customer who assumes ALL risks for the effects that result from this usage.Furthermore, Caterpillar does not authorize the use of its trade name, trademark, or logo in a manner which implies our endorsement of these aftermarket products.
