104749-0771 ZEXEL 9 460 611 758 BOSCH INJECTION-PUMP ASSEMBLY 9460611758 1047490771

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 611 758 9460611758

ZEXEL 104749-0771 1047490771

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-0771 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-0771
1.	_
2.	FUEL INJECTION PUMP	104649-0771
3.	NUMBER PLATE	146965-9700
4.	_	146672-6320
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105140-1021
8.	Nozzle and Holder	RFG5 13 H50
9.	Open Pre:MPa(Kqf/cm2)	13.2{135}
10.	NOZZLE-HOLDER	105071-1530
11.	NOZZLE	105000-2240

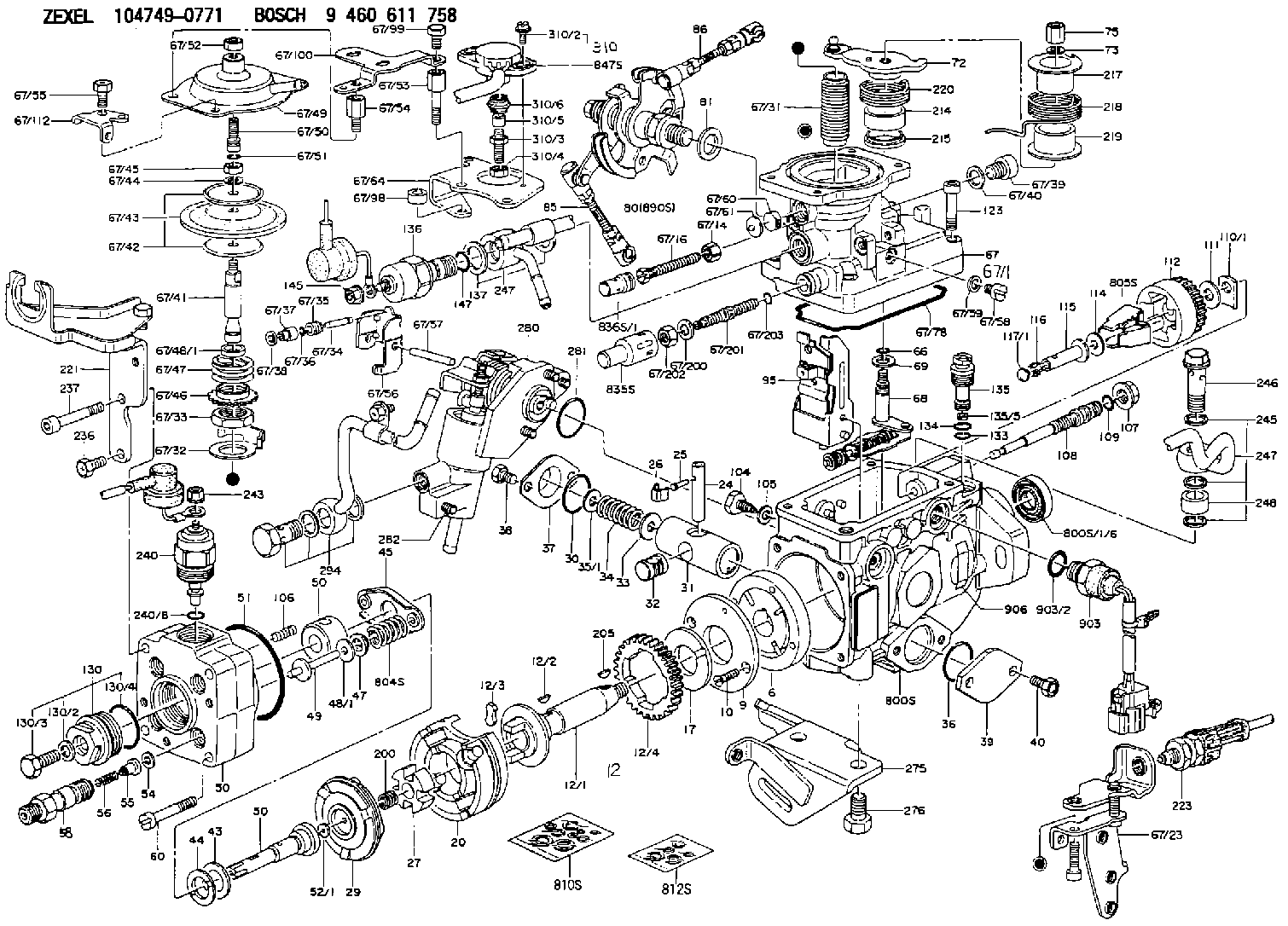

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-4220	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-3820	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-0700	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3500	COMPRESSION SPRING
34B.	[1]	146302-3400	COMPRESSION SPRING
34C.	[1]	146302-3600	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146403-1120	HYDRAULIC HEAD
50.	[1]	146403-1120	HYDRAULIC HEAD
50.	[1]	146403-1120	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-4220	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146760-1420	MANIFOLD-PRESSURE COMP.
67/1.	[1]	146806-0820	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3000	BLEEDER SCREW
67/23.	[1]	146932-5820	BRACKET
67/31.	[1]	146710-0800	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-4100	ADJUSTING PIN
67/42.	[2]	146714-0000	PLATE
67/43.	[1]	146715-0000	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-3300	COILED SPRING
67/48/1.	[1]	146720-0000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-0100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-0200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-0300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-0400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-0500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-0600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-0700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-0800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-0900	SPACER BUSHING L2.7
67/48/1.	[1]	146720-1000	SPACER BUSHING L2.9
67/48/1.	[1]	146720-1100	SPACER BUSHING L3.1
67/48/1.	[1]	146720-1200	SPACER BUSHING L3.3
67/48/1.	[1]	146720-1300	SPACER BUSHING L3.5
67/48/1.	[1]	146720-1400	SPACER BUSHING L2.8
67/48/1.	[1]	146720-1500	SPACER BUSHING L3.0
67/48/1.	[1]	146720-1600	SPACER BUSHING L3.2
67/48/1.	[1]	146720-1700	SPACER BUSHING L3.4
67/48/1.	[1]	146720-1800	SPACER BUSHING L3.6
67/48/1.	[1]	146720-1900	SPACER BUSHING L3.8
67/48/1.	[1]	146720-2000	SPACER BUSHING L4.0
67/48/1.	[1]	146720-2100	SPACER BUSHING L4.2
67/48/1.	[1]	146720-2200	SPACER BUSHING L4.4
67/48/1.	[1]	146720-2300	SPACER BUSHING L4.6
67/48/1.	[1]	146720-2400	SPACER BUSHING L4.8
67/48/1.	[1]	146720-2500	SPACER BUSHING L5.0
67/48/1.	[1]	146720-2600	SPACER BUSHING L5.2
67/48/1.	[1]	146720-2700	SPACER BUSHING L5.4
67/48/1.	[1]	146720-2800	SPACER BUSHING L5.5
67/48/1.	[1]	146720-2900	SPACER BUSHING L5.6
67/48/1.	[1]	146720-4500	SPACER BUSHING L1.8
67/48/1.	[1]	146720-4600	SPACER BUSHING L1.9
67/48/1.	[1]	146720-4700	SPACER BUSHING L2.0
67/48/1.	[1]	146720-4800	SPACER BUSHING L2.1
67/48/1.	[1]	146720-4900	SPACER BUSHING L2.2
67/48/1.	[1]	146720-5000	SPACER BUSHING L2.3
67/48/1.	[1]	146720-5100	SPACER BUSHING L2.4
67/48/1.	[1]	146720-5200	SPACER BUSHING L2.5
67/48/1.	[1]	146720-5300	SPACER BUSHING L2.6
67/48/1.	[1]	146725-2500	SPACER BUSHING L5.7
67/48/1.	[1]	146725-2600	SPACER BUSHING L5.8
67/48/1.	[1]	146725-2700	SPACER BUSHING L5.9
67/48/1.	[1]	146725-2800	SPACER BUSHING L6.0
67/48/1.	[1]	146725-2900	SPACER BUSHING L6.1
67/48/1.	[1]	146725-3000	SPACER BUSHING L6.2
67/48/1.	[1]	146725-3100	SPACER BUSHING L6.3
67/48/1.	[1]	146725-3200	SPACER BUSHING L6.4
67/48/1.	[1]	146725-3300	SPACER BUSHING L6.5
67/48/1.	[1]	146725-3400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-3500	SPACER BUSHING L6.7
67/48/1.	[1]	146725-3600	SPACER BUSHING L6.8
67/48/1.	[1]	146725-3700	SPACER BUSHING L6.9
67/48/1.	[1]	146725-3800	SPACER BUSHING L7.0
67/48/1.	[1]	146725-3900	SPACER BUSHING L7.1
67/48/1.	[1]	146725-4000	SPACER BUSHING L7.2
67/48/1.	[1]	146725-4100	SPACER BUSHING L7.3
67/48/1.	[1]	146725-4200	SPACER BUSHING L7.4
67/48/1.	[1]	146725-4300	SPACER BUSHING L7.5
67/49.	[1]	146721-3420	COVER
67/50.	[1]	146722-0200	FLAT-HEAD SCREW
67/51.	[1]	146600-0300	O-RING
67/52.	[1]	013020-6040	UNION NUT M6P1H5
67/53.	[1]	146620-6800	BLEEDER SCREW
67/54.	[1]	146620-6100	BLEEDER SCREW
67/55.	[2]	139006-4500	BLEEDER SCREW
67/56.	[1]	146723-0300	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/64.	[1]	146930-1900	BRACKET
67/78.	[1]	146600-4400	SEAL RING
67/98.	[1]	146648-2800	SPACER BUSHING
67/99.	[2]	010006-0870	BLEEDER SCREW M6P1L8 7T
67/100.	[1]	146930-6900	BRACKET
67/112.	[1]	146930-2100	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-4100	THREADED PIN
67/201B.	[1]	146545-4200	THREADED PIN
67/201C.	[1]	146545-4300	THREADED PIN
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146514-4920	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146830-1320	CONTROL LEVER
72B.	[1]	146830-1420	CONTROL LEVER
72C.	[1]	146830-2920	CONTROL LEVER
72D.	[1]	146830-3020	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	146621-0700	UNION NUT
80.	[1]	146547-5620	CONTROL LEVER
81.	[1]	146549-7400	SPACER BUSHING
85.	[1]	146549-7520	RACK
86.	[1]	146549-4121	RACK
95.	[1]	146851-2720	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-2300	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0920	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146650-7720	PULLING ELECTROMAGNET
137.	[2]	139514-0200	GASKET
145.	[1]	146621-1000	UNION NUT
147.	[1]	016520-1210	O-RING
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
214.	[1]	146542-1400	BUSHING
215.	[1]	146542-1500	BUSHING
217.	[1]	146542-5700	SLOTTED WASHER
218.	[1]	146592-7700	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-7800	COILED SPRING
221.	[1]	146930-2720	BRACKET
223.	[1]	146670-9620	SWITCH
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-4320	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	139812-1900	EYE BOLT
247.	[1]	146668-2320	PIPE
247.	[1]	146668-2320	PIPE
248.	[1]	146614-0200	SPACER BUSHING
275.	[1]	146612-6421	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
280.	[1]	146361-4020	START ADVANCE ASSY
281.	[1]	146600-0800	O-RING
282.	[2]	139006-4700	BLEEDER SCREW
294.	[1]	146665-8020	INLET UNION
310.	[1]	146684-8120	POTENTCIOMETER
310/2.	[2]	139104-0400	FLAT-HEAD SCREW
310/3.	[1]	146620-1500	FLAT-HEAD SCREW
310/4.	[1]	013020-6040	UNION NUT M6P1H5
310/5.	[1]	146614-2300	JOINT CONNECTION
310/6.	[1]	146661-0401	BOOT
800S.	[1]	146019-4620	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-2420	REPAIR SET
812S.	[1]	146600-1920	PARTS SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
890S.	[1]	146949-0020	LEVER GROUP
903.	[1]	146672-6320	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146965-9700	NAMEPLATE

Include in #2:

104749-0771 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 611 758 9460611758

ZEXEL 104749-0771 1047490771

Zexel num

Bosch num

Firm num

Name

104749-0771
104749-0772

9 460 611 758

INJECTION-PUMP ASSEMBLY
* K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 600 600 600

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 38 37.5 38.5

Difference in delivery mm3/st. 3.5

Basic *

Oil temperature degC 50 48 52

Remarks
NA

Injection timing adjustment_02

Pump speed r/min 1000 1000 1000

Boost pressure kPa 33.3 32 34.6

Boost pressure kgf/cm2 0.34 0.326 0.354

Boost pressure mmHg 250 240 260

Average injection quantity mm3/st. 46.1 45.6 46.6

Difference in delivery mm3/st. 3.5

Basic *

Oil temperature degC 50 48 52

Remarks
CBS

Injection timing adjustment_03

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 51.2 50.7 51.7

Difference in delivery mm3/st. 4

Basic *

Oil temperature degC 50 48 52

Remarks
Full

Injection timing adjustment_04

Pump speed r/min 600 600 600

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 38 37 39

Difference in delivery mm3/st. 4

Oil temperature degC 50 48 52

Injection timing adjustment_05

Pump speed r/min 1000 1000 1000

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 42.4 39.9 44.9

Oil temperature degC 50 48 52

Injection timing adjustment_06

Pump speed r/min 1000 1000 1000

Boost pressure kPa 33.3 32 34.6

Boost pressure kgf/cm2 0.34 0.326 0.354

Boost pressure mmHg 250 240 260

Average injection quantity mm3/st. 46.1 45.1 47.1

Difference in delivery mm3/st. 4

Oil temperature degC 50 48 52

Injection timing adjustment_07

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 51.2 50.2 52.2

Difference in delivery mm3/st. 4.5

Oil temperature degC 50 48 52

Injection timing adjustment_08

Pump speed r/min 2150 2150 2150

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 43.3 40.8 45.8

Oil temperature degC 52 50 54

Injection quantity adjustment

Pump speed r/min 2250 2250 2250

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 37 35 39

Basic *

Oil temperature degC 52 50 54

Injection quantity adjustment_02

Pump speed r/min 2700 2700 2700

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 3

Oil temperature degC 55 52 58

Injection quantity adjustment_03

Pump speed r/min 2250 2250 2250

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 37 34.5 39.5

Oil temperature degC 52 50 54

Injection quantity adjustment_04

Pump speed r/min 2550 2550 2550

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 10 6.5 13.5

Oil temperature degC 55 52 58

Governor adjustment

Pump speed r/min 425 425 425

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 13.4 12.4 14.4

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 425 425 425

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 13.4 11.9 14.9

Difference in delivery mm3/st. 2.5

Oil temperature degC 48 46 50

Timer adjustment

Pump speed r/min 100 100 100

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 60.3 45.3 75.3

Basic *

Oil temperature degC 48 46 50

Remarks
Full

Timer adjustment_02

Pump speed r/min 100 100 100

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 60.3 45.3 75.3

Oil temperature degC 48 46 50

Speed control lever angle

Pump speed r/min 425 425 425

Boost pressure kPa 0 0 0

Boost pressure kgf/cm2 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 48 46 50

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Overflow quantity with S/T ON cm3/min 600 470 730

Oil temperature degC 50 48 52

Stop lever angle

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Pressure with S/T ON kPa 432 412 452

Pressure with S/T ON kgf/cm2 4.4 4.2 4.6

Pressure with S/T OFF kPa 314 275 353

Pressure with S/T OFF kgf/cm2 3.2 2.8 3.6

Basic *

Oil temperature degC 50 48 52

Remarks
ON

Stop lever angle_02

Pump speed r/min 500 500 500

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Pressure with S/T ON kPa 284 235 333

Pressure with S/T ON kgf/cm2 2.9 2.4 3.4

Oil temperature degC 48 46 50

Stop lever angle_03

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Pressure with S/T ON kPa 432 403 461

Pressure with S/T ON kgf/cm2 4.4 4.1 4.7

Pressure with S/T OFF kPa 314 265 363

Pressure with S/T OFF kgf/cm2 3.2 2.7 3.7

Basic *

Oil temperature degC 50 48 52

Remarks
ON

Stop lever angle_04

Pump speed r/min 1500 1500 1500

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Pressure with S/T ON kPa 559 510 608

Pressure with S/T ON kgf/cm2 5.7 5.2 6.2

Oil temperature degC 50 48 52

Stop lever angle_05

Pump speed r/min 2150 2150 2150

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Pressure with S/T ON kPa 716 667 765

Pressure with S/T ON kgf/cm2 7.3 6.8 7.8

Oil temperature degC 52 50 54

0000001101

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Timer stroke with S/T ON mm 3.4 3.2 3.6

Timer stroke with S/T OFF mm 1.4 0.9 1.9

Basic *

Oil temperature degC 50 48 52

Remarks
ON

_02

Pump speed r/min 750 750 750

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Timer stroke with S/T ON mm 2.2 1.6 2.8

Oil temperature degC 50 48 52

_03

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Timer stroke with S/T ON mm 3.4 3 3.8

Oil temperature degC 50 48 52

_04

Pump speed r/min 1500 1500 1500

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Timer stroke with S/T ON mm 5.7 5.1 6.3

Oil temperature degC 50 48 52

_05

Pump speed r/min 2150 2150 2150

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Timer stroke with S/T ON mm 8.7 8.1 9.3

Oil temperature degC 52 50 54

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

0000001401

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 42.6 42.1 43.1

Timer stroke TA mm 2.6 2.4 2.8

Timer stroke variation dT mm 0.8 0.8 0.8

Basic *

Oil temperature degC 50 48 52

Remarks
ON

_02

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 42.6 41.6 43.6

Timer stroke TA mm 2.6 2.2 3

Oil temperature degC 50 48 52

Remarks
ON

_03

Pump speed r/min 1000 1000 1000

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 30 28.5 31.5

Timer stroke TA mm 1.7 1.1 2.3

Oil temperature degC 50 48 52

Remarks
ON

_04

Pump speed r/min 1500 1500 1500

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 30 28.5 31.5

Timer stroke TA mm 4 3.2 4.8

Oil temperature degC 50 48 52

Remarks
ON

_05

Pump speed r/min 1500 1500 1500

Boost pressure kPa 86.6 85.3 87.9

Boost pressure kgf/cm2 0.88 0.866 0.894

Boost pressure mmHg 650 640 660

Average injection quantity mm3/st. 30 28.5 31.5

Timer stroke TA mm 2.4 1.5 3.3

Oil temperature degC 50 48 52

Remarks
OFF

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1.5 1.4 1.6

BCS stroke mm 3.2 3 3.4

Pre-stroke mm 0.3 0.28 0.32

Control lever angle alpha deg. 25 21 29

Control lever angle beta deg. 41 38 44

Test data Ex:

0000001601 BOOST COMPENSATOR ADJUSTMENT

BCS adjustment procedure 1. At full boost pressure, set so that the full injection quantity is within the specifications (adjusting point). 2. Perform boost compensator intermediate operation point adjustment (pump speed N1, boost pressure P1). 3. When injection quantity at boost pressure P2 and pump speed N2 is not as specified, loosen nut (A) and adjust position of screw (B) so that injection quantity is as specified. The screw position should be within +-1 turn of initial position. 4. The nut tightening torque is T.
----------
N1=1000r/min N2=600r/min P1=33.3kPa(250mmHg) P2=0kPa(0mmHg) T=6~9N-m(0.6~0.9kgf-m)
----------
SW=10mm T=6~9N-m(0.6~0.9kgf-m)

0000001801 SIDE LINK LEVER ADJUSTMENT

Side link lever adjustment 1. Fixing the side link lever (1)Hold the control lever in the position a. (2)Adjust the length of the connecting rod D so that a pin L1 can pass between the side link B and the actuator bracket C at A. Then fix. 2. Idle switch confirmation Confirm that the switch is ON at the idle lever position. 3. Potentiometer confirmation (input voltage: V1) Control lever: (1)Idle position: V2 (checking point) (2)Full position: V3 (adjusting point) 4. Confirming wire length Accelerator wire (1)Idle position: L2 (2)Idle~full stroke: L3 A/T wire: (1)Idle position: L4 (2)Idle~full stroke: L5
----------
L1=Dia.5.8-0.2mm L2=161+-3mm L3=32.5+-3mm L4=108+-3mm L5=32.5+-3mm V1=10.00V V2=1.94+-0.3V V3=8.70+-0.03V a=0deg
----------

0000001901 W-CSD ADJUSTMENT

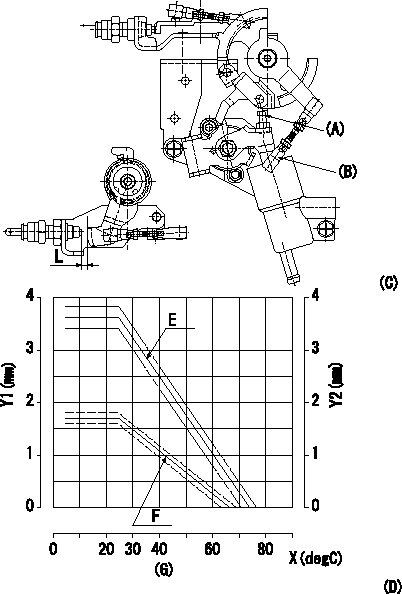

Adjustment of the W-CSD 1. Adjustment of the advance angle of the timer (1)Determine the timer advance angle from the graph in Fig. 2 (D). (2)Adjust screw A so that the timer advance angle determined in item (1) is obtained. 2. Adjust dimension L. Adjust using turnbuckle B so that the dimension L is as described on the figure 2 D. (C): figure 1 (G): timer stroke (AT) : TA1 TA2TA2 Control lever gap (L): L1 L2L2 X:Temperature t Y1:Timer stroke TA Y2:Control lever gap: L
----------
TA1=-0.04t+2.7(t>=24degC) TA2=1.7(t<24degC) L1=-0.072t+5.3(t>=24degC) L2=3.6(t<24degC)
----------
E=L+-0.2mm F=TA+-0.1mm

Information:

Illustration 39 g03157737
Select "Engine Technical Marketing Information - TMI Web" under the "Additional Service Information" heading.Note: If "Engine Technical Marketing Information - TMI Web" is not visible, select "View More".
Illustration 40 g03817877
Input the serial number of the engine in "Reference Number" box (1).
Select "Serial Number" in drop-down menu (2).
Select "Retrieve Data" (3).
Illustration 41 g03817327
Select "Emissions Data" (4).
Select "Need emissions replacement label? Click here!" (5).Note: "Large Power Systems Division" window will now open.
Illustration 42 g03817878
Select "Recon Replacement Request".
Illustration 43 g03818933
Typical example - "Emissions/Certification Replacement" window
Fill in the required details:
Table 5
Emissions/Certification Replacement Window
Item Description
2 Enter the dealer name (code)
3 Enter "Machine"
4 Enter "C15" under Engine Sales Model
5 Enter the Engine Serial Number
6 Enter the media number of the Special Instruction
When all details are filled in, select "Submit".Note: Two labels and a serial number plate will be sent to the dealer address. If two labels are not received, contact Global_Engine_Marking.
Illustration 44 g03159376
Install the new emissions certification film (6), information label (7), and serial number plate on the cylinder block according to the installation instructions received with the labels and plate.Note: Destroy the old emissions certification film and serial number plate.Operation and Maintenance information
There are several specific messages on this machine. The exact location of the messages and the description of the messages are reviewed in this section. Become familiarized with all messages.Make sure that all of the messages are legible. Clean the messages or replace the messages if you cannot read the words. Replace the illustrations if the illustrations are not legible. When you clean the messages, use a cloth, water, and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the messages. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the messages. Loose adhesive will allow the messages to fall.Replace any message that is damaged, or missing. If a message is attached to a part that is replaced, install a message on the replacement part. Any Cat® dealer can provide new messages.
Illustration 45 g03501777
Location of films
(1) Engine Oil film
(2) Diesel Fuel Requirements filmEngine Oil (1)
This film is located next to the engine oil filler tube on the right side of the machine.
Illustration 46 g02448560Cat® DEO-ULS oils and oils that satisfy the "API CJ-4"and/or "ACEA E9" requirements are required for engines that are equipped with a diesel particulate filter.Diesel Fuel Requirements (2)
This film is located next to the fuel cap on the right side of the machine.
Illustration 47 g03619316Use Ultralow Sulfur Diesel (ULSD) fuel.The Environmental Protection Agency (EPA) defines Ultra-Low Sulfur Diesel (ULSD - S15) as “a diesel fuel with a sulfur content not to exceed 15 parts per million (ppm(mg/kg)) or 0.0015 percent by weight”. Engines are equipped with exhaust after-treatment systems are designed to run on ULSD only. Use of LSD or fuels higher than 15 ppm (mg/kg) sulfur in these engines will reduce engine efficiency and engine durability. Damage to the emissions control systems and/or shortened service interval will occur. Failures that result form the use of fuels are not Caterpillar factory defects. Therefore the cost of repairs would not be
