104749-0721 ZEXEL 9 460 611 257 BOSCH INJECTION-PUMP ASSEMBLY 9460611257 1047490721 rfh513800f




Information injection-pump assembly

BOSCH 9 460 611 257 9460611257
ZEXEL 104749-0721 1047490721
MAZDA RFH513800F rfh513800f
104749-0721 INJECTION-PUMP ASSEMBLY
Rating:
27
Buy INJECTION-PUMP ASSEMBLY 104749-0721 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104749-0721
1. _
2. FUEL INJECTION PUMP 104649-0721
3. NUMBER PLATE 146965-7100
4. _ 146672-6320
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105140-1021
8. Nozzle and Holder RFG5 13 H50
9. Open Pre:MPa(Kqf/cm2) 13.2{135}
10. NOZZLE-HOLDER 105071-1530
11. NOZZLE 105000-2240

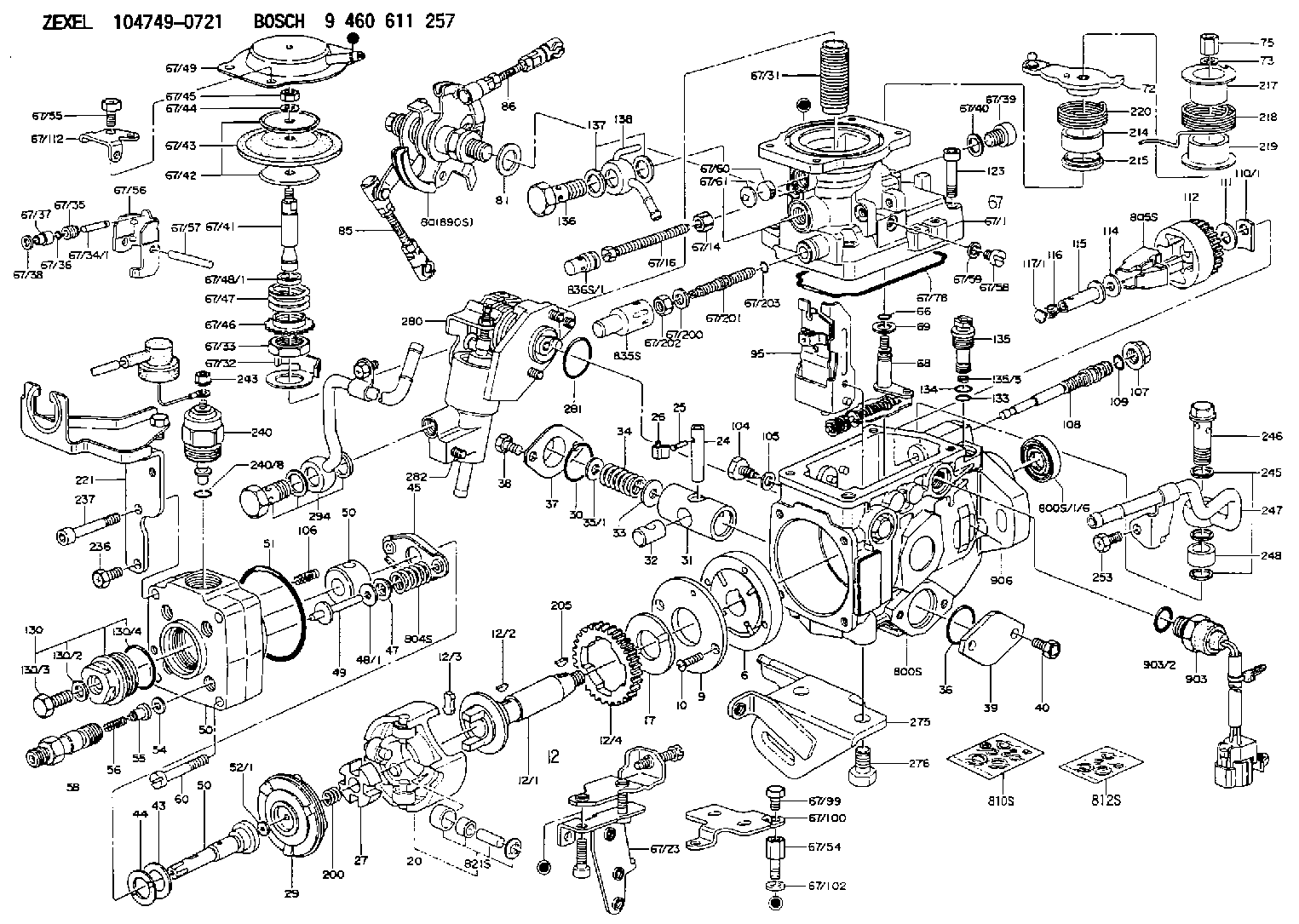

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-4220 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-3820 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0500 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3400 COMPRESSION SPRING
34B. [1] 146302-4200 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0020 GUIDE PIN
50. [1] 146403-1120 HYDRAULIC HEAD
50. [1] 146403-1120 HYDRAULIC HEAD
50. [1] 146403-1120 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-2420 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0220 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146760-0920 MANIFOLD-PRESSURE COMP.
67/1. [1] 146805-2020 GOVERNOR COVER
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-3000 BLEEDER SCREW
67/23. [1] 146932-6420 BRACKET
67/31. [1] 146710-0800 BUSHING
67/32. [1] 146711-0000 PLATE
67/33. [1] 139218-0400 UNION NUT
67/34. [1] 146712-0700 BEARING PIN
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-0100 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-4100 ADJUSTING PIN
67/42. [2] 146714-0000 PLATE
67/43. [1] 146715-0000 DIAPHRAGM
67/44. [1] 139306-0100 LOCKING WASHER
67/45. [1] 013030-6040 UNION NUT M6P1H3.6
67/46. [1] 146716-0000 UNION NUT
67/47. [1] 146717-1100 COILED SPRING
67/48/1. [1] 146720-0000 SPACER BUSHING L3.7
67/48/1. [1] 146720-0100 SPACER BUSHING L3.9
67/48/1. [1] 146720-0200 SPACER BUSHING L4.1
67/48/1. [1] 146720-0300 SPACER BUSHING L4.3
67/48/1. [1] 146720-0400 SPACER BUSHING L4.5
67/48/1. [1] 146720-0500 SPACER BUSHING L4.7
67/48/1. [1] 146720-0600 SPACER BUSHING L4.9
67/48/1. [1] 146720-0700 SPACER BUSHING L5.1
67/48/1. [1] 146720-0800 SPACER BUSHING L5.3
67/48/1. [1] 146720-0900 SPACER BUSHING L2.7
67/48/1. [1] 146720-1000 SPACER BUSHING L2.9
67/48/1. [1] 146720-1100 SPACER BUSHING L3.1
67/48/1. [1] 146720-1200 SPACER BUSHING L3.3
67/48/1. [1] 146720-1300 SPACER BUSHING L3.5
67/48/1. [1] 146720-1400 SPACER BUSHING L2.8
67/48/1. [1] 146720-1500 SPACER BUSHING L3.0
67/48/1. [1] 146720-1600 SPACER BUSHING L3.2
67/48/1. [1] 146720-1700 SPACER BUSHING L3.4
67/48/1. [1] 146720-1800 SPACER BUSHING L3.6
67/48/1. [1] 146720-1900 SPACER BUSHING L3.8
67/48/1. [1] 146720-2000 SPACER BUSHING L4.0
67/48/1. [1] 146720-2100 SPACER BUSHING L4.2
67/48/1. [1] 146720-2200 SPACER BUSHING L4.4
67/48/1. [1] 146720-2300 SPACER BUSHING L4.6
67/48/1. [1] 146720-2400 SPACER BUSHING L4.8
67/48/1. [1] 146720-2500 SPACER BUSHING L5.0
67/48/1. [1] 146720-2600 SPACER BUSHING L5.2
67/48/1. [1] 146720-2700 SPACER BUSHING L5.4
67/48/1. [1] 146720-2800 SPACER BUSHING L5.5
67/48/1. [1] 146720-2900 SPACER BUSHING L5.6
67/48/1. [1] 146720-4500 SPACER BUSHING L1.8
67/48/1. [1] 146720-4600 SPACER BUSHING L1.9
67/48/1. [1] 146720-4700 SPACER BUSHING L2.0
67/48/1. [1] 146720-4800 SPACER BUSHING L2.1
67/48/1. [1] 146720-4900 SPACER BUSHING L2.2
67/48/1. [1] 146720-5000 SPACER BUSHING L2.3
67/48/1. [1] 146720-5100 SPACER BUSHING L2.4
67/48/1. [1] 146720-5200 SPACER BUSHING L2.5
67/48/1. [1] 146720-5300 SPACER BUSHING L2.6
67/48/1. [1] 146725-2500 SPACER BUSHING L5.7
67/48/1. [1] 146725-2600 SPACER BUSHING L5.8
67/48/1. [1] 146725-2700 SPACER BUSHING L5.9
67/48/1. [1] 146725-2800 SPACER BUSHING L6.0
67/48/1. [1] 146725-2900 SPACER BUSHING L6.1
67/48/1. [1] 146725-3000 SPACER BUSHING L6.2
67/48/1. [1] 146725-3100 SPACER BUSHING L6.3
67/48/1. [1] 146725-3200 SPACER BUSHING L6.4
67/48/1. [1] 146725-3300 SPACER BUSHING L6.5
67/48/1. [1] 146725-3400 SPACER BUSHING L6.6
67/48/1. [1] 146725-3500 SPACER BUSHING L6.7
67/48/1. [1] 146725-3600 SPACER BUSHING L6.8
67/48/1. [1] 146725-3700 SPACER BUSHING L6.9
67/48/1. [1] 146725-3800 SPACER BUSHING L7.0
67/48/1. [1] 146725-3900 SPACER BUSHING L7.1
67/48/1. [1] 146725-4000 SPACER BUSHING L7.2
67/48/1. [1] 146725-4100 SPACER BUSHING L7.3
67/48/1. [1] 146725-4200 SPACER BUSHING L7.4
67/48/1. [1] 146725-4300 SPACER BUSHING L7.5
67/49. [1] 146721-2120 COVER
67/54. [2] 146620-6100 BLEEDER SCREW
67/55. [2] 139006-4500 BLEEDER SCREW
67/56. [1] 146723-0300 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0600 CAPSULE
67/78. [1] 146600-4400 SEAL RING
67/99. [2] 010006-0870 BLEEDER SCREW M6P1L8 7T
67/100. [1] 146930-3100 BRACKET
67/102. [1] 146649-2200 SPACER BUSHING
67/112. [1] 146930-2100 BRACKET
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-4100 THREADED PIN
67/201B. [1] 146545-4200 THREADED PIN
67/201C. [1] 146545-4300 THREADED PIN
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146514-4320 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146830-1320 CONTROL LEVER
72B. [1] 146830-1420 CONTROL LEVER
72C. [1] 146830-2920 CONTROL LEVER
72D. [1] 146830-3020 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 146621-0700 UNION NUT
80. [1] 146548-0020 CONTROL LEVER
81. [1] 146549-7400 SPACER BUSHING
85. [1] 146549-7520 RACK
86. [1] 146549-4121 RACK
95. [1] 146551-8020 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0420 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-2000 SLIDING SLEEVE
116. [1] 146576-0200 CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0920 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0020 OVER FLOW VALVE
137. [2] 139512-0500 GASKET
138. [1] 146666-6720 INLET UNION
200. [1] 146206-0100 COILED SPRING
205. [1] 029470-4030 WOODRUFF KEY
214. [1] 146542-1400 BUSHING
215. [1] 146542-1500 BUSHING
217. [1] 146542-5700 SLOTTED WASHER
218. [1] 146592-4500 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146592-4900 COILED SPRING
221. [1] 146930-2720 BRACKET
236. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-4320 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146662-5220 WIRE
243. [1] 146621-1000 UNION NUT
245. [3] 139512-0500 GASKET
246. [1] 139812-1900 EYE BOLT
247. [1] 146668-0620 INLET UNION
248. [1] 146614-0200 SPACER BUSHING
253. [1] 139006-4400 BLEEDER SCREW
275. [1] 146612-6421 BRACKET
276. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
280. [1] 146361-0923 START ADVANCE ASSY
281. [1] 146600-0800 O-RING
282. [2] 139006-4700 BLEEDER SCREW
294. [1] 146665-8020 INLET UNION
800S. [1] 146019-4620 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0220 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-2420 REPAIR SET
812S. [1] 146600-1920 PARTS SET
821S. [1] 146210-5820 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
890S. [1] 146949-0320 LEVER GROUP
903. [1] 146672-6320 PULSE GENERATOR
903/2. [1] 146600-1300 O-RING &13W1.9
906. [1] 146965-7100 NAMEPLATE

Include in #2:

104749-0721 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104749-0721
9 460 611 257
RFH513800F  MAZDA
INJECTION-PUMP ASSEMBLY
RFX K 11CJ INJECTION PUMP ASSY VE4 VE




Information:

Removal Procedure
Contact with high pressure fuel may cause fluid penetration and burn hazards. High pressure fuel spray may cause a fire hazard. Failure to follow these inspection, maintenance and service instructions may cause personal injury or death.
Ensure that all adjustments and repairs that are carried out to the fuel system are performed by authorised personnel that have the correct training.Before begining ANY work on the fuel system, refer to Operation and Maintenance Manual, "General Hazard Information and High Pressure Fuel Lines" for safety information.Refer to Systems Operation, Testing and Adjusting Manual, "Cleanliness of Fuel System Components" for detailed information on the standards of cleanliness that must be observed during ALL work on the fuel system.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be

Have questions with 104749-0721?





Group cross 104749-0721 ZEXEL

Mazda

104749-0700
9 460 614 686
RFC613800
INJECTION-PUMP ASSEMBLY
RFX
104749-0710

104749-0711
9 460 610 838

INJECTION-PUMP ASSEMBLY

Mazda

104749-0711
9 460 611 767
RFG513800G
INJECTION-PUMP ASSEMBLY
RFX
104749-0720

104749-0721
9 460 611 256

INJECTION-PUMP ASSEMBLY

Mazda

104749-0721
9 460 611 257
RFH513800F
INJECTION-PUMP ASSEMBLY
RFX
104749-0730

104749-0731
9 460 611 766

INJECTION-PUMP ASSEMBLY

Mazda

104749-0731
9 460 614 687
RFG113800F
INJECTION-PUMP ASSEMBLY
RFX
104749-0740

104749-0741
9 460 611 765

INJECTION-PUMP ASSEMBLY

Mazda

104749-0741
9 460 611 460
RFG313800G
INJECTION-PUMP ASSEMBLY
RFX
104749-0750

104749-0751

RFR113800
INJECTION-PUMP ASSEMBLY
RFX
104749-0751

104749-0752
9 460 612 052

INJECTION-PUMP ASSEMBLY
104749-0752

104749-0753
9 460 611 763

INJECTION-PUMP ASSEMBLY

Mazda

104749-0753
9 460 612 053
RFR113800A
INJECTION-PUMP ASSEMBLY
RFX
104749-0760

104749-0761

RFR313800
INJECTION-PUMP ASSEMBLY
RFX
104749-0761

104749-0762
9 460 611 762

INJECTION-PUMP ASSEMBLY

Mazda

104749-0762
9 460 614 688
RFR313800A
INJECTION-PUMP ASSEMBLY
RFX
104749-0770

104749-0771

RFR513800
INJECTION-PUMP ASSEMBLY
RFX
104749-0771

104749-0772
9 460 611 758

INJECTION-PUMP ASSEMBLY

Mazda

104749-0772
9 460 614 689
RFR513800A
INJECTION-PUMP ASSEMBLY
RFX
104749-0780

104749-0781
9 460 611 038
RFS513800
INJECTION-PUMP ASSEMBLY
RFX
104749-0781

104749-0782
9 460 611 258

INJECTION-PUMP ASSEMBLY

Mazda

104749-0782

104749-0783
9 460 610 731
RFS513800B
INJECTION-PUMP ASSEMBLY
RFX
104749-0783

104749-0784
9 460 610 769

INJECTION-PUMP ASSEMBLY

Mazda

104749-0784

104749-0850
9 460 611 062
RFS513800C
INJECTION-PUMP ASSEMBLY
RFX
104749-0790
9 460 614 690
RFS613800
INJECTION-PUMP ASSEMBLY
RFX
Back to top
