Information injection-pump assembly
BOSCH
9 460 611 754
9460611754
ZEXEL
104749-0579
1047490579

Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104749-0579 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104649-0579 |
3. | NUMBER PLATE | 146965-4900 |
4. | _ | 146672-6320 |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105140-1021 |
8. | Nozzle and Holder | RFG5 13 H50 |
9. | Open Pre:MPa(Kqf/cm2) | 13.2{135} |
10. | NOZZLE-HOLDER | 105071-1530 |
11. | NOZZLE | 105000-2240 |

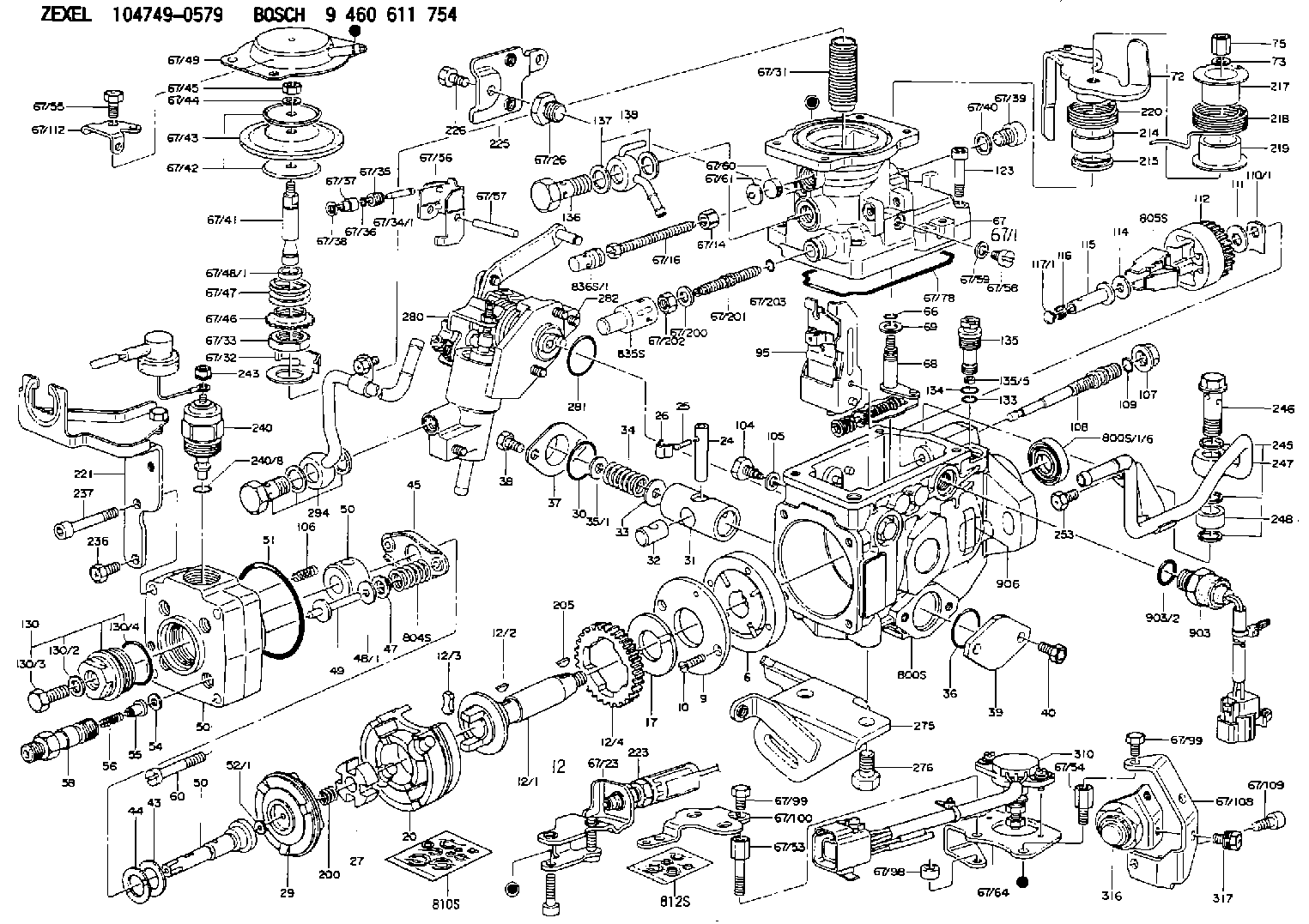

Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0320 | DRIVE SHAFT |
12/1. | [1] | 146200-0300 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-4220 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-3820 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0500 | PUMP PLUNGER |
32. | [1] | 146301-0400 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-3400 | COMPRESSION SPRING |
34B. | [1] | 146302-4200 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM |
48/1. | [1] | 146690-5900 | SHIM |
48/1. | [1] | 146690-6000 | SHIM |
48/1. | [1] | 146690-6100 | SHIM |
48/1. | [1] | 146690-6200 | SHIM |
48/1. | [1] | 146690-6300 | SHIM |
48/1. | [1] | 146690-6400 | SHIM |
48/1. | [1] | 146690-6500 | SHIM |
48/1. | [1] | 146690-6600 | SHIM |
48/1. | [1] | 146690-6700 | SHIM |
48/1. | [1] | 146690-6800 | SHIM |
48/1. | [1] | 146690-6900 | SHIM |
48/1. | [1] | 146690-7000 | SHIM |
48/1. | [1] | 146690-7100 | SHIM |
48/1. | [1] | 146690-7200 | SHIM |
48/1. | [1] | 146690-7300 | SHIM |
48/1. | [1] | 146690-7400 | SHIM |
48/1. | [1] | 146690-7500 | SHIM |
48/1. | [1] | 146690-7800 | SHIM |
49. | [2] | 146234-0020 | GUIDE PIN |
50. | [1] | 146403-1120 | HYDRAULIC HEAD |
50. | [1] | 146403-1120 | HYDRAULIC HEAD |
50. | [1] | 146403-1120 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-2420 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
66. | [1] | 146600-0100 | O-RING |
67. | [1] | 146752-1222 | MANIFOLD-PRESSURE COMP. |
67/1. | [1] | 146805-4320 | GOVERNOR COVER |
67/14. | [1] | 146621-1700 | UNION NUT |
67/16. | [1] | 146526-3000 | BLEEDER SCREW |
67/23. | [1] | 146930-1720 | BRACKET |
67/26. | [1] | 146507-0200 | ADAPTOR |
67/31. | [1] | 146710-0800 | BUSHING |
67/32. | [1] | 146711-0000 | PLATE |
67/33. | [1] | 139218-0400 | UNION NUT |
67/34. | [1] | 146712-0700 | BEARING PIN |
67/35. | [1] | 146621-0300 | UNION NUT |
67/36. | [1] | 146600-1400 | O-RING |
67/37. | [1] | 146710-0100 | BUSHING |
67/38. | [1] | 139506-0200 | GASKET D8.9&6.8T1.00 |
67/39. | [1] | 146620-0300 | CAPSULE |
67/40. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
67/41. | [1] | 146713-4100 | ADJUSTING PIN |
67/42. | [2] | 146714-0000 | PLATE |
67/43. | [1] | 146715-0000 | DIAPHRAGM |
67/44. | [1] | 139306-0100 | LOCKING WASHER |
67/45. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
67/46. | [1] | 146716-0000 | UNION NUT |
67/47. | [1] | 146717-1100 | COILED SPRING |
67/48/1. | [1] | 146720-0000 | SPACER BUSHING L3.7 |
67/48/1. | [1] | 146720-0100 | SPACER BUSHING L3.9 |
67/48/1. | [1] | 146720-0200 | SPACER BUSHING L4.1 |
67/48/1. | [1] | 146720-0300 | SPACER BUSHING L4.3 |
67/48/1. | [1] | 146720-0400 | SPACER BUSHING L4.5 |
67/48/1. | [1] | 146720-0500 | SPACER BUSHING L4.7 |
67/48/1. | [1] | 146720-0600 | SPACER BUSHING L4.9 |
67/48/1. | [1] | 146720-0700 | SPACER BUSHING L5.1 |
67/48/1. | [1] | 146720-0800 | SPACER BUSHING L5.3 |
67/48/1. | [1] | 146720-0900 | SPACER BUSHING L2.7 |
67/48/1. | [1] | 146720-1000 | SPACER BUSHING L2.9 |
67/48/1. | [1] | 146720-1100 | SPACER BUSHING L3.1 |
67/48/1. | [1] | 146720-1200 | SPACER BUSHING L3.3 |
67/48/1. | [1] | 146720-1300 | SPACER BUSHING L3.5 |
67/48/1. | [1] | 146720-1400 | SPACER BUSHING L2.8 |
67/48/1. | [1] | 146720-1500 | SPACER BUSHING L3.0 |
67/48/1. | [1] | 146720-1600 | SPACER BUSHING L3.2 |
67/48/1. | [1] | 146720-1700 | SPACER BUSHING L3.4 |
67/48/1. | [1] | 146720-1800 | SPACER BUSHING L3.6 |
67/48/1. | [1] | 146720-1900 | SPACER BUSHING L3.8 |
67/48/1. | [1] | 146720-2000 | SPACER BUSHING L4.0 |
67/48/1. | [1] | 146720-2100 | SPACER BUSHING L4.2 |
67/48/1. | [1] | 146720-2200 | SPACER BUSHING L4.4 |
67/48/1. | [1] | 146720-2300 | SPACER BUSHING L4.6 |
67/48/1. | [1] | 146720-2400 | SPACER BUSHING L4.8 |
67/48/1. | [1] | 146720-2500 | SPACER BUSHING L5.0 |
67/48/1. | [1] | 146720-2600 | SPACER BUSHING L5.2 |
67/48/1. | [1] | 146720-2700 | SPACER BUSHING L5.4 |
67/48/1. | [1] | 146720-2800 | SPACER BUSHING L5.5 |
67/48/1. | [1] | 146720-2900 | SPACER BUSHING L5.6 |
67/48/1. | [1] | 146720-4500 | SPACER BUSHING L1.8 |
67/48/1. | [1] | 146720-4600 | SPACER BUSHING L1.9 |
67/48/1. | [1] | 146720-4700 | SPACER BUSHING L2.0 |
67/48/1. | [1] | 146720-4800 | SPACER BUSHING L2.1 |
67/48/1. | [1] | 146720-4900 | SPACER BUSHING L2.2 |
67/48/1. | [1] | 146720-5000 | SPACER BUSHING L2.3 |
67/48/1. | [1] | 146720-5100 | SPACER BUSHING L2.4 |
67/48/1. | [1] | 146720-5200 | SPACER BUSHING L2.5 |
67/48/1. | [1] | 146720-5300 | SPACER BUSHING L2.6 |
67/48/1. | [1] | 146725-2500 | SPACER BUSHING L5.7 |
67/48/1. | [1] | 146725-2600 | SPACER BUSHING L5.8 |
67/48/1. | [1] | 146725-2700 | SPACER BUSHING L5.9 |
67/48/1. | [1] | 146725-2800 | SPACER BUSHING L6.0 |
67/48/1. | [1] | 146725-2900 | SPACER BUSHING L6.1 |
67/48/1. | [1] | 146725-3000 | SPACER BUSHING L6.2 |
67/48/1. | [1] | 146725-3100 | SPACER BUSHING L6.3 |
67/48/1. | [1] | 146725-3200 | SPACER BUSHING L6.4 |
67/48/1. | [1] | 146725-3300 | SPACER BUSHING L6.5 |
67/48/1. | [1] | 146725-3400 | SPACER BUSHING L6.6 |
67/48/1. | [1] | 146725-3500 | SPACER BUSHING L6.7 |
67/48/1. | [1] | 146725-3600 | SPACER BUSHING L6.8 |
67/48/1. | [1] | 146725-3700 | SPACER BUSHING L6.9 |
67/48/1. | [1] | 146725-3800 | SPACER BUSHING L7.0 |
67/48/1. | [1] | 146725-3900 | SPACER BUSHING L7.1 |
67/48/1. | [1] | 146725-4000 | SPACER BUSHING L7.2 |
67/48/1. | [1] | 146725-4100 | SPACER BUSHING L7.3 |
67/48/1. | [1] | 146725-4200 | SPACER BUSHING L7.4 |
67/48/1. | [1] | 146725-4300 | SPACER BUSHING L7.5 |
67/49. | [1] | 146721-2120 | COVER |
67/53. | [1] | 146620-6800 | BLEEDER SCREW |
67/54. | [1] | 146620-6100 | BLEEDER SCREW |
67/55. | [2] | 139006-4500 | BLEEDER SCREW |
67/56. | [1] | 146723-0300 | CONTROL LEVER |
67/57. | [1] | 146712-0100 | BEARING PIN |
67/58. | [2] | 146620-0600 | CAPSULE |
67/59. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
67/60. | [1] | 146724-0300 | ELEMENT |
67/61. | [1] | 146724-0600 | CAPSULE |
67/64. | [1] | 146930-1900 | BRACKET |
67/78. | [1] | 146600-4400 | SEAL RING |
67/91. | [1] | 146930-2400 | BRACKET |
67/92. | [2] | 139006-4400 | BLEEDER SCREW |
67/98. | [1] | 146648-2800 | SPACER BUSHING |
67/99. | [2] | 010006-0870 | BLEEDER SCREW M6P1L8 7T |
67/99. | [2] | 010006-0870 | BLEEDER SCREW M6P1L8 7T |
67/100. | [1] | 146930-2000 | BRACKET |
67/112. | [1] | 146930-2100 | BRACKET |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-4100 | THREADED PIN |
67/201B. | [1] | 146545-4200 | THREADED PIN |
67/201C. | [1] | 146545-4300 | THREADED PIN |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
68. | [1] | 146514-4320 | CONTROL SHAFT |
69. | [1] | 139310-0200 | PLAIN WASHER |
72. | [1] | 146830-3520 | CONTROL LEVER |
72B. | [1] | 146830-3620 | CONTROL LEVER |
72C. | [1] | 146830-3320 | CONTROL LEVER |
72D. | [1] | 146830-3420 | CONTROL LEVER |
73. | [1] | 014110-6440 | LOCKING WASHER |
75. | [1] | 146621-0700 | UNION NUT |
95. | [1] | 146551-8020 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0420 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-0500 | PLAIN WASHER D17&6.4T1.60 |
115. | [1] | 146975-2000 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
123. | [4] | 146620-0500 | HEX-SOCKET-HEAD CAP SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0920 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0920 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
138. | [1] | 146666-6720 | INLET UNION |
200. | [1] | 146206-0100 | COILED SPRING |
205. | [1] | 029470-4030 | WOODRUFF KEY |
214. | [1] | 146542-1400 | BUSHING |
215. | [1] | 146542-1500 | BUSHING |
217. | [1] | 146542-5700 | SLOTTED WASHER |
218. | [1] | 146592-4500 | COILED SPRING |
219. | [1] | 146541-3000 | BUSHING |
220. | [1] | 146592-4900 | COILED SPRING |
221. | [1] | 146930-2320 | BRACKET |
223. | [1] | 146670-9620 | SWITCH |
236. | [1] | 139006-4800 | BLEEDER SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-4320 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
243. | [1] | 146621-1000 | UNION NUT |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 139812-1900 | EYE BOLT |
247. | [1] | 146665-7520 | INLET UNION |
248. | [1] | 146614-0200 | SPACER BUSHING |
253. | [1] | 139006-4400 | BLEEDER SCREW |
275. | [1] | 146612-6421 | BRACKET |
276. | [2] | 010010-1640 | BLEEDER SCREW M10P1.5L16 4T |
280. | [1] | 146361-0822 | START ADVANCE ASSY |
281. | [1] | 146600-0800 | O-RING |
282. | [1] | 139006-4700 | BLEEDER SCREW |
294. | [1] | 146665-8020 | INLET UNION |
310. | [1] | 146684-0421 | POTENTCIOMETER |
310/2. | [2] | 139104-0400 | FLAT-HEAD SCREW |
310/3. | [1] | 146620-1500 | FLAT-HEAD SCREW |
310/4. | [1] | 013020-6040 | UNION NUT M6P1H5 |
310/5. | [1] | 146614-2300 | JOINT CONNECTION |
310/6. | [1] | 146661-0401 | BOOT |
800S. | [1] | 146019-4620 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-0220 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-2420 | REPAIR SET |
812S. | [1] | 146600-1920 | PARTS SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
903. | [1] | 146672-6320 | PULSE GENERATOR |
903/2. | [1] | 146600-1300 | O-RING &13W1.9 |
906. | [1] | 146965-4900 | NAMEPLATE |
Include in #2:
104749-0579
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.If the crankshaft, gear case and/or crank gear are replaced, it is necessary to perform the injection timing correction procedure. The following steps show how to calculate/determine the new injection timing by measuring angular deviation between the crankshaft TDC and Crank Position sensor detected TDC.Note: Once complete the engine ecm must be reprogrammed with the new injection timing value. Follow all Steps below.Procedure
Illustration 1 g06220080
(1) TC Mark (Flywheel Housing)
(2) TC Mark (Flywheel)
Remove valve cover, injector, and rocker arm. Bring the piston of cylinder 4 to TDC.
Illustration 2 g06220082
(3) Dial Gauge
(4) Valve
(5) O-ring
Remove the #4 exhaust valve bridge arm and valve spring. Insert a small O-ring (5) so the valve (4) does not fall into the cylinder.
Set the dial gauge (3) on the tip of the valve (4).
Illustration 3 g06220083
(6) Tri-sqaure
(7) Flywheel Housing
(8) Flywheel
Illustration 4 g06220087
(7) Flywheel Housing
(8) Flywheel
(9) Reference Line
Turn the flywheel counterclockwise and measure the position where the tip of the valve is highest.
Stop the flywheel at the position where the tip of the valve is the highest. Put a tri-sqaure (6) on the flywheel housing (7) and the flywheel (8) and draw a reference line (9).Do not drop the valve (4) into the cylinder. When measuring the highest position of the tip of the valve do not rotate the flywheel clockwise. If you go past the highest point of the valve, back up the flywheel slightly and measure the highest point of the valve. The reference line (9) indicates the TDC of the crankshaft.
Illustration 5 g06220092
(10) Tester
(11) Crankshaft Position Sensor
Illustration 6 g06220095
(11) Crankshaft Position Sensor
(12) Ground Terminal
(13) Output Terminal
Connect the engine harness and the main switch. Connect battery.Attach the tester (10) to the output terminal (13) and the ground terminal (12) of the crankshaft position sensor (11). Turn the main switch "ON". Turn the flywheel and make sure that the voltage of the crankshaft position sensor goes from 0→ 5 V or 5 → 0 V.
Illustration 7 g06220100
(14) Pulsar Gear
(15) 14th Tooth
(16) Missing Teeth
Rotate the flywheel and align the crankshaft position sensor to the part of the pulsar gear (14) that is missing teeth (16). The 14th tooth (15) from the missing teeth is the standard. Slowly turn the flywheel counterclockwise and stop the flywheel at the point where the needle of the tester changes momentarily from 0→ 5 V, the 14th tooth. That point is where the crankshaft position sensor detects TDC.
Illustration 8 g06220101
(17) Crankshaft TDC
(18) Detection Point of Crankshaft Position Sensor TDC
Illustration 9 g06220104
(19) Interval
Set the tri-square (6) on the reference line (9) on the flywheel housing side and mark the detection point of the crankshaft position sensor TDC (18) on the flywheel.
Measure the interval (19) between the crankshaft TDC (17) and the detection point of the crankshaft position sensor TDC (18).
Calculation of the fuel injection timing correction 1 mm (0.039 inch): 0.342°.Corrected angle = 0.342° X actual interval.
Overwrite the injection timing correction value on the engine ecm registration website refer to REHS9707, "Registering
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.If the crankshaft, gear case and/or crank gear are replaced, it is necessary to perform the injection timing correction procedure. The following steps show how to calculate/determine the new injection timing by measuring angular deviation between the crankshaft TDC and Crank Position sensor detected TDC.Note: Once complete the engine ecm must be reprogrammed with the new injection timing value. Follow all Steps below.Procedure
Illustration 1 g06220080
(1) TC Mark (Flywheel Housing)
(2) TC Mark (Flywheel)
Remove valve cover, injector, and rocker arm. Bring the piston of cylinder 4 to TDC.
Illustration 2 g06220082
(3) Dial Gauge
(4) Valve
(5) O-ring
Remove the #4 exhaust valve bridge arm and valve spring. Insert a small O-ring (5) so the valve (4) does not fall into the cylinder.
Set the dial gauge (3) on the tip of the valve (4).
Illustration 3 g06220083
(6) Tri-sqaure
(7) Flywheel Housing
(8) Flywheel
Illustration 4 g06220087
(7) Flywheel Housing
(8) Flywheel
(9) Reference Line
Turn the flywheel counterclockwise and measure the position where the tip of the valve is highest.
Stop the flywheel at the position where the tip of the valve is the highest. Put a tri-sqaure (6) on the flywheel housing (7) and the flywheel (8) and draw a reference line (9).Do not drop the valve (4) into the cylinder. When measuring the highest position of the tip of the valve do not rotate the flywheel clockwise. If you go past the highest point of the valve, back up the flywheel slightly and measure the highest point of the valve. The reference line (9) indicates the TDC of the crankshaft.
Illustration 5 g06220092
(10) Tester
(11) Crankshaft Position Sensor
Illustration 6 g06220095
(11) Crankshaft Position Sensor
(12) Ground Terminal
(13) Output Terminal
Connect the engine harness and the main switch. Connect battery.Attach the tester (10) to the output terminal (13) and the ground terminal (12) of the crankshaft position sensor (11). Turn the main switch "ON". Turn the flywheel and make sure that the voltage of the crankshaft position sensor goes from 0→ 5 V or 5 → 0 V.
Illustration 7 g06220100
(14) Pulsar Gear
(15) 14th Tooth
(16) Missing Teeth
Rotate the flywheel and align the crankshaft position sensor to the part of the pulsar gear (14) that is missing teeth (16). The 14th tooth (15) from the missing teeth is the standard. Slowly turn the flywheel counterclockwise and stop the flywheel at the point where the needle of the tester changes momentarily from 0→ 5 V, the 14th tooth. That point is where the crankshaft position sensor detects TDC.
Illustration 8 g06220101
(17) Crankshaft TDC
(18) Detection Point of Crankshaft Position Sensor TDC
Illustration 9 g06220104
(19) Interval
Set the tri-square (6) on the reference line (9) on the flywheel housing side and mark the detection point of the crankshaft position sensor TDC (18) on the flywheel.
Measure the interval (19) between the crankshaft TDC (17) and the detection point of the crankshaft position sensor TDC (18).
Calculation of the fuel injection timing correction 1 mm (0.039 inch): 0.342°.Corrected angle = 0.342° X actual interval.
Overwrite the injection timing correction value on the engine ecm registration website refer to REHS9707, "Registering
