104749-0573 ZEXEL 9 460 612 633 BOSCH INJECTION-PUMP ASSEMBLY 9460612633 1047490573 rfg513800d

Information injection-pump assembly

BOSCH 9 460 612 633 9460612633

ZEXEL 104749-0573 1047490573

MAZDA RFG513800D rfg513800d

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-0573 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-0573
1.	_
2.	FUEL INJECTION PUMP	104649-0573
3.	NUMBER PLATE	146961-8400
4.	_	146672-6320
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105140-1021
8.	Nozzle and Holder	RFG5 13 H50
9.	Open Pre:MPa(Kqf/cm2)	13.2{135}
10.	NOZZLE-HOLDER	105071-1530
11.	NOZZLE	105000-2240

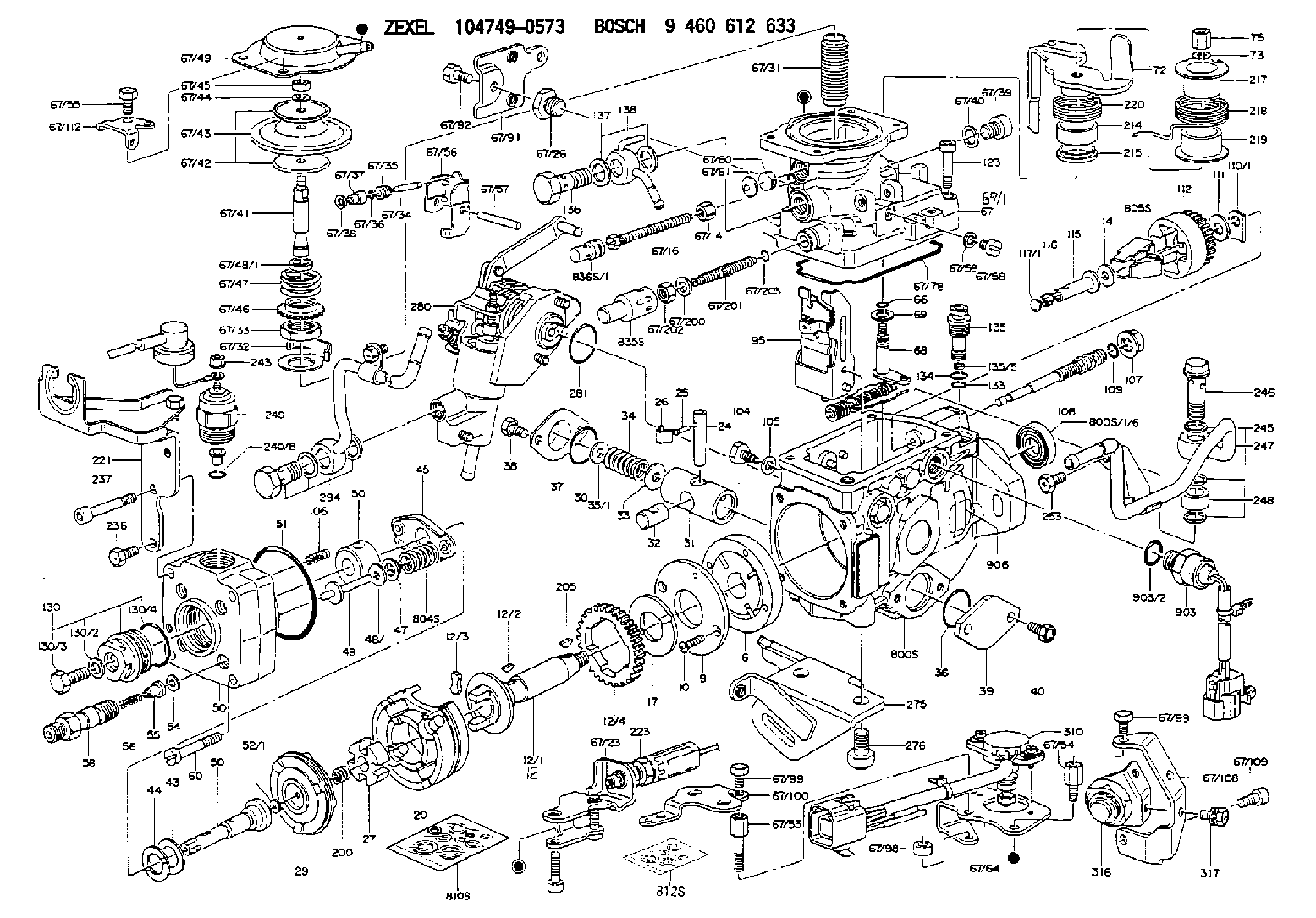

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-4220	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-2820	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-0500	PUMP PLUNGER
32.	[1]	146301-0400	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3400	COMPRESSION SPRING
34B.	[1]	146302-4200	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146403-1120	HYDRAULIC HEAD
50.	[1]	146403-1120	HYDRAULIC HEAD
50.	[1]	146403-1120	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-2420	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146752-1220	MANIFOLD-PRESSURE COMP.
67/1.	[1]	146805-4320	GOVERNOR COVER
67/14.	[1]	146621-1700	UNION NUT
67/16.	[1]	146526-3000	BLEEDER SCREW
67/23.	[1]	146930-1720	BRACKET
67/26.	[1]	146507-0200	ADAPTOR
67/31.	[1]	146710-0800	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-0400	ADJUSTING PIN
67/42.	[2]	146714-0000	PLATE
67/43.	[1]	146715-0000	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-1100	COILED SPRING
67/48/1.	[1]	146720-0000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-0100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-0200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-0300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-0400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-0500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-0600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-0700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-0800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-0900	SPACER BUSHING L2.7
67/48/1.	[1]	146720-1000	SPACER BUSHING L2.9
67/48/1.	[1]	146720-1100	SPACER BUSHING L3.1
67/48/1.	[1]	146720-1200	SPACER BUSHING L3.3
67/48/1.	[1]	146720-1300	SPACER BUSHING L3.5
67/48/1.	[1]	146720-1400	SPACER BUSHING L2.8
67/48/1.	[1]	146720-1500	SPACER BUSHING L3.0
67/48/1.	[1]	146720-1600	SPACER BUSHING L3.2
67/48/1.	[1]	146720-1700	SPACER BUSHING L3.4
67/48/1.	[1]	146720-1800	SPACER BUSHING L3.6
67/48/1.	[1]	146720-1900	SPACER BUSHING L3.8
67/48/1.	[1]	146720-2000	SPACER BUSHING L4.0
67/48/1.	[1]	146720-2100	SPACER BUSHING L4.2
67/48/1.	[1]	146720-2200	SPACER BUSHING L4.4
67/48/1.	[1]	146720-2300	SPACER BUSHING L4.6
67/48/1.	[1]	146720-2400	SPACER BUSHING L4.8
67/48/1.	[1]	146720-2500	SPACER BUSHING L5.0
67/48/1.	[1]	146720-2600	SPACER BUSHING L5.2
67/48/1.	[1]	146720-2700	SPACER BUSHING L5.4
67/48/1.	[1]	146720-2800	SPACER BUSHING L5.5
67/48/1.	[1]	146720-2900	SPACER BUSHING L5.6
67/48/1.	[1]	146720-4500	SPACER BUSHING L1.8
67/48/1.	[1]	146720-4600	SPACER BUSHING L1.9
67/48/1.	[1]	146720-4700	SPACER BUSHING L2.0
67/48/1.	[1]	146720-4800	SPACER BUSHING L2.1
67/48/1.	[1]	146720-4900	SPACER BUSHING L2.2
67/48/1.	[1]	146720-5000	SPACER BUSHING L2.3
67/48/1.	[1]	146720-5100	SPACER BUSHING L2.4
67/48/1.	[1]	146720-5200	SPACER BUSHING L2.5
67/48/1.	[1]	146720-5300	SPACER BUSHING L2.6
67/48/1.	[1]	146725-2500	SPACER BUSHING L5.7
67/48/1.	[1]	146725-2600	SPACER BUSHING L5.8
67/48/1.	[1]	146725-2700	SPACER BUSHING L5.9
67/48/1.	[1]	146725-2800	SPACER BUSHING L6.0
67/48/1.	[1]	146725-2900	SPACER BUSHING L6.1
67/48/1.	[1]	146725-3000	SPACER BUSHING L6.2
67/48/1.	[1]	146725-3100	SPACER BUSHING L6.3
67/48/1.	[1]	146725-3200	SPACER BUSHING L6.4
67/48/1.	[1]	146725-3300	SPACER BUSHING L6.5
67/48/1.	[1]	146725-3400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-3500	SPACER BUSHING L6.7
67/48/1.	[1]	146725-3600	SPACER BUSHING L6.8
67/48/1.	[1]	146725-3700	SPACER BUSHING L6.9
67/48/1.	[1]	146725-3800	SPACER BUSHING L7.0
67/48/1.	[1]	146725-3900	SPACER BUSHING L7.1
67/48/1.	[1]	146725-4000	SPACER BUSHING L7.2
67/48/1.	[1]	146725-4100	SPACER BUSHING L7.3
67/48/1.	[1]	146725-4200	SPACER BUSHING L7.4
67/48/1.	[1]	146725-4300	SPACER BUSHING L7.5
67/49.	[1]	146721-2120	COVER
67/53.	[1]	146620-6800	BLEEDER SCREW
67/54.	[2]	146620-6100	BLEEDER SCREW
67/55.	[1]	139006-4500	BLEEDER SCREW
67/56.	[1]	146723-0300	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/64.	[1]	146930-1900	BRACKET
67/78.	[1]	146600-1000	SEAL RING
67/91.	[1]	146930-2400	BRACKET
67/92.	[2]	139006-4400	BLEEDER SCREW
67/98.	[1]	146648-2800	SPACER BUSHING
67/99.	[3]	010006-0870	BLEEDER SCREW M6P1L8 7T
67/99.	[3]	010006-0870	BLEEDER SCREW M6P1L8 7T
67/100.	[1]	146930-2000	BRACKET
67/108.	[1]	146930-2600	BRACKET
67/109.	[1]	010206-1040	HEX-SOCKET-HEAD CAP SCREW
67/112.	[1]	146930-2100	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146514-4320	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146830-3520	CONTROL LEVER
72B.	[1]	146830-3620	CONTROL LEVER
72C.	[1]	146830-3320	CONTROL LEVER
72D.	[1]	146830-3420	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	146621-0700	UNION NUT
95.	[1]	146551-8020	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146575-5000	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0920	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0920	OVER FLOW VALVE
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	146608-6920	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
214.	[1]	146542-1400	BUSHING
215.	[1]	146542-1500	BUSHING
217.	[1]	146542-5700	SLOTTED WASHER
218.	[1]	146592-4500	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-4900	COILED SPRING
221.	[1]	146930-2320	BRACKET
223.	[1]	146670-9620	SWITCH
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-4320	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
243.	[1]	146621-1000	UNION NUT
245.	[3]	026512-1540	GASKET D15.4&12.2T1.50
246.	[1]	139812-1900	EYE BOLT
247.	[1]	146665-7520	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
253.	[1]	139006-4400	BLEEDER SCREW
275.	[1]	146612-6421	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
280.	[1]	146361-0820	START ADVANCE ASSY
281.	[1]	146600-0800	O-RING
294.	[1]	146665-8020	INLET UNION
310.	[1]	146684-0421	POTENTCIOMETER
310/2.	[2]	139104-0400	FLAT-HEAD SCREW
310/3.	[1]	146620-1500	FLAT-HEAD SCREW
310/4.	[1]	013020-6040	UNION NUT M6P1H5
310/5.	[1]	146614-2300	JOINT CONNECTION
310/6.	[1]	146661-0401	BOOT
316.	[1]	146680-5020	DAMPER
317.	[2]	020146-1270	BLEEDER SCREW
800S.	[1]	146019-4620	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-2420	REPAIR SET
812S.	[1]	146600-1920	PARTS SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146672-6320	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146961-8400	NAMEPLATE

Include in #2:

104749-0573 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104749-0573
104749-0574

9 460 612 633

RFG513800D MAZDA

INJECTION-PUMP ASSEMBLY
RFX * K 11CJ VE4 VE

Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.The actuator and pump groups of these fuel injectors are sensitive to debris in the oil. The injector may malfunction due to debris in the oil, causing seizure, or high leaks in components.
Table 1
Revision Table
Revision Summary of Changes
3 Added serial numbers. Improvement Procedure
Clean oil rail after pump failure.Reference: Refer to Special Instruction, REHS3819 for the procedure to clean the oil rail after engine failure to avoid debris in the oil system.
Use clean oil and clean filters.The life of the injector depends on the oil quality. It can be increased if good cleaning practices are performed before installing the injectors.Reference: Refer to Operation and Maintenance Manual, SEBU6250 and Operation and Maintenance Manual, SEBU6251 for direction on oil sampling intervals and optimizing engine oil life.
Illustration 1 g06207717
(1) Actuator
(2) Pump Group
(3) Valve Seat Damage Due to Debris in the Oil SystemInjector Failure Due To Damage From Debris In The Oil May Not Be A Warrantable Failure
Illustration 2 g06244961
