104748-0421 ZEXEL 9 460 612 572 BOSCH INJECTION-PUMP ASSEMBLY 9460612572 1047480421




Information injection-pump assembly

BOSCH 9 460 612 572 9460612572
ZEXEL 104748-0421 1047480421
104748-0421 INJECTION-PUMP ASSEMBLY
Rating:
67
Buy INJECTION-PUMP ASSEMBLY 104748-0421 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104748-0421
1. _
2. FUEL INJECTION PUMP 104648-0224
3. NUMBER PLATE 146961-7300
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105141-2240
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2) 13.2{135}
10. NOZZLE-HOLDER 105071-1530
11. NOZZLE 105000-1740

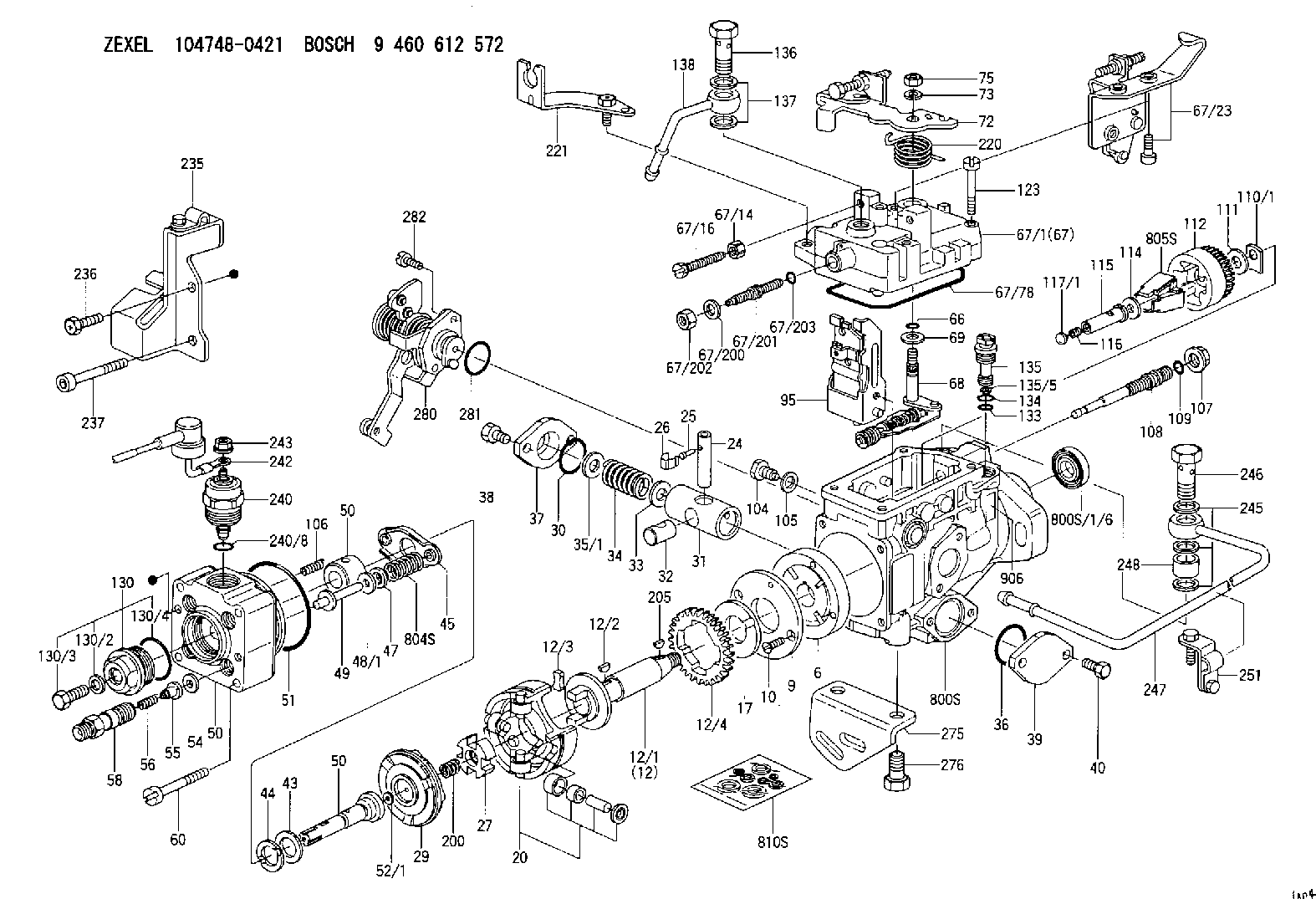

Scheme ###:

PACKING RING
1/6. [1] 146601-0700 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-3920 ROLLER SET
24. [1] 146303-0100 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-0220 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-2400 PUMP PLUNGER
32. [1] 146301-0400 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146302-3600 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0020 GUIDE PIN
50. [1] 146403-1220 HYDRAULIC HEAD
50. [1] 146403-1220 HYDRAULIC HEAD
50. [1] 146403-1220 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0020 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0220 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146502-7622 GOVERNOR COVER
67/1. [1] 146505-5622 GOVERNOR COVER
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-2800 BLEEDER SCREW
67/23. [1] 146625-4920 BRACKET
67/78. [1] 146600-1000 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146510-3220 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146534-4920 CONTROL LEVER
72B. [1] 146534-5020 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 013020-6040 UNION NUT M6P1H5
95. [1] 146551-3720 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0100 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146575-0600 SLIDING SLEEVE
116. [1] 146576-0000 SEALING CAP
117/1. [1] 146577-0000 PLUG L1.70
117/1. [1] 146577-0100 PLUG L1.90
117/1. [1] 146577-0200 PLUG L2.10
117/1. [1] 146577-0300 PLUG L2.30
117/1. [1] 146577-0400 PLUG L2.50
117/1. [1] 146577-0500 PLUG L2.70
117/1. [1] 146577-0600 PLUG L2.90
117/1. [1] 146577-0700 PLUG L3.10
117/1. [1] 146577-0800 PLUG L3.30
117/1. [1] 146577-0900 PLUG L3.50
117/1. [1] 146577-1000 PLUG L3.70
117/1. [1] 146577-1100 PLUG L3.90
117/1. [1] 146577-1200 PLUG L4.10
117/1. [1] 146577-1300 PLUG L4.30
117/1. [1] 146577-1400 PLUG L4.50
117/1. [1] 146577-1500 PLUG L4.70
117/1. [1] 146577-1600 PLUG L4.90
117/1. [1] 146577-1700 PLUG L5.10
117/1. [1] 146577-5000 PLUG L1.8
117/1. [1] 146577-5100 PLUG L2.0
117/1. [1] 146577-5200 PLUG L2.2
117/1. [1] 146577-5300 PLUG L2.4
117/1. [1] 146577-5400 PLUG L2.6
117/1. [1] 146577-5500 PLUG L2.8
117/1. [1] 146577-5600 PLUG L3.0
117/1. [1] 146577-5700 PLUG L3.2
117/1. [1] 146577-5800 PLUG L3.4
117/1. [1] 146577-5900 PLUG L3.6
117/1. [1] 146577-6000 PLUG L3.8
117/1. [1] 146577-6100 PLUG L4.0
117/1. [1] 146577-6200 PLUG L4.2
117/1. [1] 146577-6300 PLUG L4.4
117/1. [1] 146577-6400 PLUG L4.6
117/1. [1] 146577-6500 PLUG L4.8
117/1. [1] 146577-6600 PLUG L5.0
117/1. [1] 146877-0400 PLUG
117/1. [1] 146877-0500 PLUG
117/1. [1] 146877-0600 PLUG
117/1. [1] 146877-0700 PLUG
117/1. [1] 146877-4300 PLUG
117/1. [1] 146877-4400 PLUG
117/1. [1] 146877-4500 PLUG
117/1. [1] 146877-4600 PLUG
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0920 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0020 OVER FLOW VALVE
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 146606-5620 INLET UNION
200. [1] 146206-0100 COILED SPRING
205. [1] 029470-4030 WOODRUFF KEY
220. [1] 146587-2000 COILED SPRING
221. [1] 146627-1020 BRACKET
235. [1] 146627-1120 BRACKET
236. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-4320 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-4020 WIRE
243. [1] 146621-1000 UNION NUT
245. [3] 026512-1540 GASKET D15.4&12.2T1.50
246. [1] 139812-0400 EYE BOLT
247. [1] 146606-8120 INLET UNION
248. [1] 146614-0100 SPACER BUSHING
251. [1] 146626-6720 BRACKET
275. [1] 146612-2700 BRACKET
276. [2] 010010-1640 BLEEDER SCREW M10P1.5L16 4T
280. [1] 146360-3521 COVER
281. [1] 146600-0800 O-RING
282. [2] 139106-1100 FLAT-HEAD SCREW
800S. [1] 146019-0820 PUMP HOUSING
800S/1/6. [1] 146601-0700 PACKING RING
804S. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-2420 REPAIR SET
906. [1] 146961-7300 NAMEPLATE

Include in #2:

104748-0421 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num
Bosch num
Firm num
Name
104748-0421
104748-0422
9 460 612 572

INJECTION-PUMP ASSEMBLY
* K




Information:

P-104: Low Power/Poor Or No Response To Throttle
Probable root causes:
* Active diagnostic codes* Customer Specified Parameters (normal operation)* Throttle position signal* Boost pressure signal* Vehicle speed signal* Fuel supply* Air inlet or exhaust restrictions* Inlet air system leaksPerform the following tests in order:1. Troubleshoot any ACTIVE diagnostic codes.* Codes 31 or 36 limit engine speed to rpm at VSL* Codes 25 or 42 limit power or rpm or both* Code 32 limits engine speed to low idle* Code 56 may limit engine speed to low idle, depending on which parameter caused the code to be generated2. Verify that complaint is not normal (programmed parameter) operation.* Check vehicle speed limit, progressive shift parameters etc.3. Verify that engine has shifted out of Cold Mode4. P-211: Throttle Position Sensor Test4. P-225: Boost Pressure Sensor Test5. P-213: Vehicle Speed Signal Test6. Inspect fuel system components and check for correct fuel pressure.7. Check the air inlet and exhaust systems for restrictions, refer to 3176 Diesel Truck Engine, Form SENR4248, Mechanical Troubleshooting.8. Run PAR (Performance Analysis Report) TestP-105: Cruise Or PTO Does Not Function
Probable root causes:
* Active Diagnostic Codes* Customer Specified Parameters (normal operation)* Cruise/PTO Switches* Vehicle speed signalPerform the following tests in order:1. Troubleshoot any ACTIVE diagnostic codes.2. Check Customer Specified Parameters* High Cruise Limit and Low Cruise Limit* PTO Mode speed limit3. P-214: Cruise Control and PTO Switches Test4. P-215: Service Brake and Clutch Switches Test5. P-213: Vehicle Speed Signal TestP-110: Intermittent Engine Shutdowns
Use this procedure ONLY if the engine has shut down completely and had to be restarted using the key switch.Probable root causes:
* Battery power or ground to ECM (vehicle wiring).* Aftermarket engine protection devices [the 2YG (S/N) prefix 3176 Diesel Truck Engine does NOT have its own engine protection shutdown feature].* 3176 Engine wiring harness* Fuel supply* Engine Speed/Timing Sensor* ECM or Personality ModulePerform the following tests in order:1. Check external 3176 Harness and connectors (refer to P-201: Inspecting Electrical Connectors.2. Check for correct installation and operation of engine protection devices.3. Check for correct installation of J4/P4 (40 Pin-ECM connector).4. P-210: Electrical Power Supply Test.5. Check fuel lines for restrictions and fuel tanks for foreign objects which may block fuel supply.6. P-221: Engine Speed/Timing Sensor Test.7. P-220: ECM and Personality Module Test.P-111: Intermittent Low Power Or Power Cutouts
Use this procedure only if engine DOES NOT completely shut down (that is, it did NOT need to be restarted using the key switch).Probable root causes:
* Poor electrical connections* Battery power or ground to ECM (vehicle wiring)* Vehicle speed signal* Engine Speed/Timing Sensor* Fuel supply* Throttle Position Sensor* Cruise control switches* Service Brake and Clutch SwitchesPerform the following tests in order:1. Check external 3176 Harness and connectors (refer to P-201: Inspecting Electrical Connectors).2. P-210: Electrical Power Supply Test3. P-213: Vehicle Speed Signal Test4. P-221: Engine Speed/Timing Sensor Test5. Check fuel lines for restrictions and fuel tanks for foreign objects which may block fuel supply.6. P-211: Throttle Position Sensor Test.7. P-214: Cruise Control and PTO Switches Test.8. P-215: Service Brake and Clutch Switches

Have questions with 104748-0421?





Group cross 104748-0421 ZEXEL

Mazda

104748-0400

104748-0401
9 460 612 566
R2B713800
INJECTION-PUMP ASSEMBLY
R2
104748-0401

104748-0402
9 460 612 567

INJECTION-PUMP ASSEMBLY
104748-0402

104748-0403
9 460 612 568

INJECTION-PUMP ASSEMBLY
104748-0403

104748-0404
9 460 613 748

INJECTION-PUMP ASSEMBLY
R2

Mazda

104748-0403

104748-0404
9 460 613 748
R2B713800A
INJECTION-PUMP ASSEMBLY
R2
104748-0404

104748-0405
9 460 612 569

INJECTION-PUMP ASSEMBLY

Mazda

104748-0405
9 460 614 624
R2B713800A
INJECTION-PUMP ASSEMBLY
R2
104748-0410

104748-0411
9 460 610 547

INJECTION-PUMP ASSEMBLY
104748-0411

104748-0412
9 460 612 570

INJECTION-PUMP ASSEMBLY

Mazda

104748-0412

104748-0413

RFG713800A
INJECTION-PUMP ASSEMBLY
RF
104748-0413

104748-0414

RFG713800B
INJECTION-PUMP ASSEMBLY
RF
104748-0414

104748-0415
9 460 611 756

INJECTION-PUMP ASSEMBLY

Mazda

104748-0415
9 460 614 625
RFG713800C
INJECTION-PUMP ASSEMBLY
RF
104748-0420

104748-0421
9 460 612 571

INJECTION-PUMP ASSEMBLY
104748-0421

104748-0422
9 460 612 572

INJECTION-PUMP ASSEMBLY
104748-0422

104748-0423
9 460 612 573

INJECTION-PUMP ASSEMBLY

Mazda

104748-0423
9 460 614 626
R2V113800
INJECTION-PUMP ASSEMBLY
R2
104748-0430


INJECTION-PUMP ASSEMBLY
104748-0431


INJECTION-PUMP ASSEMBLY
104748-0432


INJECTION-PUMP ASSEMBLY

Mazda

104748-0433
9 460 614 627
RFT113800C
INJECTION-PUMP ASSEMBLY
RF
104748-0440


INJECTION-PUMP ASSEMBLY
104748-0441


INJECTION-PUMP ASSEMBLY
104748-0442


INJECTION-PUMP ASSEMBLY
104748-0443


INJECTION-PUMP ASSEMBLY

Mazda

104748-0444
9 460 614 628
R2TF13800B
INJECTION-PUMP ASSEMBLY
R2
104748-0450

104748-0451
9 460 612 574

INJECTION-PUMP ASSEMBLY
104748-0451

104748-0452
9 460 612 575

INJECTION-PUMP ASSEMBLY
104748-0452

104748-0453
9 460 612 576

INJECTION-PUMP ASSEMBLY
104748-0453

104748-0454
9 460 611 225

INJECTION-PUMP ASSEMBLY

Nissan

104748-0454
9 460 611 628
16700HC300
INJECTION-PUMP ASSEMBLY
R2

Mazda

104748-0454
9 460 611 628
R2D113800
INJECTION-PUMP ASSEMBLY
R2
104748-0460


INJECTION-PUMP ASSEMBLY
104748-0461

104748-0462
9 460 612 577

INJECTION-PUMP ASSEMBLY
104748-0462

104748-0463
9 460 612 578

INJECTION-PUMP ASSEMBLY
104748-0463

104748-0464
9 460 611 226

INJECTION-PUMP ASSEMBLY

Nissan

104748-0464
9 460 611 629
16700HC301
INJECTION-PUMP ASSEMBLY
R2

Mazda

104748-0464
9 460 611 629
R2D213800
INJECTION-PUMP ASSEMBLY
R2
104748-0470

104748-0471
9 460 612 579

INJECTION-PUMP ASSEMBLY

Mazda

104748-0471

104748-0472
9 460 613 749
RFL713800A
INJECTION-PUMP ASSEMBLY
RF
104748-0472

104748-0473
9 460 610 652
RFL713800B
INJECTION-PUMP ASSEMBLY
RF
104748-0473

104748-0474
9 460 612 036

INJECTION-PUMP ASSEMBLY

Mazda

104748-0474
9 460 611 458
RFL713800C
INJECTION-PUMP ASSEMBLY
RF
104748-0480

104748-0481
9 460 612 580

INJECTION-PUMP ASSEMBLY
104748-0481

104748-0482
9 460 612 581

INJECTION-PUMP ASSEMBLY
R2

Mazda

104748-0481

104748-0482
9 460 612 581
R2D913800
INJECTION-PUMP ASSEMBLY
R2
104748-0482

104748-0483
9 460 611 227

INJECTION-PUMP ASSEMBLY

Nissan

104748-0483
9 460 611 228
16700HC303
INJECTION-PUMP ASSEMBLY
R2

Mazda

104748-0483
9 460 611 228
R2D913800
INJECTION-PUMP ASSEMBLY
R2
104748-0490

104748-0491
9 460 611 035

INJECTION-PUMP ASSEMBLY
104748-0491

104748-0492
9 460 613 750

INJECTION-PUMP ASSEMBLY
104748-0492


INJECTION-PUMP ASSEMBLY

Nissan

104748-0493
9 460 613 751
16700HC302
INJECTION-PUMP ASSEMBLY
R2

Mazda

104748-0493
9 460 613 751
R2D813800
INJECTION-PUMP ASSEMBLY
R2
Back to top
