104748-0401 ZEXEL 9 460 612 567 BOSCH INJECTION-PUMP ASSEMBLY 9460612567 1047480401

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 612 567 9460612567

ZEXEL 104748-0401 1047480401

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104748-0401 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104748-0401
1.	_
2.	FUEL INJECTION PUMP	104648-0155
3.	NUMBER PLATE
4.	_
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105141-2240
8.	Nozzle and Holder
9.	Open Pre:MPa(Kqf/cm2)	132.(135)
10.	NOZZLE-HOLDER	105071-1530
11.	NOZZLE	105000-1740

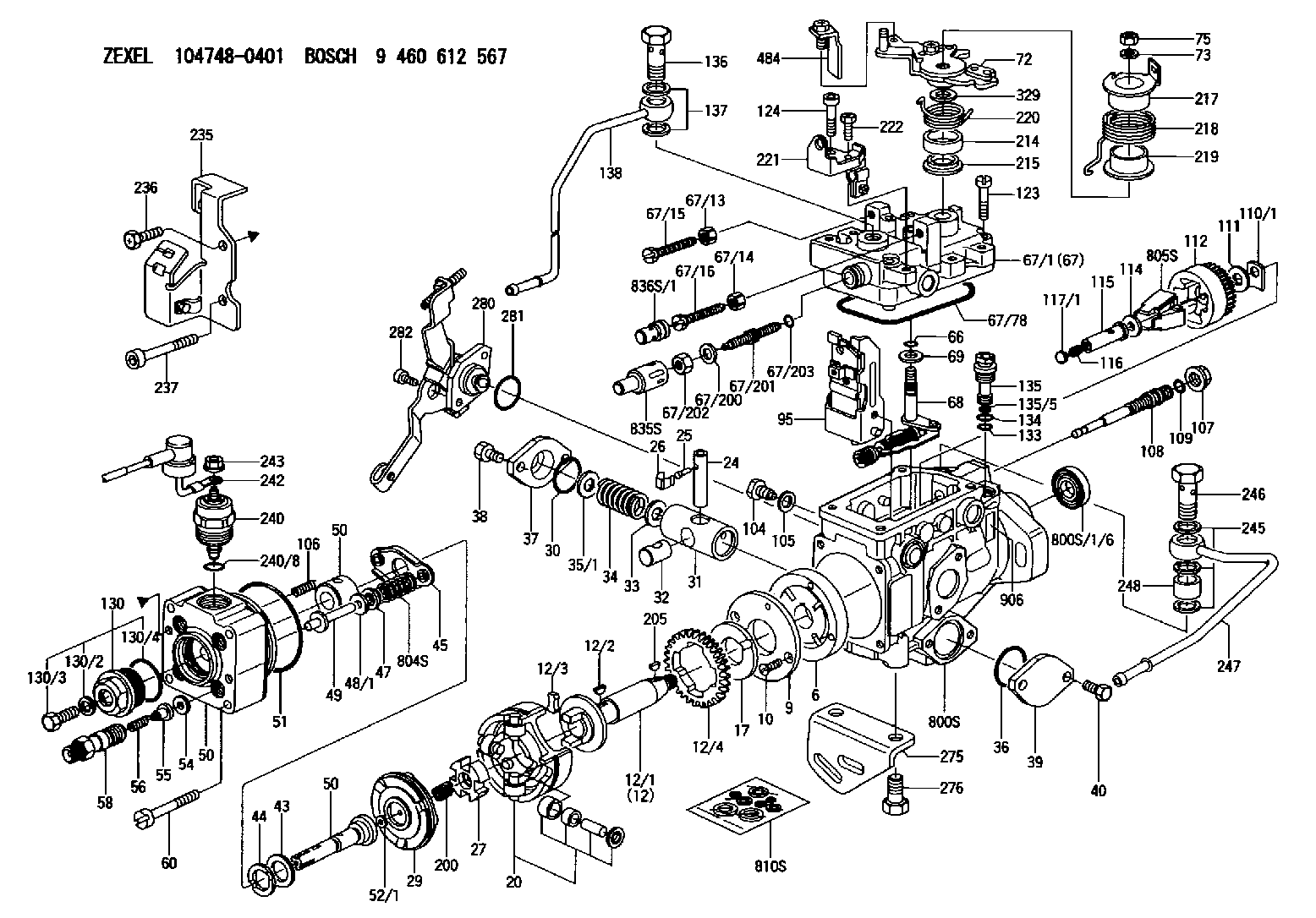

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-3920	ROLLER SET
24.	[1]	146303-0100	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-0220	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-2400	PUMP PLUNGER
32.	[1]	146301-0200	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3600	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146403-1220	HYDRAULIC HEAD
50.	[1]	146403-1220	HYDRAULIC HEAD
50.	[1]	146403-1220	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0020	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0220	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146502-4222	GOVERNOR COVER
67/1.	[1]	146505-8122	GOVERNOR COVER
67/13.	[1]	146621-1700	UNION NUT
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-3400	BLEEDER SCREW
67/16.	[1]	146526-2800	BLEEDER SCREW
67/78.	[1]	146600-1000	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146510-5820	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146538-3120	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146551-2220	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146575-3800	SLIDING SLEEVE
116.	[1]	146576-0000	SEALING CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[3]	139106-0200	FLAT-HEAD SCREW
124.	[1]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0920	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0020	OVER FLOW VALVE
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	146609-8320	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	029470-4030	WOODRUFF KEY
214.	[1]	146542-1400	BUSHING
215.	[1]	146542-1500	BUSHING
217.	[1]	146542-5900	SLOTTED WASHER
218.	[1]	146592-4700	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-4800	COILED SPRING
221.	[1]	146625-2520	BRACKET
222.	[1]	139006-4500	BLEEDER SCREW
235.	[1]	146625-2621	BRACKET
236.	[1]	139006-4800	BLEEDER SCREW
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146650-4320	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-0720	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	026512-1540	GASKET D15.4&12.2T1.50
246.	[1]	139812-0500	EYE BOLT
247.	[1]	146609-9920	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
275.	[1]	146612-2700	BRACKET
276.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
280.	[1]	146360-2821	COVER
281.	[1]	146600-0800	O-RING
282.	[2]	010206-1440	HEX-SOCKET-HEAD CAP SCREW M6P1L14
329.	[1]	146541-4900	PLAIN WASHER D20&10T0.5
484.	[1]	146542-6420	PLATE
800S.	[1]	146019-0520	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-2420	REPAIR SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
906.	[1]	146960-8300	NAMEPLATE

Include in #2:

104748-0401 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 612 567 9460612567

ZEXEL 104748-0401 1047480401

Zexel num

Bosch num

Firm num

Name

104748-0401
104748-0402

9 460 612 567

INJECTION-PUMP ASSEMBLY
* K

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105000-2010

Bosch type code NP-DN12SD12TT

Nozzle holder 105780-2080

Opening pressure MPa 14.7 14.7 15.19

Opening pressure kgf/cm2 150 150 155

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-840

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 35.9 35.4 36.4

Difference in delivery mm3/st. 2.5

Basic *

Injection timing adjustment_02

Pump speed r/min 2400 2400 2400

Average injection quantity mm3/st. 13.1 10.6 15.6

Injection timing adjustment_03

Pump speed r/min 2125 2125 2125

Average injection quantity mm3/st. 32.5 30.4 34.6

Injection timing adjustment_04

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 35.9 34.9 36.9

Injection timing adjustment_05

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 30.25 28.1 32.4

Injection quantity adjustment

Pump speed r/min 2400 2400 2400

Average injection quantity mm3/st. 13.1 11.1 15.1

Difference in delivery mm3/st. 4

Basic *

Injection quantity adjustment_02

Pump speed r/min 2550 2550 2550

Average injection quantity mm3/st. 4 4

Governor adjustment

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 11 10 12

Difference in delivery mm3/st. 2

Basic *

Governor adjustment_02

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 3

Governor adjustment_03

Pump speed r/min 450 450 450

Average injection quantity mm3/st. 6

Governor adjustment_04

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 11 9.5 12.5

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 42 42

Basic *

Speed control lever angle

Pump speed r/min 350 350 350

Average injection quantity mm3/st. 0 0 0

Remarks
Magnet OFF

0000000901

Pump speed r/min 1250 1250 1250

Overflow quantity cm3/min 429 300 558

Stop lever angle

Pump speed r/min 1250 1250 1250

Pressure kPa 510 481 539

Pressure kgf/cm2 5.2 4.9 5.5

Basic *

Stop lever angle_02

Pump speed r/min 1250 1250 1250

Pressure kPa 510 481 539

Pressure kgf/cm2 5.2 4.9 5.5

Stop lever angle_03

Pump speed r/min 1500 1500 1500

Pressure kPa 578.5 549 608

Pressure kgf/cm2 5.9 5.6 6.2

Stop lever angle_04

Pump speed r/min 2125 2125 2125

Pressure kPa 745.5 716 775

Pressure kgf/cm2 7.6 7.3 7.9

0000001101

Pump speed r/min 1250 1250 1250

Timer stroke mm 3.5 3.3 3.7

Basic *

_02

Pump speed r/min 1250 1250 1250

Timer stroke mm 3.5 3.2 3.8

_03

Pump speed r/min 2125 2125 2125

Timer stroke mm 7.55 7.1 8

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

0000001401

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 25.3 24.6 26

Timer stroke variation dT mm 0.8 0.6 1

Basic *

_02

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 15.5 14.5 16.5

Timer stroke variation dT mm 1.7 1 2.4

Basic *

_03

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 25.6 24.1 27.1

Timer stroke variation dT mm 0.8 0.5 1.1

_04

Pump speed r/min 1250 1250 1250

Average injection quantity mm3/st. 15.5 14 17

Timer stroke variation dT mm 2 1.5 2.5

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1.5 1.4 1.6

Control lever angle alpha deg. 30 28 32

Control lever angle beta deg. 44 39 49

Test data Ex:

0000001801 CONTROL LEVER ANGLE

Control lever angle measurement position (A) = flange face
----------

----------
Ya=34.2~36.5mm Yb=12.2~15.6mm Alpha=28~32deg Beta=39~49deg

0000001901 M-CSD ADJUSTMENT

M-CSD adjustment 1. Fixing the M-CSD (1)At roller holder advance angle a adjust the lever shaft ball pin so that it contacts the roller holder. (2)At this time, adjust the position of the M-CSD lever (A) using adjusting screw (C) so that the clearance between the M-CSD lever (A) and the stopper (B) becomes L1. Then fix using nut (D). 2. M-FICD adjustment (1)Move the CSD lever A through its full stroke (until the stopper B contacts the other face). (2)Adjust screw E so that the control lever G's position is b (the gap between the control lever and the idling set screw is L2). Then fix using the nut F. H:From idle
----------
L1=0.5+2mm L2=3+-1mm a=0deg b=4.5deg
----------
L1=0.5+2mm L2=3+-1mm a=0deg b=4.5deg T=6~9Nm{0.6~0.9kgfm}

Information:

7. Remove inner fuel lines (13). 8. Remove Jacobs washers (14) and Jacobs shims (15) from the Jacobs stud assemblies. 9. Remove bolt (17) and two Jacob stud assemblies (16) that hold the rocker shaft assembly to the head. Remove rocker shaft assembly (18). 10. Remove Jacobs exhaust valve bridges (20) from the exhaust valves only. The intake valves have the Caterpillar intake valve bridges. Remove the Caterpillar intake valve bridges (19).Install Jacobs Engine Brake
Do each step for each end of the engine. The front half is shown.1. Put clean engine oil on the bridges and dowels.2. Install Jacobs exhaust valve bridges (20) and the Caterpillar intake valve bridges (19) on the dowels.3. Keep hand pressure on the bridges, and turn the adjustment screw clockwise until contact is made with the valve stem. Turn the screw an extra 20° to 30°. This will make the dowel straight in the guide and compensate for gap (slack) in the threads. Hold the adjustment screw in this position, and tighten the locknut to a torque of 28 4 N m (21 3 lb.ft.). 4. Put rocket shaft assembly (18) in position on the cylinder head. 5. Install Jacobs washers (21) on the Jacobs stud assemblies (16). Put clean oil on the threads, and install washer and bolt (17) and Jacobs stud assemblies (16). Tighten the center bolt and Jacobs stud assemblies in increments of 70 N m (50 lb.ft.) each until a final torque of 450 N m (330 lb.ft.) is obtained.6. Make an adjustment to the valves to have a clearance of .015 (.038 mm) for the intake valves and .030 (0.76 mm) for the exhaust valves. Tighten the locknuts to a torque of 28 4 N m (21 3 lb.ft.), and check the valve clearance again. See Testing And Adjusting for the correct procedure. 7. Install a new Jacobs O-ring seal (22) on the Jacobs oil supply adapter in the rocker shaft assembly. Put clean oil on the Jacobs O-ring seal.
Do not cause damage to the O-ring seals on the inner fuel lines.
8. Install inner fuel lines (13). Tighten the fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.) with tooling (A) and (B). The Jacobs brake for the 3406B Truck Engine has only one support bracket (11).9. Put Jacobs support brackets (11) in position as shown. Put oil on the threads of Jacobs bolts (12). Install the washers on the Jacobs bolts. Install Jacobs bolts (12) that hold the Jacobs support bracket in place. Tighten Jacobs bolts to a torque of 450 N m (330 lb.ft.). 10. Install Jacobs washers (14) on the Jacobs stud assemblies.
Be extra careful not to cause damage to the Jacobs oil supply adapter O-ring seal when the Jacobs brake housing assembly is installed.
The brake housing assembly with the mark "FRONT" on it must be installed on the front three cylinders. The brake housing assembly with the mark "REAR" must be install on
