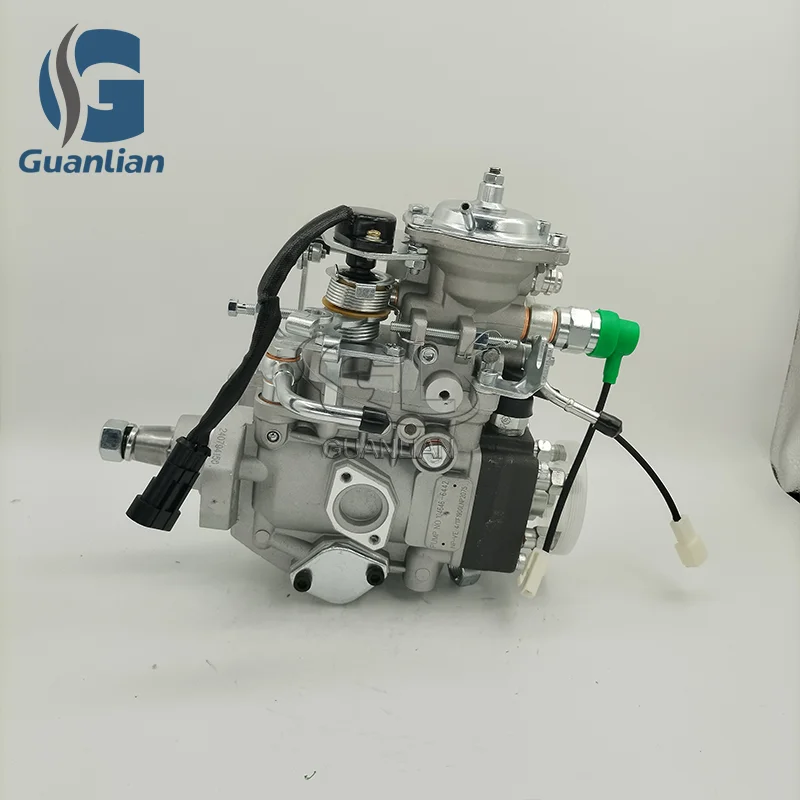

104746-1500 ZEXEL 9 460 612 340 BOSCH INJECTION-PUMP ASSEMBLY 9460612340 1047461500 8971174360

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 460 612 340 9460612340

ZEXEL 104746-1500 1047461500

ISUZU 8971174360 8971174360

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104746-1500 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104746-1500
1.	_
2.	FUEL INJECTION PUMP	104646-1500
3.	NUMBER PLATE	146924-5800
4.	_	146672-1720
5.	CAPSULE
6.	ADJUSTING DEVICE	593176-1521
7.	NOZZLE AND HOLDER ASSY	105118-4404
8.	Nozzle and Holder	8-94450-050-2
9.	Open Pre:MPa(Kqf/cm2)	18.1{185}
10.	NOZZLE-HOLDER	105048-3220
11.	NOZZLE	105017-0550

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-1720	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-0620	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-2100	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-5400	COMPRESSION SPRING
34B.	[1]	146302-4800	COMPRESSION SPRING
34C.	[1]	146302-5600	COMPRESSION SPRING
34D.	[1]	146302-4200	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM
48/1.	[1]	146690-5900	SHIM
48/1.	[1]	146690-6000	SHIM
48/1.	[1]	146690-6100	SHIM
48/1.	[1]	146690-6200	SHIM
48/1.	[1]	146690-6300	SHIM
48/1.	[1]	146690-6400	SHIM
48/1.	[1]	146690-6500	SHIM
48/1.	[1]	146690-6600	SHIM
48/1.	[1]	146690-6700	SHIM
48/1.	[1]	146690-6800	SHIM
48/1.	[1]	146690-6900	SHIM
48/1.	[1]	146690-7000	SHIM
48/1.	[1]	146690-7100	SHIM
48/1.	[1]	146690-7200	SHIM
48/1.	[1]	146690-7300	SHIM
48/1.	[1]	146690-7400	SHIM
48/1.	[1]	146690-7500	SHIM
48/1.	[1]	146690-7800	SHIM
49.	[2]	146234-0600	GUIDE PIN
50.	[1]	146402-2420	HYDRAULIC HEAD
50.	[1]	146402-2420	HYDRAULIC HEAD
50.	[1]	146402-2420	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-1420	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0200	COMPRESSION SPRING
57.	[4]	146602-2300	FILLER PIECE
58.	[4]	146440-0600	FITTING
60.	[4]	139106-0100	FLAT-HEAD SCREW
67.	[1]	146704-0621	COMPENSATOR,MANIFOLD-PRES
67/1.	[1]	146508-9321	GOVERNOR COVER
67/2.	[1]	146515-2520	CONTROL SHAFT
67/3.	[1]	146600-0100	O-RING
67/4.	[1]	139310-0200	PLAIN WASHER
67/13.	[1]	013020-6040	UNION NUT M6P1H5
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-2800	BLEEDER SCREW
67/16.	[1]	146526-3000	BLEEDER SCREW
67/23.	[1]	146628-9200	BRACKET
67/24.	[2]	139006-4500	BLEEDER SCREW
67/26.	[1]	146629-6120	BRACKET
67/31.	[1]	146710-0700	BUSHING
67/32.	[1]	146711-0000	PLATE
67/33.	[1]	139218-0400	UNION NUT
67/34.	[1]	146712-0700	BEARING PIN
67/35.	[1]	146621-0300	UNION NUT
67/36.	[1]	146600-1400	O-RING
67/37.	[1]	146710-0100	BUSHING
67/38.	[1]	139506-0200	GASKET D8.9&6.8T1.00
67/39.	[1]	146620-0300	CAPSULE
67/40.	[1]	026512-1540	GASKET D15.4&12.2T1.50
67/41.	[1]	146713-4300	ADJUSTING PIN
67/42.	[2]	146714-0200	PLATE
67/43.	[1]	146715-0300	DIAPHRAGM
67/44.	[1]	139306-0100	LOCKING WASHER
67/45.	[1]	013030-6040	UNION NUT M6P1H3.6
67/46.	[1]	146716-0000	UNION NUT
67/47.	[1]	146717-2500	COILED SPRING
67/48/1.	[1]	146720-3000	SPACER BUSHING L3.7
67/48/1.	[1]	146720-3100	SPACER BUSHING L3.9
67/48/1.	[1]	146720-3200	SPACER BUSHING L4.1
67/48/1.	[1]	146720-3300	SPACER BUSHING L4.3
67/48/1.	[1]	146720-3400	SPACER BUSHING L4.5
67/48/1.	[1]	146720-3500	SPACER BUSHING L4.7
67/48/1.	[1]	146720-3600	SPACER BUSHING L4.9
67/48/1.	[1]	146720-3700	SPACER BUSHING L5.1
67/48/1.	[1]	146720-3800	SPACER BUSHING L5.3
67/48/1.	[1]	146720-3900	SPACER BUSHING L5.5
67/48/1.	[1]	146720-4000	SPACER BUSHING L5.7
67/48/1.	[1]	146720-4100	SPACER BUSHING L5.9
67/48/1.	[1]	146720-4200	SPACER BUSHING L6.1
67/48/1.	[1]	146720-4300	SPACER BUSHING L6.3
67/48/1.	[1]	146720-4400	SPACER BUSHING L6.5
67/48/1.	[1]	146720-8900	SPACER BUSHING L6.7
67/48/1.	[1]	146720-9000	SPACER BUSHING L6.9
67/48/1.	[1]	146720-9100	SPACER BUSHING L7.1
67/48/1.	[1]	146720-9200	SPACER BUSHING L7.3
67/48/1.	[1]	146720-9300	SPACER BUSHING L7.5
67/48/1.	[1]	146720-9400	SPACER BUSHING L7.7
67/48/1.	[1]	146720-9500	SPACER BUSHING L7.9
67/48/1.	[1]	146720-9600	SPACER BUSHING L8.1
67/48/1.	[1]	146720-9700	SPACER BUSHING L8.3
67/48/1.	[1]	146720-9800	SPACER BUSHING L8.5
67/48/1.	[1]	146720-9900	SPACER BUSHING L3.6
67/48/1.	[1]	146725-0000	SPACER BUSHING L3.8
67/48/1.	[1]	146725-0100	SPACER BUSHING L4.0
67/48/1.	[1]	146725-0200	SPACER BUSHING L4.2
67/48/1.	[1]	146725-0300	SPACER BUSHING L4.4
67/48/1.	[1]	146725-0400	SPACER BUSHING L4.6
67/48/1.	[1]	146725-0500	SPACER BUSHING L4.8
67/48/1.	[1]	146725-0600	SPACER BUSHING L5.0
67/48/1.	[1]	146725-0700	SPACER BUSHING L5.2
67/48/1.	[1]	146725-0800	SPACER BUSHING L5.4
67/48/1.	[1]	146725-0900	SPACER BUSHING L5.6
67/48/1.	[1]	146725-1000	SPACER BUSHING L5.8
67/48/1.	[1]	146725-1100	SPACER BUSHING L6.0
67/48/1.	[1]	146725-1200	SPACER BUSHING L6.2
67/48/1.	[1]	146725-1300	SPACER BUSHING L6.4
67/48/1.	[1]	146725-1400	SPACER BUSHING L6.6
67/48/1.	[1]	146725-1500	SPACER BUSHING L6.8
67/48/1.	[1]	146725-1600	SPACER BUSHING L7.0
67/48/1.	[1]	146725-1700	SPACER BUSHING L7.2
67/48/1.	[1]	146725-1800	SPACER BUSHING L7.4
67/48/1.	[1]	146725-1900	SPACER BUSHING L7.6
67/48/1.	[1]	146725-2000	SPACER BUSHING L7.8
67/48/1.	[1]	146725-2100	SPACER BUSHING L8.0
67/48/1.	[1]	146725-2200	SPACER BUSHING L8.2
67/48/1.	[1]	146725-2300	SPACER BUSHING L8.4
67/48/1.	[1]	146725-2400	SPACER BUSHING L8.6
67/49.	[1]	146721-1020	COVER
67/54.	[4]	139006-4400	BLEEDER SCREW
67/56.	[1]	146723-0200	CONTROL LEVER
67/57.	[1]	146712-0100	BEARING PIN
67/58.	[2]	146620-0600	CAPSULE
67/59.	[2]	026506-1040	GASKET D9.9&6.2T1
67/60.	[1]	146724-0300	ELEMENT
67/61.	[1]	146724-0600	CAPSULE
67/78.	[1]	146600-4400	SEAL RING
67/98.	[1]	139006-4500	BLEEDER SCREW
67/100.	[1]	146628-9000	BRACKET
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
72.	[1]	146539-6100	CONTROL LEVER
72B.	[1]	146539-6200	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146561-5020	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-4200	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
120.	[1]	146579-0520	RETAINING PIN
122.	[1]	146580-2000	GOVERNOR SPRING
123.	[4]	146620-0500	HEX-SOCKET-HEAD CAP SCREW
130.	[1]	146421-0320	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0300	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0720	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
135B.	[1]	146110-0820	CONTROL VALVE
135B/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146650-8720	PULLING ELECTROMAGNET
137.	[2]	139514-0200	GASKET
145.	[1]	146621-1000	UNION NUT
147.	[1]	146600-5000	O-RING
160.	[1]	146625-8020	PLATE
200.	[1]	146206-0100	COILED SPRING
205.	[1]	025804-1610	WOODRUFF KEY
206.	[1]	013121-4140	UNION NUT M14P1.5H11
207.	[1]	029321-4050	LOCKING WASHER
217.	[1]	146541-2900	SLOTTED WASHER
218.	[1]	146592-4300	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-4400	COILED SPRING
233.	[1]	146658-8920	WIRE
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-7320	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	146125-0000	EYE BOLT
247.	[1]	146666-4120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
260.	[1]	146611-0720	BRACKET
261.	[2]	146621-4700	UNION NUT
264.	[1]	016500-5010	O-RING
270.	[1]	146615-2021	TOOTHED GEAR
270/1.	[1]	146615-2000	TOOTHED GEAR
270/2.	[1]	146615-0201	COUPLING PLATE
270/3.	[6]	020006-1870	BLEEDER SCREW M6P1L18 7T
800S.	[1]	146009-6320	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0720	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
812S.	[1]	146600-1920	PARTS SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146672-1720	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
905.	[1]	593176-1521	ADJUSTING DEVICE
905/2.	[1]	535020-3220	BRACKET
906.	[1]	146924-5800	NAMEPLATE
912.	[2]	139006-6600	BLEEDER SCREW

Include in #2:

104746-1500 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 612 340 9460612340

ZEXEL 104746-1500 1047461500

ISUZU 8971174360 8971174360

Zexel num

Bosch num

Firm num

Name

104746-1500

9 460 612 340

8971174360 ISUZU

INJECTION-PUMP ASSEMBLY
4JB1-T * K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105780-0060

Bosch type code NP-DN0SD1510

Nozzle holder 105780-2150

Opening pressure MPa 13 13 13.3

Opening pressure kgf/cm2 133 133 136

Injection pipe 157805-7320

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450

Joint assembly 157641-4720

Tube assembly 157641-4020

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Left L

Injection timing adjustment

Pump speed r/min 1250 1250 1250

Boost pressure kPa 46.7 45.4 48

Boost pressure mmHg 350 340 360

Average injection quantity mm3/st. 55.8 55.3 56.3

Difference in delivery mm3/st. 4.5

Basic *

Oil temperature degC 50 48 52

Remarks
CBS

Injection timing adjustment_02

Pump speed r/min 1250 1250 1250

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Average injection quantity mm3/st. 65.5 65 66

Difference in delivery mm3/st. 3.5

Basic *

Oil temperature degC 50 48 52

Remarks
Full

Injection timing adjustment_03

Pump speed r/min 600 600 600

Boost pressure kPa 13.3 12 14.6

Boost pressure mmHg 100 90 110

Average injection quantity mm3/st. 32.3 32.3 32.3

Oil temperature degC 50 48 52

Injection timing adjustment_04

Pump speed r/min 750 750 750

Boost pressure kPa 24 22.7 25.3

Boost pressure mmHg 180 170 190

Average injection quantity mm3/st. 34.5 34.5 34.5

Oil temperature degC 50 48 52

Injection timing adjustment_05

Pump speed r/min 900 900 900

Boost pressure kPa 46.7 45.4 48

Boost pressure mmHg 350 340 360

Average injection quantity mm3/st. 48.5 48.5 48.5

Oil temperature degC 50 48 52

Injection timing adjustment_06

Pump speed r/min 1250 1250 1250

Boost pressure kPa 46.7 45.4 48

Boost pressure mmHg 350 340 360

Average injection quantity mm3/st. 55.8 54.8 56.8

Difference in delivery mm3/st. 4.5

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_07

Pump speed r/min 1250 1250 1250

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Average injection quantity mm3/st. 65.5 64.5 66.5

Difference in delivery mm3/st. 3.5

Basic *

Oil temperature degC 50 48 52

Injection timing adjustment_08

Pump speed r/min 1800 1800 1800

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Average injection quantity mm3/st. 66 66 66

Oil temperature degC 50 48 52

Injection quantity adjustment

Pump speed r/min 2300 2300 2300

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Average injection quantity mm3/st. 20.6 17.6 23.6

Difference in delivery mm3/st. 4.5

Basic *

Oil temperature degC 52 50 54

Injection quantity adjustment_02

Pump speed r/min 2650 2650 2650

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Average injection quantity mm3/st. 5

Oil temperature degC 52 50 54

Injection quantity adjustment_03

Pump speed r/min 2300 2300 2300

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Average injection quantity mm3/st. 20.6 17.6 23.6

Difference in delivery mm3/st. 4.5

Oil temperature degC 52 50 54

Governor adjustment

Pump speed r/min 375 375 375

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 10 8 12

Difference in delivery mm3/st. 2

Basic *

Oil temperature degC 48 46 50

Governor adjustment_02

Pump speed r/min 375 375 375

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 10 8 12

Difference in delivery mm3/st. 2

Oil temperature degC 48 46 50

Timer adjustment

Pump speed r/min 100 100 100

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 60 60 100

Basic *

Oil temperature degC 48 46 50

Remarks
Full

Timer adjustment_02

Pump speed r/min 100 100 100

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 60 60 100

Oil temperature degC 48 46 50

Speed control lever angle

Pump speed r/min 375 375 375

Boost pressure kPa 0 0 0

Boost pressure mmHg 0 0 0

Average injection quantity mm3/st. 0 0 0

Oil temperature degC 48 46 50

Remarks
Magnet OFF at idling position

0000000901

Pump speed r/min 1600 1600 1600

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Overflow quantity with S/T OFF cm3/min 690 560 820

Oil temperature degC 50 48 52

Remarks
With an O-ring

Stop lever angle

Pump speed r/min 1600 1600 1600

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Pressure with S/T OFF kPa 490 470 510

Pressure with S/T OFF kgf/cm2 5 4.8 5.2

Basic *

Oil temperature degC 50 48 52

Stop lever angle_02

Pump speed r/min 1050 1050 1050

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Pressure with S/T OFF kPa 314 285 343

Pressure with S/T OFF kgf/cm2 3.2 2.9 3.5

Oil temperature degC 50 48 52

Stop lever angle_03

Pump speed r/min 1600 1600 1600

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Pressure with S/T OFF kPa 490 470 510

Pressure with S/T OFF kgf/cm2 5 4.8 5.2

Basic *

Oil temperature degC 50 48 52

Stop lever angle_04

Pump speed r/min 1800 1800 1800

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Pressure with S/T OFF kPa 539 510 568

Pressure with S/T OFF kgf/cm2 5.5 5.2 5.8

Oil temperature degC 50 48 52

0000001101

Pump speed r/min 1600 1600 1600

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Timer stroke with S/T OFF mm 5 4.8 5.2

Basic *

Oil temperature degC 50 48 52

_02

Pump speed r/min 520 520 520

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Timer stroke with S/T ON mm 0.5 0.5

_03

Pump speed r/min 1050 1050 1050

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Timer stroke with S/T OFF mm 0.5 0.1 0.9

Oil temperature degC 50 48 52

_04

Pump speed r/min 1600 1600 1600

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Timer stroke with S/T OFF mm 5 4.8 5.2

Basic *

Oil temperature degC 50 48 52

_05

Pump speed r/min 1800 1800 1800

Boost pressure kPa 80 78.7 81.3

Boost pressure mmHg 600 590 610

Timer stroke with S/T OFF mm 6.2 5.9 6.6

Oil temperature degC 50 48 52

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

Timing setting

K dimension mm 2.8 2.7 2.9

KF dimension mm 5.5 5.4 5.6

MS dimension mm 0.7 0.6 0.8

Pre-stroke mm 0.45 0.43 0.47

Control lever angle alpha deg. 18 14 22

Control lever angle beta deg. 37 32 42

Test data Ex:

0000001801 V-FICD ADJUSTMENT

Adjustment of the V-FICD 1. Adjust the actuator rod to obtain S1. 2. Apply negative pressure P1 kPa {P2 mmHg} to the actuator and confirm that it moves through its full stroke. (A) Control lever (Idling position)
----------
S1=1+1mm P1=-53.3kPa P2=-400mmHg
----------
S1=1+1mm

Information:

Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove coolant from the engine.2. Loosen two hose clamps (3) and slide hose from tube assembly (2).3. Disconnect tube assembly (1) at the aftercooler cover.4. Remove four bolts holding the tube assembly to the aftercooler housing. Remove tube assembly (2). 5. Remove O-ring seal (4). 6. Remove adapter (5) and the gasket. An O-ring seal on each end of the aftercooler core holds the adapters (5) and (13) in position. 7. Loosen hose clamps (6) and slide hose on the breather tubes. Remove bolt (8) and breather tube (7). 8. Disconnect hose assembly (9).9. Loosen hose clamps (11) and slide the hose from tube assembly (10).10. Remove four bolts fastening the tube assembly to the aftercooler cover. Remove tube assembly (10). 11. Remove O-ring seal (12). 12. Remove adapter (13) and the gasket. 13. Remove the four bolts (14). 14. Remove bolts (17), cover (18) and the gasket. Remove pipe (16). 15. Remove aftercooler core assembly (20) and the gasket. Remove "O'-ring seals (19) from each end of the core. 16. Remove two bolts (21) on the inside of the aftercooler housing. Make a note of the location of bolt spacers before removal. 17. Remove bolts and spacers (23), housing (22) and the gasket. The following steps are to install the jacketwater aftercooler. Inspect all O-ring seals and gaskets and make replacements if necessary. Put a thin layer of clean engine oil on all O-ring seals and in the bores of each adapter.18. Put aftercooler housing gaskets in position on the cylinder head and install aftercooler housing (22). Make a note of the location of two bolts and spacers (23) from the remove story Step 17.19. Install aftercooler core gasket (20).20. Install the O-ring seals (19) on each end of the aftercooler core (20).21. Put the aftercooler core (20) in position in the housing. Put the gasket in place on the core assembly.22. Install turbocharger pipe and the aftercooler cover (18).23. Install four bolts to fasten flange (15) to cover.24. Install gasket and adapter (13). Install breather tube on breather assembly and install the bolt to fasten the breather tube clip to the engine oil cooler.25. Install O-ring seal (12).26. Install tube assembly (10). Slide hose in position and tighten hose clamps.27. Connect hose assembly (9) to tube assembly (10).28. Install gasket and adapter (5).29. Install O-ring seal (4) on tube assembly (2).30. Put tube assembly (2) in position on housing. Make sure tube assembly clip is in place and install the bolts.31. Slide hose in position and tighten two clamps (3).32. Connect tube assembly (1).33. Fill the radiator to the correct level with coolant.
Perform Scheduled Oil Sampling after performing service work to check for coolant leakage and contaminants left in the system following repair. Contaminants put into the system may cause rapid wear and shortened component life.
