104745-9013 ZEXEL 9 460 611 963 BOSCH INJECTION-PUMP ASSEMBLY 9460611963 1047459013 167006t017




Information injection-pump assembly

BOSCH 9 460 611 963 9460611963
ZEXEL 104745-9013 1047459013
NISSAN 167006T017 167006t017
104745-9013 INJECTION-PUMP ASSEMBLY
Rating:
49
Buy INJECTION-PUMP ASSEMBLY 104745-9013 zexel genuine, new aftermarket engine parts with delivery

Components :

0. INJECTION-PUMP ASSEMBLY 104745-9013
1. _
2. FUEL INJECTION PUMP 104645-9012
3. NUMBER PLATE 146959-6000
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105148-1221
8. Nozzle and Holder 16600-63G01
9. Open Pre:MPa(Kqf/cm2) 9.8{100}
10. NOZZLE-HOLDER 105078-0050
11. NOZZLE 105007-1210

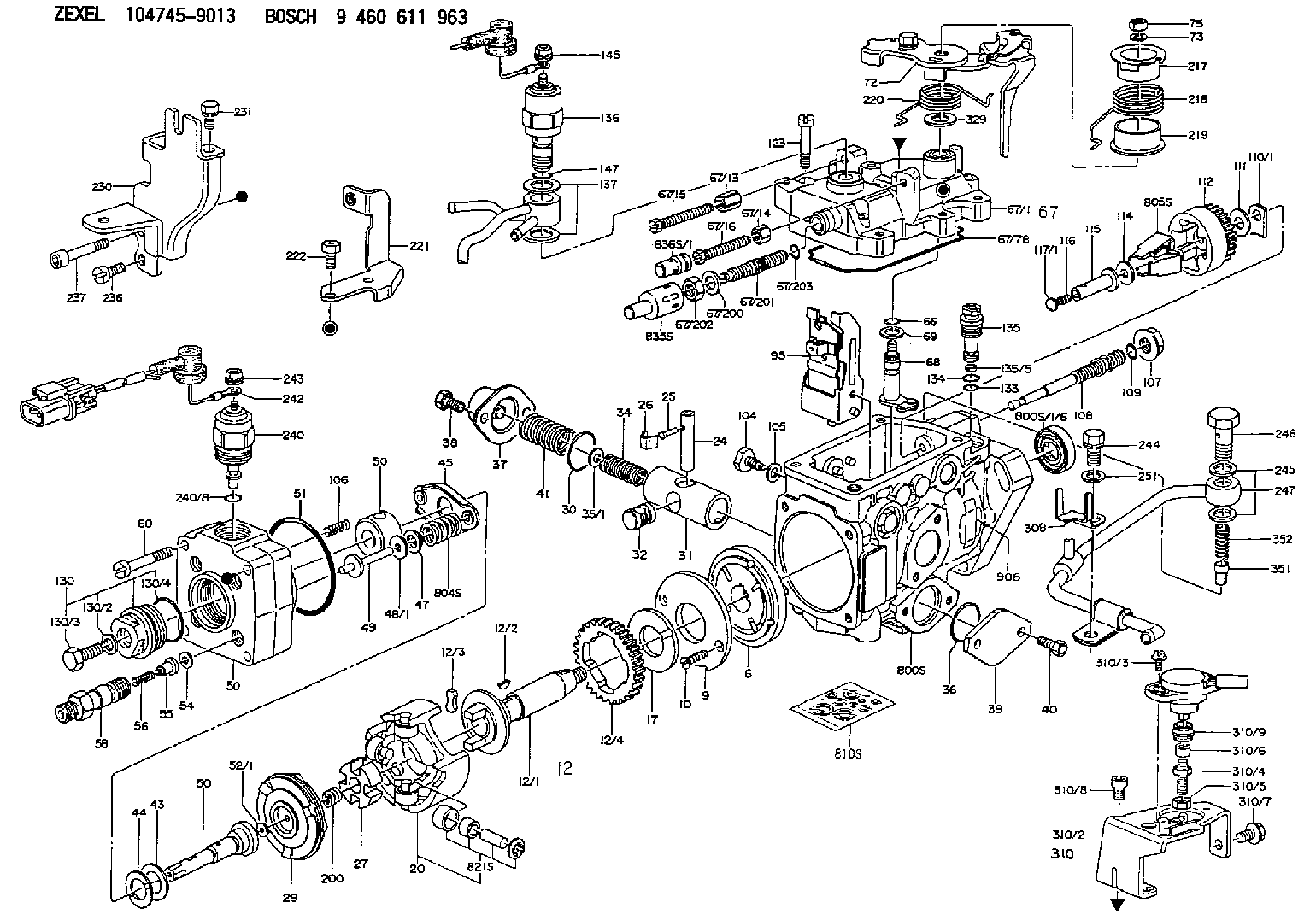

Scheme ###:

PACKING RING
1/6. [1] 146601-0900 PACKING RING
6. [1] 146100-0420 SUPPLY PUMP
9. [1] 146103-0100 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0020 DRIVE SHAFT
12/1. [1] 146200-0000 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-2320 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-2120 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146311-5920 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
34. [1] 146312-2900 COMPRESSION SPRING
34B. [1] 146312-3000 COMPRESSION SPRING
34C. [1] 146312-2800 COMPRESSION SPRING
35/1. [1] 146690-3200 SHIM D11.5&9.4T0.1
35/1. [1] 146690-3300 SHIM D11.5&9.4T0.2
35/1. [1] 146690-3400 SHIM D11.5&9.4T0.25
35/1. [1] 146690-3500 SHIM D11.5&9.4T1.0
35/1. [1] 146690-4100 SHIM D11.5&9.4T2
35/1. [1] 146690-4200 SHIM D11.5&9.4T0.5
35/1. [1] 146690-4300 SHIM D11.5&9.4T0.75
36. [1] 146600-0800 O-RING
37. [1] 146310-4020 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-0100 COVER
40. [2] 146620-5000 BLEEDER SCREW
41. [1] 146312-1900 COMPRESSION SPRING
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM
48/1. [1] 146690-5900 SHIM
48/1. [1] 146690-6000 SHIM
48/1. [1] 146690-6100 SHIM
48/1. [1] 146690-6200 SHIM
48/1. [1] 146690-6300 SHIM
48/1. [1] 146690-6400 SHIM
48/1. [1] 146690-6500 SHIM
48/1. [1] 146690-6600 SHIM
48/1. [1] 146690-6700 SHIM
48/1. [1] 146690-6800 SHIM
48/1. [1] 146690-6900 SHIM
48/1. [1] 146690-7000 SHIM
48/1. [1] 146690-7100 SHIM
48/1. [1] 146690-7200 SHIM
48/1. [1] 146690-7300 SHIM
48/1. [1] 146690-7400 SHIM
48/1. [1] 146690-7500 SHIM
48/1. [1] 146690-7800 SHIM
49. [2] 146234-0020 GUIDE PIN
50. [1] 146401-3720 HYDRAULIC HEAD
50. [1] 146401-3720 HYDRAULIC HEAD
50. [1] 146401-3720 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-0320 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0000 COMPRESSION SPRING
58. [4] 146440-0220 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
66. [1] 146600-0100 O-RING
67. [1] 146503-2320 GOVERNOR COVER
67/1. [1] 146508-8121 GOVERNOR COVER
67/13. [1] 146621-3100 UNION NUT
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-6400 BLEEDER SCREW
67/16. [1] 146526-3400 BLEEDER SCREW
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
68. [1] 146810-2620 CONTROL SHAFT
69. [1] 139310-0200 PLAIN WASHER
72. [1] 146537-7320 CONTROL LEVER
73. [1] 014110-6440 LOCKING WASHER
75. [1] 146621-0700 UNION NUT
95. [1] 146861-4820 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0420 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-6600 SLIDING SLEEVE
116. [1] 146576-0200 CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146650-5820 PULLING ELECTROMAGNET
137. [2] 139514-0200 GASKET
145. [1] 146621-1000 UNION NUT
147. [1] 146600-5000 O-RING
200. [1] 146206-0100 COILED SPRING
217. [1] 146541-3100 SLOTTED WASHER
218. [1] 146587-9900 COILED SPRING
219. [1] 146541-3000 BUSHING
220. [1] 146587-8000 COILED SPRING
221. [1] 146926-9100 BRACKET
222. [2] 139006-4600 BLEEDER SCREW
230. [1] 146926-8220 BRACKET
231. [1] 139006-4600 BLEEDER SCREW
236. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-0720 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146658-6820 WIRE
243. [1] 146621-1000 UNION NUT
244. [1] 020118-1440 BLEEDER SCREW
245. [2] 139512-0500 GASKET
246. [1] 027412-2440 EYE BOLT
247. [1] 146605-9020 PIPE
251. [1] 014010-8140 PLAIN WASHER D18&8.5T1.6
308. [1] 146659-5600 CLAMPING BAND
310. [1] 146673-8421 POTENTCIOMETER
310/2. [1] 146925-8220 BRACKET
310/3. [2] 139104-0400 FLAT-HEAD SCREW
310/4. [1] 146620-2900 FLAT-HEAD SCREW
310/5. [1] 146621-0500 UNION NUT
310/6. [1] 146614-2300 JOINT CONNECTION
310/7. [1] 139006-5700 BLEEDER SCREW
310/8. [2] 010206-1040 HEX-SOCKET-HEAD CAP SCREW
310/9. [1] 146661-0401 BOOT
329. [1] 146541-4900 PLAIN WASHER D20&10T0.5
351. [1] 146125-0101 FILTER
352. [1] 146125-0200 COILED SPRING
800S. [1] 146019-9920 PUMP HOUSING
800S/1/6. [1] 146601-0900 PACKING RING
800S/1/6. [1] 146601-0900 PACKING RING
804S. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
906. [1] 146959-6000 NAMEPLATE

Include in #2:

104745-9013 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 611 963 9460611963
ZEXEL 104745-9013 1047459013
NISSAN 167006T017 167006t017


Zexel num
Bosch num
Firm num
Name
104745-9013
9 460 611 963
167006T017  NISSAN
INJECTION-PUMP ASSEMBLY
TD27 * K 11CJ INJECTION PUMP ASSY VE4 VE
104745-9013
9 460 611 963
167006T017  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
TD27 * K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil   ISO4113orSAEJ967d
Test oil temperature degC   45 45 50
Nozzle   105780-0060
Bosch type code   NP-DN0SD1510
Nozzle holder   105780-2150
Opening pressure MPa   13 13 13.3
Opening pressure kgf/cm2   133 133 136
Injection pipe   157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm   2-6-450
Joint assembly   157641-4720
Tube assembly   157641-4020
Transfer pump pressure kPa   20 20 20
Transfer pump pressure kgf/cm2   0.2 0.2 0.2
Direction of rotation (viewed from drive side)
Right   R
Injection timing adjustment
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   49.9 49.4 50.4
Difference in delivery mm3/st.   4
Basic   *
Oil temperature degC   50 48 52
Injection timing adjustment_02
Pump speed r/min   500 500 500
Average injection quantity mm3/st.   41.3 38.8 43.8
Oil temperature degC   48 46 50
Injection timing adjustment_03
Pump speed r/min   1100 1100 1100
Average injection quantity mm3/st.   49.9 48.9 50.9
Difference in delivery mm3/st.   4.5
Basic   *
Oil temperature degC   50 48 52
Injection timing adjustment_04
Pump speed r/min   2150 2150 2150
Average injection quantity mm3/st.   46.3 43.8 48.8
Oil temperature degC   52 50 54
Injection quantity adjustment
Pump speed r/min   2550 2550 2550
Average injection quantity mm3/st.   10.9 8.9 12.9
Basic   *
Oil temperature degC   55 52 58
Injection quantity adjustment_02
Pump speed r/min   2700 2700 2700
Average injection quantity mm3/st.   5
Oil temperature degC   55 52 58
Injection quantity adjustment_03
Pump speed r/min   2350 2350 2350
Average injection quantity mm3/st.   39.7 39.7 39.7
Oil temperature degC   52 50 54
Injection quantity adjustment_04
Pump speed r/min   2550 2550 2550
Average injection quantity mm3/st.   10.9 8.4 13.4
Basic   *
Oil temperature degC   55 52 58
Governor adjustment
Pump speed r/min   350 350 350
Average injection quantity mm3/st.   7.7 5.7 9.7
Difference in delivery mm3/st.   2
Basic   *
Oil temperature degC   48 46 50
Governor adjustment_02
Pump speed r/min   350 350 350
Average injection quantity mm3/st.   7.7 5.2 10.2
Difference in delivery mm3/st.   2.5
Basic   *
Oil temperature degC   48 46 50
Timer adjustment
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   60 45 80
Basic   *
Oil temperature degC   48 46 50
Remarks
Full
Timer adjustment_02
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   60 45 80
Oil temperature degC   48 46 50
Remarks
Full
Speed control lever angle
Pump speed r/min   350 350 350
Average injection quantity mm3/st.   0 0 0
Oil temperature degC   48 46 50
Remarks
Magnet OFF at idling position
0000000901
Pump speed r/min   1100 1100 1100
Overflow quantity with S/T ON cm3/min   390 260 520
Oil temperature degC   50 48 52
Remarks
With an O-ring
_02
Pump speed r/min   1100 1100 1100
Overflow quantity with S/T ON cm3/min   600 470 730
Oil temperature degC   50 48 52
Remarks
Without an O-ring
Stop lever angle
Pump speed r/min   1300 1300 1300
Pressure with S/T ON kPa   549 510 588
Pressure with S/T ON kgf/cm2   5.6 5.2 6
Pressure with S/T OFF kPa   471 442 500
Pressure with S/T OFF kgf/cm2   4.8 4.5 5.1
Basic   *
Oil temperature degC   50 48 52
Stop lever angle_02
Pump speed r/min   1300 1300 1300
Pressure with S/T OFF kPa   471 432 510
Pressure with S/T OFF kgf/cm2   4.8 4.4 5.2
Basic   *
Oil temperature degC   50 48 52
Stop lever angle_03
Pump speed r/min   2150 2150 2150
Pressure with S/T OFF kPa   647 608 686
Pressure with S/T OFF kgf/cm2   6.6 6.2 7
Oil temperature degC   52 50 54
0000001101
Pump speed r/min   1300 1300 1300
Timer stroke with S/T ON mm   3.6 3.2 4
Timer stroke with S/T OFF mm   2.1 1.9 2.3
Basic   *
Oil temperature degC   50 48 52
_02
Pump speed r/min   1100 1100 1100
Timer stroke with S/T OFF mm   1.1 0.6 1.6
Oil temperature degC   50 48 52
_03
Pump speed r/min   1300 1300 1300
Timer stroke with S/T ON mm   3.6 3.1 4.1
Timer stroke with S/T OFF mm   2.1 1.8 2.4
Basic   *
Oil temperature degC   50 48 52
_04
Pump speed r/min   2150 2150 2150
Timer stroke with S/T OFF mm   5.6 5 6.2
Oil temperature degC   52 50 54
_05
Pump speed r/min   2500 2500 2500
Timer stroke with S/T OFF mm   6.1 5.6 6.5
Oil temperature degC   55 52 58
0000001201
Max. applied voltage V   8 8 8
Test voltage V   13 12 14
0000001401
Pump speed r/min   1300 1300 1300
Average injection quantity mm3/st.   37 36.5 37.5
Timer stroke TA mm   1.8 1.8 1.8
Timer stroke variation dT mm   0.3 0.1 0.5
Basic   *
Oil temperature degC   50 48 52
_02
Pump speed r/min   1300 1300 1300
Average injection quantity mm3/st.   37 36 38
Timer stroke variation dT mm   0.3 0 0.6
Basic   *
Oil temperature degC   50 48 52
_03
Pump speed r/min   1300 1300 1300
Average injection quantity mm3/st.   25 22.5 27.5
Timer stroke variation dT mm   0.9 0.5 1.3
Oil temperature degC   50 48 52
Timing setting
K dimension mm   3.3 3.2 3.4
KF dimension mm   5.8 5.7 5.9
MS dimension mm   0.9 0.8 1
Pre-stroke mm   0.1 0.08 0.12
Control lever angle alpha deg.   25 23 27
Control lever angle beta deg.   36 31 41

Test data Ex:

0000001801 POTENTIOMETER ADJUSTMENT

Test data 104745-9013
Note: Potentiometer (P/M) adjustment method Substitute the actual measurement of the angle a of each I/P in the following formula and determine the P/M output adjustment y (V). When the angle a <= c: y = 7.23 When c < angle a < d: y = 7.23+( angle a -33) x 0.133 When d <alpha <e: y=7.97 Reference: Idle position and full speed position output voltages are V6 (idle) and V7 (full speed). A:Potentiometer standards B:ON, OFF switch standard G:ON-->OFF D:OFF-->ON E:Adjusting point F:Checking point P:Boost pressure Vi:Applied voltage C1:Full-speed C2:Idle Q:Injection quantity N:Pump speed V:Output voltage C:Control lever angle
----------
a=Beta c=33deg d=39deg e=-deg V6=1.6+-0.6V V7=7.6+-0.4V
----------
V1=*(See note below) a+-0.03V V2=1.6+-0.6V V3=-V V4=-V V5=-V C3=0.1~10.2deg C4=(19.4)deg Vi=10V P1=-kPa P2=-mmHg




Information:

start by:a) remove timing gear coverb) remove flywheel housingc) remove pistonsd) remove crankshaft rear seal wear sleevee) remove crankshaft front seal wear sleevef) remove fuel injection pump housing and governor Check the bearing caps for a number as to their location. If a number can not be seen, put a number on the left side of cylinder block and bearing cap. 1. Loosen the bolts (2) that hold main bearing caps (1) to cylinder block.2. Install one of the bolts for flywheel in each end

Have questions with 104745-9013?





Group cross 104745-9013 ZEXEL

Nissan-Diesel

104745-9010

104745-9011

167006T003
INJECTION-PUMP ASSEMBLY
TD27
104745-9011


INJECTION-PUMP ASSEMBLY

Nissan-Diesel

104745-9012

104745-9013

167006T007
INJECTION-PUMP ASSEMBLY

Nissan

104745-9013
9 460 611 963
167006T017
INJECTION-PUMP ASSEMBLY
TD27

Nissan-Diesel

104745-9013
9 460 611 963
167006T017
INJECTION-PUMP ASSEMBLY
TD27
Back to top
