Information injection-pump assembly
ZEXEL
104741-7371
1047417371
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

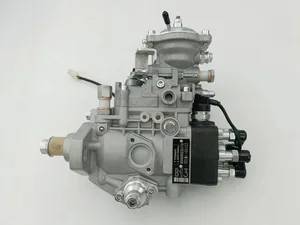

4JB1 4JA1 injector pump Diesel VE Electric Fuel injection Pump Assembly 104741-7371 104641-7370 NP-VE4/11F1800LNP2499 Compatible For ISUZU
CFNCFJGJ [Part number] : 104741-7371 104641-7370 || [Easy installation] : Standard interface, easy installation, plug and play, no professional skills, easy installation. || [Durable and reliable] : After multiple tests, long life, excellent quality, and stable work in extreme environments. || [Efficient and stable] : With the support of advanced technology, fuel supply is efficient and stable, ensuring the smooth flow of vehicles. || [High quality] : The use of high-quality materials and smart design, strict testing and verification, to ensure long-term stability and high reliability.
CFNCFJGJ [Part number] : 104741-7371 104641-7370 || [Easy installation] : Standard interface, easy installation, plug and play, no professional skills, easy installation. || [Durable and reliable] : After multiple tests, long life, excellent quality, and stable work in extreme environments. || [Efficient and stable] : With the support of advanced technology, fuel supply is efficient and stable, ensuring the smooth flow of vehicles. || [High quality] : The use of high-quality materials and smart design, strict testing and verification, to ensure long-term stability and high reliability.
Cross reference number
ZEXEL
104741-7371
1047417371
Zexel num
Bosch num
Firm num
Name
104741-7371
INJECTION-PUMP ASSEMBLY
JX493Q
JX493Q
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Left L
Left L
(Solenoid timer adjustment condition)
With S/T O-ring; S/T OFF. OFF
With S/T O-ring; S/T OFF. OFF
Timer measuring device installation position
Low pressure side LOW PRESSURE SIDE
Low pressure side LOW PRESSURE SIDE
Injection timing adjustment
Pump speed
r/min
1050
1050
1050
Average injection quantity
mm3/st.
85.4
84.9
85.9
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
62.5
57
68
Oil temperature
degC
48
46
50
Injection timing adjustment_03
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
83.5
78.5
88.5
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
1050
1050
1050
Average injection quantity
mm3/st.
85.4
83.9
86.9
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_05
Pump speed
r/min
1500
1500
1500
Average injection quantity
mm3/st.
93.4
86.9
99.9
Oil temperature
degC
50
48
52
Injection timing adjustment_06
Pump speed
r/min
1800
1800
1800
Average injection quantity
mm3/st.
106.5
100
113
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
2070
2070
2070
Average injection quantity
mm3/st.
39.2
36.2
42.2
Difference in delivery
mm3/st.
6.5
Basic
*
Oil temperature
degC
52
50
54
Injection quantity adjustment_02
Pump speed
r/min
2300
2300
2300
Average injection quantity
mm3/st.
5
Oil temperature
degC
52
50
54
Injection quantity adjustment_03
Pump speed
r/min
2070
2070
2070
Average injection quantity
mm3/st.
39.2
36.2
42.2
Difference in delivery
mm3/st.
6.5
Basic
*
Oil temperature
degC
52
50
54
Governor adjustment
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
9
7
11
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
9
7
11
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
104
84
124
Basic
*
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
104
84
124
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Speed control lever angle
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1000
1000
1000
Overflow quantity with S/T ON
cm3/min
700
470
930
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1000
1000
1000
Pressure with S/T ON
kPa
490
431
549
Pressure with S/T ON
kgf/cm2
5
4.4
5.6
Pressure with S/T OFF
kPa
422
393
451
Pressure with S/T OFF
kgf/cm2
4.3
4
4.6
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
Stop lever angle_02
Pump speed
r/min
700
700
700
Pressure with S/T ON
kPa
373
314
432
Pressure with S/T ON
kgf/cm2
3.8
3.2
4.4
Pressure with S/T OFF
kPa
304
255
353
Pressure with S/T OFF
kgf/cm2
3.1
2.6
3.6
Oil temperature
degC
50
48
52
Stop lever angle_03
Pump speed
r/min
900
900
900
Pressure with S/T OFF
kPa
382
333
431
Pressure with S/T OFF
kgf/cm2
3.9
3.4
4.4
Oil temperature
degC
50
48
52
Stop lever angle_04
Pump speed
r/min
1000
1000
1000
Pressure with S/T ON
kPa
490
431
549
Pressure with S/T ON
kgf/cm2
5
4.4
5.6
Pressure with S/T OFF
kPa
422
393
451
Pressure with S/T OFF
kgf/cm2
4.3
4
4.6
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
Stop lever angle_05
Pump speed
r/min
1100
1100
1100
Pressure with S/T OFF
kPa
451
402
500
Pressure with S/T OFF
kgf/cm2
4.6
4.1
5.1
Oil temperature
degC
50
48
52
Stop lever angle_06
Pump speed
r/min
1300
1300
1300
Pressure with S/T OFF
kPa
520
471
569
Pressure with S/T OFF
kgf/cm2
5.3
4.8
5.8
Oil temperature
degC
50
48
52
Stop lever angle_07
Pump speed
r/min
1500
1500
1500
Pressure with S/T OFF
kPa
579
530
628
Pressure with S/T OFF
kgf/cm2
5.9
5.4
6.4
Oil temperature
degC
50
48
52
Stop lever angle_08
Pump speed
r/min
1800
1800
1800
Pressure with S/T OFF
kPa
628
579
677
Pressure with S/T OFF
kgf/cm2
6.4
5.9
6.9
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
1000
1000
1000
Timer stroke with S/T ON
mm
3.4
2.8
4
Timer stroke with S/T OFF
mm
2
1.8
2.2
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
_02
Pump speed
r/min
900
900
900
Timer stroke with S/T OFF
mm
1.2
0.6
1.8
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1000
1000
1000
Timer stroke with S/T ON
mm
3.4
2.6
4.2
Timer stroke with S/T OFF
mm
2
1.6
2.4
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
_04
Pump speed
r/min
1300
1300
1300
Timer stroke with S/T OFF
mm
4.2
3.6
4.8
Oil temperature
degC
50
48
52
_05
Pump speed
r/min
1800
1800
1800
Timer stroke with S/T OFF
mm
4.5
3.9
5.1
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
0000001401
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
40
39.5
40.5
Timer stroke TA
mm
1.2
1.2
1.2
Timer stroke variation dT
mm
0.8
0.6
1
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
40
38
42
Timer stroke TA
mm
1.2
1.2
1.2
Timer stroke variation dT
mm
0.8
0.4
1.2
Basic
*
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
35
32
38
Timer stroke TA
mm
0.7
Timer stroke variation dT
mm
1.3
1.3
Oil temperature
degC
50
48
52
Timing setting
K dimension
mm
3.6
3.5
3.7
KF dimension
mm
7.7
7.6
7.8
MS dimension
mm
0.7
0.6
0.8
Pre-stroke
mm
0.2
0.18
0.22
Control lever angle alpha
deg.
18
14
22
Control lever angle beta
deg.
37
32
42
Test data Ex:
0000001801 POTENTIOMETER ADJUSTMENT
Adjustment of the potentiometer
Adjustment method [supply voltage Vi, dummy bolt (A)]
1. Hold the dummy bolt (A) against the control lever at position N = N1 and Q = Q1 and fix using the lock nut.
2. When adjusting the potentiometer, position the control lever to contact the dummy bolt (A).
Adjust the potentiometer so that the output voltage is V1.
3. After completing adjustment remove the dummy bolt (A). Confirm that the potentiometer output voltage is as specified at the control lever idle position and full position.
Dummy bolt and nut part number: corresponding to 146526-3300 (bolt) 42 (mm)
Corresponding to 013020-6040 (nut)
N:Pump speed
Q:Injection quantity
P:Boost pressure
V:Output voltage
C/L: control lever position
B:Adjusting point
C:Checking point
Vi:Applied voltage
I:Idling lever position
F:Full speed lever position
----------
N1=1000r/min Q1=37.9+-1.0mm3/st V1=4.40+-0.03V Vi=10V
----------
N1=1000r/min Q1=37.9+-1.0mm3/st P1=0kPa(0mmHg) V1=4.40+-0.03V V2=(1.98+-0.68V) V3=(7.90+-0.92V) Vi=10V
----------
N1=1000r/min Q1=37.9+-1.0mm3/st V1=4.40+-0.03V Vi=10V
----------
N1=1000r/min Q1=37.9+-1.0mm3/st P1=0kPa(0mmHg) V1=4.40+-0.03V V2=(1.98+-0.68V) V3=(7.90+-0.92V) Vi=10V
Information:
PROBLEM
The Diesel Particulate Filter core may fail on certain C3.4B Industrial Engines. The failures may result in loss of power and a blocked Diesel Particulate Filter.
AFFECTED PRODUCT
Model Identification Number
C3.4B CJG01859-01865, 1867, 1869-1870, 1901-1910, 1994, 2268, 2272, 2323-2324, 2364-2365, 2367-2374, 2376-2377, 2414, 2430-2439, 2441-2446, 2454-2456, 2458-2460, 2462-2463, 2482, 2529, 4411-4414, 4453-4465, 4999-5025, 5048-5050, 5069-5088, 5090-5095
CNW00578-00579, 581-587, 666, 668-674, 677, 680, 684, 708, 730-738, 740-744, 746, 748-750
PARTS NEEDED
Qty
Part Number Description
1 20R3615 KIT-FILTER (After Failure Only)
1 3793061 SEAL (After Failure Only)
1 3793064 SEAL-O-RING (After Failure Only)
1 3879343 CLIP (After Failure Only)
1 4732321 ENGINE SOFTWARE
1 4813598 FILTER AS (After Failure Only)
1 GND_WIRE_KIT Regen Interlock GND Wire Kit (See Action Required)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 26% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Before Failure:
1 - Update Engine Software, refer to Troubleshooting ? ECM Software ? Install, ensure to follow the steps to save the Engine Configuration data.
2 - Apply Carlson Service Number 14CP-013 - Regeneration Interlock Ground Wire Kit, contact a Carlson Paving Products Dealer for Kit Part Number 14CP-013.
After Failure:
1 - Refer to Steps 1 and 2 of the Before Failure actions.
2 - Service CCB Filter and replace with new filter, refer to Operation and Maintenance Manual ? Engine Crankcase Breather element ? Replace.
3 - Remove Diesel Particulate Filter, Refer to Disassembly and Assembly - Diesel Particulate Filter - Remove - wall Flow Diesel Particulate Filter.
4 - Move the Diesel Particulate Filter Assembly to a suitable work surface.
5 - Refer to Specifications - Diesel Particulate Filter (Wall Flow Diesel Particulate Filter(DPF)), remove V Band Clamps (1) and (4), carefully split assembly and remove DPF Canister element.
6 - Using new DPF Kit Filter, reassemble the Diesel Particulate Filter Assembly noting the alignment marks previously made in Step 3, refer to Specifications - Diesel Particulate Filter (Wall Flow Diesel Particulate Filter(DPF)).
7 - Reinstall the Diesel Particulate Filter assembly, Refer to Disassembly and Assembly - Diesel Particulate Filter - Install - wall Flow Diesel Particulate Filter.
8 - As the DPF has been replaced, ensure the ?DPF Replacement Reset? procedure is performed using CAT ET, refer to Troubleshooting - Service Tool Features - Components Replacement Resets.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-5000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.5-hour job
Note an additional 4.5 hours is allowed for After Failure.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Have questions with 104741-7371?
Group cross 104741-7371 ZEXEL
Komatsu
Komatsu
Tata
104741-7371
INJECTION-PUMP ASSEMBLY
JX493Q
JX493Q
