Buy 104741-7260 ZEXEL 9 460 614 194 BOSCH INJECTION-PUMP ASSEMBLY 9460614194 1047417260 6204711320




Information injection-pump assembly

BOSCH 9 460 614 194 9460614194
ZEXEL 104741-7260 1047417260
KOMATSU 6204711320 6204711320
104741-7260 INJECTION-PUMP ASSEMBLY
Rating:
51
Buy INJECTION-PUMP ASSEMBLY 104741-7260 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below
6204711320 Fuel Injection Pump Compatible with Cummins Diesel Engine B3.3 C6204711320
$742.99

30 Mar 2025

CN: TUF Parts
6204711320 Fuel Injection Pump Compatible with Cummins Diesel Engine B3.3 C6204711320
KoovDem Part Number：294000-0208 22100-E0322 || Part Name: Fuel Injection Pump || This product is designed to be compatible with Hino Diesel Engine models H06C and H07D, ensuring a seamless integration that leads to optimal performance. Whether for repair, maintenance, or upgrades, this product offers an efficient solution that is suitable for a wide range of applications. || The package includes a Fuel Injection Pump with the model number 294000-0208 and part number 22100-E0322.

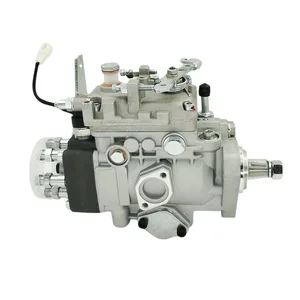

Diesel VE Fuel Injection Pump 104641-7260 104741-7260 NP-VE4/11F1300RNP2488 6204-71-1320 Compatible For KOMATSU 4D95L
$940.50

26 Feb 2025
0.1102[0.05] pounds
CN: ZhiFengDian shop
Diesel VE Fuel Injection Pump 104641-7260 104741-7260 NP-VE4/11F1300RNP2488 6204-71-1320 Compatible For KOMATSU 4D95L
VSQQGPSV Through high-precision pressure, fuel can be fully atomized, promoting complete combustion and improving fuel economy. || High precision manufacturing processes ensure the accuracy of fuel metering and injection. || Excellent design minimizes noise and vibration during operation, providing you with a quieter and more comfortable driving experience. || A good fuel injection pump is crucial for engine power, fuel efficiency, and fuel economy. || Diesel VE Fuel Injection Pump 104641-7260 104741-7260 NP-VE4/11F1300RNP2488 6204-71-1320 Compatible For KOMATSU 4D95L
Zachager Fuel Injection Pump C6204711320 6204711320 for Cummins Engine B3.3
$842.39

12 Jan 2025

US: Zachager
Zachager Fuel Injection Pump C6204711320 6204711320 for Cummins Engine B3.3
Zachager PART NUMBER: C6204711320 6204711320 || APPLICATION: For Cummins Engine B3.3 || Fuel Injection Pump works absolutely well since every item we have executed a strict quality test prior shipping.Plug and play, easy to install, you could use it directly. || Please check the specification carefully to ensure you get what you want.Our products are made of High quality durability material and excellent crafts.Proper use of the product can make the product have a longer service life || Please rest assured to buy our products, we will deliver the products to you faster. "

Components :

0. INJECTION-PUMP ASSEMBLY 104741-7260
1. _
2. FUEL INJECTION PUMP 104641-7260
3. NUMBER PLATE 146984-0500
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105119-4070
8. Nozzle and Holder
9. Open Pre:MPa(Kqf/cm2) 19.6{200}
10. NOZZLE-HOLDER 105048-4450
11. NOZZLE 105017-3450

Scheme ###:

PACKING RING
1/6. [1] 146601-1100 PACKING RING
6. [1] 146100-0120 SUPPLY PUMP
9. [1] 146103-0000 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0320 DRIVE SHAFT
12/1. [1] 146200-0300 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-1720 ROLLER SET
24. [1] 146303-0000 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0200 SLOTTED WASHER
29. [1] 146220-3420 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146300-0100 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
33. [1] 146603-0700 SHIM D17.5&7.5T0.60
34. [1] 146306-1100 COMPRESSION SPRING
35/1. [0] 146603-0700 SHIM D17.5&7.5T0.60
35/1. [0] 146603-0800 SHIM D17.5&7.5T0.70
35/1. [0] 146603-0900 SHIM D17.5&7.5T0.90
35/1. [0] 146603-1000 SHIM D17.5&7.5T1.00
35/1. [0] 146603-1100 SHIM D17.5&7.5T1.20
35/1. [0] 146603-3600 SHIM D17.5&7.5T2.40
36. [1] 146600-0800 O-RING
37. [1] 146310-0700 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-5100 COVER
40. [2] 146620-5000 BLEEDER SCREW
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM D17&5.2T2.1
48/1. [1] 146690-5900 SHIM D17&5.2T2.2
48/1. [1] 146690-6000 SHIM D17&5.2T2.3
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM D17&5.2T2.6
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM D17&5.2T2.9
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM D17&5.2T3.2
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM D17&5.2T3.4
48/1. [1] 146690-7200 SHIM D17&5.2T0.4
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM D17&5.2T0.7
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM D17&5.2T0.2
49. [2] 146234-0500 GUIDE PIN
50. [1] 146402-0820 HYDRAULIC HEAD
50. [1] 146402-0820 HYDRAULIC HEAD
50. [1] 146402-0820 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-7520 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0200 COMPRESSION SPRING
58. [4] 146440-0720 FITTING
60. [4] 139106-0100 FLAT-HEAD SCREW
67. [1] 146821-9720 GOVERNOR COVER
67/1. [1] 146508-1022 GOVERNOR COVER
67/2. [1] 146515-0220 CONTROL SHAFT
67/3. [1] 146600-0100 O-RING
67/4. [2] 139310-0200 PLAIN WASHER
67/4. [2] 139310-0200 PLAIN WASHER
67/5. [1] 146530-0000 CONTROL LEVER
67/5B. [1] 146530-0100 CONTROL LEVER
67/5C. [1] 146832-1500 CONTROL LEVER
67/5D. [1] 146832-1600 CONTROL LEVER
67/6. [2] 014110-6440 LOCKING WASHER
67/6. [2] 014110-6440 LOCKING WASHER
67/7. [1] 013020-6040 UNION NUT M6P1H5
67/8. [1] 146515-1820 LEVER SHAFT
67/9. [1] 146587-4600 COILED SPRING
67/10. [1] 146600-0200 O-RING
67/11. [1] 146602-0100 PLAIN WASHER D14&10.1T1.50
67/12. [1] 146540-1300 CONTROL LEVER
67/12B. [1] 146540-1400 CONTROL LEVER
67/13. [1] 146621-1700 UNION NUT
67/14. [1] 146621-1700 UNION NUT
67/15. [1] 146526-2800 BLEEDER SCREW
67/16. [1] 146526-2800 BLEEDER SCREW
67/18. [1] 146587-2000 COILED SPRING
67/19. [1] 146541-0000 ANGLE PIECE
67/25. [2] 013020-6040 UNION NUT M6P1H5
67/25. [2] 013020-6040 UNION NUT M6P1H5
67/26. [1] 139006-4800 BLEEDER SCREW
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-4600 THREADED PIN
67/201B. [1] 146545-4700 THREADED PIN
67/201C. [1] 146545-4800 THREADED PIN
67/202. [1] 146598-5000 UNION NUT
67/203. [1] 146600-1200 O-RING
67/204. [1] 146545-4500 DAMPER
95. [1] 146871-8820 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0520 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-2600 PLAIN WASHER D34&13T1.0
115. [1] 146976-1600 SLIDING SLEEVE
116. [1] 146576-0400 CAP
117/1. [1] 146877-0820 PLUG
117/1. [1] 146877-0920 PLUG
117/1. [1] 146877-1020 PLUG
117/1. [1] 146877-1120 PLUG
117/1. [1] 146877-1220 PLUG
117/1. [1] 146877-1320 PLUG
117/1. [1] 146877-1420 PLUG
117/1. [1] 146877-1520 PLUG
117/1. [1] 146877-1620 PLUG
117/1. [1] 146877-1720 PLUG
117/1. [1] 146877-1820 PLUG
117/1. [1] 146877-1920 PLUG
117/1. [1] 146877-2020 PLUG
117/1. [1] 146877-2120 PLUG
117/1. [1] 146877-2220 PLUG
117/1. [1] 146877-2320 PLUG
117/1. [1] 146877-2420 PLUG
117/1. [1] 146877-2520 PLUG
117/1. [1] 146877-2620 PLUG
117/1. [1] 146877-2720 PLUG
117/1. [1] 146877-2820 PLUG
117/1. [1] 146877-2920 PLUG
117/1. [1] 146877-3020 PLUG
117/1. [1] 146877-3120 PLUG
117/1. [1] 146877-3220 PLUG
117/1. [1] 146877-3320 PLUG
117/1. [1] 146877-3420 PLUG
117/1. [1] 146877-3520 PLUG
117/1. [1] 146877-3620 PLUG
117/1. [1] 146877-3720 PLUG
117/1. [1] 146877-3820 PLUG
117/1. [1] 146877-3920 PLUG
117/1. [1] 146877-4020 PLUG
117/1. [1] 146877-4120 PLUG
117/1. [1] 146877-4220 PLUG
120. [1] 146879-3120 RETAINING PIN
122. [1] 146580-3700 GOVERNOR SPRING
123. [4] 139106-0200 FLAT-HEAD SCREW
130. [1] 146421-0320 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0300 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0220 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146120-0120 OVER FLOW VALVE
137. [2] 029341-2140 GASKET
200. [1] 146206-0100 COILED SPRING
205. [1] 029470-4030 WOODRUFF KEY
240. [1] 146650-1220 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146662-1420 WIRE
243. [1] 146621-1000 UNION NUT
245. [3] 029341-2140 GASKET
246. [1] 146125-0020 EYE BOLT
248. [1] 146614-0200 SPACER BUSHING
343. [1] 146598-8320 CAP
800S. [1] 146018-9720 PUMP HOUSING
800S/1/6. [1] 146601-1100 PACKING RING
804S. [1] 146232-0320 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
821S. [1] 146210-5720 ROLLER SET
825S. [1] 146598-8120 CAP
835S. [1] 146598-7320 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
837S. [1] 146598-7310 CAP
900. [1] 146976-1620 FLYWEIGHT ASSEMBLY
906. [1] 146984-0500 NAMEPLATE

Include in #2:

104741-7260 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 614 194 9460614194
ZEXEL 104741-7260 1047417260
KOMATSU 6204711320 6204711320


Zexel num
Bosch num
Firm num
Name
104741-7260
9 460 614 194
6204711320  KOMATSU
INJECTION-PUMP ASSEMBLY
4D95L K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil   ISO4113orSAEJ967d
Test oil temperature degC   45 45 50
Nozzle   105780-0060
Bosch type code   NP-DN0SD1510
Nozzle holder   105780-2150
Opening pressure MPa   13 13 13.3
Opening pressure kgf/cm2   133 133 136
Injection pipe   157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm   2-6-450
Joint assembly   157641-4720
Tube assembly   157641-4020
Transfer pump pressure kPa   20 20 20
Transfer pump pressure kgf/cm2   0.2 0.2 0.2
Direction of rotation (viewed from drive side)
Right   R
Injection timing adjustment
Pump speed r/min   1200 1200 1200
Average injection quantity mm3/st.   63.7 63.2 64.2
Difference in delivery mm3/st.   5.5
Basic   *
Oil temperature degC   50 48 52
Injection timing adjustment_02
Pump speed r/min   500 500 500
Average injection quantity mm3/st.   52.1 48.1 56.1
Oil temperature degC   48 46 50
Injection timing adjustment_03
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   63.4 59.4 67.4
Oil temperature degC   50 48 52
Injection timing adjustment_04
Pump speed r/min   1200 1200 1200
Average injection quantity mm3/st.   63.7 62.7 64.7
Difference in delivery mm3/st.   5.5
Basic   *
Oil temperature degC   50 48 52
Injection timing adjustment_05
Pump speed r/min   1300 1300 1300
Average injection quantity mm3/st.   62.4 59.4 65.4
Oil temperature degC   50 48 52
Injection quantity adjustment
Pump speed r/min   1400 1400 1400
Average injection quantity mm3/st.   32 27.5 32
Difference in delivery mm3/st.   7.5
Basic   *
Oil temperature degC   50 48 52
Injection quantity adjustment_02
Pump speed r/min   1500 1500 1500
Average injection quantity mm3/st.   3
Oil temperature degC   50 48 52
Injection quantity adjustment_03
Pump speed r/min   1400 1400 1400
Average injection quantity mm3/st.   32 27.5 36.5
Difference in delivery mm3/st.   7.5
Basic   *
Oil temperature degC   50 48 52
Governor adjustment
Pump speed r/min   400 400 400
Average injection quantity mm3/st.   7.7 5.7 9.7
Difference in delivery mm3/st.   2
Basic   *
Oil temperature degC   48 46 50
Governor adjustment_02
Pump speed r/min   400 400 400
Average injection quantity mm3/st.   7.7 5.2 10.2
Difference in delivery mm3/st.   2
Basic   *
Oil temperature degC   48 46 50
Timer adjustment
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   86 81 91
Basic   *
Oil temperature degC   48 46 50
Remarks
IDLE
Timer adjustment_02
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   86 81 91
Oil temperature degC   48 46 50
Remarks
IDLE
Speed control lever angle
Pump speed r/min   400 400 400
Average injection quantity mm3/st.   0 0 0
Oil temperature degC   48 46 50
Remarks
Magnet OFF at idling position
0000000901
Pump speed r/min   1300 1300 1300
Overflow quantity cm3/min   420 290 550
Oil temperature degC   50 48 52
Stop lever angle
Pump speed r/min   1300 1300 1300
Pressure kPa   422 402 442
Pressure kgf/cm2   4.3 4.1 4.5
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
Stop lever angle_02
Pump speed r/min   1300 1300 1300
Pressure kPa   422 393 451
Pressure kgf/cm2   4.3 4 4.6
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
0000001101
Pump speed r/min   1300 1300 1300
Timer stroke mm   1.9 1.7 2.1
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
_02
Pump speed r/min   1100 1100 1100
Timer stroke mm   1 0.5 1.5
Oil temperature degC   50 48 52
_03
Pump speed r/min   1300 1300 1300
Timer stroke mm   1.9 1.6 2.2
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
_04
Pump speed r/min   1425 1425 1425
Timer stroke mm   4.1 3.4 4.8
Oil temperature degC   50 48 52
0000001201
Max. applied voltage V   8 8 8
Test voltage V   13 12 14
0000001401
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   11.8 10.8 12.8
Timer stroke TA mm   1.3 1 1.6
Timer stroke variation dT mm   1.3 1.3 1.3
Basic   *
Oil temperature degC   50 48 52
Remarks
Reverse operation
_02
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   11.8 10.3 13.3
Timer stroke TA mm   1.3 0.9 1.7
Timer stroke variation dT mm   1.3 1.3 1.3
Basic   *
Oil temperature degC   50 48 52
Remarks
Reverse operation
_03
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   8 6 10
Timer stroke TA mm   2 2
Timer stroke variation dT mm   2 2
Oil temperature degC   50 48 52
Remarks
Reverse operation
Timing setting
K dimension mm   2.8 2.7 2.9
KF dimension mm   5 4.9 5.1
MS dimension mm   1.8 1.7 1.9
Pre-stroke mm   0.45 0.43 0.47
Control lever angle alpha deg.   16 12 20
Control lever angle beta deg.   32 27 37

Test data Ex:

0000001801 STOP LEVER ADJUSTMENT

Test data 104741-7260
Adjustment of the stop lever (A) Nut for adjusting starting injection quantity (B) Starting injection quantity adjusting bolt (C) Starting injection quantity adjusting lever (D) Adjusting position: L Adjust the bolt (B) so that the starting injection quantity is as specified, then fix using the locknut. (Tighten to torque T.)
----------
L=7~13(mm) T=6~9(Nm)(0.6~0.9(kgfm))
----------
L=7~13mm T=6~9N-m(0.6~0.9kgf-m)




Information:

Start By:a. remove rocker shaft and push rods Valve guide seals for the inlet valves and O-ring seals for the exhaust valves can be removed without removal of the cylinder head by use of the method shown. Pressure air is used to hold the valves in position while the valve springs and retainers are removed. Use an old fuel injection nozzle to make an air chuck adapter. 1. Remove the fuel injection nozzle assembly, and put the piston on TDC (top dead center) for the respective cylinder for which the valve stem seal and O-ring seals are to be removed.2. Install air chuck adapter (2). Fasten a pressure air source to pressurize the cylinder.3. Use tooling (A) to compress the valve springs. Use magnet bar (1) to hold the keepers.4. Remove tool (A), and remove the valve springs and retainer. 5. Remove exhaust valve O-ring seal (3) and inlet valve guide seal (4).
Do not release air pressure in the cylinder until the valve springs and retainer have been installed. Failure to do so will let the valve fall into the top of the piston. If the piston is not at TDC (top dead center) the valve can fall into the cylinder making cylinder head removal necessary.
Install Valve Guide Seals
1. Install spring seating washer (1). 2. Put clean engine oil on the part of valve guide seal (2) that makes contact with the valve stem. Install valve guide seal (2).
The closed coil of the spring must be toward the cylinder rod.
3. Put inner and outer springs (4) and retainer (3) in position.
The locks can be thrown from the valve when the compressor is released if they are not in their correct position on the valve stem.
4. Use tool (A) to compress the valve springs so the keepers can be installed.5. Use tool (B) to install the keepers.6. Repeat Steps 1-4 for O-ring seals (5) on the exhaust valve.7. Move the piston off T.D.C. (top dead center) and tap the valve spring retainer with a soft hammer to be sure the retainers are properly seated.8. Install the fuel injection nozzle assembly.End By:a. install rocker shaft and push rods

Have questions with 104741-7260?





Group cross 104741-7260 ZEXEL

104741-7200

104741-7201
9 460 614 118

INJECTION-PUMP ASSEMBLY

Komatsu

104741-7201
9 460 614 474
6205711160
INJECTION-PUMP ASSEMBLY
S4D95L

Tata

104741-7230
9 460 614 098

INJECTION-PUMP ASSEMBLY
JX493ZQ
104741-7250
9 460 614 475

INJECTION-PUMP ASSEMBLY
JX493ZQ

Komatsu

104741-7260
9 460 614 194
6204711320
INJECTION-PUMP ASSEMBLY
4D95L
104741-7270

104741-7271
9 460 614 195

INJECTION-PUMP ASSEMBLY

Komatsu

104741-7271
9 460 614 476
6205711360
INJECTION-PUMP ASSEMBLY
S4D95L
104741-7280
9 460 614 196

INJECTION-PUMP ASSEMBLY
JX493ZQ

Tata

104741-7280

104741-7281
9 460 614 196

INJECTION-PUMP ASSEMBLY
JX493ZQ
104741-7281
9 460 614 965

INJECTION-PUMP ASSEMBLY
JX493ZQ
Back to top
