Buy 104741-4870 ZEXEL 9 460 614 143 BOSCH INJECTION-PUMP ASSEMBLY 9460614143 1047414870 167007t612




Information injection-pump assembly

BOSCH 9 460 614 143 9460614143
ZEXEL 104741-4870 1047414870
NISSAN-DIESEL 167007T612 167007t612
104741-4870 INJECTION-PUMP ASSEMBLY
Rating:
68
Buy INJECTION-PUMP ASSEMBLY 104741-4870 zexel genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below

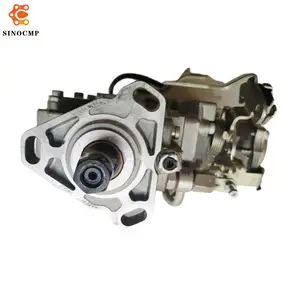

Fuel Injector Pump 196000-51721 16700-7T612 Compatible For Nissan QD32T 3.2L Fuel Supply System Accessories
$1,685.74

10 Jun 2025
0.1102[0.05] pounds
CN: Xulansa shop
Fuel Injector Pump 196000-51721 16700-7T612 Compatible For Nissan QD32T 3.2L Fuel Supply System Accessories
KVZJITSX Easy installation: Equipped with complete installation accessories and detailed installation guides, even non professionals can quickly complete the installation, making it easy for you to replace without any worries || Durable: Strictly selected production materials, coupled with exquisite manufacturing techniques, have excellent wear resistance, effectively extend service life, and provide long-lasting and stable power support for your car || Precise fuel injection: The fuel injector adopts advanced fuel injection technology, which can accurately control the fuel injection amount, burn more fully, significantly improve power, and effectively improve fuel utilization efficiency || Original factory replacement: The fuel injector is strictly matched with original factory data, and the plug is plug and play, without the need for computer calibration. Comes with a special sealing ring and O-ring for excellent oil leakage prevention design || Fuel Injector Pump 196000-51721 16700-7T612 Compatible For Nissan QD32T 3.2L Fuel Supply System Accessories
IMELBUFF 196000-5172 16700-7T612 16700-2S620 VE Fuel Injection Pump for Nissan QD32T 3.2L 80kW Turbo Diesel Engine
$969.90

10 Jun 2025

CN: IMELBUFF Excavator P
IMELBUFF 196000-5172 16700-7T612 16700-2S620 VE Fuel Injection Pump for Nissan QD32T 3.2L 80kW Turbo Diesel Engine
IMELBUFF 🚜Part Number: 16700-7T613 196000-5162 16700-2S620 || 🚜Engine Model: for Nissan QD32T 3.2L 80kW Engine || 🚜Pump Model: VE4/11F1800RND517 || 🚜Warm Tips: If you are not sure that the pump is suitable for your vehicle, please send us email with your vehicle engine model and fuel pump part number || 🚜Service: 6-months-warranty and 24 hour support for customer service. Please feel free to contact us by email if you have any question with the product
196000-51721 16700-7T612 16700-2S620 VE4 Fuel Injection Pump for Nissan QD32T 3.2L 80kw Engine
$969.90

10 Jun 2025

HK: HIRINTOL-shop
196000-51721 16700-7T612 16700-2S620 VE4 Fuel Injection Pump for Nissan QD32T 3.2L 80kw Engine
HIRINTOL 🔸Replace Part Number: 196000-51721, 16700-7T612, 16700-2S620, VE4/11F1800RND517 || 🔸Engine Model: for Nissan QD32T 3.2L 80kw Engine || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions. || 🔸Easy Installation: standard interface design, easy installation, plug and play, no professional skills required.

You can express buy:

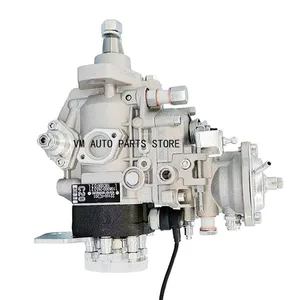

196000-5172 196000-5570 Diesel Injection VE Fuel Pump 16700-7T612 QD32T engine VE fuel pump diesel VE pump
USD 450
14-06-2025
196000-5172 196000-5570 Diesel Injection VE Fuel Pump 16700-7T612 QD32T engine VE fuel pump diesel VE pump
196000-5172 196000-5570 Diesel Injection VE Fuel Pump 16700-7T612 QD32T engine VE fuel pump diesel VE pump
USD 486.85
14-06-2025
196000-5172 196000-5570 Diesel Injection VE Fuel Pump 16700-7T612 QD32T engine VE fuel pump diesel VE pump

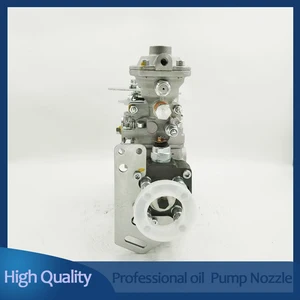

Fuel Injector Pump 196000-51721 16700-7T612 For Nissan QD32T 3.2L Fuel Supply System Accessories
USD 1032.2
14-06-2025
Fuel Injector Pump 196000-51721 16700-7T612 For Nissan QD32T 3.2L Fuel Supply System Accessories
Images:
USD 441
Diesel VE Fuel Injection Pump 104641-4870 104741-4870 NP-VE4/11F1800RNP2479 167007T612 For NISSAN QD32T
[13-May-2025]
USD 411.63
196000-5172 16700-7T612 16700-2S620 Engine Parts Diesel Fuel Injection Pump For Nissan DONGFENG CHAOYANG TRACK
[13-May-2025]
USD 411.63
196000-5172 196000-5570 Diesel Injection VE Fuel Pump 16700-7T612 QD32T engine VE fuel pump diesel VE pump
[13-May-2025]

Components :

0. INJECTION-PUMP ASSEMBLY 104741-4870
1. _
2. FUEL INJECTION PUMP 104641-4870
3. NUMBER PLATE
4. _
5. CAPSULE
6. ADJUSTING DEVICE
7. NOZZLE AND HOLDER ASSY 105148-1221
8. Nozzle and Holder 16600-63G01
9. Open Pre:MPa(Kqf/cm2) 9.8{100}
10. NOZZLE-HOLDER 105078-0050
11. NOZZLE 105007-1210

Scheme ###:

PACKING RING
1/6. [1] 146601-0900 PACKING RING
6. [1] 146100-0420 SUPPLY PUMP
9. [1] 146103-0100 COVER
10. [2] 139104-0000 FLAT-HEAD SCREW
12. [1] 146200-0020 DRIVE SHAFT
12/1. [1] 146200-0000 DRIVE SHAFT
12/2. [1] 146201-0000 WOODRUFF KEY
12/3. [2] 146202-0100 DAMPER
12/4. [1] 146203-0000 TOOTHED GEAR
17. [1] 146204-0000 PLAIN WASHER
20. [1] 146210-2320 ROLLER SET
24. [1] 146303-0100 BEARING PIN
25. [1] 146304-0000 BEARING PIN
26. [1] 146305-0000 CLAMPING BAND
27. [1] 146205-0000 SLOTTED WASHER
29. [1] 146220-4520 CAM PLATE
30. [1] 146600-0800 O-RING
31. [1] 146311-6020 PUMP PLUNGER
32. [1] 146301-0000 SLIDING PIECE
34. [1] 146312-6500 COMPRESSION SPRING
34B. [1] 146312-6600 COMPRESSION SPRING
34C. [1] 146312-5200 COMPRESSION SPRING
35/1. [1] 146690-3200 SHIM D11.5&9.4T0.1
35/1. [1] 146690-3300 SHIM D11.5&9.4T0.2
35/1. [1] 146690-3400 SHIM D11.5&9.4T0.25
35/1. [1] 146690-3500 SHIM D11.5&9.4T1.0
35/1. [1] 146690-4100 SHIM D11.5&9.4T2
35/1. [1] 146690-4200 SHIM D11.5&9.4T0.5
35/1. [1] 146690-4300 SHIM D11.5&9.4T0.75
36. [1] 146600-0800 O-RING
37. [1] 146310-4020 COVER
38. [2] 146620-5000 BLEEDER SCREW
39. [1] 146310-5100 COVER
40. [2] 146620-5000 BLEEDER SCREW
41. [1] 146312-5300 COMPRESSION SPRING
43. [1] 146230-0000 SHIM
44. [1] 146230-0100 PLAIN WASHER
45. [1] 146231-0001 SLOTTED WASHER
47. [2] 146233-0000 SLOTTED WASHER
48/1. [1] 146603-0000 SHIM D17.0&5.2T0.50
48/1. [1] 146603-0100 SHIM D17.0&5.2T0.80
48/1. [1] 146603-0200 SHIM D17.0&5.2T1.00
48/1. [1] 146603-0300 SHIM D17.0&5.2T1.20
48/1. [1] 146603-0400 SHIM D17.0&5.2T1.50
48/1. [1] 146603-0500 SHIM D17.0&5.2T1.80
48/1. [1] 146603-0600 SHIM D17.0&5.2T2.00
48/1. [1] 146690-1400 SHIM D17&5.2T0.9
48/1. [1] 146690-1500 SHIM D17&5.2T1.1
48/1. [1] 146690-1600 SHIM D17&5.2T1.3
48/1. [1] 146690-1700 SHIM D17&5.2T1.4
48/1. [1] 146690-1800 SHIM D17&5.2T1.6
48/1. [1] 146690-1900 SHIM D17&5.2T1.7
48/1. [1] 146690-5800 SHIM D17&5.2T2.1
48/1. [1] 146690-5900 SHIM D17&5.2T2.2
48/1. [1] 146690-6000 SHIM D17&5.2T2.3
48/1. [1] 146690-6100 SHIM D17&5.2T2.4
48/1. [1] 146690-6200 SHIM D17&5.2T2.5
48/1. [1] 146690-6300 SHIM D17&5.2T2.6
48/1. [1] 146690-6400 SHIM D17&5.2T2.7
48/1. [1] 146690-6500 SHIM D17&5.2T2.8
48/1. [1] 146690-6600 SHIM D17&5.2T2.9
48/1. [1] 146690-6700 SHIM D17&5.2T3.0
48/1. [1] 146690-6800 SHIM D17&5.2T3.1
48/1. [1] 146690-6900 SHIM D17&5.2T3.2
48/1. [1] 146690-7000 SHIM D17&5.2T3.3
48/1. [1] 146690-7100 SHIM D17&5.2T3.4
48/1. [1] 146690-7200 SHIM D17&5.2T0.4
48/1. [1] 146690-7300 SHIM D17&5.2T0.6
48/1. [1] 146690-7400 SHIM D17&5.2T0.7
48/1. [1] 146690-7500 SHIM D17&5.2T1.9
48/1. [1] 146690-7800 SHIM D17&5.2T0.2
49. [2] 146234-0600 GUIDE PIN
50. [1] 146401-4220 HYDRAULIC HEAD
50. [1] 146401-4220 HYDRAULIC HEAD
50. [1] 146401-4220 HYDRAULIC HEAD
51. [1] 146600-0000 O-RING
52/1. [1] 146420-0000 SHIM D9.5&3.0T1.90
52/1. [1] 146420-0100 SHIM D9.5&3.0T1.92
52/1. [1] 146420-0200 SHIM D9.5&3.0T1.94
52/1. [1] 146420-0300 SHIM D9.5&3.0T1.96
52/1. [1] 146420-0400 SHIM D9.5&3.0T1.98
52/1. [1] 146420-0500 SHIM D9.5&3.0T2.00
52/1. [1] 146420-0600 SHIM D9.5&3.0T2.02
52/1. [1] 146420-0700 SHIM D9.5&3.0T2.04
52/1. [1] 146420-0800 SHIM D9.5&3.0T2.06
52/1. [1] 146420-0900 SHIM D9.5&3.0T2.08
52/1. [1] 146420-1000 SHIM D9.5&3.0T2.10
52/1. [1] 146420-1100 SHIM D9.5&3.0T2.12
52/1. [1] 146420-1200 SHIM D9.5&3.0T2.14
52/1. [1] 146420-1300 SHIM D9.5&3.0T2.16
52/1. [1] 146420-1400 SHIM D9.5&3.0T2.18
52/1. [1] 146420-1500 SHIM D9.5&3.0T2.20
52/1. [1] 146420-1600 SHIM D9.5&3.0T2.22
52/1. [1] 146420-1700 SHIM D9.5&3.0T2.24
52/1. [1] 146420-1800 SHIM D9.5&3.0T2.26
52/1. [1] 146420-1900 SHIM D9.5&3.0T2.28
52/1. [1] 146420-2000 SHIM D9.5&3.0T2.30
52/1. [1] 146420-2100 SHIM D9.5&3.0T2.32
52/1. [1] 146420-2200 SHIM D9.5&3.0T2.34
52/1. [1] 146420-2300 SHIM D9.5&3.0T2.36
52/1. [1] 146420-2400 SHIM D9.5&3.0T2.38
52/1. [1] 146420-2500 SHIM D9.5&3.0T2.40
52/1. [1] 146420-2600 SHIM D9.5&3.0T2.42
52/1. [1] 146420-2700 SHIM D9.5&3.0T2.44
52/1. [1] 146420-2800 SHIM D9.5&3.0T2.46
52/1. [1] 146420-2900 SHIM D9.5&3.0T2.48
52/1. [1] 146420-3000 SHIM D9.5&3.0T2.50
52/1. [1] 146420-3100 SHIM D9.5&3.0T2.52
52/1. [1] 146420-3200 SHIM D9.5&3.0T2.54
52/1. [1] 146420-3300 SHIM D9.5&3.0T2.56
52/1. [1] 146420-3400 SHIM D9.5&3.0T2.58
52/1. [1] 146420-3500 SHIM D9.5&3.0T2.60
52/1. [1] 146420-3600 SHIM D9.5&3.0T2.62
52/1. [1] 146420-3700 SHIM D9.5&3.0T2.64
52/1. [1] 146420-3800 SHIM D9.5&3.0T2.66
52/1. [1] 146420-3900 SHIM D9.5&3.0T2.68
52/1. [1] 146420-4000 SHIM D9.5&3.0T2.70
52/1. [1] 146420-4100 SHIM D9.5&3.0T2.72
52/1. [1] 146420-4200 SHIM D9.5&3.0T2.74
52/1. [1] 146420-4300 SHIM D9.5&3.0T2.76
52/1. [1] 146420-4400 SHIM D9.5&3.0T2.78
52/1. [1] 146420-4500 SHIM D9.5&3.0T2.80
52/1. [1] 146420-4600 SHIM D9.5&3.0T2.82
52/1. [1] 146420-4700 SHIM D9.5&3.0T2.84
52/1. [1] 146420-4800 SHIM D9.5&3.0T2.86
52/1. [1] 146420-4900 SHIM D9.5&3.0T2.88
52/1. [1] 146420-5000 SHIM D9.5&3.0T2.90
52/1. [1] 146420-5100 SHIM D9.5&3.0T1.74
52/1. [1] 146420-5200 SHIM D9.5&3.0T1.76
52/1. [1] 146420-5300 SHIM D9.5&3.0T1.78
52/1. [1] 146420-5400 SHIM D9.5&3.0T1.80
52/1. [1] 146420-5500 SHIM D9.5&3.0T1.82
52/1. [1] 146420-5600 SHIM D9.5&3.0T1.84
52/1. [1] 146420-5700 SHIM D9.5&3.0T1.86
52/1. [1] 146420-5800 SHIM D9.5&3.0T1.88
54. [4] 146433-0100 GASKET D12&6.4T1.00
55. [4] 146430-7320 DELIVERY-VALVE ASSEMBLY
56. [4] 146432-0200 COMPRESSION SPRING
58. [4] 146440-0720 FITTING
60. [3] 139106-0100 FLAT-HEAD SCREW
67. [1] 146701-9120 MANIFOLD-PRESSURE COMP.
67/1. [1] 146805-3720 GOVERNOR COVER
67/2. [1] 146515-2520 CONTROL SHAFT
67/3. [1] 146600-0100 O-RING
67/4. [1] 139310-0200 PLAIN WASHER
67/5. [1] 146536-7021 CONTROL LEVER
67/5B. [1] 146536-7121 CONTROL LEVER
67/5C. [1] 146832-8920 CONTROL LEVER
67/5D. [1] 146832-9020 CONTROL LEVER
67/6. [1] 014110-6440 LOCKING WASHER
67/7. [1] 013020-6040 UNION NUT M6P1H5
67/14. [1] 146621-1700 UNION NUT
67/16. [1] 146526-3000 BLEEDER SCREW
67/18. [1] 146592-6000 COILED SPRING
67/19. [1] 146541-3000 BUSHING
67/21. [1] 146592-6100 COILED SPRING
67/22. [1] 146541-3100 SLOTTED WASHER
67/31. [1] 146710-0800 BUSHING
67/32. [1] 146711-0000 PLATE
67/33. [1] 139218-0400 UNION NUT
67/34. [1] 146712-1700 BEARING PIN
67/35. [1] 146621-0300 UNION NUT
67/36. [1] 146600-1400 O-RING
67/37. [1] 146710-1400 BUSHING
67/38. [1] 139506-0200 GASKET D8.9&6.8T1.00
67/39. [1] 146620-0300 CAPSULE
67/40. [1] 026512-1540 GASKET D15.4&12.2T1.50
67/41. [1] 146713-4100 ADJUSTING PIN
67/42. [2] 146714-0000 PLATE
67/43. [1] 146715-0000 DIAPHRAGM
67/44. [1] 139306-0100 LOCKING WASHER
67/45. [1] 013030-6040 UNION NUT M6P1H3.6
67/46. [1] 146716-0000 UNION NUT
67/47. [1] 146717-3300 COILED SPRING
67/48/1. [1] 146720-0000 SPACER BUSHING L3.7
67/48/1. [1] 146720-0100 SPACER BUSHING L3.9
67/48/1. [1] 146720-0200 SPACER BUSHING L4.1
67/48/1. [1] 146720-0300 SPACER BUSHING L4.3
67/48/1. [1] 146720-0400 SPACER BUSHING L4.5
67/48/1. [1] 146720-0500 SPACER BUSHING L4.7
67/48/1. [1] 146720-0600 SPACER BUSHING L4.9
67/48/1. [1] 146720-0700 SPACER BUSHING L5.1
67/48/1. [1] 146720-0800 SPACER BUSHING L5.3
67/48/1. [1] 146720-0900 SPACER BUSHING L2.7
67/48/1. [1] 146720-1000 SPACER BUSHING L2.9
67/48/1. [1] 146720-1100 SPACER BUSHING L3.1
67/48/1. [1] 146720-1200 SPACER BUSHING L3.3
67/48/1. [1] 146720-1300 SPACER BUSHING L3.5
67/48/1. [1] 146720-1400 SPACER BUSHING L2.8
67/48/1. [1] 146720-1500 SPACER BUSHING L3.0
67/48/1. [1] 146720-1600 SPACER BUSHING L3.2
67/48/1. [1] 146720-1700 SPACER BUSHING L3.4
67/48/1. [1] 146720-1800 SPACER BUSHING L3.6
67/48/1. [1] 146720-1900 SPACER BUSHING L3.8
67/48/1. [1] 146720-2000 SPACER BUSHING L4.0
67/48/1. [1] 146720-2100 SPACER BUSHING L4.2
67/48/1. [1] 146720-2200 SPACER BUSHING L4.4
67/48/1. [1] 146720-2300 SPACER BUSHING L4.6
67/48/1. [1] 146720-2400 SPACER BUSHING L4.8
67/48/1. [1] 146720-2500 SPACER BUSHING L5.0
67/48/1. [1] 146720-2600 SPACER BUSHING L5.2
67/48/1. [1] 146720-2700 SPACER BUSHING L5.4
67/48/1. [1] 146720-2800 SPACER BUSHING L5.5
67/48/1. [1] 146720-2900 SPACER BUSHING L5.6
67/48/1. [1] 146720-4500 SPACER BUSHING L1.8
67/48/1. [1] 146720-4600 SPACER BUSHING L1.9
67/48/1. [1] 146720-4700 SPACER BUSHING L2.0
67/48/1. [1] 146720-4800 SPACER BUSHING L2.1
67/48/1. [1] 146720-4900 SPACER BUSHING L2.2
67/48/1. [1] 146720-5000 SPACER BUSHING L2.3
67/48/1. [1] 146720-5100 SPACER BUSHING L2.4
67/48/1. [1] 146720-5200 SPACER BUSHING L2.5
67/48/1. [1] 146720-5300 SPACER BUSHING L2.6
67/48/1. [1] 146725-2500 SPACER BUSHING L5.7
67/48/1. [1] 146725-2600 SPACER BUSHING L5.8
67/48/1. [1] 146725-2700 SPACER BUSHING L5.9
67/48/1. [1] 146725-2800 SPACER BUSHING L6.0
67/48/1. [1] 146725-2900 SPACER BUSHING L6.1
67/48/1. [1] 146725-3000 SPACER BUSHING L6.2
67/48/1. [1] 146725-3100 SPACER BUSHING L6.3
67/48/1. [1] 146725-3200 SPACER BUSHING L6.4
67/48/1. [1] 146725-3300 SPACER BUSHING L6.5
67/48/1. [1] 146725-3400 SPACER BUSHING L6.6
67/48/1. [1] 146725-3500 SPACER BUSHING L6.7
67/48/1. [1] 146725-3600 SPACER BUSHING L6.8
67/48/1. [1] 146725-3700 SPACER BUSHING L6.9
67/48/1. [1] 146725-3800 SPACER BUSHING L7.0
67/48/1. [1] 146725-3900 SPACER BUSHING L7.1
67/48/1. [1] 146725-4000 SPACER BUSHING L7.2
67/48/1. [1] 146725-4100 SPACER BUSHING L7.3
67/48/1. [1] 146725-4200 SPACER BUSHING L7.4
67/48/1. [1] 146725-4300 SPACER BUSHING L7.5
67/49. [1] 146721-4020 COVER
67/50. [1] 146722-0200 FLAT-HEAD SCREW
67/51. [1] 146600-0300 O-RING
67/53. [1] 013020-6040 UNION NUT M6P1H5
67/54. [4] 139006-4500 BLEEDER SCREW
67/56. [1] 146723-0300 CONTROL LEVER
67/57. [1] 146712-0100 BEARING PIN
67/58. [2] 146620-0600 CAPSULE
67/59. [2] 026506-1040 GASKET D9.9&6.2T1
67/60. [1] 146724-0300 ELEMENT
67/61. [1] 146724-0600 CAPSULE
67/78. [1] 146600-4400 SEAL RING
67/200. [1] 139308-0300 PLAIN WASHER
67/201. [1] 146545-3400 THREADED PIN L53.00
67/201B. [1] 146545-3500 THREADED PIN L55.00
67/201C. [1] 146545-3600 THREADED PIN L57.00
67/202. [1] 139208-0900 UNION NUT
67/203. [1] 146600-1200 O-RING
95. [1] 146871-7820 FULCRUM LEVER
104. [2] 146568-0000 SLOTTED SPRING PIN
105. [2] 026508-1140 GASKET D11.4&8.2T1
106. [2] 146588-0500 COILED SPRING
107. [1] 146569-0300 UNION NUT
108. [1] 146570-0420 GOVERNOR SHAFT
109. [1] 146600-0400 O-RING
110/1. [1] 146571-0000 SHIM D20.2&8.3T1.05
110/1. [1] 146571-0100 SHIM D20.2&8.3T1.25
110/1. [1] 146571-0200 SHIM D20.2&8.3T1.45
110/1. [1] 146571-0300 SHIM D20.2&8.3T1.65
110/1. [1] 146571-0400 SHIM D20.2&8.3T1.85
110/1. [1] 146571-0500 SHIM D20.2&8.3T1.15
110/1. [1] 146571-0600 SHIM D20.2&8.3T1.35
110/1. [1] 146571-0700 SHIM D20.2&8.3T1.55
110/1. [1] 146571-0800 SHIM D20.2&8.3T1.75
111. [1] 146602-0600 PLAIN WASHER D20&8.4T1.40
112. [1] 146572-0020 FLYWEIGHT ASSEMBLY
114. [1] 146602-0500 PLAIN WASHER D17&6.4T1.60
115. [1] 146975-5400 SLIDING SLEEVE
116. [1] 146576-0200 CAP
117/1. [1] 146577-1800 PLUG L2.10
117/1. [1] 146577-1900 PLUG L2.30
117/1. [1] 146577-2000 PLUG L2.50
117/1. [1] 146577-2100 PLUG L2.70
117/1. [1] 146577-2200 PLUG L2.90
117/1. [1] 146577-2300 PLUG L3.10
117/1. [1] 146577-2400 PLUG L3.30
117/1. [1] 146577-2500 PLUG L3.50
117/1. [1] 146577-2600 PLUG L3.70
117/1. [1] 146577-2700 PLUG L3.90
117/1. [1] 146577-2800 PLUG L4.10
117/1. [1] 146577-2900 PLUG L4.30
117/1. [1] 146577-3000 PLUG L4.50
117/1. [1] 146577-3100 PLUG L4.70
117/1. [1] 146577-3200 PLUG L4.90
117/1. [1] 146577-3300 PLUG L5.10
117/1. [1] 146577-6700 PLUG L2.2
117/1. [1] 146577-6800 PLUG L2.4
117/1. [1] 146577-6900 PLUG L2.6
117/1. [1] 146577-7000 PLUG L2.8
117/1. [1] 146577-7100 PLUG L3.0
117/1. [1] 146577-7200 PLUG L3.2
117/1. [1] 146577-7300 PLUG L3.4
117/1. [1] 146577-7400 PLUG L3.6
117/1. [1] 146577-7500 PLUG L3.8
117/1. [1] 146577-7600 PLUG L4.0
117/1. [1] 146577-7700 PLUG L4.2
117/1. [1] 146577-7800 PLUG L4.4
117/1. [1] 146577-7900 PLUG L4.6
117/1. [1] 146577-8000 PLUG L4.8
117/1. [1] 146577-8100 PLUG L5.0
117/1. [1] 146877-0000 PLUG L5.2
117/1. [1] 146877-0100 PLUG L5.3
117/1. [1] 146877-0200 PLUG L5.4
117/1. [1] 146877-0300 PLUG L5.5
117/1. [1] 146877-4700 PLUG
117/1. [1] 146877-4800 PLUG
117/1. [1] 146877-4900 PLUG
117/1. [1] 146877-5000 PLUG
120. [1] 146879-1420 RETAINING PIN
122. [1] 146580-0400 GOVERNOR SPRING
123. [4] 146620-0500 HEX-SOCKET-HEAD CAP SCREW
130. [1] 146421-0020 CAPSULE
130/2. [1] 026508-1140 GASKET D11.4&8.2T1
130/3. [1] 146422-0000 BLEEDER SCREW
130/4. [1] 146600-0500 O-RING
133. [1] 146600-0600 O-RING
134. [1] 146600-0700 O-RING
135. [1] 146110-0920 CONTROL VALVE
135/5. [1] 146114-0000 SPRING WASHER
136. [1] 146650-6320 PULLING ELECTROMAGNET
137. [2] 139514-0200 GASKET
145. [1] 146621-4901 UNION NUT
147. [1] 146600-5000 O-RING
200. [1] 146206-0100 COILED SPRING
224. [1] 146927-2700 BRACKET
230. [1] 146934-4620 BRACKET
231. [1] 139006-4600 BLEEDER SCREW
236. [1] 139006-4800 BLEEDER SCREW
237. [1] 146620-0200 HEX-SOCKET-HEAD CAP SCREW
240. [1] 146650-0720 PULLING ELECTROMAGNET
240/8. [1] 146600-1700 O-RING
242. [1] 146662-7720 WIRE
243. [1] 146621-4901 UNION NUT
244. [1] 020118-1440 BLEEDER SCREW
245. [2] 139512-0500 GASKET
246. [1] 027412-2440 EYE BOLT
247. [1] 146677-5620 PIPE
247. [1] 146677-5620 PIPE
251. [1] 014010-8140 PLAIN WASHER D18&8.5T1.6
308. [1] 146659-5600 CLAMPING BAND
351. [1] 146125-0101 FILTER
352. [1] 146125-0200 COILED SPRING
800S. [1] 146018-0420 PUMP HOUSING
800S/1/6. [1] 146601-0900 PACKING RING
804S. [1] 146232-1520 COMPRESSION SPRING
805S. [1] 146574-0120 PARTS SET
810S. [1] 146600-1120 REPAIR SET
812S. [1] 146600-1920 PARTS SET
821S. [1] 146210-5720 ROLLER SET
835S. [1] 146598-1000 CAP
836S/1. [1] 146598-0600 CAP L18
836S/1. [1] 146598-0700 CAP L21
836S/1. [1] 146598-0800 CAP L24
836S/1. [1] 146598-0900 CAP L27
906. [1] 146984-0100 NAMEPLATE

Include in #2:

104741-4870 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 460 614 143 9460614143
ZEXEL 104741-4870 1047414870
NISSAN-DIESEL 167007T612 167007t612


Zexel num
Bosch num
Firm num
Name
104741-4870
9 460 614 143
167007T612  NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
QD32T K 11CJ INJECTION PUMP ASSY VE4 VE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil   ISO4113orSAEJ967d
Test oil temperature degC   45 45 50
Nozzle   105780-0060
Bosch type code   NP-DN0SD1510
Nozzle holder   105780-2150
Opening pressure MPa   13 13 13.3
Opening pressure kgf/cm2   133 133 136
Injection pipe   157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm   2-6-450
Joint assembly   157641-4720
Tube assembly   157641-4020
Transfer pump pressure kPa   20 20 20
Transfer pump pressure kgf/cm2   0.2 0.2 0.2
Direction of rotation (viewed from drive side)
Right   R
Injection timing adjustment
Pump speed r/min   1000 1000 1000
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   47.6 47.1 48.1
Basic   *
Oil temperature degC   50 48 52
Remarks
NA
Injection timing adjustment_02
Pump speed r/min   1000 1000 1000
Boost pressure kPa   29.3 28 30.6
Boost pressure kgf/cm2   0.3 0.286 0.314
Boost pressure mmHg   220 210 230
Average injection quantity mm3/st.   51.7 51.2 52.2
Basic   *
Oil temperature degC   50 48 52
Remarks
CBS
Injection timing adjustment_03
Pump speed r/min   1000 1000 1000
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   56.8 56.3 57.3
Difference in delivery mm3/st.   4.5
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
Injection timing adjustment_04
Pump speed r/min   500 500 500
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   47 43.5 50.5
Oil temperature degC   48 46 50
Injection timing adjustment_05
Pump speed r/min   1000 1000 1000
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   47.6 46.6 48.6
Basic   *
Oil temperature degC   50 48 52
Remarks
NA
Injection timing adjustment_06
Pump speed r/min   1000 1000 1000
Boost pressure kPa   29.3 28 30.6
Boost pressure kgf/cm2   0.3 0.286 0.314
Boost pressure mmHg   220 210 230
Average injection quantity mm3/st.   51.7 50.7 52.7
Basic   *
Oil temperature degC   50 48 52
Remarks
CBS
Injection timing adjustment_07
Pump speed r/min   1000 1000 1000
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   56.8 55.8 57.8
Difference in delivery mm3/st.   5
Basic   *
Oil temperature degC   50 48 52
Remarks
Full
Injection timing adjustment_08
Pump speed r/min   1500 1500 1500
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   58 54 62
Oil temperature degC   50 48 52
Injection timing adjustment_09
Pump speed r/min   1800 1800 1800
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   64.7 60.7 68.7
Oil temperature degC   50 48 52
Injection quantity adjustment
Pump speed r/min   2350 2350 2350
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   24.6 22.6 26.6
Basic   *
Oil temperature degC   52 50 54
Injection quantity adjustment_02
Pump speed r/min   2600 2600 2600
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   5
Oil temperature degC   55 52 58
Injection quantity adjustment_03
Pump speed r/min   2350 2350 2350
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   24.6 22.1 27.1
Basic   *
Oil temperature degC   52 50 54
Governor adjustment
Pump speed r/min   350 350 350
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   10.3 8.3 12.3
Difference in delivery mm3/st.   2
Basic   *
Oil temperature degC   48 46 50
Governor adjustment_02
Pump speed r/min   350 350 350
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   10.3 7.8 12.8
Difference in delivery mm3/st.   2.5
Basic   *
Oil temperature degC   48 46 50
Timer adjustment
Pump speed r/min   100 100 100
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   90 75 110
Basic   *
Oil temperature degC   48 46 50
Remarks
Full
Timer adjustment_02
Pump speed r/min   100 100 100
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   90 75 110
Oil temperature degC   48 46 50
Remarks
Full
Speed control lever angle
Pump speed r/min   350 350 350
Boost pressure kPa   0 0 0
Boost pressure kgf/cm2   0 0 0
Boost pressure mmHg   0 0 0
Average injection quantity mm3/st.   0 0 0
Oil temperature degC   48 46 50
Remarks
Magnet OFF at idling position
0000000901
Pump speed r/min   1500 1500 1500
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Overflow quantity with S/T ON cm3/min   460 330 590
Oil temperature degC   50 48 52
Stop lever angle
Pump speed r/min   1500 1500 1500
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Pressure with S/T ON kPa   696 657 735
Pressure with S/T ON kgf/cm2   7.1 6.7 7.5
Pressure with S/T OFF kPa   598 569 627
Pressure with S/T OFF kgf/cm2   6.1 5.8 6.4
Basic   *
Oil temperature degC   50 48 52
Remarks
OFF
Stop lever angle_02
Pump speed r/min   1500 1500 1500
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Pressure with S/T OFF kPa   598 559 637
Pressure with S/T OFF kgf/cm2   6.1 5.7 6.5
Basic   *
Oil temperature degC   50 48 52
Remarks
OFF
Stop lever angle_03
Pump speed r/min   1800 1800 1800
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Pressure with S/T OFF kPa   667 608 726
Pressure with S/T OFF kgf/cm2   6.8 6.2 7.4
Oil temperature degC   50 48 52
0000001101
Pump speed r/min   1500 1500 1500
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Timer stroke with S/T ON mm   6.4 6 6.8
Timer stroke with S/T OFF mm   4.9 4.7 5.1
Basic   *
Oil temperature degC   50 48 52
Remarks
OFF
_02
Pump speed r/min   750 750 750
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Timer stroke with S/T OFF mm   1 1 1
Oil temperature degC   50 48 52
_03
Pump speed r/min   1000 1000 1000
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Timer stroke with S/T OFF mm   2.3 1.8 2.8
Oil temperature degC   50 48 52
_04
Pump speed r/min   1500 1500 1500
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Timer stroke with S/T ON mm   6.4 5.9 6.9
Timer stroke with S/T OFF mm   4.9 4.6 5.2
Basic   *
Oil temperature degC   50 48 52
Remarks
OFF
_05
Pump speed r/min   1800 1800 1800
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Timer stroke with S/T OFF mm   6 5.5 6.5
Oil temperature degC   50 48 52
0000001201
Max. applied voltage V   8 8 8
Test voltage V   13 12 14
0000001401
Pump speed r/min   1800 1800 1800
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   53 52.5 53.5
Timer stroke TA mm   5.5 5.5 5.5
Timer stroke variation dT mm   0.5 0.3 0.7
Basic   *
Oil temperature degC   50 48 52
Remarks
OFF
_02
Pump speed r/min   1800 1800 1800
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   53 52 54
Timer stroke TA mm   5.5 5.5 5.5
Timer stroke variation dT mm   0.5 0.2 0.8
Basic   *
Oil temperature degC   50 48 52
Remarks
OFF
_03
Pump speed r/min   1800 1800 1800
Boost pressure kPa   66.7 65.4 68
Boost pressure kgf/cm2   0.68 0.666 0.694
Boost pressure mmHg   500 490 510
Average injection quantity mm3/st.   42 39.5 44.5
Timer stroke TA mm   5 5 5
Timer stroke variation dT mm   1 0.5 1.5
Oil temperature degC   50 48 52
Timing setting
K dimension mm   3.3 3.2 3.4
KF dimension mm   5.62 5.52 5.72
MS dimension mm   0.9 0.8 1
BCS stroke mm   1.6 1.4 1.8
Pre-stroke mm   0.1 0.08 0.12
Control lever angle alpha deg.   55.5 51.5 59.5
Control lever angle beta deg.   36 31 41




Information:

The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Program must be administered as soon as possible. When reporting the repair, use "PI3841" as the Part Number, "7751" as the Group Number, "56" as the Warranty Claim Description Code and "T" as the SIMS Description Code. Exception: If the repair is done after failure, use "PI3841" as the Part Number, "7751" as the Group Number, "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
Completion Date
July 31, 1996Termination Date
January 31, 1997Problem
Shot peening on some 3500 Diesel Cylinder Heads extends too far into the injector bore. This may cause the top injector o-ring to be cut or torn on installation.
Affected Product
Model & Identification Number
777C (4XJ844, 4XJ846-872, 4XJ879, 4XJ883, 4XJ885)
785B (6HK483-489)
789B (7EK355-364, 7EK367)
793B (1HL359-367)
3512 (1LM67-73 4WJ649 )
3512B (8RM126-129 4TN40 )
3516 (4XF605, 4XF606 5SJ392-397 2PK918 )
3516B (8CN134 8KN69 , 8KN70 7RN253-259 )
Parts Needed
Dealers will need to order parts for this Program.
1 - 8J8725 Seal-O-Ring (per cylinder)1 - 8T7767 Wheel-Level (per engine)1 - 8T7768 Mandrel (per engine)Action Required
1. Remove the valve cover, rocker arm assembly and fuel injector.2. Inspect the top injector o-ring seal for damage. If damaged, polish the upper injector bore area using an 8T7767 Polishing Wheel and an 8T7768 Mandrel. Install a new 8J8725 O-Ring Seal on each injector.3. Install the injector using clean engine oil in the injector bore and on the o-rings.4. Install rocker arm assembly and reset valves and injector. Install valve covers.Owner Notification
U.S. and Canadian owners will receive the attached Owner Notification.
Service Claim Allowances
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
MAKE EVERY EFFORT TO COMPLETE THIS PROGRAM AS SOON AS POSSIBLE.
Attach.(1-Owner Notification)Copy Of Owner Notification For U.s. And Canadian Owners
