104740-6161 ZEXEL 9 460 614 004 BOSCH INJECTION-PUMP ASSEMBLY 9460614004 1047406161 8972007551

Information injection-pump assembly

BOSCH 9 460 614 004 9460614004

ZEXEL 104740-6161 1047406161

ISUZU 8972007551 8972007551

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104740-6161 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104740-6161
1.	_
2.	FUEL INJECTION PUMP	104640-6161
3.	NUMBER PLATE	146978-3100
4.	_
5.	CAPSULE	146620-0120
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105158-2172
8.	Nozzle and Holder	8-94460-004-1
9.	Open Pre:MPa(Kqf/cm2)	14.7{150}
10.	NOZZLE-HOLDER	105088-1090
11.	NOZZLE	105007-1080

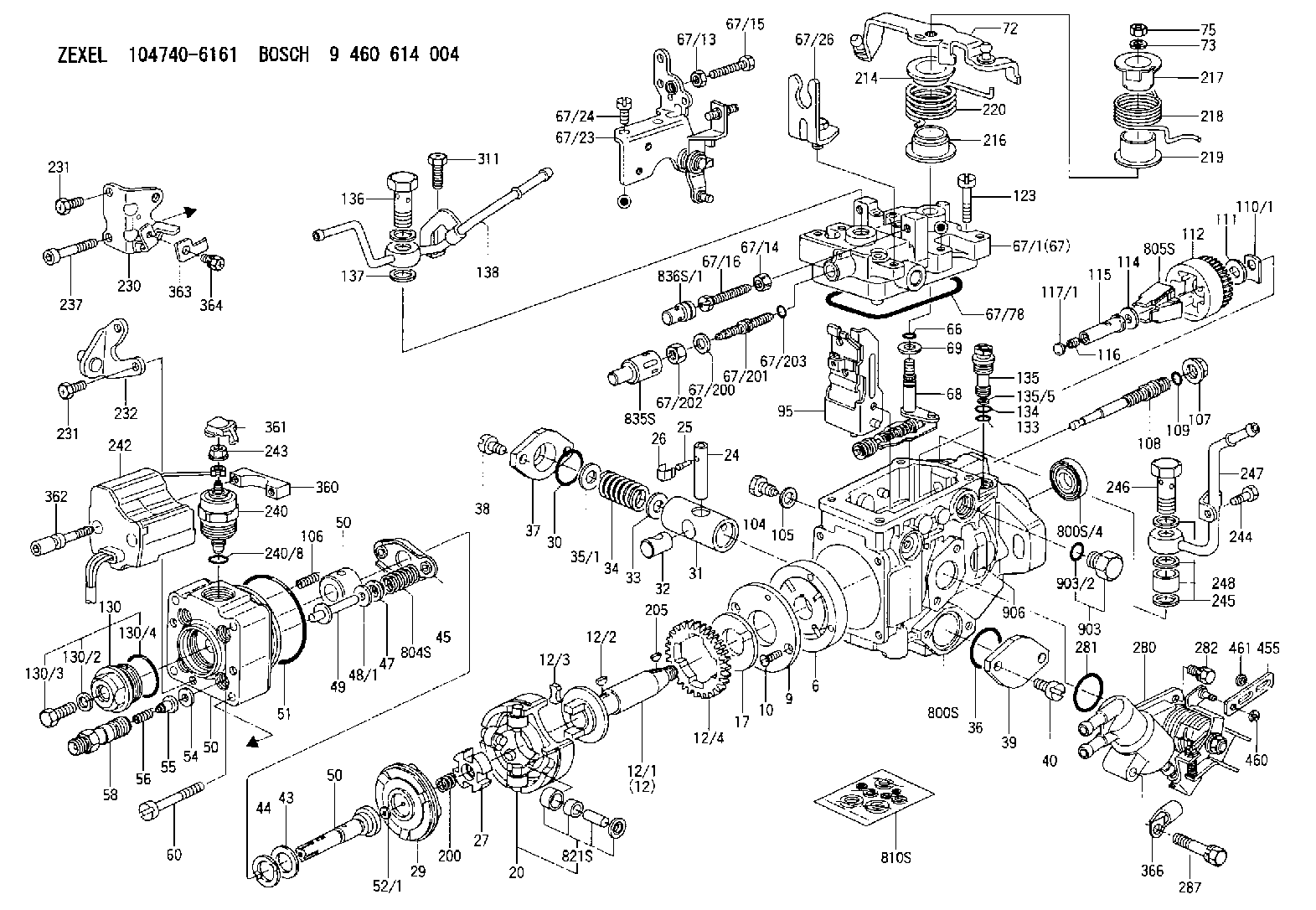

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-1620	DRIVE SHAFT
12/1.	[1]	146200-0500	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-1921	ROLLER SET
24.	[1]	146303-0100	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-5120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-2100	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3600	COMPRESSION SPRING
34B.	[1]	146302-3500	COMPRESSION SPRING
34C.	[1]	146306-0200	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146403-7620	HYDRAULIC HEAD
50.	[1]	146403-7620	HYDRAULIC HEAD
50.	[1]	146403-7620	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0320	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0700	COMPRESSION SPRING
58.	[4]	146440-0120	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146504-1820	GOVERNOR COVER
67/1.	[1]	146806-2620	GOVERNOR COVER
67/13.	[1]	013020-6040	UNION NUT M6P1H5
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-2800	BLEEDER SCREW
67/16.	[1]	146526-2800	BLEEDER SCREW
67/23.	[1]	146933-1720	BRACKET
67/24.	[2]	139006-4700	BLEEDER SCREW
67/26.	[1]	146925-0720	BRACKET
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146810-5220	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146832-1120	CONTROL LEVER
72B.	[1]	146832-1220	CONTROL LEVER
72C.	[1]	146832-5020	CONTROL LEVER
72D.	[1]	146832-5120	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146861-6620	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-5800	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0920	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-1520	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146669-7120	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	146201-0100	WOODRUFF KEY
214.	[1]	146542-5000	BUSHING
216.	[1]	146542-5100	BUSHING
217.	[1]	146541-3100	SLOTTED WASHER
218.	[1]	146592-8900	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-9400	COILED SPRING
230.	[1]	146932-9421	BRACKET
231.	[3]	139006-4800	BLEEDER SCREW
231.	[3]	139006-4800	BLEEDER SCREW
232.	[1]	146933-6120	BRACKET
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146688-0120	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	407911-1392	CONTROL UNIT
243.	[1]	146621-4901	UNION NUT
244.	[1]	139006-4400	BLEEDER SCREW
245.	[3]	139512-0500	GASKET
246.	[1]	146125-0020	EYE BOLT
247.	[1]	146668-1120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
280.	[1]	146361-4520	START ADVANCE ASSY
281.	[1]	146600-0800	O-RING
282.	[1]	020306-1240	BLEEDER SCREW
287.	[1]	020106-3540	BLEEDER SCREW
311.	[1]	139006-4400	BLEEDER SCREW
360.	[1]	146663-1700	BUSHING
361.	[1]	146649-8900	CAP
362.	[2]	146620-8403	BLEEDER SCREW
363.	[1]	146932-7200	PLATE
364.	[1]	020105-0940	BLEEDER SCREW
366.	[1]	146659-5200	CLAMPING BAND
455.	[1]	146549-4720	RACK
460.	[2]	016010-0440	LOCKING WASHER
461.	[1]	014010-4140	PLAIN WASHER D10&4.5T0.8
800S.	[1]	146018-1921	PUMP HOUSING
800S/4.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146620-0120	CAPSULE
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146978-3100	NAMEPLATE

Include in #2:

104740-6161 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104740-6161

9 460 614 004

8972007551 ISUZU

INJECTION-PUMP ASSEMBLY
4EE1 K 11CJ INJECTION PUMP ASSY VE4 VE

Information:

Caterpillar Diesel Engines can operate effectively in cold weather. However, engine operation in cold weather is dependent on the type of fuel used and how well the fuel moves through fuel related components. The purpose of this section is to explain some of the problems and steps that can be taken to minimize fuel problems during cold weather operation, when the engine area is colder than 5°C (40°F).Radiator Restrictions
Caterpillar discourages the use of air flow restriction devices mounted in front of radiators with air-to-air aftercooled engines. Air flow restriction can cause higher exhaust temperatures, power loss, excessive fan usage, and a reduction in fuel economy.If an air flow restriction device must be used, the device should have a permanent opening directly in line with the fan hub. The device must have a minimum opening dimension of at least 770 cm2 (120 in2).A centered opening, directly in line with the fan hub, is specified to provide sensing when viscous fan drives are used and/or to prevent an interrupted air flow on the fan blades. Interrupted air flow on the fan blades could cause a fan failure.Caterpillar recommends that a package include an intake manifold temperature device, such as a light indicator, buzzer, etc., set at 65°C (150°F) and/or installation of an inlet air temperature gauge. For the ATAAC engines, air temperature in the intake manifold should not exceed 65°C (150°F). Temperatures exceeding this limit can cause power loss and potential engine damage.This temperature provides engine protection for full restriction device closure. This temperature can also serve as a diagnostic tool for a malfunction of the charge air cooling system. It is not anticipated that a temperature of 65°C (150°F) will be encountered under normal operating conditions.Fuel and the Effect from Cold Weather
The two types of diesel fuel available for your engine are typically grades No. 1 and No.2. No. 2 diesel fuel is the most commonly used fuel. No. 1 diesel fuel, or a blend of No. 1 and No. 2, is best suited for cold weather operation.Quantities of No. 1 diesel fuel are limited, and generally only available during the winter months in the colder climates. During cold weather operation, if No. 1 fuel is unavailable, it may be necessary to use No. 2 diesel fuel.There are three major differences between No. 1 and No. 2 diesel fuel. No. 1 diesel fuel has:* a lower cloud point* a lower pour point* a lower BTU (kJ) (heat content) rating per unit volume of fuel than the average No. 2 diesel fuel.When using No. 1 diesel fuel, you may notice a drop in power and fuel efficiency. You should not experience any other operating effects.The cloud point is the temperature at which a cloud or haze of wax crystals begins to form in the fuel and cause fuel filters to plug. The pour point is the temperature which diesel fuel begins to thicken and be more resistant to flow through fuel pumps and lines.Be aware of these fuel values when
