104740-6143 ZEXEL 9 460 613 973 BOSCH INJECTION-PUMP ASSEMBLY 9460613973 1047406143 8971433281

Information injection-pump assembly

BOSCH 9 460 613 973 9460613973

ZEXEL 104740-6143 1047406143

ISUZU 8971433281 8971433281

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104740-6143 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104740-6143
1.	_
2.	FUEL INJECTION PUMP	104640-6143
3.	NUMBER PLATE	146978-3000
4.	_	146672-7420
5.	CAPSULE
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105158-2172
8.	Nozzle and Holder	8-94460-004-1
9.	Open Pre:MPa(Kqf/cm2)	14.7{150}
10.	NOZZLE-HOLDER	105088-1090
11.	NOZZLE	105007-1080

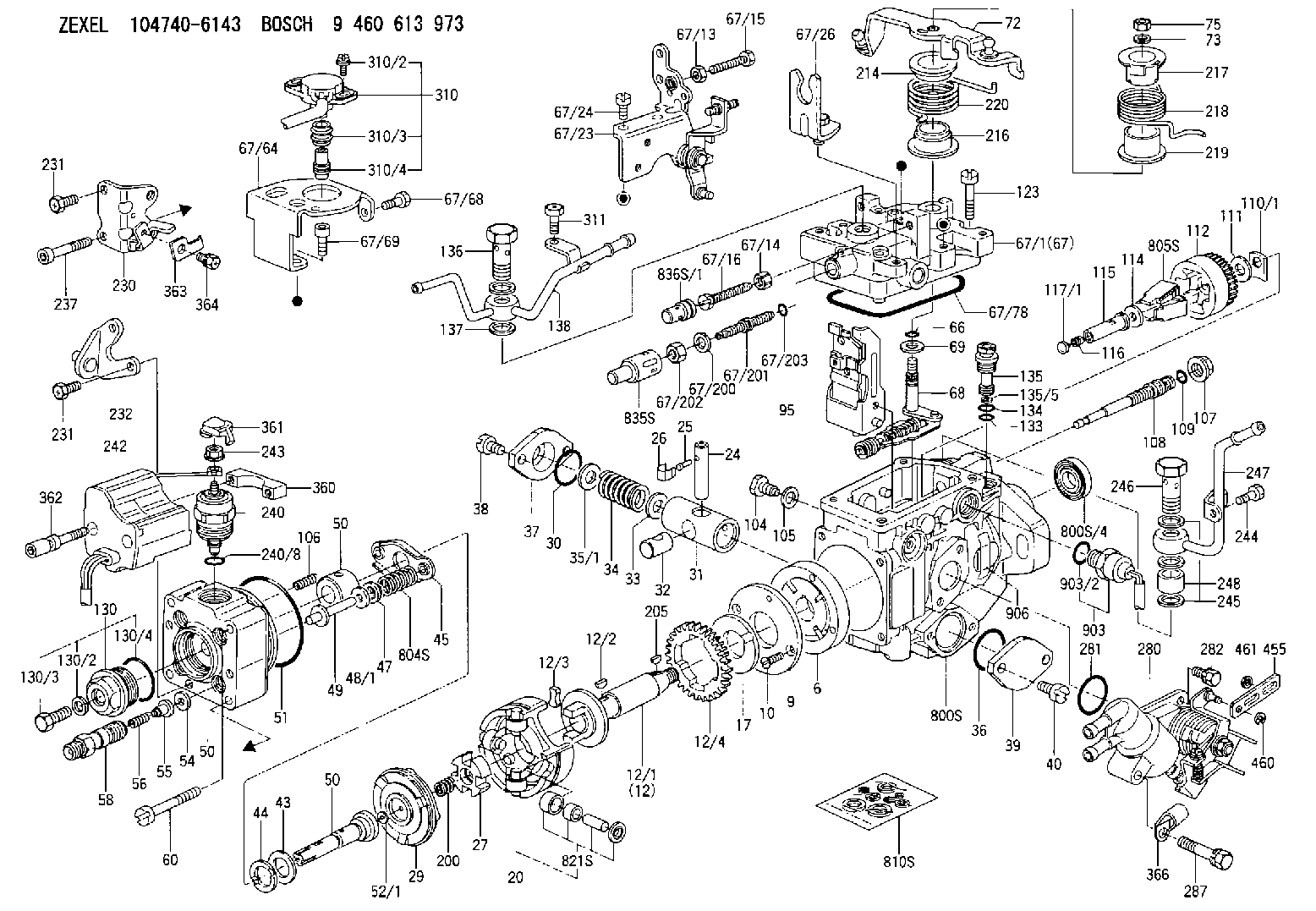

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-1620	DRIVE SHAFT
12/1.	[1]	146200-0500	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-1921	ROLLER SET
24.	[1]	146303-0100	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-5120	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-2100	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM D17.5&7.5T0.60
34.	[1]	146302-3600	COMPRESSION SPRING
34B.	[1]	146302-3500	COMPRESSION SPRING
34C.	[1]	146306-0200	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[1]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[1]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[1]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[1]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[1]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[1]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[1]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[1]	146690-1400	SHIM D17&5.2T0.9
48/1.	[1]	146690-1500	SHIM D17&5.2T1.1
48/1.	[1]	146690-1600	SHIM D17&5.2T1.3
48/1.	[1]	146690-1700	SHIM D17&5.2T1.4
48/1.	[1]	146690-1800	SHIM D17&5.2T1.6
48/1.	[1]	146690-1900	SHIM D17&5.2T1.7
48/1.	[1]	146690-5800	SHIM D17&5.2T2.1
48/1.	[1]	146690-5900	SHIM D17&5.2T2.2
48/1.	[1]	146690-6000	SHIM D17&5.2T2.3
48/1.	[1]	146690-6100	SHIM D17&5.2T2.4
48/1.	[1]	146690-6200	SHIM D17&5.2T2.5
48/1.	[1]	146690-6300	SHIM D17&5.2T2.6
48/1.	[1]	146690-6400	SHIM D17&5.2T2.7
48/1.	[1]	146690-6500	SHIM D17&5.2T2.8
48/1.	[1]	146690-6600	SHIM D17&5.2T2.9
48/1.	[1]	146690-6700	SHIM D17&5.2T3.0
48/1.	[1]	146690-6800	SHIM D17&5.2T3.1
48/1.	[1]	146690-6900	SHIM D17&5.2T3.2
48/1.	[1]	146690-7000	SHIM D17&5.2T3.3
48/1.	[1]	146690-7100	SHIM D17&5.2T3.4
48/1.	[1]	146690-7200	SHIM D17&5.2T0.4
48/1.	[1]	146690-7300	SHIM D17&5.2T0.6
48/1.	[1]	146690-7400	SHIM D17&5.2T0.7
48/1.	[1]	146690-7500	SHIM D17&5.2T1.9
48/1.	[1]	146690-7800	SHIM D17&5.2T0.2
49.	[2]	146234-0500	GUIDE PIN
50.	[1]	146403-7620	HYDRAULIC HEAD
50.	[1]	146403-7620	HYDRAULIC HEAD
50.	[1]	146403-7620	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET D12&6.4T1.00
55.	[4]	146430-0320	DELIVERY-VALVE ASSEMBLY
56.	[4]	146432-0700	COMPRESSION SPRING
58.	[4]	146440-0120	FITTING
60.	[3]	139106-0100	FLAT-HEAD SCREW
66.	[1]	146600-0100	O-RING
67.	[1]	146504-0020	GOVERNOR COVER
67/1.	[1]	146806-2620	GOVERNOR COVER
67/13.	[1]	013020-6040	UNION NUT M6P1H5
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-2800	BLEEDER SCREW
67/16.	[1]	146526-2800	BLEEDER SCREW
67/23.	[1]	146933-1720	BRACKET
67/24.	[2]	139006-4700	BLEEDER SCREW
67/26.	[1]	146925-0720	BRACKET
67/64.	[1]	146933-1800	BRACKET
67/68.	[1]	139006-4400	BLEEDER SCREW
67/69.	[2]	010206-1040	HEX-SOCKET-HEAD CAP SCREW
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
68.	[1]	146810-5220	CONTROL SHAFT
69.	[1]	139310-0200	PLAIN WASHER
72.	[1]	146832-1120	CONTROL LEVER
72B.	[1]	146832-1220	CONTROL LEVER
72C.	[1]	146832-5020	CONTROL LEVER
72D.	[1]	146832-5120	CONTROL LEVER
73.	[1]	014110-6440	LOCKING WASHER
75.	[1]	013020-6040	UNION NUT M6P1H5
95.	[1]	146861-6620	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0420	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER D20&8.4T1.40
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-0500	PLAIN WASHER D17&6.4T1.60
115.	[1]	146975-5800	SLIDING SLEEVE
116.	[1]	146576-0200	CAP
117/1.	[1]	146577-1800	PLUG L2.10
117/1.	[1]	146577-1900	PLUG L2.30
117/1.	[1]	146577-2000	PLUG L2.50
117/1.	[1]	146577-2100	PLUG L2.70
117/1.	[1]	146577-2200	PLUG L2.90
117/1.	[1]	146577-2300	PLUG L3.10
117/1.	[1]	146577-2400	PLUG L3.30
117/1.	[1]	146577-2500	PLUG L3.50
117/1.	[1]	146577-2600	PLUG L3.70
117/1.	[1]	146577-2700	PLUG L3.90
117/1.	[1]	146577-2800	PLUG L4.10
117/1.	[1]	146577-2900	PLUG L4.30
117/1.	[1]	146577-3000	PLUG L4.50
117/1.	[1]	146577-3100	PLUG L4.70
117/1.	[1]	146577-3200	PLUG L4.90
117/1.	[1]	146577-3300	PLUG L5.10
117/1.	[1]	146577-6700	PLUG L2.2
117/1.	[1]	146577-6800	PLUG L2.4
117/1.	[1]	146577-6900	PLUG L2.6
117/1.	[1]	146577-7000	PLUG L2.8
117/1.	[1]	146577-7100	PLUG L3.0
117/1.	[1]	146577-7200	PLUG L3.2
117/1.	[1]	146577-7300	PLUG L3.4
117/1.	[1]	146577-7400	PLUG L3.6
117/1.	[1]	146577-7500	PLUG L3.8
117/1.	[1]	146577-7600	PLUG L4.0
117/1.	[1]	146577-7700	PLUG L4.2
117/1.	[1]	146577-7800	PLUG L4.4
117/1.	[1]	146577-7900	PLUG L4.6
117/1.	[1]	146577-8000	PLUG L4.8
117/1.	[1]	146577-8100	PLUG L5.0
117/1.	[1]	146877-0000	PLUG L5.2
117/1.	[1]	146877-0100	PLUG L5.3
117/1.	[1]	146877-0200	PLUG L5.4
117/1.	[1]	146877-0300	PLUG L5.5
117/1.	[1]	146877-4700	PLUG
117/1.	[1]	146877-4800	PLUG
117/1.	[1]	146877-4900	PLUG
117/1.	[1]	146877-5000	PLUG
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0920	CONTROL VALVE
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-1520	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146668-0920	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	146201-0100	WOODRUFF KEY
214.	[1]	146542-5000	BUSHING
216.	[1]	146542-5100	BUSHING
217.	[1]	146541-3100	SLOTTED WASHER
218.	[1]	146592-8900	COILED SPRING
219.	[1]	146541-3000	BUSHING
220.	[1]	146592-9400	COILED SPRING
230.	[1]	146932-9421	BRACKET
231.	[3]	139006-4800	BLEEDER SCREW
231.	[3]	139006-4800	BLEEDER SCREW
232.	[1]	146933-6120	BRACKET
237.	[1]	146620-0200	HEX-SOCKET-HEAD CAP SCREW
240.	[1]	146688-0120	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	407911-1392	CONTROL UNIT
243.	[1]	146621-4901	UNION NUT
244.	[1]	139006-4400	BLEEDER SCREW
245.	[3]	139512-0500	GASKET
246.	[1]	146125-0020	EYE BOLT
247.	[1]	146668-1120	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
280.	[1]	146361-4520	START ADVANCE ASSY
281.	[1]	146600-0800	O-RING
282.	[1]	020306-1240	BLEEDER SCREW
287.	[1]	020106-3540	BLEEDER SCREW
310.	[1]	146684-8520	POTENTCIOMETER
310/2.	[2]	139104-0400	FLAT-HEAD SCREW
310/3.	[1]	146661-0601	BOOT
310/4.	[1]	146649-0400	JOINT CONNECTION
310/4B.	[1]	146649-0500	JOINT CONNECTION
310/4C.	[1]	146649-0600	JOINT CONNECTION
310/4D.	[1]	146649-0700	JOINT CONNECTION
310/4E.	[1]	146649-0800	JOINT CONNECTION
310/4F.	[1]	146649-0900	JOINT CONNECTION
310/4G.	[1]	146649-1000	JOINT CONNECTION
310/4H.	[1]	146649-1100	JOINT CONNECTION
310/4I.	[1]	146649-1200	JOINT CONNECTION
310/4J.	[1]	146649-1300	JOINT CONNECTION
310/4K.	[1]	146649-1400	JOINT CONNECTION
310/4L.	[1]	146649-1500	JOINT CONNECTION
310/4N.	[1]	146649-9300	JOINT CONNECTION
311.	[1]	139006-4400	BLEEDER SCREW
360.	[1]	146663-1700	BUSHING
361.	[1]	146649-8900	CAP
362.	[2]	146620-8403	BLEEDER SCREW
363.	[1]	146932-7200	PLATE
364.	[1]	020105-0940	BLEEDER SCREW
366.	[1]	146659-5200	CLAMPING BAND
455.	[1]	146549-4720	RACK
460.	[2]	016010-0440	LOCKING WASHER
461.	[1]	014010-4140	PLAIN WASHER D10&4.5T0.8
800S.	[1]	146018-1921	PUMP HOUSING
800S/4.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0320	COMPRESSION SPRING
805S.	[1]	146574-0120	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146672-7420	PULSE GENERATOR
903/2.	[1]	146600-1300	O-RING &13W1.9
906.	[1]	146978-3000	NAMEPLATE

Include in #2:

104740-6143 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104740-6143

9 460 613 973

8971433281 ISUZU

INJECTION-PUMP ASSEMBLY
4EE1 K 11CJ INJECTION PUMP ASSY VE4 VE

Information:

When using an external electrical source to start your engine: turn the START switch off, remove the key, and turn off all electrical accessories before attaching cables.When using jumper cables always connect the POSITIVE (+) cable to the POSITIVE (+) terminal of the battery connected to the starter solenoid. Connect the NEGATIVE (-) cable from the external source to the starter NEGATIVE (-) terminal. If not equipped with a starter NEGATIVE terminal, connect to the engine block.Do not reverse the battery cables. The alternator can be damaged. Attach the ground cable last and remove first.
1. Connect one end of the cable to the POSITIVE (+) terminal of the battery being started. Connect the other end to the POSITIVE (+) terminal of the power source.2. Connect one of the other cable to the NEGATIVE (-) terminal of the power source. Connect the other end to starter NEGATIVE (-) terminal or to the engine block. This prevents potential sparks from igniting combustible gases produced by some batteries.3. Start the engine.4. After the engine starts, disconnect the cable from the starter NEGATIVE (-) terminal or engine block. Disconnect the other end from the NEGATIVE (-) terminal of the power source.5. Disconnect the cable from the POSITIVE (+) terminal of the battery on the engine being started. Disconnect the cable from the POSITIVE (+) terminal of the power source.Air Starting
For good life of the air starting motor, the air supply must be free of dirt and water. A lubricator must be used with the starting system. Use non detergent 10W engine oil for temperatures that are greater than 0°C (32°F) or use air tool oil for lower temperatures.1. Open and close the drain valve on the bottom of the air tank to drain condensation and oil carryover.2. Check the air supply pressure. The air starting motor requires a minimum of 690 kPa (100 psi) air pressure to operate properly. The maximum air pressure must not exceed 1550 kPa (225 psi). The normal air pressure will be 758 to 965 kPa (110 to 140 psi).
Air Starter showing Air Valve (1) and Lubricator Bowl (2)3. Check the oil level in the lubricator bowl (2). Keep the bowl at least half full and add lubricant if necessary.4. Push the air valve (1) or the engine start button to crank the engine. Release the valve or button as soon as the engine starts.Cold Weather Starting Aids
Personal injury or death can result from using ether.Personal injury or property damage can result from alcohol or starting fluids. Alcohol or starting fluids are highly flammable and toxic and if improperly stored could result in injury or property damage.When using starting fluid, follow the manufacturer's instructions carefully. Use ether sparingly and spray it only while cranking the engine.Failure to follow these instructions could result in an explosion and/or fire and possible personal injury.
Excessive ether can cause piston and ring damage. Use ether for cold starting purposes only. Do not use excessive starting fluid during starting or after the engine is
