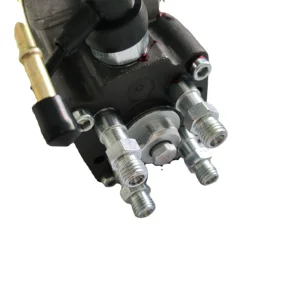

Information injection-pump assembly
BOSCH
9 460 611 552
9460611552
ZEXEL
104740-0970
1047400970

Rating:
Components :
0. | INJECTION-PUMP ASSEMBLY | 104740-0970 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104640-0970 |
3. | NUMBER PLATE | 146995-2600 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | 146679-4120 |
7. | NOZZLE AND HOLDER ASSY | 105148-1183 |
8. | Nozzle and Holder | PN40 13 H50C |
9. | Open Pre:MPa(Kqf/cm2) | 10.8{110} |
10. | NOZZLE-HOLDER | 105078-0111 |
11. | NOZZLE | 105007-1210 |
Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0720 | SUPPLY PUMP |
9. | [1] | 146103-0100 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0420 | DRIVE SHAFT |
12/1. | [1] | 146200-0400 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-5320 | ROLLER SET |
24. | [1] | 146303-0100 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-4720 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146311-7020 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
34. | [1] | 146312-2800 | COMPRESSION SPRING |
34B. | [1] | 146312-2700 | COMPRESSION SPRING |
34C. | [1] | 146312-2900 | COMPRESSION SPRING |
35/1. | [1] | 146690-3200 | SHIM D11.5&9.4T0.1 |
35/1. | [1] | 146690-3300 | SHIM D11.5&9.4T0.2 |
35/1. | [1] | 146690-3400 | SHIM D11.5&9.4T0.25 |
35/1. | [1] | 146690-3500 | SHIM D11.5&9.4T1.0 |
35/1. | [1] | 146690-4100 | SHIM D11.5&9.4T2 |
35/1. | [1] | 146690-4200 | SHIM D11.5&9.4T0.5 |
35/1. | [1] | 146690-4300 | SHIM D11.5&9.4T0.75 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-4020 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
41. | [1] | 146312-3300 | COMPRESSION SPRING |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM |
48/1. | [1] | 146690-5900 | SHIM |
48/1. | [1] | 146690-6000 | SHIM |
48/1. | [1] | 146690-6100 | SHIM |
48/1. | [1] | 146690-6200 | SHIM |
48/1. | [1] | 146690-6300 | SHIM |
48/1. | [1] | 146690-6400 | SHIM |
48/1. | [1] | 146690-6500 | SHIM |
48/1. | [1] | 146690-6600 | SHIM |
48/1. | [1] | 146690-6700 | SHIM |
48/1. | [1] | 146690-6800 | SHIM |
48/1. | [1] | 146690-6900 | SHIM |
48/1. | [1] | 146690-7000 | SHIM |
48/1. | [1] | 146690-7100 | SHIM |
48/1. | [1] | 146690-7200 | SHIM |
48/1. | [1] | 146690-7300 | SHIM |
48/1. | [1] | 146690-7400 | SHIM |
48/1. | [1] | 146690-7500 | SHIM |
48/1. | [1] | 146690-7800 | SHIM |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146403-6820 | HYDRAULIC HEAD |
50. | [1] | 146403-6820 | HYDRAULIC HEAD |
50. | [1] | 146403-6820 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-5720 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
66. | [1] | 146600-0100 | O-RING |
67. | [1] | 146703-9020 | COMPENSATOR,MANIFOLD-PRES |
67/1. | [1] | 146806-2320 | GOVERNOR COVER |
67/14. | [1] | 146621-1700 | UNION NUT |
67/16. | [1] | 146526-3000 | BLEEDER SCREW |
67/23. | [1] | 146933-6220 | BRACKET |
67/24. | [2] | 010206-2240 | HEX-SOCKET-HEAD CAP SCREW |
67/26. | [1] | 146507-0300 | ADAPTOR |
67/31. | [1] | 146710-0700 | BUSHING |
67/32. | [1] | 146711-0000 | PLATE |
67/33. | [1] | 139218-0400 | UNION NUT |
67/34. | [1] | 146712-1700 | BEARING PIN |
67/35. | [1] | 146621-0300 | UNION NUT |
67/36. | [1] | 146600-1400 | O-RING |
67/37. | [1] | 146710-0100 | BUSHING |
67/38. | [1] | 139506-0200 | GASKET D8.9&6.8T1.00 |
67/39. | [1] | 146620-0300 | CAPSULE |
67/40. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
67/41. | [1] | 146713-4500 | ADJUSTING PIN |
67/42. | [2] | 146714-0200 | PLATE |
67/43. | [1] | 146715-0300 | DIAPHRAGM |
67/44. | [1] | 139306-0100 | LOCKING WASHER |
67/45. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
67/46. | [1] | 146716-0000 | UNION NUT |
67/47. | [1] | 146717-2900 | COILED SPRING |
67/48/1. | [1] | 146720-3000 | SPACER BUSHING L3.7 |
67/48/1. | [1] | 146720-3100 | SPACER BUSHING L3.9 |
67/48/1. | [1] | 146720-3200 | SPACER BUSHING L4.1 |
67/48/1. | [1] | 146720-3300 | SPACER BUSHING L4.3 |
67/48/1. | [1] | 146720-3400 | SPACER BUSHING L4.5 |
67/48/1. | [1] | 146720-3500 | SPACER BUSHING L4.7 |
67/48/1. | [1] | 146720-3600 | SPACER BUSHING L4.9 |
67/48/1. | [1] | 146720-3700 | SPACER BUSHING L5.1 |
67/48/1. | [1] | 146720-3800 | SPACER BUSHING L5.3 |
67/48/1. | [1] | 146720-3900 | SPACER BUSHING L5.5 |
67/48/1. | [1] | 146720-4000 | SPACER BUSHING L5.7 |
67/48/1. | [1] | 146720-4100 | SPACER BUSHING L5.9 |
67/48/1. | [1] | 146720-4200 | SPACER BUSHING L6.1 |
67/48/1. | [1] | 146720-4300 | SPACER BUSHING L6.3 |
67/48/1. | [1] | 146720-4400 | SPACER BUSHING L6.5 |
67/48/1. | [1] | 146720-8900 | SPACER BUSHING L6.7 |
67/48/1. | [1] | 146720-9000 | SPACER BUSHING L6.9 |
67/48/1. | [1] | 146720-9100 | SPACER BUSHING L7.1 |
67/48/1. | [1] | 146720-9200 | SPACER BUSHING L7.3 |
67/48/1. | [1] | 146720-9300 | SPACER BUSHING L7.5 |
67/48/1. | [1] | 146720-9400 | SPACER BUSHING L7.7 |
67/48/1. | [1] | 146720-9500 | SPACER BUSHING L7.9 |
67/48/1. | [1] | 146720-9600 | SPACER BUSHING L8.1 |
67/48/1. | [1] | 146720-9700 | SPACER BUSHING L8.3 |
67/48/1. | [1] | 146720-9800 | SPACER BUSHING L8.5 |
67/48/1. | [1] | 146720-9900 | SPACER BUSHING L3.6 |
67/48/1. | [1] | 146725-0000 | SPACER BUSHING L3.8 |
67/48/1. | [1] | 146725-0100 | SPACER BUSHING L4.0 |
67/48/1. | [1] | 146725-0200 | SPACER BUSHING L4.2 |
67/48/1. | [1] | 146725-0300 | SPACER BUSHING L4.4 |
67/48/1. | [1] | 146725-0400 | SPACER BUSHING L4.6 |
67/48/1. | [1] | 146725-0500 | SPACER BUSHING L4.8 |
67/48/1. | [1] | 146725-0600 | SPACER BUSHING L5.0 |
67/48/1. | [1] | 146725-0700 | SPACER BUSHING L5.2 |
67/48/1. | [1] | 146725-0800 | SPACER BUSHING L5.4 |
67/48/1. | [1] | 146725-0900 | SPACER BUSHING L5.6 |
67/48/1. | [1] | 146725-1000 | SPACER BUSHING L5.8 |
67/48/1. | [1] | 146725-1100 | SPACER BUSHING L6.0 |
67/48/1. | [1] | 146725-1200 | SPACER BUSHING L6.2 |
67/48/1. | [1] | 146725-1300 | SPACER BUSHING L6.4 |
67/48/1. | [1] | 146725-1400 | SPACER BUSHING L6.6 |
67/48/1. | [1] | 146725-1500 | SPACER BUSHING L6.8 |
67/48/1. | [1] | 146725-1600 | SPACER BUSHING L7.0 |
67/48/1. | [1] | 146725-1700 | SPACER BUSHING L7.2 |
67/48/1. | [1] | 146725-1800 | SPACER BUSHING L7.4 |
67/48/1. | [1] | 146725-1900 | SPACER BUSHING L7.6 |
67/48/1. | [1] | 146725-2000 | SPACER BUSHING L7.8 |
67/48/1. | [1] | 146725-2100 | SPACER BUSHING L8.0 |
67/48/1. | [1] | 146725-2200 | SPACER BUSHING L8.2 |
67/48/1. | [1] | 146725-2300 | SPACER BUSHING L8.4 |
67/48/1. | [1] | 146725-2400 | SPACER BUSHING L8.6 |
67/49. | [1] | 146721-4120 | COVER |
67/50. | [1] | 146722-0200 | FLAT-HEAD SCREW |
67/51. | [1] | 146600-0300 | O-RING |
67/52. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/54. | [4] | 139006-4500 | BLEEDER SCREW |
67/54. | [4] | 139006-4500 | BLEEDER SCREW |
67/56. | [1] | 146723-0200 | CONTROL LEVER |
67/57. | [1] | 146712-0100 | BEARING PIN |
67/58. | [2] | 146620-0600 | CAPSULE |
67/59. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
67/60. | [1] | 146724-0300 | ELEMENT |
67/61. | [1] | 146724-0600 | CAPSULE |
67/64. | [1] | 146934-6600 | PLATE |
67/78. | [1] | 146600-4400 | SEAL RING |
67/100. | [1] | 146933-7000 | BRACKET |
67/108. | [1] | 146932-4001 | BRACKET |
67/109. | [1] | 010206-1240 | HEX-SOCKET-HEAD CAP SCREW M6P1L12 |
67/110. | [1] | 014020-6140 | PLAIN WASHER |
67/111. | [1] | 139006-4400 | BLEEDER SCREW |
67/112. | [1] | 014010-6140 | PLAIN WASHER D13&6.5T1 |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-4100 | THREADED PIN |
67/201B. | [1] | 146545-4200 | THREADED PIN |
67/201C. | [1] | 146545-4300 | THREADED PIN |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
68. | [1] | 146810-7020 | CONTROL SHAFT |
69. | [1] | 139310-0200 | PLAIN WASHER |
72. | [1] | 146831-6520 | CONTROL LEVER |
72B. | [1] | 146831-6620 | CONTROL LEVER |
73. | [1] | 014110-6440 | LOCKING WASHER |
75. | [1] | 146621-0700 | UNION NUT |
95. | [1] | 146861-7720 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0420 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-0500 | PLAIN WASHER D17&6.4T1.60 |
115. | [1] | 146975-5200 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
123. | [4] | 146620-0500 | HEX-SOCKET-HEAD CAP SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0920 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0020 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
138. | [1] | 146669-2420 | INLET UNION |
162. | [1] | 146625-8020 | PLATE |
200. | [1] | 146206-0100 | COILED SPRING |
205. | [1] | 146201-0100 | WOODRUFF KEY |
214. | [1] | 146542-1400 | BUSHING |
215. | [1] | 146542-1500 | BUSHING |
217. | [1] | 146542-2600 | SLOTTED WASHER |
218. | [1] | 146587-2400 | COILED SPRING |
219. | [1] | 146541-3000 | BUSHING |
220. | [1] | 146592-9000 | COILED SPRING |
221. | [1] | 146933-1020 | BRACKET |
222. | [1] | 010206-1440 | HEX-SOCKET-HEAD CAP SCREW M6P1L14 |
236. | [3] | 139006-4800 | BLEEDER SCREW |
236. | [3] | 139006-4800 | BLEEDER SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-4320 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-5720 | WIRE |
243. | [1] | 146621-1000 | UNION NUT |
244. | [1] | 010206-1040 | HEX-SOCKET-HEAD CAP SCREW |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 146125-0600 | EYE BOLT |
247. | [1] | 146667-0820 | INLET UNION |
248. | [1] | 146614-0200 | SPACER BUSHING |
251. | [1] | 146125-0101 | FILTER |
252. | [1] | 146125-0200 | COILED SPRING |
275. | [1] | 146932-8000 | BRACKET |
317. | [2] | 010206-1040 | HEX-SOCKET-HEAD CAP SCREW |
318. | [1] | 146932-8320 | BRACKET |
370. | [1] | 146663-2720 | SPACER RING |
800S. | [1] | 146018-7820 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-0720 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-2420 | REPAIR SET |
812S. | [1] | 146600-1920 | PARTS SET |
821S. | [1] | 146210-5820 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
905. | [1] | 146679-4120 | ACTUATOR |
906. | [1] | 146995-2600 | NAMEPLATE |
912. | [2] | 010206-1440 | HEX-SOCKET-HEAD CAP SCREW M6P1L14 |
924. | [1] | 146680-5620 | DAMPER |
925. | [2] | 020146-1270 | BLEEDER SCREW |
Include in #2:
104740-0970
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 611 552
9460611552
ZEXEL
104740-0970
1047400970
Zexel num
Bosch num
Firm num
Name
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Left L
Left L
Injection timing adjustment
Pump speed
r/min
750
750
750
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
47.9
47.4
48.4
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
50
48
52
Remarks
NA
NA
Injection timing adjustment_02
Pump speed
r/min
750
750
750
Boost pressure
kPa
43.3
42
44.6
Boost pressure
kgf/cm2
0.44
0.426
0.454
Boost pressure
mmHg
325
315
335
Average injection quantity
mm3/st.
64.1
63.6
64.6
Difference in delivery
mm3/st.
5.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
CBS
CBS
Injection timing adjustment_03
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
76.3
75.8
76.8
Difference in delivery
mm3/st.
6.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Injection timing adjustment_04
Pump speed
r/min
750
750
750
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
47.9
46.9
48.9
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
NA
NA
Injection timing adjustment_05
Pump speed
r/min
750
750
750
Boost pressure
kPa
43.3
42
44.6
Boost pressure
kgf/cm2
0.44
0.426
0.454
Boost pressure
mmHg
325
315
335
Average injection quantity
mm3/st.
64.1
63.1
65.1
Difference in delivery
mm3/st.
6
Basic
*
Oil temperature
degC
50
48
52
Remarks
CBS
CBS
Injection timing adjustment_06
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
76.3
75.3
77.3
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Injection timing adjustment_07
Pump speed
r/min
2000
2000
2000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
23.5
13.5
33.5
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
2450
2450
2450
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
23.5
20.5
26.5
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
55
52
58
Injection quantity adjustment_02
Pump speed
r/min
2450
2450
2450
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
23.5
13.5
33.5
Difference in delivery
mm3/st.
7.5
Basic
*
Oil temperature
degC
55
52
58
Injection quantity adjustment_03
Pump speed
r/min
2800
2800
2800
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
5
Oil temperature
degC
55
52
58
Governor adjustment
Pump speed
r/min
370
370
370
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
10.5
9.5
11.5
Difference in delivery
mm3/st.
1.7
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
370
370
370
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
10.5
9
12
Difference in delivery
mm3/st.
2.2
Basic
*
Oil temperature
degC
48
46
50
Boost compensator adjustment
Pump speed
r/min
400
400
400
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
17
15
19
Difference in delivery
mm3/st.
3
Oil temperature
degC
48
46
50
Boost compensator adjustment_02
Pump speed
r/min
400
400
400
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
17
15.5
18.5
Difference in delivery
mm3/st.
2.5
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
150
150
150
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
70
55
90
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
150
150
150
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
70
50
90
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
370
370
370
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF
Magnet OFF
Speed control lever angle_02
Pump speed
r/min
370
370
370
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF
Magnet OFF
0000000901
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Overflow quantity
cm3/min
400
270
530
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Overflow quantity
cm3/min
400
270
530
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Pressure
kPa
510
481
539
Pressure
kgf/cm2
5.2
4.9
5.5
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_02
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Pressure
kPa
510
471
549
Pressure
kgf/cm2
5.2
4.8
5.6
Basic
*
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Timer stroke
mm
4.4
4.2
4.6
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
500
500
500
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Timer stroke
mm
1.8
1
2.6
Oil temperature
degC
48
46
50
_03
Pump speed
r/min
1000
1000
1000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Timer stroke
mm
4.4
4
4.8
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
2000
2000
2000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Timer stroke
mm
9
8.2
9.8
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
0000001401
Pump speed
r/min
750
750
750
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
49
48.5
49.5
Timer stroke TA
mm
2.5
2.3
2.7
Timer stroke variation dT
mm
0.7
0.7
0.7
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
750
750
750
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
49
48
50
Timer stroke TA
mm
2.5
2.1
2.9
Basic
*
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
750
750
750
Boost pressure
kPa
80
78.7
81.3
Boost pressure
kgf/cm2
0.82
0.806
0.834
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
30
28.5
31.5
Timer stroke TA
mm
1.5
0.7
2.3
Timer stroke variation dT
mm
1.7
1.7
1.7
Oil temperature
degC
50
48
52
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
6.01
5.91
6.11
MS dimension
mm
0.9
0.8
1
BCS stroke
mm
6.8
6.6
7
Pre-stroke
mm
0.03
0.01
0.05
Control lever angle alpha
deg.
12.5
8.5
16.5
Control lever angle beta
deg.
40
34
43
Test data Ex:
0000001801 CONTROL STANDARD AT IDLING

Standards for idle difference in delivery control
After idle adjustment, measure the idle injection quantities of (A) to (D).
Install the colored rings to the delivery valve holders (A) to (D) in accordance with the table.
(A): A cylinder (B) :B cylinder (C) : C cylinder (D): D cylinder
(E): Collar ring
(F): (A) >= (C)
(G): (C) > (A)
(H): (A) - (C) or (C) - (A)
(I): 0.2, 0.1(mm3/st)
(J): (B) - (D) or (D) - (B)
(K): Ring color
(L): At least 0.6 mm3/st
(M): 0.3, 0.4, 0.5 (mm3/st)
(N): 0.2, 0.1, 0.0 (mm3/st)
(O): (B) >= (D)
(P): (D) > (B)
(T): Yellow
(U): White
(V): Red
----------
----------
----------
----------
0000001901 DASHPOT ADJUSTMENT

Adjustment of the dash pot
1. Hold the position of the control lever (A) at a (gap L).
2. In the above condition, adjust the position of the dash pot so that the tip end of the dash pot (B) contacts the control lever (A) and fix with the nut (C).
TT
D:Dash pot contact position
----------
L=8.1+-0.05mm T=6~9N-m(0.6~0.9kgf-m) a=14.1deg
----------
L=8.1+-0.05mm a=14.1deg b=12.5+-4deg
----------
L=8.1+-0.05mm T=6~9N-m(0.6~0.9kgf-m) a=14.1deg
----------
L=8.1+-0.05mm a=14.1deg b=12.5+-4deg
0000002001 WIRE

(1)Wire length confirmation
Accelerator wire: Idle-full stroke: L1 mm
(2)Idle switch confirmation
Confirm that the switch is ON in the idle lever position.
(3)2 stage lever adjustment
1. Apply negative pressure P1 kPa {P2 mmHg} to the negative pressure suction inlet.
2. Under the conditions in 1, adjust with the screw (C) so that the position of the control lever (B) becomes angle a [gap L2 from the idle screw (E)] and fix the nut (D).
T:Tightening torque
----------
L1=34.1+3.5-5.5mm L2=3.8+-0.5mm P1=-66.6kPa P2=-500mmHg a=9deg b=12.5deg+-4deg T=6~9Nm(0.6~0.9Kgfm)
----------
a=9deg b=12.5+-4deg L2=3.8+-0.5mm T=6~9Nm{0.6~0.9kgfm}
----------
L1=34.1+3.5-5.5mm L2=3.8+-0.5mm P1=-66.6kPa P2=-500mmHg a=9deg b=12.5deg+-4deg T=6~9Nm(0.6~0.9Kgfm)
----------
a=9deg b=12.5+-4deg L2=3.8+-0.5mm T=6~9Nm{0.6~0.9kgfm}
Information:
start by:a) remove valve covers and bases 1. Use tool (A) to loosen the nuts on the fuel injection valves and use tool (B) to loosen the nuts on the adapter assemblies in the cylinder head. Remove inner fuel lines (1).
If necessary, use tooling (D) to turn the engine so the valves do not make contact with the pistons when the valves are opened with tool (C) to remove the push rods.
2. Put compression on the valve springs with tool (C) and remove push rods (2).3. Push the push rod end of the rocker arms down. 4. Remove the intake valve lifter with tooling (E) as follows: a) Install the 5P2685 Nut and the 5P6601 Collet on the 5P2408 Outer Handle Assembly.b) Install the 5P6599 Inner Handle Assembly in the 5P2408 Outer Handle Assembly.c) Install tooling (E) in the intake valve lifter. Hold the 5P2408 Outer Handle Assembly and tighten the 5P6599 Inner Handle Assembly until the 5P6601 Collet is tight against the inside of intake valve lifter. d) Remove intake valve lifters (3) from the cylinder block with tooling (E). 4. Remove the exhaust valve lifters with tooling (E) as follows: a) Install 5P2685 Nut (5) and 5P6601 Collet (6) on 5P2408 Outer Handle Assembly (4). The opening in the cylinder head for the intake valve lifter is larger than the opening in the exhaust valve lifter side. The tooling and each valve lifter must be installed and removed from the intake valve lifter side. b) Install the outer handle assembly in the intake valve lifter side of the cylinder head. Slide the flat area of 5P2408 Outer Handle Assembly (4) through the head casting and install the 5P6601 Collet in the exhaust valve lifter. c) Install 5P6599 Inner Handle Assembly (7) in 5P2408 Outer Handle Assembly (4). Hold the 5P2408 Handle Assembly and tighten the 5P6599 Handle Assembly until the 5P6601 Collet is tight against the inside of exhaust valve lifter.d) Pull the exhaust valve lifter up until the spring on the exhaust valve lifter is free from the cylinder block.e) Remove the 5P6599 Inner Handle Assembly. Slide the 5P2408 Outer Handle Assembly through the head casting and remove it from the intake valve lifter side of the cylinder head. f) Use a magnet and remove exhaust valve lifter (8) from the intake valve lifter side of the cylinder head.5. Remove the guide springs from the lifters.Install Valve Lifters
Steps 1 and 2 must be done to install intake or exhaust valve lifters.
When a valve lifter is removed, a new guide spring must be installed.
1. Install a new guide spring (1) on the valve lifters. 2. Put the intake or exhaust valve lifter in position in 5P2395 Holder (5) of tooling (A). Install 5P2685 Nut (4) and 5P2400 Compressor (3) on 5P2408 Outer Handle Assembly (2). Install the 5P2400 Compressor on the lifter over the guide spring. The opening in the cylinder head for the intake valve lifter is larger than the opening in the exhaust valve
If necessary, use tooling (D) to turn the engine so the valves do not make contact with the pistons when the valves are opened with tool (C) to remove the push rods.
2. Put compression on the valve springs with tool (C) and remove push rods (2).3. Push the push rod end of the rocker arms down. 4. Remove the intake valve lifter with tooling (E) as follows: a) Install the 5P2685 Nut and the 5P6601 Collet on the 5P2408 Outer Handle Assembly.b) Install the 5P6599 Inner Handle Assembly in the 5P2408 Outer Handle Assembly.c) Install tooling (E) in the intake valve lifter. Hold the 5P2408 Outer Handle Assembly and tighten the 5P6599 Inner Handle Assembly until the 5P6601 Collet is tight against the inside of intake valve lifter. d) Remove intake valve lifters (3) from the cylinder block with tooling (E). 4. Remove the exhaust valve lifters with tooling (E) as follows: a) Install 5P2685 Nut (5) and 5P6601 Collet (6) on 5P2408 Outer Handle Assembly (4). The opening in the cylinder head for the intake valve lifter is larger than the opening in the exhaust valve lifter side. The tooling and each valve lifter must be installed and removed from the intake valve lifter side. b) Install the outer handle assembly in the intake valve lifter side of the cylinder head. Slide the flat area of 5P2408 Outer Handle Assembly (4) through the head casting and install the 5P6601 Collet in the exhaust valve lifter. c) Install 5P6599 Inner Handle Assembly (7) in 5P2408 Outer Handle Assembly (4). Hold the 5P2408 Handle Assembly and tighten the 5P6599 Handle Assembly until the 5P6601 Collet is tight against the inside of exhaust valve lifter.d) Pull the exhaust valve lifter up until the spring on the exhaust valve lifter is free from the cylinder block.e) Remove the 5P6599 Inner Handle Assembly. Slide the 5P2408 Outer Handle Assembly through the head casting and remove it from the intake valve lifter side of the cylinder head. f) Use a magnet and remove exhaust valve lifter (8) from the intake valve lifter side of the cylinder head.5. Remove the guide springs from the lifters.Install Valve Lifters
Steps 1 and 2 must be done to install intake or exhaust valve lifters.
When a valve lifter is removed, a new guide spring must be installed.
1. Install a new guide spring (1) on the valve lifters. 2. Put the intake or exhaust valve lifter in position in 5P2395 Holder (5) of tooling (A). Install 5P2685 Nut (4) and 5P2400 Compressor (3) on 5P2408 Outer Handle Assembly (2). Install the 5P2400 Compressor on the lifter over the guide spring. The opening in the cylinder head for the intake valve lifter is larger than the opening in the exhaust valve
