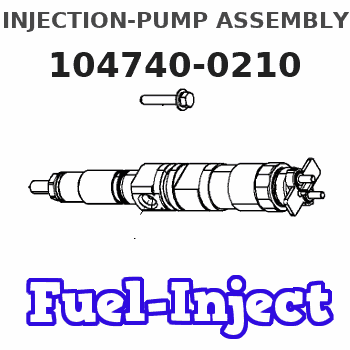

104740-0210 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1047400210 483513800

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

ZEXEL 104740-0210 1047400210

MAZDA 483513800 483513800

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104740-0210 zexel genuine, new aftermarket engine parts with delivery

Cross reference number

ZEXEL 104740-0210 1047400210

MAZDA 483513800 483513800

Zexel num

Bosch num

Firm num

Name

104740-0210
104740-0212

483513800 MAZDA

INJECTION-PUMP ASSEMBLY
NEWHA *

Calibration Data:

Adjustment conditions

(Note)
For Japan: year/month/day (change sequence) 1988/08/05 (1)

Test oil
1404 Test oil ISO4113orSAEJ967d

Test oil temperature degC 45 45 50

Nozzle 105000-2010

Bosch type code NP-DN12SD12TT

Nozzle holder 105780-2080

Opening pressure MPa 14.7 14.7 15.19

Opening pressure kgf/cm2 150 150 155

Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-840

Transfer pump pressure kPa 20 20 20

Transfer pump pressure kgf/cm2 0.2 0.2 0.2

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 54.75 54.5 55

Difference in delivery mm3/st. 3.5

Basic *

Injection timing adjustment_02

Pump speed r/min 1630 1630 1630

Average injection quantity mm3/st. 17.9 14.9 20.9

Injection timing adjustment_03

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 53.6 51.6 55.6

Injection timing adjustment_04

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 55 54 56

Injection timing adjustment_05

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 48.8 46.8 50.8

Injection timing adjustment_06

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 53.6 53.1 54.1

Difference in delivery mm3/st. 3.5

Basic *

Remarks
For Japan

Injection timing adjustment_07

Pump speed r/min 1630 1630 1630

Average injection quantity mm3/st. 17.5 14.5 20.5

Remarks
For Japan

Injection timing adjustment_08

Pump speed r/min 1500 1500 1500

Average injection quantity mm3/st. 52.3 50.3 54.3

Remarks
For Japan

Injection timing adjustment_09

Pump speed r/min 1000 1000 1000

Average injection quantity mm3/st. 53.6 52.6 54.6

Remarks
For Japan

Injection timing adjustment_10

Pump speed r/min 500 500 500

Average injection quantity mm3/st. 47.6 45.6 49.6

Remarks
For Japan

Injection quantity adjustment

Pump speed r/min 1630 1630 1630

Average injection quantity mm3/st. 17.9 15.9 19.9

Basic *

Injection quantity adjustment_02

Pump speed r/min 1670 1670 1670

Average injection quantity mm3/st. 6.2

Injection quantity adjustment_03

Pump speed r/min 1630 1630 1630

Average injection quantity mm3/st. 17.5 14.5 20.5

Basic *

Remarks
For Japan

Injection quantity adjustment_04

Pump speed r/min 1670 1670 1670

Average injection quantity mm3/st. 6

Remarks
For Japan

Governor adjustment

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 13.1 11.1 15.1

Difference in delivery mm3/st. 2.5

Basic *

Governor adjustment_02

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 13.1 11.1 15.1

Governor adjustment_03

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 12.8 10.8 14.8

Difference in delivery mm3/st. 2.5

Basic *

Remarks
For Japan

Governor adjustment_04

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 12.8 10.8 14.8

Remarks
For Japan

Timer adjustment

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 80.4 80.4

Basic *

Timer adjustment_02

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 78 78

Basic *

Remarks
For Japan

Speed control lever angle

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 0 0 0

Remarks
Magnet OFF

Speed control lever angle_02

Pump speed r/min 550 550 550

Average injection quantity mm3/st. 0 0 0

Remarks
For Japan: Magnet OFF

0000000901

Pump speed r/min 1000 1000 1000

Overflow quantity cm3/min 450 318 582

_02

Pump speed r/min 1000 1000 1000

Overflow quantity cm3/min 450 318 582

Remarks
For Japan

Stop lever angle

Pump speed r/min 1000 1000 1000

Pressure kPa 431.5 402 461

Pressure kgf/cm2 4.4 4.1 4.7

Basic *

Stop lever angle_02

Pump speed r/min 500 500 500

Pressure kPa 264.5 235 294

Pressure kgf/cm2 2.7 2.4 3

Stop lever angle_03

Pump speed r/min 1000 1000 1000

Pressure kPa 431.5 402 461

Pressure kgf/cm2 4.4 4.1 4.7

Stop lever angle_04

Pump speed r/min 1500 1500 1500

Pressure kPa 598.5 569 628

Pressure kgf/cm2 6.1 5.8 6.4

Stop lever angle_05

Pump speed r/min 1000 1000 1000

Pressure kPa 421.5 392 451

Pressure kgf/cm2 4.3 4 4.6

Basic *

Remarks
For Japan

Stop lever angle_06

Pump speed r/min 500 500 500

Pressure kPa 255 226 284

Pressure kgf/cm2 2.6 2.3 2.9

Remarks
For Japan

Stop lever angle_07

Pump speed r/min 1000 1000 1000

Pressure kPa 421.5 392 451

Pressure kgf/cm2 4.3 4 4.6

Remarks
For Japan

Stop lever angle_08

Pump speed r/min 1500 1500 1500

Pressure kPa 588.5 559 618

Pressure kgf/cm2 6 5.7 6.3

Remarks
For Japan

0000001101

Pump speed r/min 1000 1000 1000

Timer stroke mm 2.3 2.1 2.5

Basic *

_02

Pump speed r/min 1000 1000 1000

Timer stroke mm 2.3 2 2.6

_03

Pump speed r/min 1500 1500 1500

Timer stroke mm 5.3 4.7 5.9

_04

Pump speed r/min 1000 1000 1000

Timer stroke mm 2.2 2 2.4

Basic *

Remarks
For Japan

_05

Pump speed r/min 1000 1000 1000

Timer stroke mm 2.2 1.9 2.5

Remarks
For Japan

_06

Pump speed r/min 1500 1500 1500

Timer stroke mm 5.2 4.6 5.8

Remarks
For Japan

0000001201

Max. applied voltage V 8 8 8

Test voltage V 13 12 14

Timing setting

K dimension mm 3.3 3.2 3.4

KF dimension mm 5.8 5.7 5.9

MS dimension mm 1.8 1.7 1.9

Pre-stroke mm 0.2 0.18 0.22

Control lever angle alpha deg. 24 19 29

Control lever angle beta deg. 44 39 49
