Information injection-pump assembly
ZEXEL
104303-5140
1043035140
ISEKI
62156000360A
62156000360a
Rating:
Service parts 104303-5140 INJECTION-PUMP ASSEMBLY:
1.
_
3.
GOVERNOR
4.
SUPPLY PUMP
5.
AUTOM. ADVANCE MECHANIS
6.
COUPLING PLATE
7.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
6215300-0022
12.
Open Pre:MPa(Kqf/cm2)
20.6{210}
15.
NOZZLE SET
Include in #1:
104303-5140
as INJECTION-PUMP ASSEMBLY
Cross reference number
ZEXEL
104303-5140
1043035140
ISEKI
62156000360A
62156000360a
Zexel num
Bosch num
Firm num
Name
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Tester oil delivery pressure
kPa
157
157
157
Tester oil delivery pressure
kgf/cm2
1.6
1.6
1.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-3-2
Pre-stroke
mm
2.8
2.75
2.85
Beginning of injection position
Drive side NO.1
Drive side NO.1
Difference between angles 1
Cal 1-3 deg. 120 119.5 120.5
Cal 1-3 deg. 120 119.5 120.5
Difference between angles 2
Cyl.1-2 deg. 240 239.5 240.5
Cyl.1-2 deg. 240 239.5 240.5
Injection quantity adjustment
Adjusting point
A
Rack position
R1(7.9)
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
30
29
31
Max. variation between cylinders
%
0
-2.5
2.5
Basic
*
Fixing the lever
*
Injection quantity adjustment_02
Adjusting point
-
Rack position
6.4+-0.5
Pump speed
r/min
425
425
425
Average injection quantity
mm3/st.
6.6
5.6
7.6
Max. variation between cylinders
%
0
-14
14
Fixing the lever
*
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.
Adjust only variation between cylinders; adjust governor according to governor specifications.
Injection quantity adjustment_03
Adjusting point
C
Rack position
11+-0.5
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
49
45
53
Fixing the lever
*
Rack limit
*
Test data Ex:

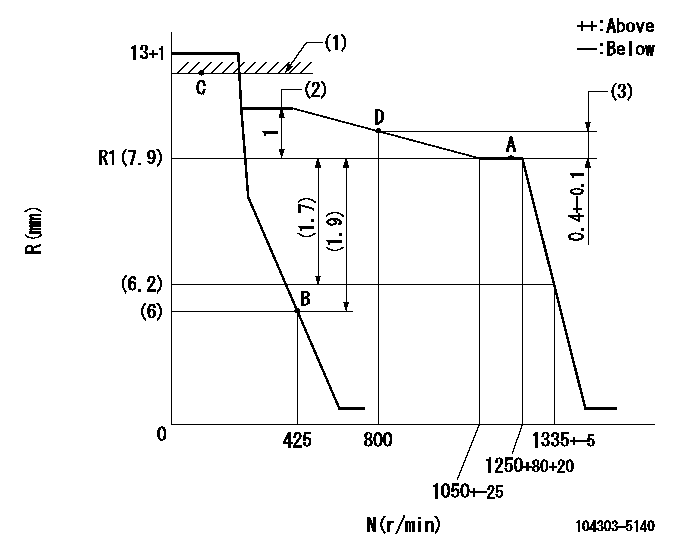

Governor adjustment
N:Pump speed
R:Rack position (mm)
(1)RACK LIMIT
(2)Torque control stroke
(3)Rack difference between N = N1 and N = N2
----------
N1=1250r/min N2=800r/min
----------
----------
N1=1250r/min N2=800r/min
----------
Speed control lever angle
F:Full speed
I:Idle
(1)Stopper bolt setting
----------
----------
a=12deg+-3deg b=21deg+-6deg
----------
----------
a=12deg+-3deg b=21deg+-6deg
Timing setting
(1)Pump vertical direction
(2)Position of gear mark '00' at No 1 cylinder's beginning of injection
(3)B.T.D.C.: aa
(4)-
----------
aa=18deg
----------
a=(110deg)
----------
aa=18deg
----------
a=(110deg)
Information:
14. Put clean engine oil on the camshaft bearings and on camshaft (21). Install camshaft as shown. 15. Install camshaft gear (22) and retainer (23). Install the three bolts. 16. Put clean engine oil on lifters (25). Install lifters (25) and spacers (24) for each of the injection pumps. Be sure the lifters and spacers are put in their original location. 17. Put clean engine oil on the left and right fuel racks. Install left rack in the pump housing with the groove in the rack engaged with the tab of the rack bearing. Install right rack (26) with the groove in the rack engaged with the tab of the rack bearing. 18. Install dowel (27) in the pump housing until it is extended 12.2 0.5 mm (.48 .02 in) from the surface of the pump housing.19. Install link (29) and bracket assembly (30). Install bolt (28). Be careful so bracket (30) does not turn as bolt (28) is tightened. 20. Install Tool (E) in the injection pump housing to hold the racks in the center (zero) position.21. Put the space in gear segment (32) in alignment with the groove in pump barrel (31). Put the injection pump straight down into the housing bore with the space in gear segment (32) engaged with the pin in the lifter and the groove in barrel (31) engaged with the dowel in the pump housing. Use Tool (F) to install the pump. 22. Install seal (33) and bushing (34) in the pump housing bore. If the injection pump is in the correct position, bushing (34) will turn into the threads of the pump housing with the fingers until it is even with the housing.23. Tighten bushings (34) to a torque of 205 14 N m (150 10 lb ft) with Tool (G). 24. Install a felt washer (35) and protection caps for each injection pump. For more detail see the topic "Install Fuel Injection Pumps" in this module. 25. Heat gear (36) to a maximum temperature of 232°C (450°F) and install it on the shaft. 26. Install bearing in housing (37) with Tooling (C). 27. Install shaft and gear assembly (40) in fuel injection housing. Install gasket (39) on housing. Install small cover (38). Install housing (37) on fuel injection housing with the bolts that hold it. 28. Install fuel transfer pump (41) in housing (37) with the bolts that hold it. 29. If replacement of the dowels (43) in the governor plate is necessary, see illustration A42792P1 for correct installation dimensions. 30. Install bearing (42) for drive gear with Tooling (C) until it is 0.51 mm (.020 in) from the top surface of the governor plate. 31. Install drive gear (44), install ring (45) with Tool (H). 32. Install O-ring seals (47) on cylinder (46). 33. Install cylinder (46) in governor plate with the notch in the cylinder in alignment with the bolt hole in the governor plate. 34. Install O-ring seal (49) on sleeve (51).
