104303-4031 ZEXEL INJECTION-PUMP ASSEMBLY Calibration Data 1043034031 131016720




Information injection-pump assembly

ZEXEL 104303-4031 1043034031
ISHIKAWAJIMA-S 131016720 131016720
104303-4031 INJECTION-PUMP ASSEMBLY
Rating:
79
Buy INJECTION-PUMP ASSEMBLY 104303-4031 zexel genuine, new aftermarket engine parts with delivery

Service parts 104303-4031 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 104300-3240
3. GOVERNOR
4. SUPPLY PUMP 105248-0160
5. AUTOM. ADVANCE MECHANIS
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105141-2351
11. Nozzle and Holder 13140 62 51
12. Open Pre:MPa(Kqf/cm2) 11.8{120}
13. NOZZLE-HOLDER 105071-1401
14. NOZZLE 105000-1880
15. NOZZLE SET

Include in #1:

104303-4031 as INJECTION-PUMP ASSEMBLY

Cross reference number

ZEXEL 104303-4031 1043034031
ISHIKAWAJIMA-S 131016720 131016720


Zexel num
Bosch num
Firm num
Name
104303-4031

131016720  ISHIKAWAJIMA-S
INJECTION-PUMP ASSEMBLY
H843 * K 14BV PES3K PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-2-3
Pre-stroke mm   1.95 1.9 2
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cyl.1-2
deg.   120 119.5 120.5
Difference between angles 2
Cal 1-3
deg.   240 239.5 240.5
Injection quantity adjustment
Adjusting point   A
Rack position   9.8
Pump speed r/min   800 800 800
Average injection quantity mm3/st.   30.5 29.5 31.5
Max. variation between cylinders %   0 -3 3
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   B
Rack position   7.4
Pump speed r/min   375 375 375
Average injection quantity mm3/st.   6 5 7
Max. variation between cylinders %   0 -14 14
Fixing the lever   *
Injection quantity adjustment_03
Adjusting point   D
Rack position   12+1
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   40 40
Fixing the lever   *

Test data Ex:

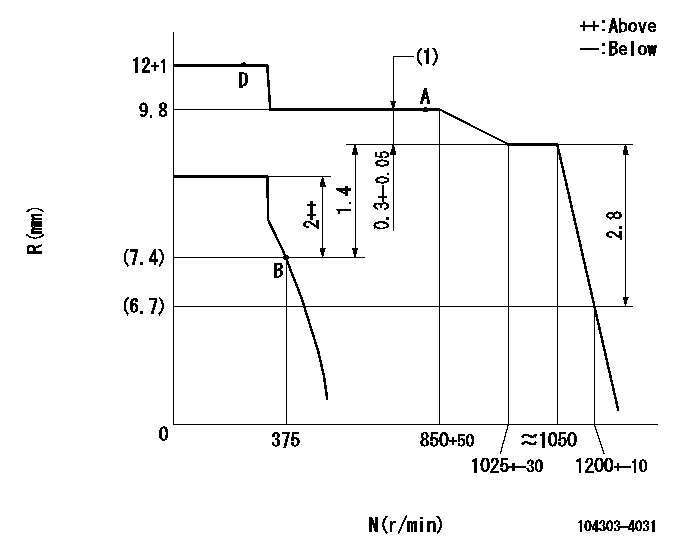

Governor adjustment

Test data 104303-4031
N:Pump speed R:Rack position (mm) (1)Torque control stroke
----------

----------

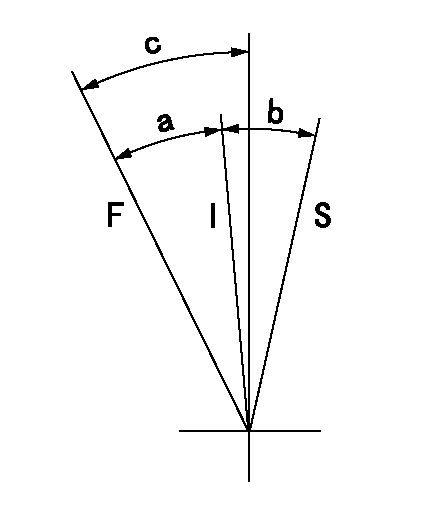

Speed control lever angle

Test data 104303-4031
F:Full speed I:Idle S:Stop
----------

----------
a=10deg+-6deg b=15deg+-5deg c=20deg+-3deg




Information:

Start By:a. remove timing gear cover1. Time the engine as follows:a. Install Tool (A) in the flywheel housing.b. Remove the cover from the side of the fuel injection pump housing so the timing pin can be installed. Remove the plug from the flywheel housing so the timing bolt can be installed.c. Turn the engine in the direction of engine rotation until Tool (B) can be installed in fuel injection pump housing and located in the groove in the fuel injection pump camshaft, a 3/8" - 16 NC bolt can be installed in the flywheel through the hole in the flywheel housing, and the "C" marks on the crankshaft gear and the camshaft gear are in alignment with each other. 2. Loosen bolt (1) until there is approximately 3.18 mm (.125 in) gap between washer (2) and fuel pump drive gear (3).3. Install Tool (C) as shown, and loosen the fuel pump drive gear from the taper on the fuel injection pump camshaft. Remove Tool (C), the bolt, washer and fuel pump drive gear.4. Remove the bolts and plate (4) that hold idler gear (5) in position. Remove the idler gear. If necessary, remove the bearing from the idler gear with Tool (D) and a press.
Do not turn the crankshaft after camshaft gear (6) has been removed. Turning the crankshaft will cause damage to the valves.
5. Remove the four bolts that hold camshaft gear (6) to the camshaft. Remove the camshaft gear.Install Timing Gears
1. Make an alignment of the "C" marks on crankshaft gear (3) and camshaft gear (4). Install the camshaft gear and the bolts that hold it. Tighten the bolts to a torque of 55 7 N m (41 5 lb ft).2. Install the bearing in idler gear (1) with Tool (A). The end of the bearing must be 1.52 mm (.060 in) below the face of the gear hub after installation.3. Be sure the oil hole in the shaft for idler gear (1) is open. Put idler gear (1) and plate (2) in position on the shaft. Install the bolts that hold them. 4. Make sure Tool (C) is in position in the groove of the fuel injection pump camshaft.5. Put fuel injection pump drive gear (5) in position on the fuel injection pump camshaft. Put washer (6) in position on the gear with the largest diameter toward the front of the engine. Install bolt (7), and tighten it to a torque of 7 N m (5 lb ft). Make sure bolt (7) does not turn while the flywheel is being turned.6. Remove the timing bolt from the flywheel, and use Tool (B) to turn the flywheel in the opposite direction of engine rotation. Turn the flywheel until the "C" mark on the crankshaft gear moves 30°.7. Turn the flywheel in the direction of engine rotation until the timing bolt can be installed in the flywheel and the "C" marks are in alignment. This will remove all of the backlash from the timing gears.8.
