104303-3501 ZEXEL 9 400 611 139 BOSCH INJECTION-PUMP ASSEMBLY 9400611139 1043033501 62156000500c

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 611 139 9400611139

ZEXEL 104303-3501 1043033501

ISEKI 62156000500C 62156000500c

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104303-3501 zexel genuine, new aftermarket engine parts with delivery

Service parts 104303-3501 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 104300-6491

3. GOVERNOR

4. SUPPLY PUMP

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105141-2341

11. Nozzle and Holder

12. Open Pre:MPa(Kqf/cm2) 11.8{120}

13. NOZZLE-HOLDER 105071-1461

14. NOZZLE 105000-1770

15. NOZZLE SET

Include in #1:

104303-3501 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 611 139 9400611139

ZEXEL 104303-3501 1043033501

ISEKI 62156000500C 62156000500c

Zexel num

Bosch num

Firm num

Name

104303-3501

9 400 611 139

62156000500C ISEKI

INJECTION-PUMP ASSEMBLY
E3AD1 * K 14BV INJECTION PUMP ASSY PES3K PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-2

Pre-stroke mm 2.1 2.05 2.15

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 2
Cyl.1-2 deg. 240 239.5 240.5

Injection quantity adjustment

Adjusting point A

Rack position 8.9

Pump speed r/min 1300 1300 1300

Average injection quantity mm3/st. 35 34 36

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point -

Rack position 6.4+-0.5

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 6.5 5.5 7.5

Max. variation between cylinders % 0 -14 14

Fixing the lever *

Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03

Adjusting point C

Rack position 13+1

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 40 40

Fixing the lever *

Test data Ex:

Governor adjustment

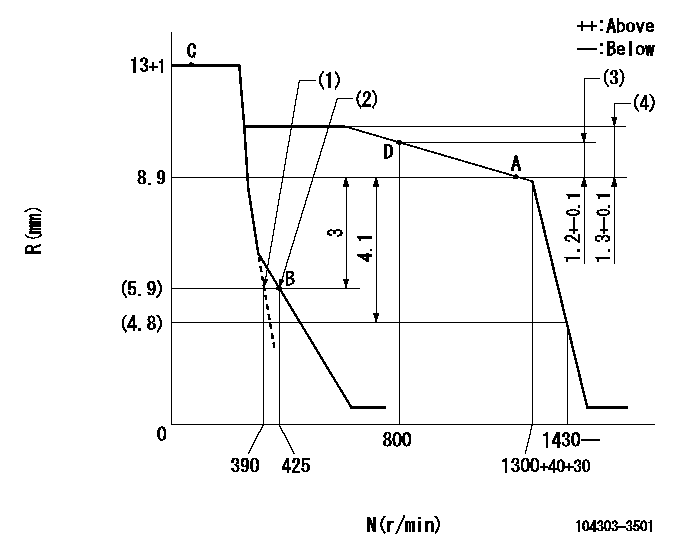

N:Pump speed R:Rack position (mm) (1)Set the idle spring. (2)Main spring setting (3)Rack difference from N = N1 (4)Rack difference between N = N2 and N = N3
----------
N1=1300r/min N2=1300r/min N3=500r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=7deg+-3deg b=31deg+-6deg

Stop lever angle

N:Pump normal S:Stop the pump.
----------

----------
a=10deg+-1deg b=(38deg)

Timing setting

(1)Pump vertical direction (2)Position of gear mark '00' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(110deg)
