104303-3460 ZEXEL 9 400 613 460 BOSCH INJECTION-PUMP ASSEMBLY 9400613460 1043033460 62156000310




Information injection-pump assembly

BOSCH 9 400 613 460 9400613460
ZEXEL 104303-3460 1043033460
ISEKI 62156000310 62156000310
104303-3460 INJECTION-PUMP ASSEMBLY
Rating:
59
Buy INJECTION-PUMP ASSEMBLY 104303-3460 zexel genuine, new aftermarket engine parts with delivery

Service parts 104303-3460 INJECTION-PUMP ASSEMBLY:

1. _
2. FUEL INJECTION PUMP 104300-6350
3. GOVERNOR
4. SUPPLY PUMP 105248-1011
5. AUTOM. ADVANCE MECHANIS
6. COUPLING PLATE
7. COUPLING PLATE
8. _
9. _
10. NOZZLE AND HOLDER ASSY 105141-2340
11. Nozzle and Holder
12. Open Pre:MPa(Kqf/cm2) 11.8{120}
13. NOZZLE-HOLDER 105071-1460
14. NOZZLE 105000-1770
15. NOZZLE SET

Include in #1:

104303-3460 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 613 460 9400613460
ZEXEL 104303-3460 1043033460
ISEKI 62156000310 62156000310


Zexel num
Bosch num
Firm num
Name
104303-3460
9 400 613 460
62156000310  ISEKI
INJECTION-PUMP ASSEMBLY
E3AD1 K 14BV INJECTION PUMP ASSY PES3K PE

Calibration Data:

Adjustment conditions
Test oil
1404 Test oil
  ISO4113 or {SAEJ967d}
Test oil temperature degC   40 40 45
Nozzle and nozzle holder   105780-8140
Bosch type code   EF8511/9A
Nozzle   105780-0000
Bosch type code   DN12SD12T
Nozzle holder   105780-2080
Bosch type code   EF8511/9
Opening pressure MPa   17.2
Opening pressure kgf/cm2   175
Injection pipe
Outer diameter - inner diameter - length (mm)
mm   6-2-600
Tester oil delivery pressure kPa   157 157 157
Tester oil delivery pressure kgf/cm2   1.6 1.6 1.6
Direction of rotation (viewed from drive side)
Right
  R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right
  R
Injection order   1-3-2
Pre-stroke mm   2.1 2.05 2.15
Beginning of injection position
Drive side
  NO.1
Difference between angles 1
Cal 1-3
deg.   120 119.5 120.5
Difference between angles 2
Cyl.1-2
deg.   240 239.5 240.5
Injection quantity adjustment
Adjusting point   A
Rack position   8.7
Pump speed r/min   1300 1300 1300
Average injection quantity mm3/st.   33.4 32.4 34.4
Max. variation between cylinders %   0 -2.5 2.5
Basic   *
Fixing the lever   *
Injection quantity adjustment_02
Adjusting point   -
Rack position   5.6+-0.5
Pump speed r/min   425 425 425
Average injection quantity mm3/st.   6.5 5.5 7.5
Max. variation between cylinders %   0 -14 14
Fixing the rack   *
Remarks
Adjust only variation between cylinders; adjust governor according to governor specifications.

Injection quantity adjustment_03
Adjusting point   C
Rack position   13+1
Pump speed r/min   100 100 100
Average injection quantity mm3/st.   40 40
Fixing the lever   *

Test data Ex:

Governor adjustment

Test data 104303-3460

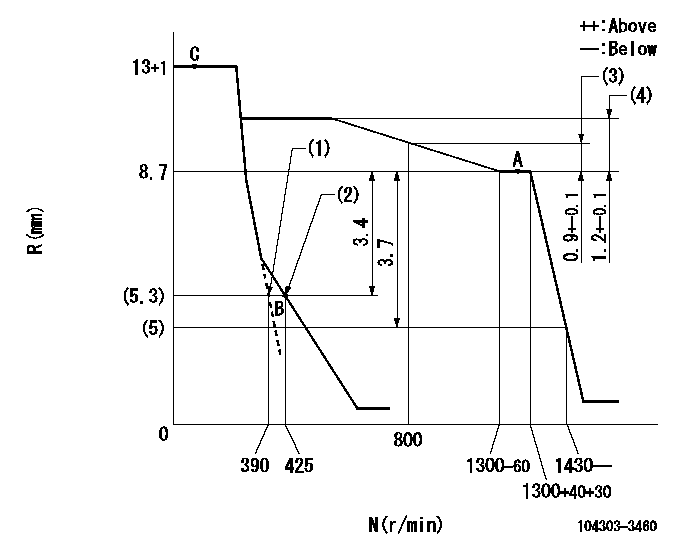

N:Pump speed R:Rack position (mm) (1)Set the idle spring. (2)Main spring setting (3)Rack difference from N = N1 (4)Rack difference between N = N2 and N = N3
----------
N1=1300r/min N2=1300r/min N3=500r/min
----------

Speed control lever angle

Test data 104303-3460
F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=7deg+-3deg b=31deg+-6deg

Timing setting

Test data 104303-3460
(1)Pump vertical direction (2)Position of gear mark '00' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(130deg)
