104303-2350 ZEXEL 9 400 616 434 BOSCH INJECTION-PUMP ASSEMBLY 9400616434 1043032350 62156000050

Information Cross number Calibration Data Calibration Data Ex

Information injection-pump assembly

BOSCH 9 400 616 434 9400616434

ZEXEL 104303-2350 1043032350

ISEKI 62156000050 62156000050

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104303-2350 zexel genuine, new aftermarket engine parts with delivery

Service parts 104303-2350 INJECTION-PUMP ASSEMBLY:

1. _

2. FUEL INJECTION PUMP 104300-3680

3. GOVERNOR

4. SUPPLY PUMP 105248-1011

5. AUTOM. ADVANCE MECHANIS

6. COUPLING PLATE

7. COUPLING PLATE

8. _

9. _

10. NOZZLE AND HOLDER ASSY 105141-1981

11. Nozzle and Holder 6515300-1100E

12. Open Pre:MPa(Kqf/cm2) 11.8{120}

13. NOZZLE-HOLDER 105071-1261

14. NOZZLE

105000-1010

15. NOZZLE SET

Include in #1:

104303-2350 as INJECTION-PUMP ASSEMBLY

Cross reference number

BOSCH 9 400 616 434 9400616434

ZEXEL 104303-2350 1043032350

ISEKI 62156000050 62156000050

Zexel num

Bosch num

Firm num

Name

104303-2350

9 400 616 434

62156000050 ISEKI

INJECTION-PUMP ASSEMBLY
E3AF1 * K 14BV PES3K PE

Calibration Data:

Adjustment conditions

Test oil
1404 Test oil ISO4113 or {SAEJ967d}

Test oil temperature degC 40 40 45

Nozzle and nozzle holder 105780-8140

Bosch type code EF8511/9A

Nozzle 105780-0000

Bosch type code DN12SD12T

Nozzle holder 105780-2080

Bosch type code EF8511/9

Opening pressure MPa 17.2

Opening pressure kgf/cm2 175

Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600

Tester oil delivery pressure kPa 157 157 157

Tester oil delivery pressure kgf/cm2 1.6 1.6 1.6

Direction of rotation (viewed from drive side)
Right R

Injection timing adjustment

Direction of rotation (viewed from drive side)
Right R

Injection order 1-3-2

Pre-stroke mm 2.1 2.05 2.15

Beginning of injection position
Drive side NO.1

Difference between angles 1
Cal 1-3 deg. 120 119.5 120.5

Difference between angles 2
Cyl.1-2 deg. 240 239.5 240.5

Injection quantity adjustment

Adjusting point A

Rack position 10.1

Pump speed r/min 700 700 700

Average injection quantity mm3/st. 28.4 27.4 29.4

Max. variation between cylinders % 0 -2.5 2.5

Basic *

Fixing the lever *

Injection quantity adjustment_02

Adjusting point B

Rack position 6.6+-0.5

Pump speed r/min 425 425 425

Average injection quantity mm3/st. 5.2 4.2 6.2

Max. variation between cylinders % 0 -14 14

Fixing the lever *

Injection quantity adjustment_03

Adjusting point C

Rack position 13+1

Pump speed r/min 100 100 100

Average injection quantity mm3/st. 38 38

Fixing the lever *

Test data Ex:

Governor adjustment

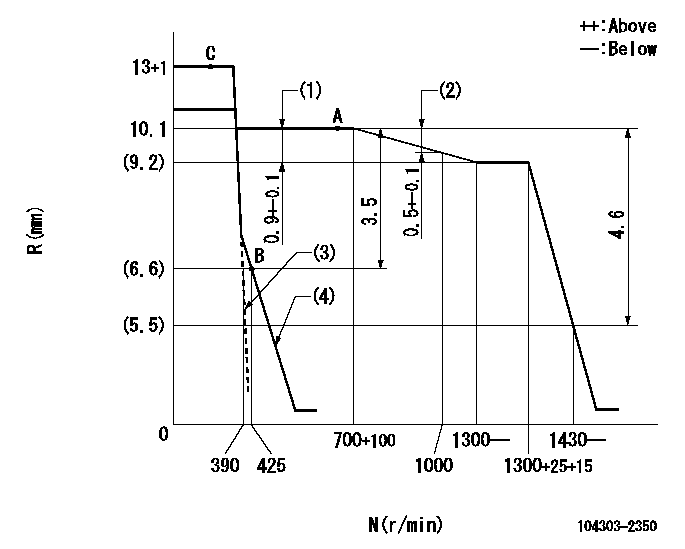

N:Pump speed R:Rack position (mm) (1)Rack difference between N = N1 and N = N2 (2)Rack difference between N = N3 and N = N4 (3)Set the idle spring. (4)Main spring setting
----------
N1=700r/min N2=1300r/min N3=700r/min N4=1000r/min
----------

Speed control lever angle

F:Full speed I:Idle (1)Stopper bolt setting
----------

----------
a=7deg+-3deg b=35deg+-6deg

Timing setting

(1)Pump vertical direction (2)Position of gear mark '00' at No 1 cylinder's beginning of injection (3)B.T.D.C.: aa (4)-
----------
aa=18deg
----------
a=(110deg)
